Description
The KI-362-SMA-II three-way trapezoidal array-capable (sixteen built-in 3/8” 16-thread fly points) loudspeaker is a value-engineered compact Tractrix® Horn-loaded system.
This is a special order. Delivery is estimated to be after 2-3 months from the time of order.
It is capable of superior performance in both permanent installation and production environments including theaters, auditoriums, music clubs, houses of worship, and A/V production environments.
To permit use at any mounting angle the KI-362-SMA-II’s midrange and high-frequency drivers are adjustable in 45° increments allowing 60° or 90° projection patterns to be chosen independent of the vertical horizontal or lateral orientation of the enclosure.
- Compact 22.5º symmetrical trapezoidal design
- User-rotatable midrange and HF module for optimized pattern control
- 16 suspension points for (4 per side) for flexible mounting and rigging bar compatibility
- 15” cast frame heavy-duty woofer
- 1.5” and 1” titanium midrange and high-frequency compression drivers
- Internal high current full-range crossover
- KLIP circuit Mid and HF driver protection device

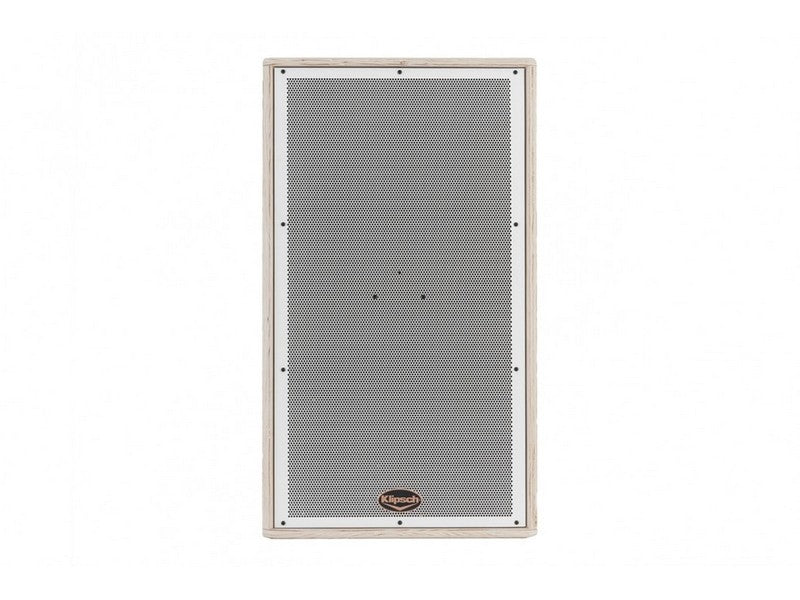

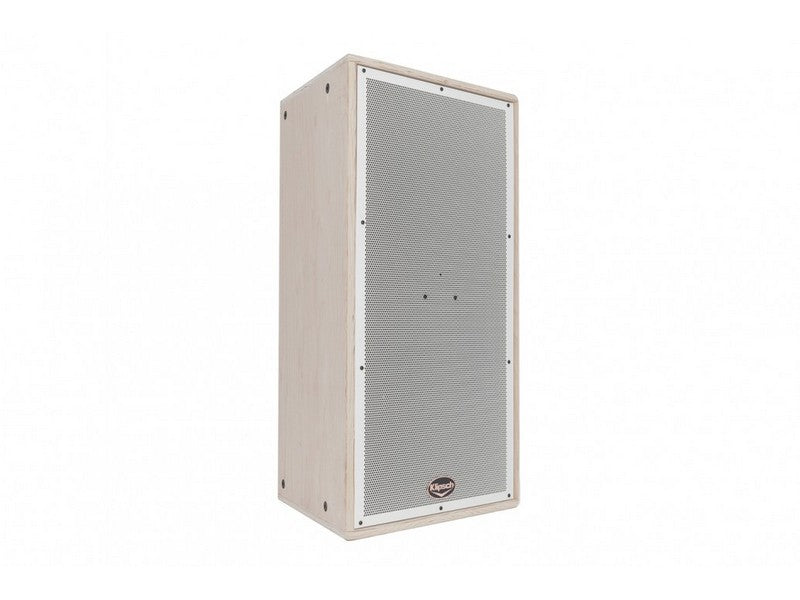

- Available in Black, White or Raw Birch finish
Applications
- A/V Production Environments
- Auditoriums and Houses of Worship
- Bars and Music Clubs
- Small/medium Sports Facilities
- Theme Parks and Leisure Venues
- Transportation Facilities
SPECIFICATIONS:
Frequency Response 54 Hz – 20 kHz (-10 dB @ 38 Hz)
Power Handling 400 watts (42V); 1600 watts peak
Maximum SPL 124 dB Continuous; 130 dB Peak
Sensitivity 101 dB
Coverage Horizontal: 90° +/- 30º 400 Hz – 16 kHz; Vertical: 60° +/- 20º 2.8 kHz – 20 kHz
Directivity Index (DI) 8 dB +/- 2 dB 500 Hz – 20 kHz
Directivity Factor (Q) 6.3
Nominal Impedance 8 Ohms, minimum 4.4 Ohms @ 106 Hz
Overload Protection KLIP Overload Protection Circuit-HF
Crossover Frequency 1.26 kHz and 6.8 kHz

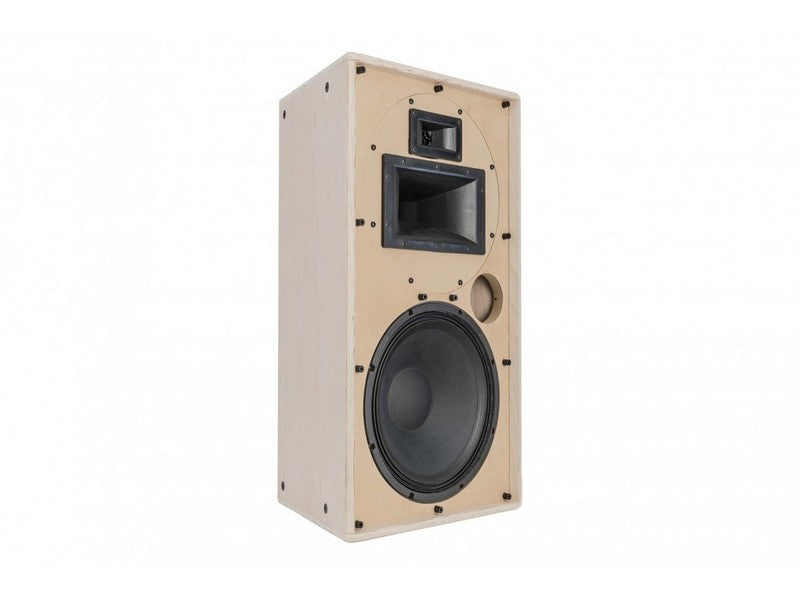

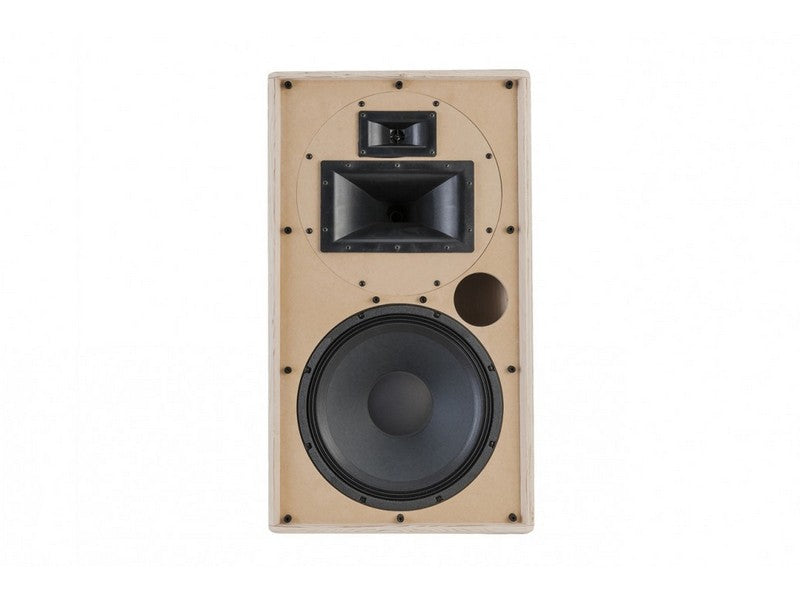

Components One K-48-ST 15″ woofer; One K-53-TI 1.5” titanium compression driver on a K-703-M horn; One K-100-TI 1” titanium compression driver on a K-79-T horn
Input Connection Two point barrier strip
Mounting Options Sixteen 3/8”-16 flypoints
Bracket Mount One attachment point for C-bracket; Top and Bottom: 3/8”-16
Enclosure Material 3/4″ 7-ply birch plywood cabinet; 1” MDF motorboard
Height 34.3” (87.12cm)
Width 19.8” (50.29cm) front; 6.8” (17.27cm) rear
Depth 16” (40.64cm)
Weight 70 lbs. (31.81kg)
Finishes Black, White and Raw Birch
