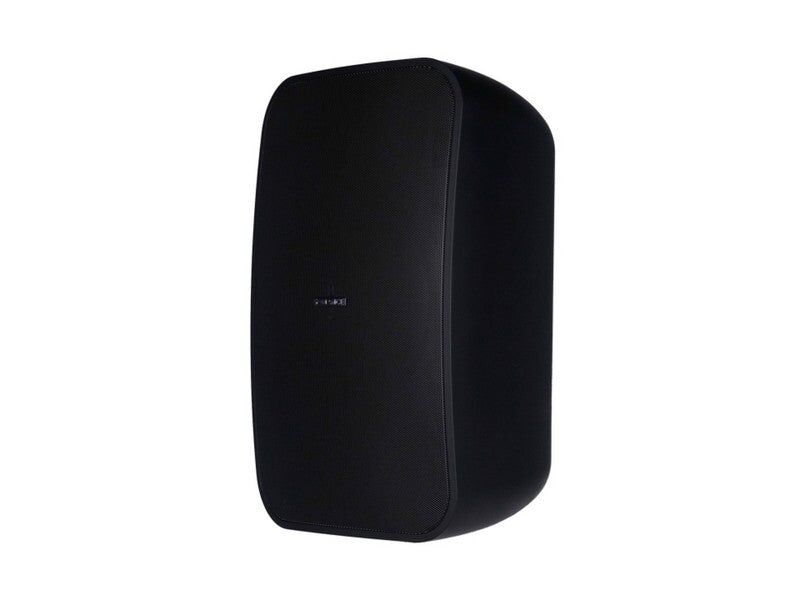

Sonance PS-S63T MKII 6.5″ Surface Mount Speaker Professional Series Each
Sonance Professional Series PS-S63T MKII Surface-Mount Loudspeakers feature the Patented FastMount bracket and front cable connection to speed up the installation process and provide a clean appearance.
The IPX4 rated construction features a high-impact, extreme temperature resistant cabinet and corrosion-resistant powder coated aluminum grille, lending itself perfectly in both indoor and outdoor applications.
A high-excursion 6.5” polypropylene woofer delivers effortless low bass extension, that exceeds many larger competitive products, while the chambered 1” soft dome tweeter provides accurate high-end detail and exceptional coverage.
A low saturation transformer delivers un-compromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.
Additionally, the Sonance PS-S63T MKII is UL 1480 (UEAY) and UL 2239 Listed.

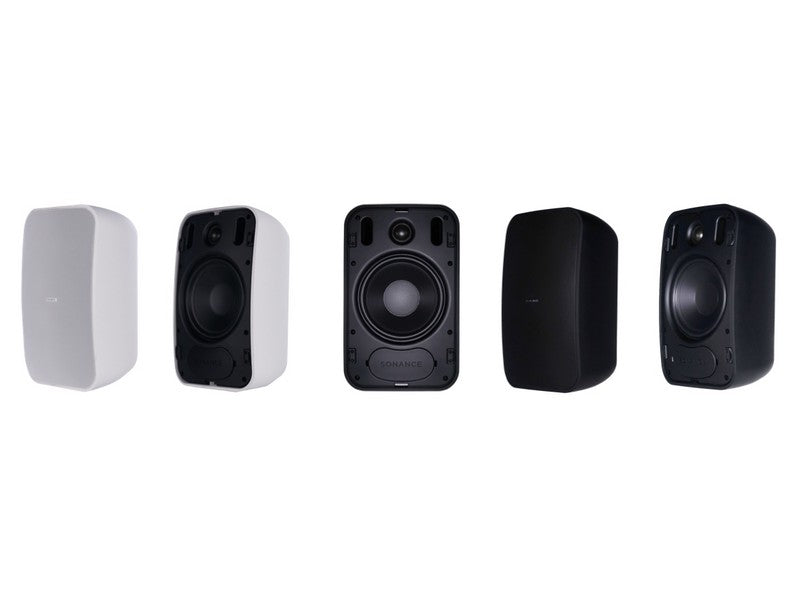

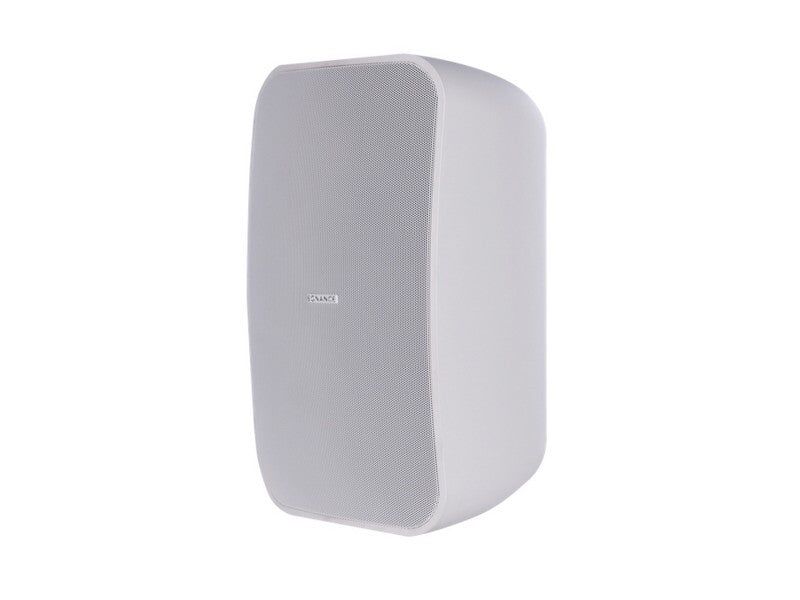

Available in either black or white (paintable).
SPECIFICATIONS:
- Frequency Range (-10dB) – 49Hz – 25kHz
- Frequency Range (-3dB) – 65Hz – 20kHz
- Power Capacity – 120 Watts Continuous Program Power | 60 Watts Continuous Pink Noise
- Nominal Sensitivity – 88dB
- Nominal Coverage Angle – 90 degrees x 90 degrees coverage
- Directivity Factor (Q – 6.5
- Directivity (DI) – 7.9dB
- Rated Maximum SPL – 108dB @ 1 meter (3.3 feet) average, 116dB peak
- Rated Impedance – 8 Ohms nominal, 6 Ohms minimum

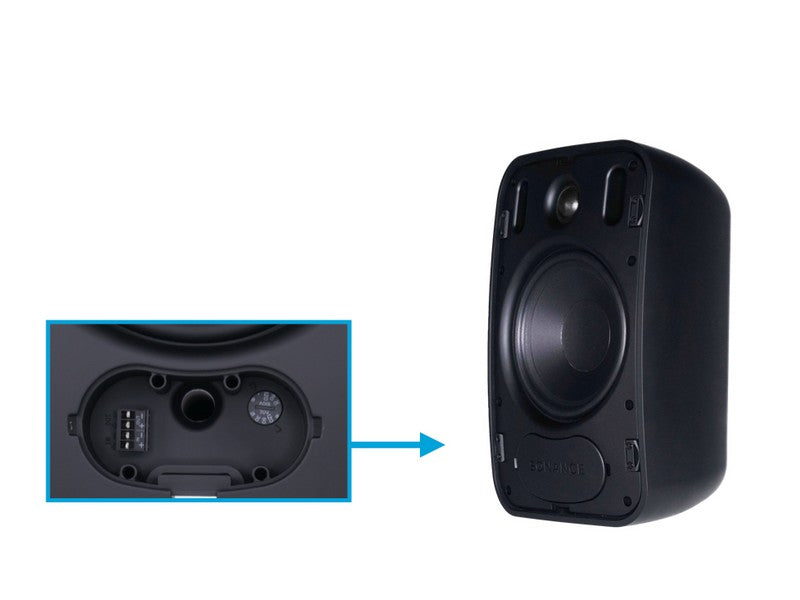

- Transformer Taps – 60W, 30W, 15W (7.5W 70V)
- Crossover Point – 2750Hz
- Overall Dimension – 12.14” Height x 7.51” Width x 6.86” Depth (309mm x 191mm x 174mm)
- Net Weight – 5 lbs (2.27kg) each
- Shipping Weight – 19 lbs (8.61kg) pair
- Unit of Measure – Pair (Single upon request)
- Color – Black or White
- Grille – Powder Coated Aluminum Friction Fit
- LF Driver – 6.5” (165mm) Polypropylene Cone, Butyl Rubber Surround
- HF Driver – 1” (25mm) Cloth Dome, Ferrofluid cooled
- Input Connectors – Front-mounted four pin, Euroblock with loop output connections
- Safety Agency – UL 1480, UL 2239
- Mounting Bracket – U-Bracket with Sonance FastMount
- Environmental & UV – Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating
