Description

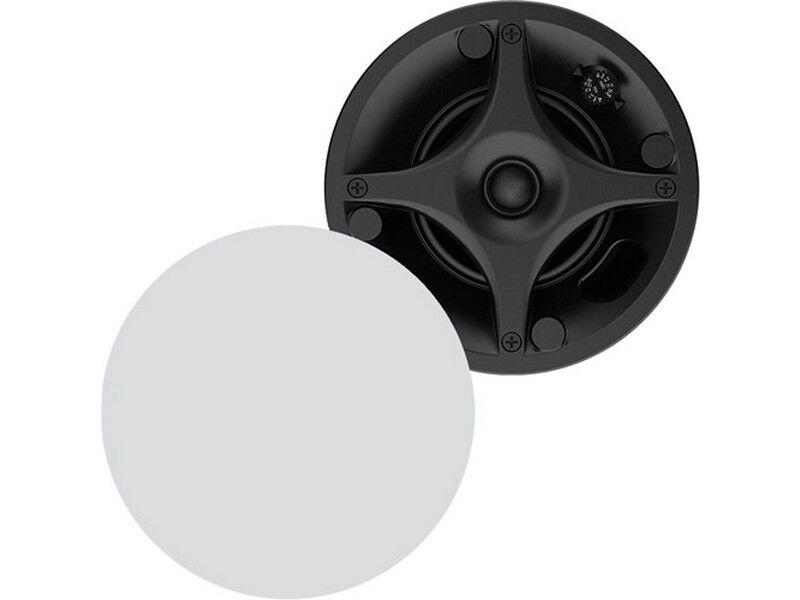

Sonance PS-C41RT 4″ Value-Positioned Medium In-ceiling Speaker White
Sonance Professional Series PS-C41RT is a 70V/100V/8 Ohm selectable In-Ceiling Speaker that features a one-piece bezel-less grille that is magnetically secured and allows for a one-step painting process to simplify installation and minimize visual distraction.
FEATURES:
- Tweeter: 0.75” (19mm) Cloth dome, ferrofluid cooled
- Woofer: 4″ (100mm) Polypropylene cone, Butyl rubber surround
- Frequency Range – 3dB: 95Hz – 20kHz
- Power Handling RMS: 60W program, 30W pink noise
- Sensitivity: 87 dB
- Taps: 25W, 12.5W, 6.3W, (3.2W 70V), 8 Ohm
- Termination: Removable locking clip-in connector
- Included Accessories: C-rings, tile rails, cutout template, white grilles
- Dimensions: 160mm diameter x 165mm depth • Cut-out diameter: 149mm
- Certifications: UL 1480A, UL 2043, NFPA90A & NFPA70
The optional Square Grille Adapter allows speakers to match the aesthetic of square downlights and HVAC grilles to achieve continual sight lines.
The PS-C41RT features a 4” polypropylene cone, butyl rubber surround woofer combined with a coaxially mounted .75” cloth dome, ferrofluid cooled high tweeter.
The PS-C41RT features extremely flat response for natural musically and intelligibility for voice, making it perfect for shopping malls, airports, schools, corporate, government, or anywhere an affordably-priced, aesthetically pleasing, and excellent sounding loudspeaker is required.
A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.
Additionally, the Sonance PS-C41RT is certified for UL2043, UL1480, as well as EN54-24.
SPECIFICATIONS:
- Frequency Range (-10dB): 70Hz – 25khz
- Frequency Range (-3dB): 95Hz – 20kHz
- Power Capacity: 60 Watts Continuous Program Power | 30 Watts Continuous Pink Noise
- Nominal Sensitivity: 87dB
- Nominal Coverage Angle: 120 degrees conical coverage
- Directivity Factor (Q): 7.6
- Directivity (DI): 8.1dB
- Rated Maximum SPL: 102dB @ 1 meter (3.3 feet) average, 108dB peak
- Rated Impedance: 8 Ohms nominal, 6 Ohms minimum
- Transformer Taps: 25W, 12.5W, 6.3W and (3.2W @70V)
- Crossover Point: 3000Hz
- Overall Dimensions: 6.3″ x 6.5” deep (160mm x 165mm)
- Cut Out Dimensions: 5.875″ Diameter (149mm)
- Net Weight: 5.0lbs (2.27kg) ea
- Shipping Weight: 21.55lbs (9.77kg) pair
- Unit of Measure: Pair (Single units upon request)
- Grille: Supplied with bezel-less white grille. Optional black grille, or square adapter with black or white grille
- LF Driver: 4″ (100mm) Polypropylene Cone, Butyl Rubber Surround
- HF Driver: .75″ (19mm) Cloth dome, Ferrofluid cooled
- Input Connector: Four pin, Euroblock with loop output connections
- Knockout: Single .75″ with cable relief
- Safety Agency: UL 2043, UL 1480, NFPA 90A and NFPA 70, S7232, (EN54-24 coming soon)
- Ceiling Thickness Range: .125” – 2.0” (3mm – 50mm)
- Suspension Points: One, on top surface
- Included Accessories: Bracket/Tile Bridge
