Description
Floor Standing Loudspeaker System

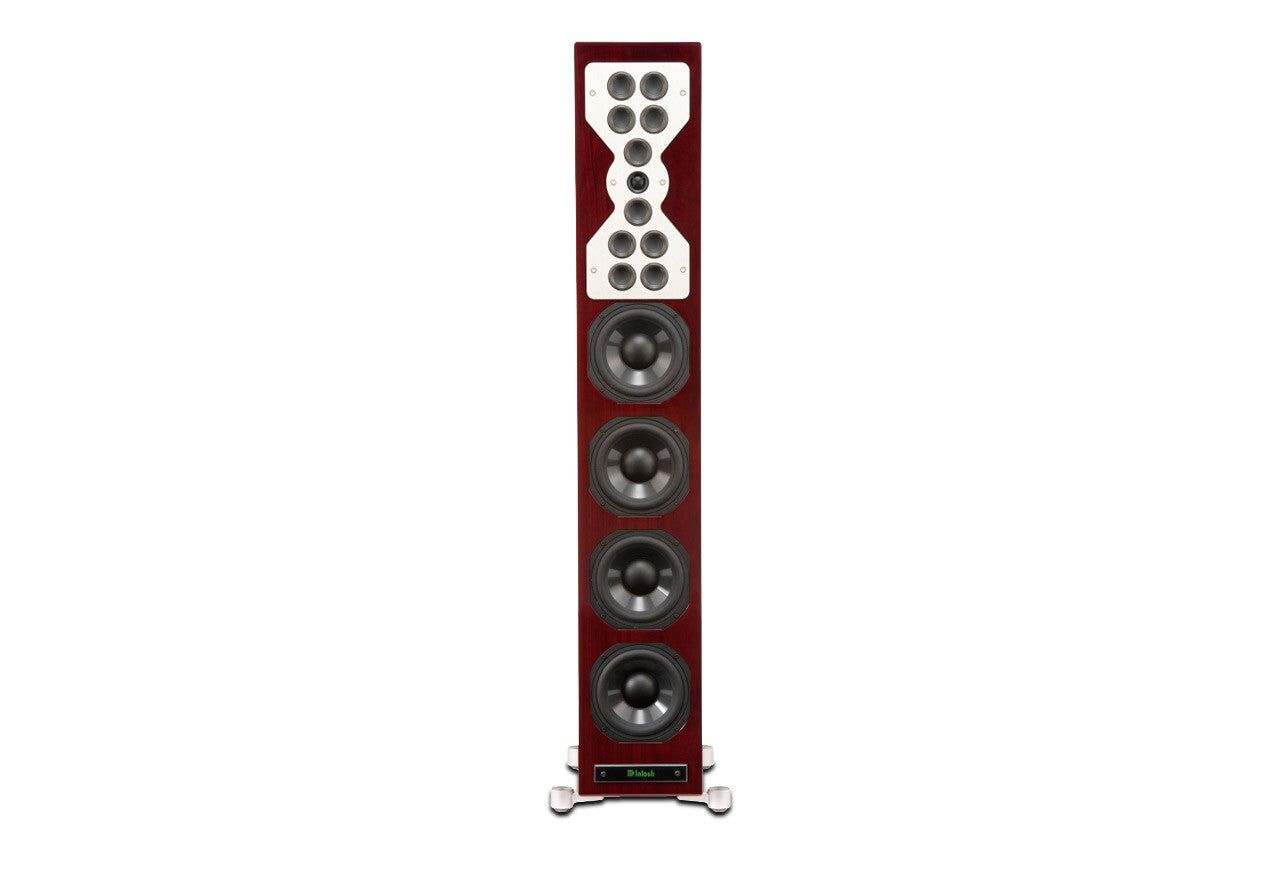

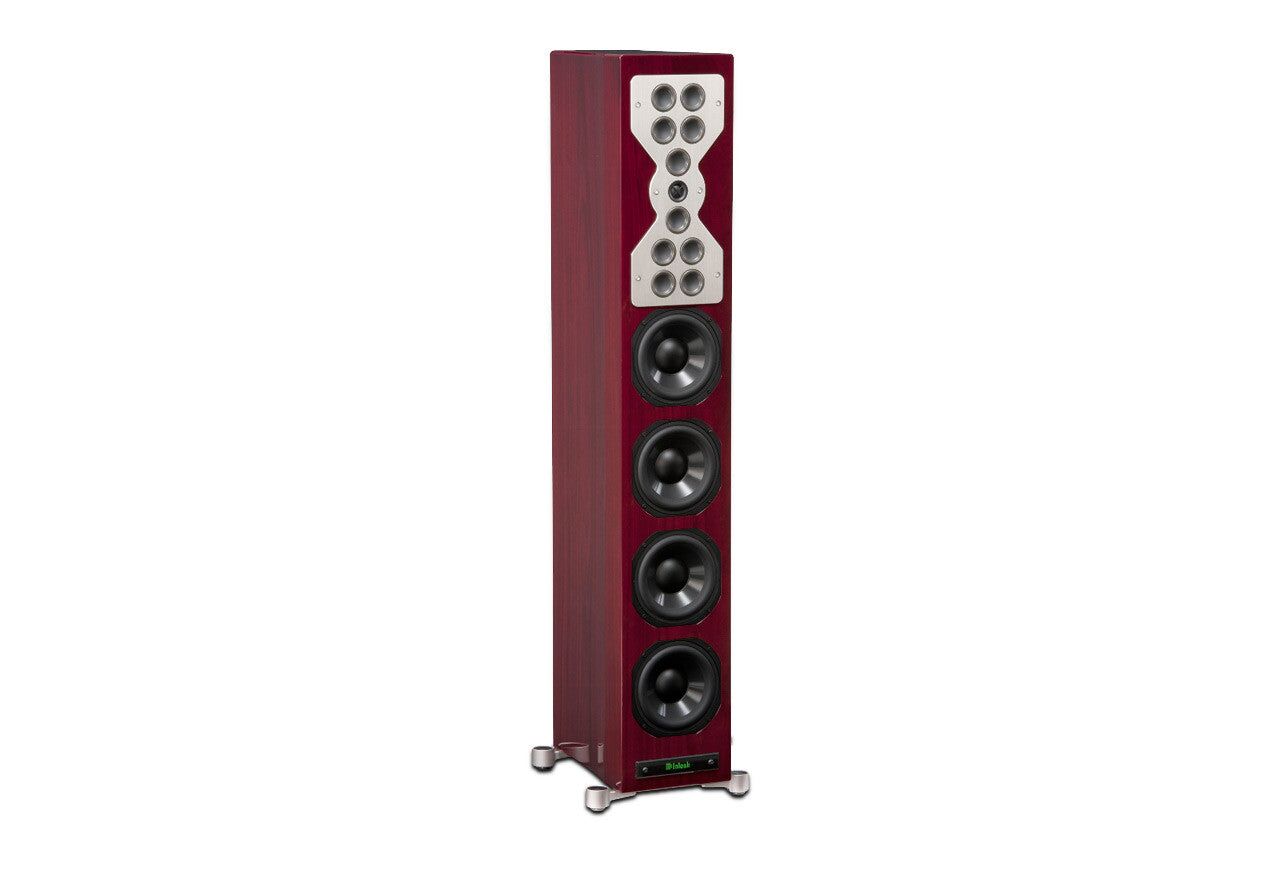

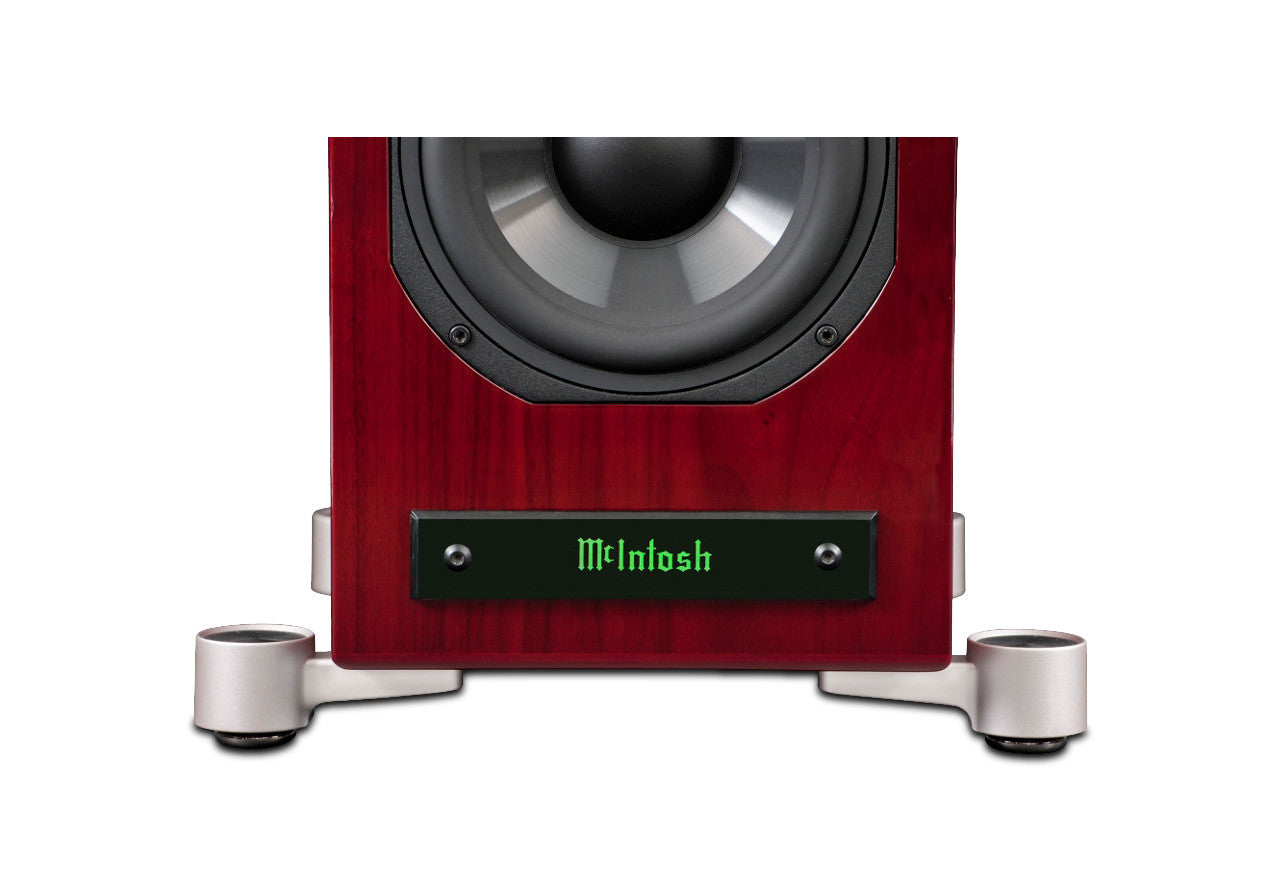

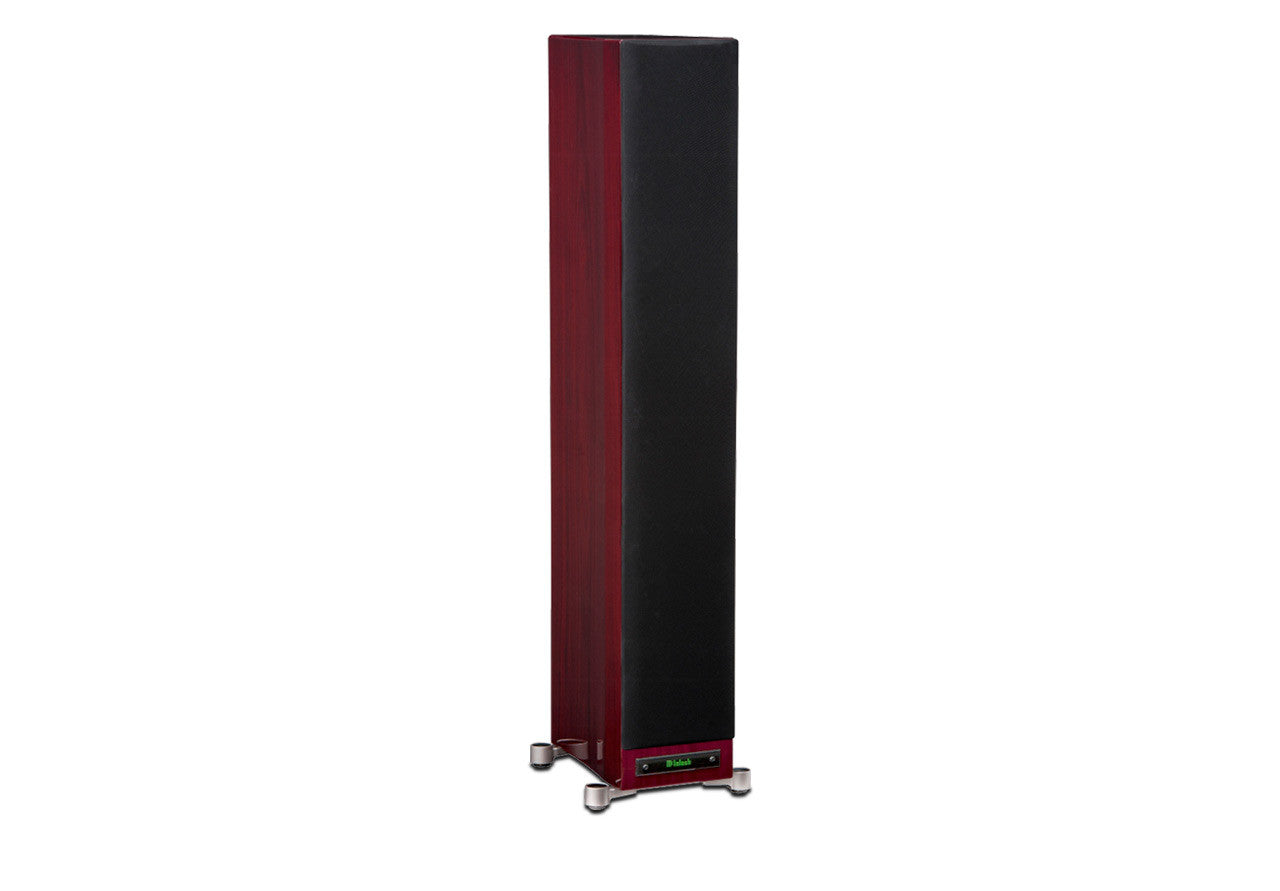

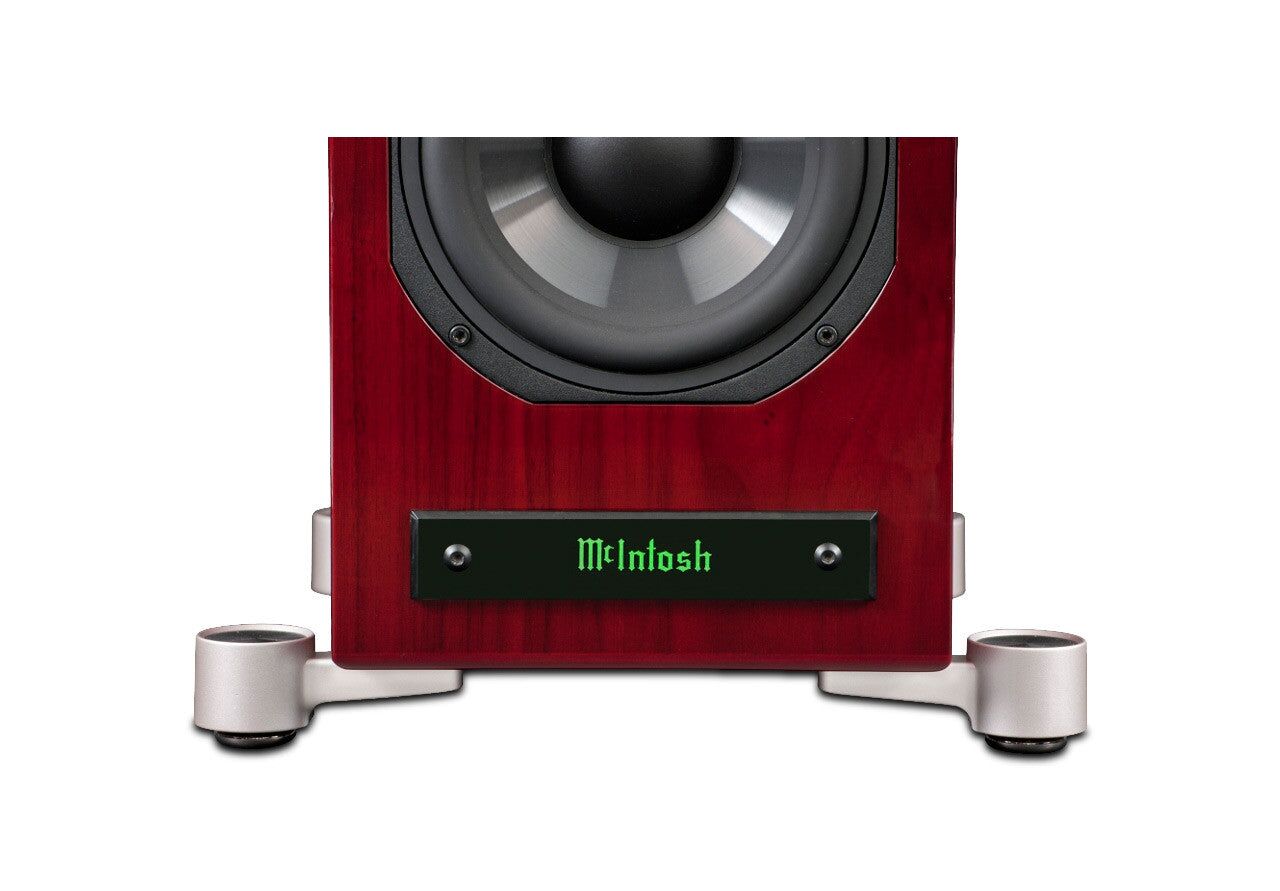

XR100 floor standing loudspeaker is sleek and contemporary in appearance while producing full range audio reproduction typical of much larger cabinet designs. Fine gloss wood finishes are offered in Black, Pear Maple, and Red Walnut. The magnetically attached grill is acoustically transparent and covered with neutral black cloth. Unique front panel McIntosh logo may be illuminated when configured with a McIntosh system. Spikes and furniture glide feet are included. Amplifiers from 75 to 600 watts are appropriate power for XR100 speakers.
ELECTRONIC SPECIFICATIONS
IMPEDANCE NOMINALÂ 8 Ohms
POWER RATINGÂ 75 to 600 Watts
FREQUENCY RESPONSEÂ 30Hz to 45kHz
SOUND PRESSURE LEVEL, 2.8V/1MÂ 87dB
CROSSOVERÂ 300Hz, 2kHz, 8kHz

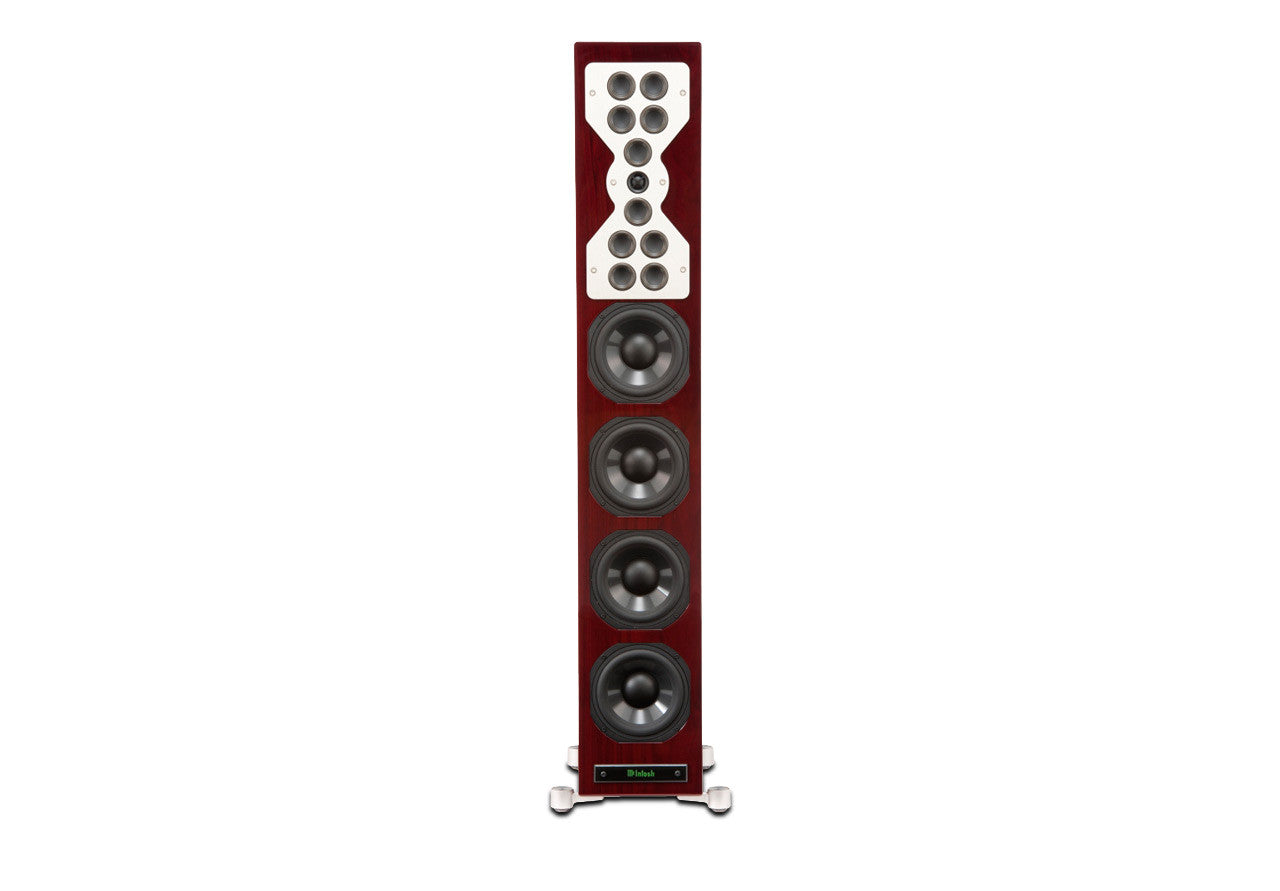

DRIVER SPECIFICATIONS
NUMBER OF WOOFERSÂ 4
WOOFER SIZEÂ 6″
WOOFER TYPE Cast Frame, LD/HP®, Poly Cone
NUMBER OF MIDRANGESÂ 10
MIDRANGE SIZEÂ 2″

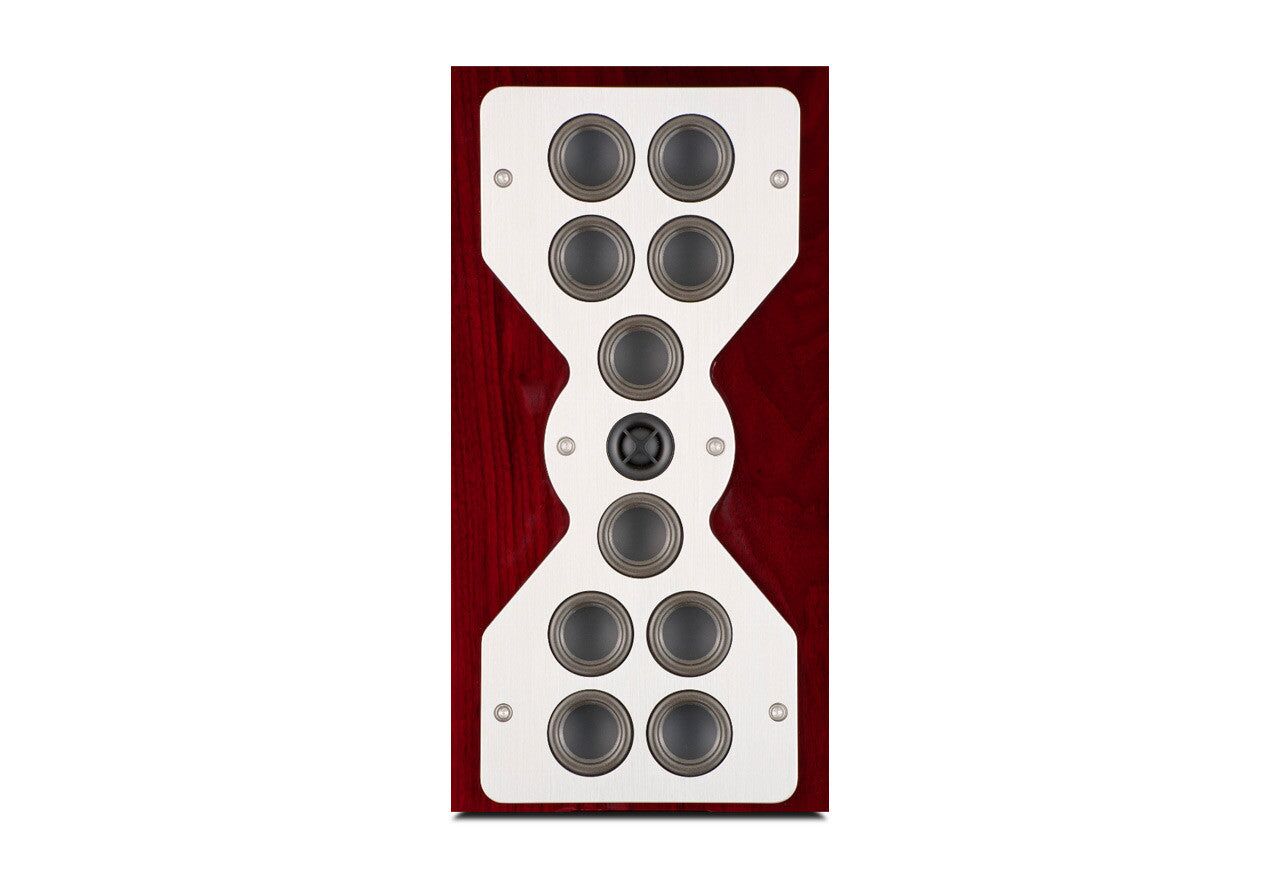

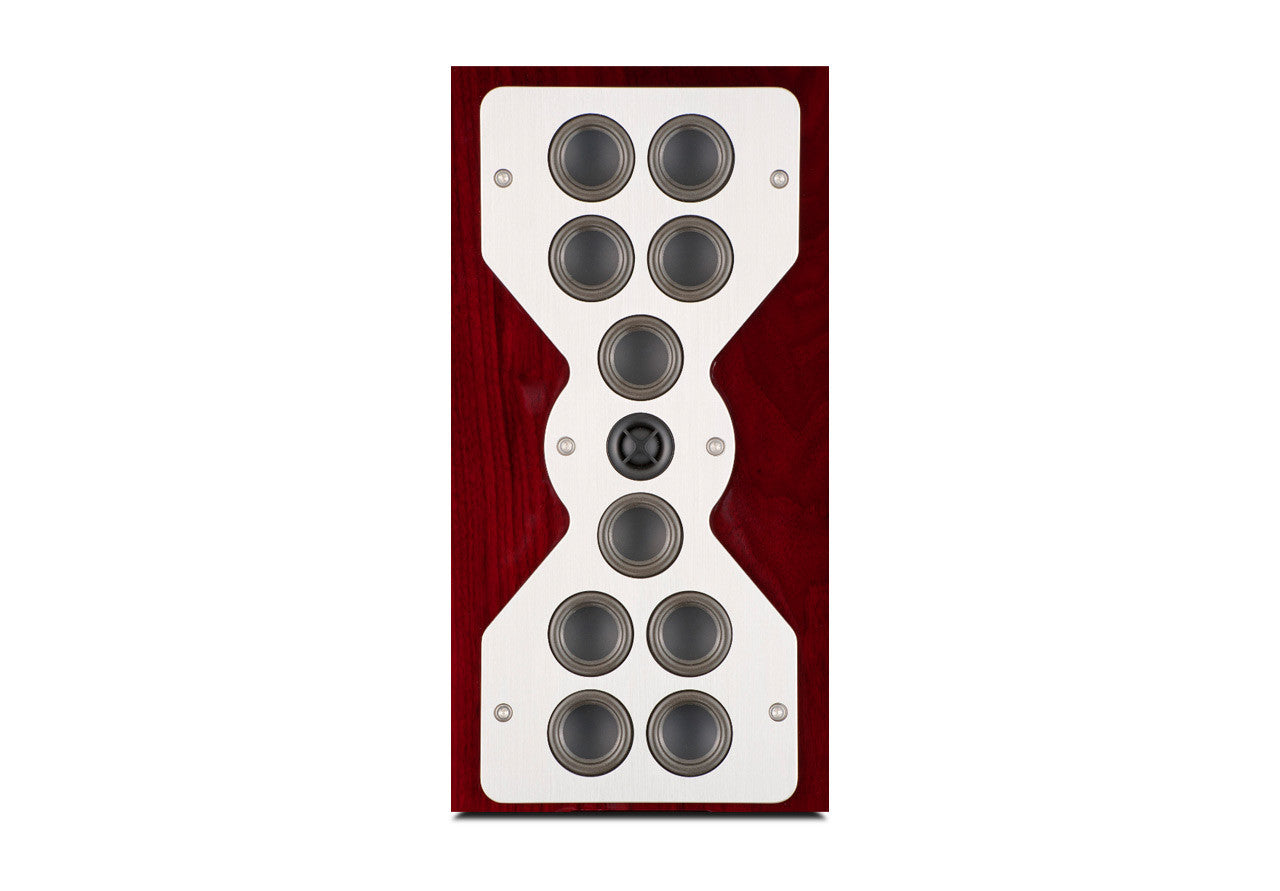

MIDRANGE TYPEÂ 8 Inverted Titanium Dome Midranges covering 300Hz to 2kHz, and 2 Inverted Titanium Dome Midrange-Tweeters covering 2kHz to 8kHz
NUMBER OF TWEETERSÂ 1
TWEETER SIZEÂ 3/4″
TWEETER TYPEÂ Titanium Dome
GENERAL SPECIFICATIONS

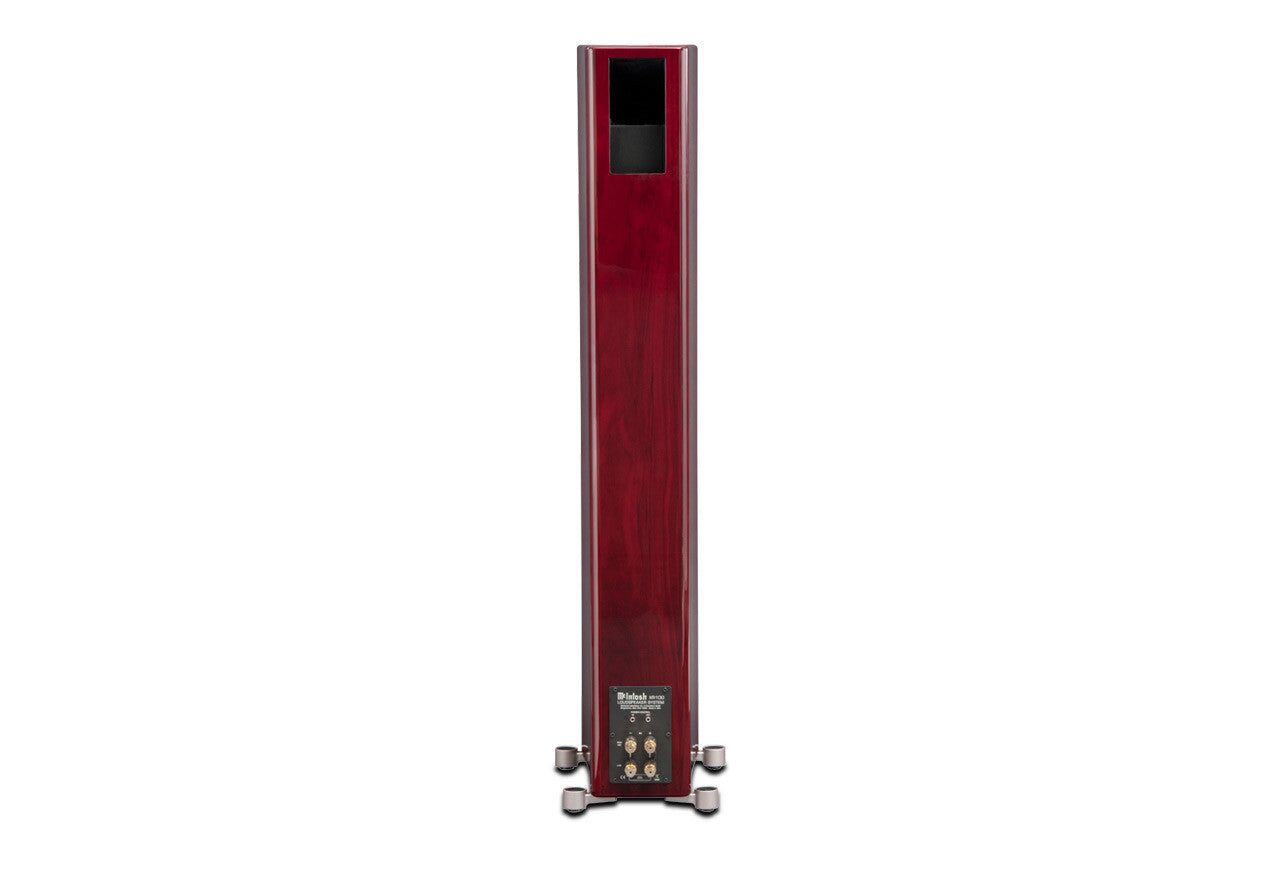

SYSTEM TYPEÂ Ported 4-Way Floor Standing

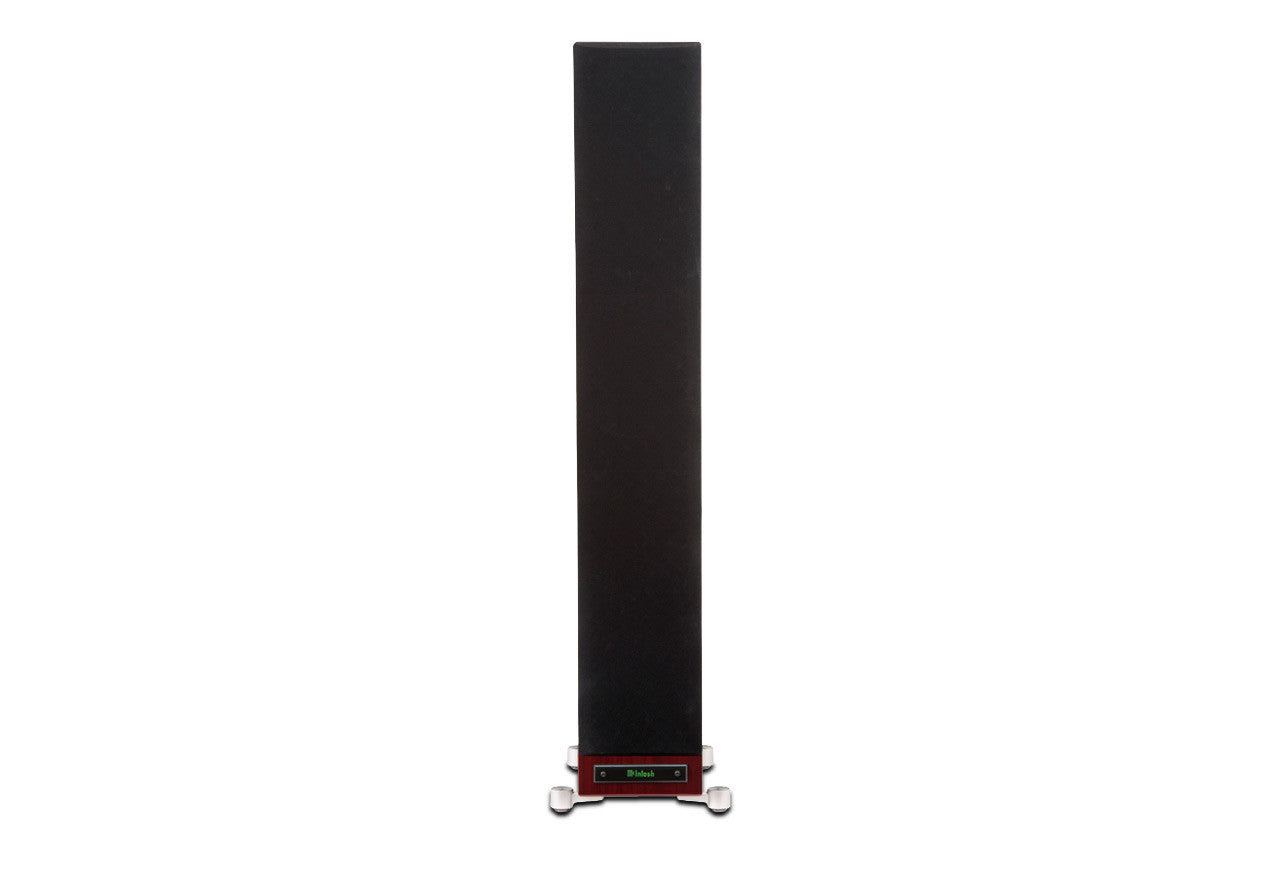

GRILLEÂ Black knit cloth, magnetically attached

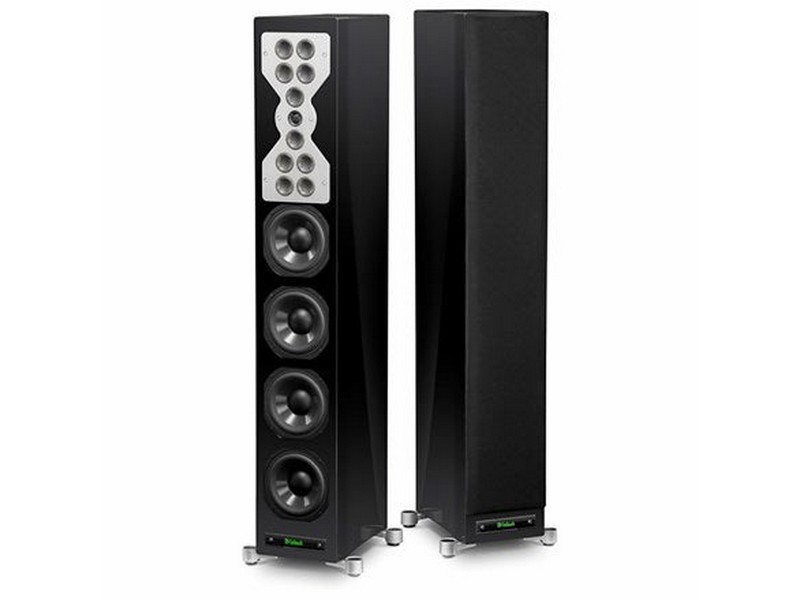

AVAILABLE FINISHESÂ Red Walnut, Black, Pear Maple
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)Â 8″ (20.3cm) x 51″ (129.5cm) x 18-1/2″ (46.9cm) (including cables and connectors)
WEIGHTÂ 68.5 lbs (31.1 kg)
SHIPPING WEIGHTÂ 83 lbs (37.6 kg)
