Description

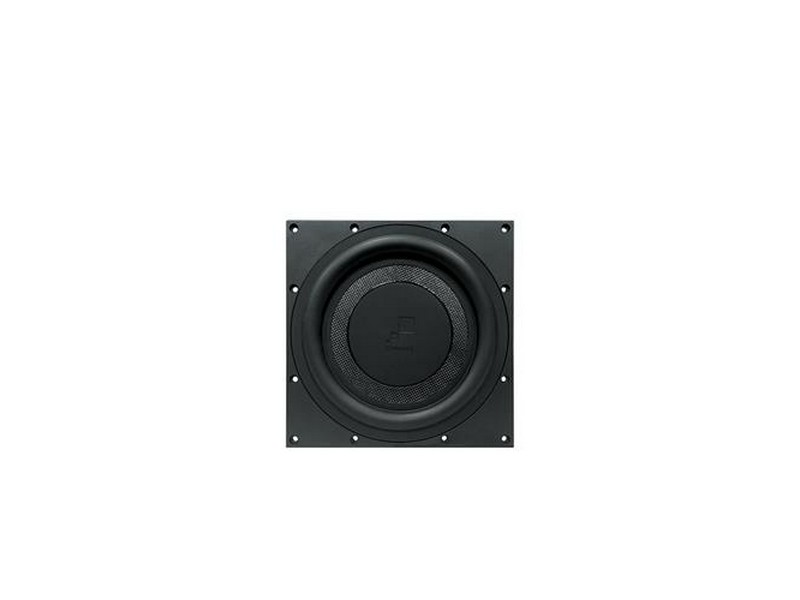

Sonance R10SUB In-wall Reference Series subwoofer (Each)
Created for AV Designers building systems that require the best surround sound available with a look that fits the space aesthetically, the Sonance Reference in-wall subwoofers provide a truly incredible sound without taking up floorspace. Engineered to give you an amazing cinema experience, Sonance Reference has options for in-wall, in ceiling and cabinet speakers.
Features:
Aesthetics
- Mix and match with Reference in-wall or in-ceiling speakers
- One-piece paintable grille to blend into your walls
- Available in 10” or 12” models to suit any sized room or available wall space
Performance
- 1.4lbs (.64kg) N38SH Neodymium Magnet
- Dual Spider Technology (DST) allows for increased movement
- 4 1/2” (115mm) precision-aligned voice coil with 1 1/2” (30mm) winding height
Installation
- Designed for installation during the construction or renovation process
- Enclosure is positioned behind the wall to deliver unprecedented performance with minimal visual intrusion
- Custom-tuned amplifiers ensure optimum sonic performance
R10SUB
- Width: 10 7/16” (265mm)
- Height: 10 7/16” (265mm)
- Depth: 3 5/32” (80mm)
- Width with grille: 13 1/16” (332mm)
- Height with grille: 13 1/16” (332mm)
- Depth with grille: 5/32” (4mm)
Specifications:
- Unit of Measure: Each
- Woofer: 10” (254mm) laminated carbon fiber cone with a rubber surround
- Frequency Response: 30Hz – 250Hz +/-3dB
- Impedance: 8 Ohms nominal
- Sensitivity: 88dB (2.83V/1) meter
- Grille Material: Perforated steel

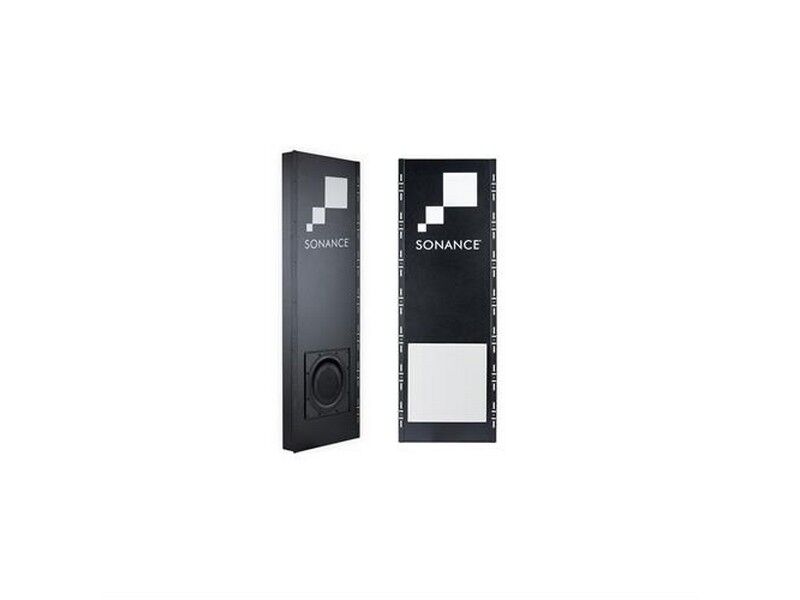

- Required Enclosure: R10SUB ENC acoustic enclosure (sold separately)
- Required Amplification: Sonance DSP 2-150 or Sonance DSP 8-130 MKII (Using two channels bridged)
