Description
Sonance VPSUB in-wall subwoofer Retro – no extra enclosure req 260W 8 Ohm (Each)
Designed to fit any new construction or retro-fit application in standard 3 1/2” deep wall cavities, the VPSUB delivers cabinet-level performance in a discreet in-wall form factor.
Features:
Aesthetics
- Sleek, low profile design consistent with Sonance Visual Performance Series
Performance

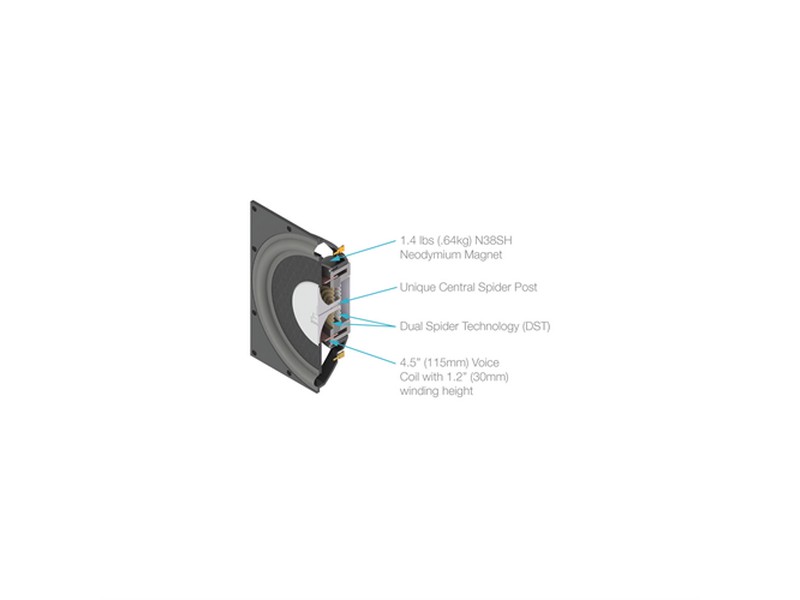

- Massive re-designed motor structure
- Dual Spider Technology (DST) for up to +/- 13mm of controlled linear excursion
- 4 1/2” (115mm) precision-aligned voice coil with 1 1/2” (38mm) winding height
- 1.4 lbs (.64kg) N38SH Neodymium magnet
- Custom-tuned DSP settings when paired with a Sonance DSP amplifier (sold separately)
Installation
- Designed to fit into a standard 3 1/2” wall cavity with 16” on-center stud configuration

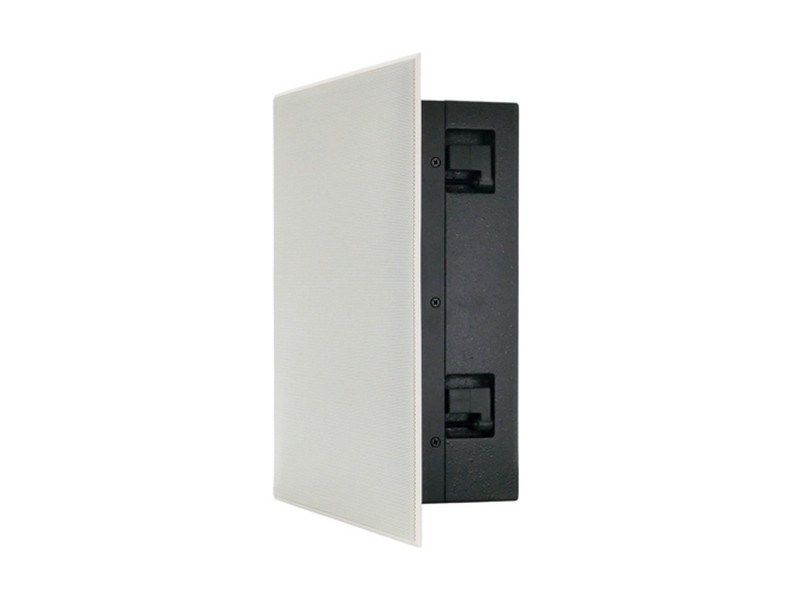

- Simplified single-step grille painting process
- Spring-loaded speaker wire terminals to accept standard wire or pin connector
Dimensions
- Width: 15” (381mm)
- Height: 15” (381mm)
- Depth: 3 7/8” (98mm)
- Cut Out Width: 12 3/4” (324mm)
- Cut Out Height: 12 3/4” (324mm)
Specifications:
-

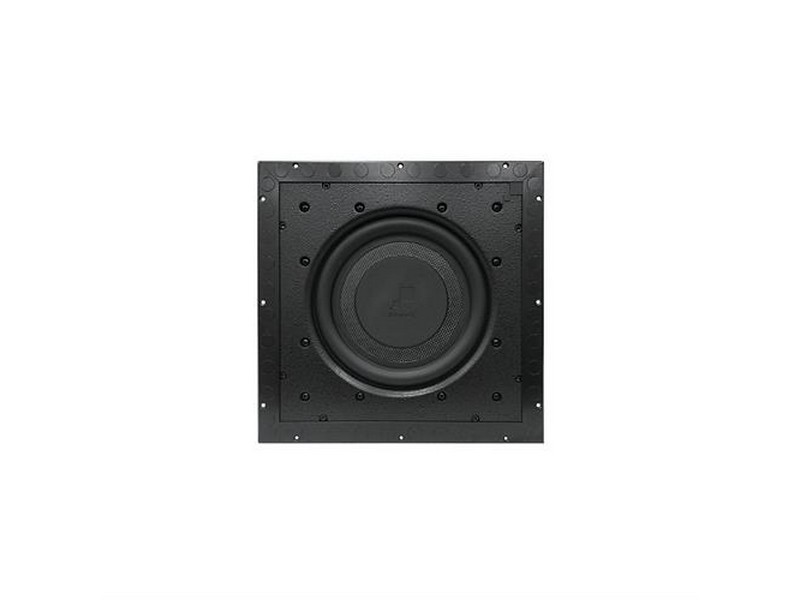

- Woofer: 10” (254mm) laminated carbon fiber cone with a rubber surround
- Frequency Response: 34Hz – 250Hz ±3dB
- Impedance: 8 Ohms nominal
- Sensitivity: 90dB SPL (2.83v/1 meter)
- Power Handling: 260 Watts
- Shipping Weight: 13 lbs (6kg) each
- Required Amplification:
Sonamp DSP 2-150 or
Sonamp DSP 8-130 MKII
(Using two channels bridged
