Description

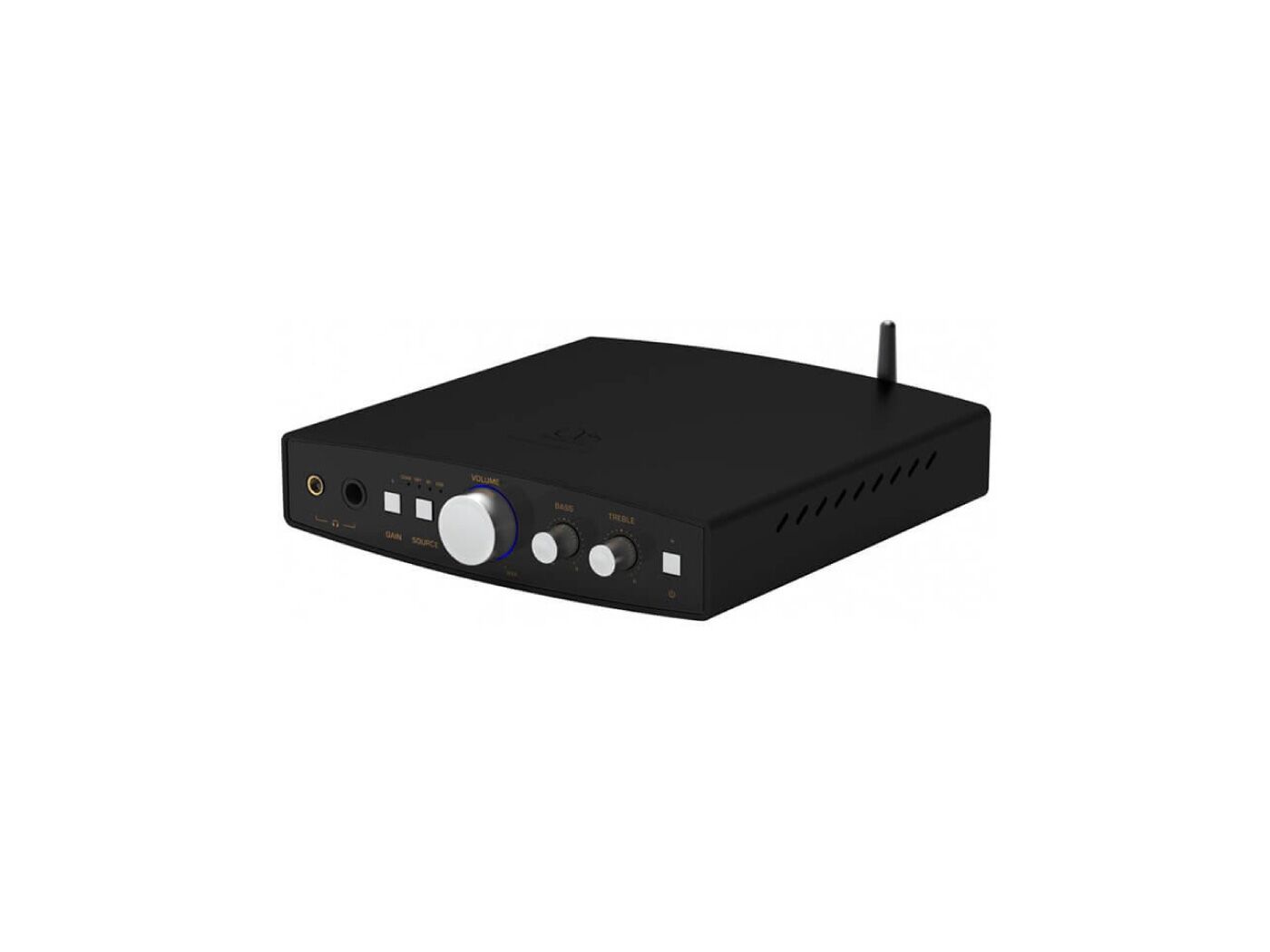

Shanling EH2 follows the same concept of basic Hi-Fi DAC, with no screens or complicated systems. Fitted into a similarly shaped aluminium body, just at twice the depth, still ideally formed for your desk space. And featuring the same tone controls for Bass and Treble adjustments right on the front of the device.
In-House developed DAC module is a big step for our audio engineers, creating a modern 24bit R2R DAC that follows the heritage of our old high-end designs based around the legendary PCM1704 DACs, such as the Shanling CD-T300 and HDCD-H24. Bringing this older style of sound to our modern audience in our classic pursuit of the
most natural-sounding Hi-Fi gear.
Specifications
Dimensions: 156 X 150 X 36.5mm
Weight: 713g
Hi-Res Support USB: 768 kHz/32 bit, DSD 512

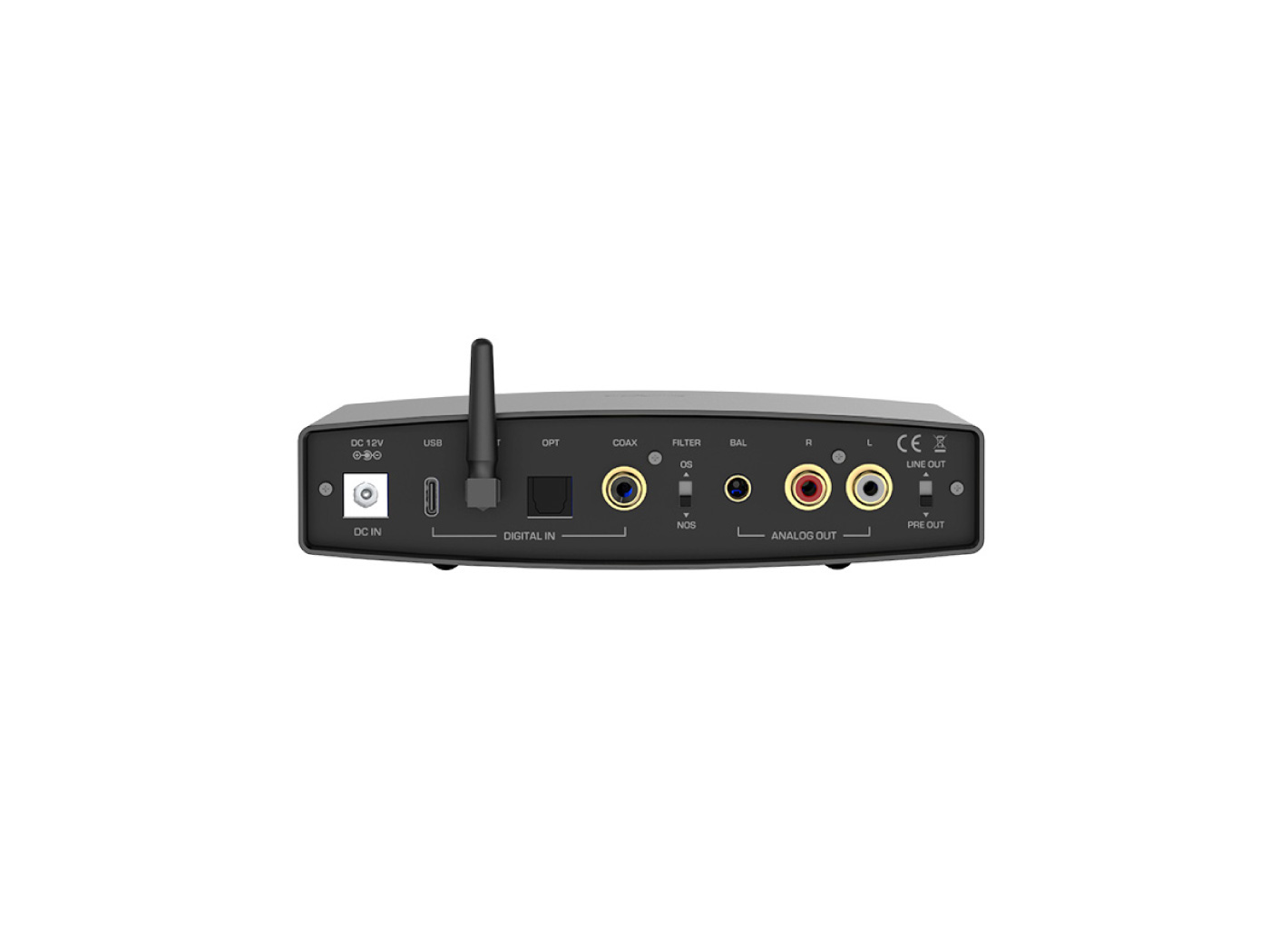

Inputs: USB-C, Coaxial, Optical, Bluetooth
Outputs: 6.35mm & 4.4mm Headphone output, RCA & 4.4mm Line Output 4.4mm Headphone Outpu
Output power: Low gain: 2365mW @ 32 ohms,
High gain: 4351mW @ 32 ohms
Frequency response: 20HZ-40KHZ (-0.5dB)
THD + N: 0.02% @ 32 ohms
Dynamic Range: 118DB @ 32 ohms
Channel separation: 111dB @ 32 ohms
Signal to noise ratio: 118DB @ 32 ohms
Output Impedance: <2 Ohm 6.35mm Headphone Output
Output power: Low gain: 632mW @ 32 ohms,
High gain: 1280mW @ 32 ohms
RCA / 4.4mm Line Out
Output power: 2.2V / 4.5V
Frequency response: 20HZ-40KHZ (-0.5dB) THD + N: 0.02%
Signal to noise ratio: 119DB
