Description

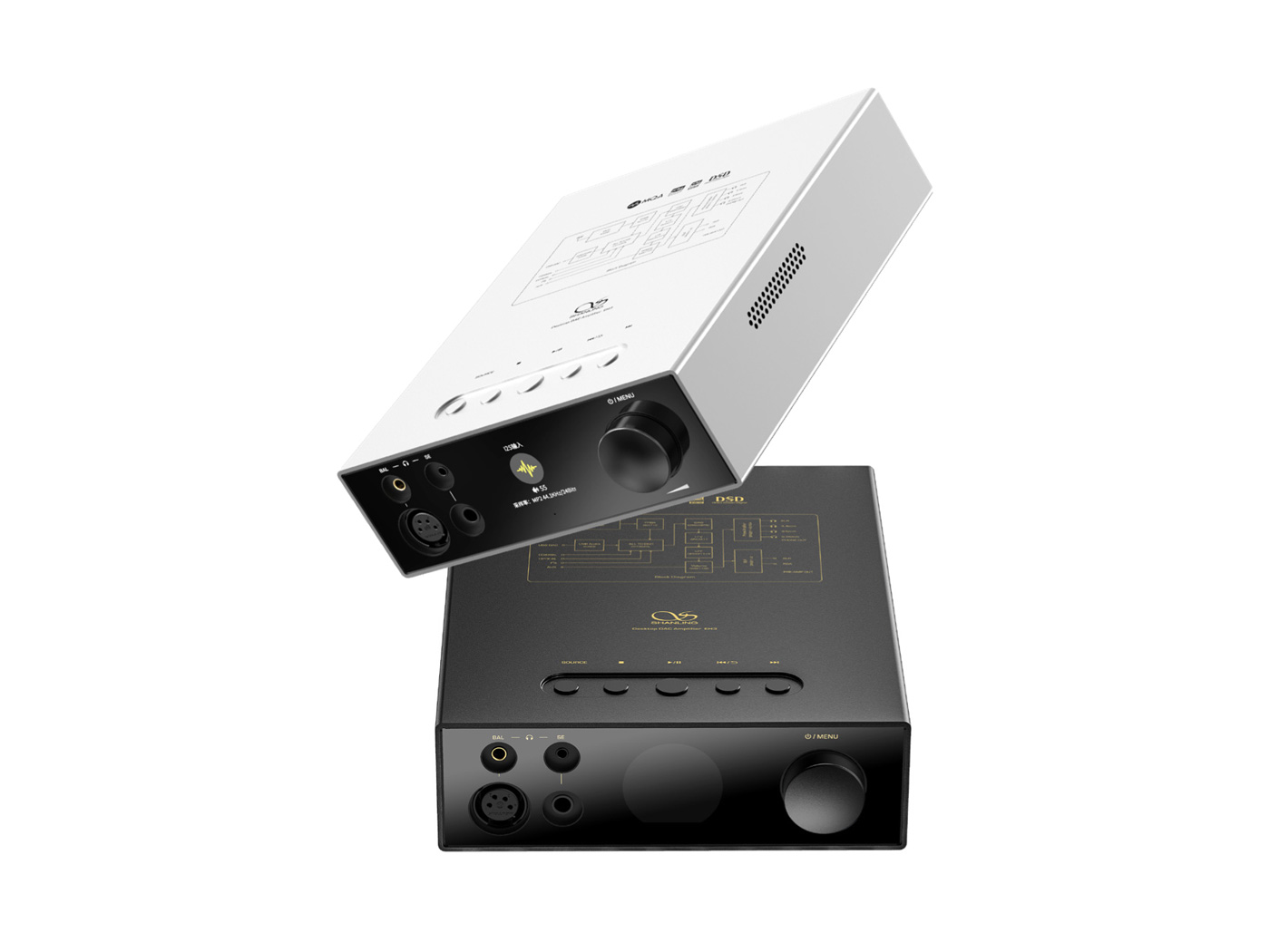

Multifunctional DAC & Amplifier. Offering a range of digital inputs, including Wireless streaming over DLNA/Airplay and Bluetooth, alongside RCA and XLR outputs, makes for a truly versatile DAC for any Hi-Fi setup. And thanks to the analog input, EH3 can also serve as a pure top-quality headphone amplifier or pre-amp for your Vinyl rig or special DACs.
EH3 adapts the newest generation of ESS DAC, a special 8-channel solution that’ s pushed further by our skillful audio engineers. All done with the aim for the most realistic and natural presentation, combined with the highly precise and detailed sound quality.
Specifications
Dimensions: 23.8 X 18.8 X 5.9 cm
Weight: 2.8 kg
Screen: 1.6 IPS screen
USB Drive Supported Formats: DSD, DXD, APE, FLAC, WAV, AI FF/AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, OPUS, TAK, etc. CUE is supported.
Hi-Res Support: 32 bit / 768 kHz & DSD 512
DAC Chip: ESS ES9039PRO
Bluetooth: Bluetooth 5.0 Receiver
Bluetooth Codec Support: LDAC / aptX HD/ aptX / AAC / SBC
Connectors:
[Headphone Outputs] 3.5mm/ 6.35mm/4.4mm/ XLR
[Digital Inputs] USB DAC / USB Drive / Coaxial / Optical / 12S [Digital Output] USB Audio Out
[Analog Outputs] XLR & RCA
[Analog Input] RCA
Single-Ended Headphone Output: Output power
Low gain: 2.0V@32N (126mW@32°) (THD+N<0.0034%)
Medium Gain: 4.1V@320 (537mW@320) (THD+N<0.0009%)
High Gain: 7.8V@32N (1900mW@32°) (THD+N<0.002%)
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0005% @ 320 (A-Weight @ 2V High Gain)
Dynamic Range: 123dB @ 320 (A-Weight @ 2V High Gain)
Channel Separation: 73dB
Signal-to-Noise Ratio: 123dB @320 (A-Weight High Gain)
Noise: 113dB @320 (A-Weight Low Gain)
Output Impedance: 10
