Description

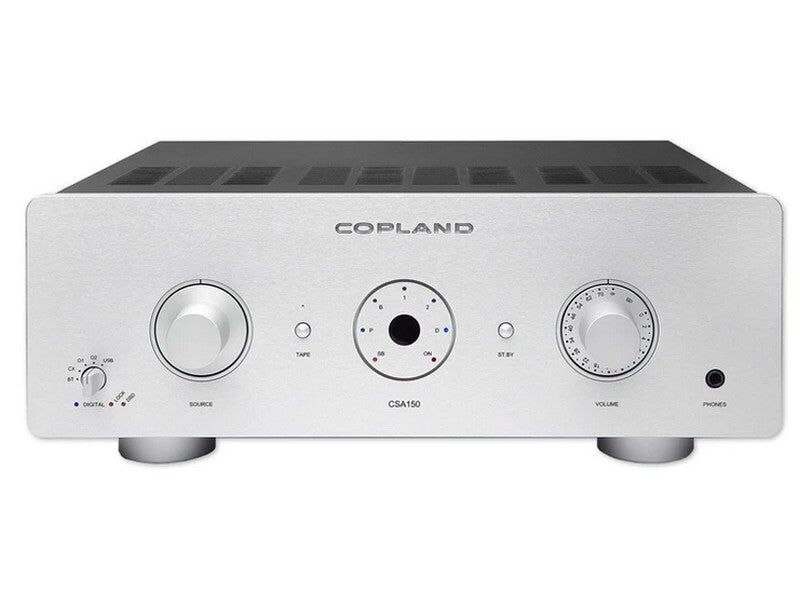

The CSA150 is the top model in the new line of Copland CSA series Integrated amplifiers.
Design features of Copland CSA series Integrated amplifiers:
- Employing the Copland double triode gain stage with MOS-FET buffering ensures a tight interface between the tube and the solid-state parts of the amplifier.
- Immunity to mains fluctuations, load demands and noise interference by use of wide bandwidth power supply regulation, not only for the low-level stages of the amplifier but also by active regulation of the power amplifier driver stages.
- D/A converter with multiple S/PDIF inputs, PCM, and DSD capabilities using the ES9018 Reference 32-bit DAC in quad- mono configuration, 8- to 2 stereo configurations.
- Besides the digital coax and optical inputs an additional Bluetooth aptX module makes airborne sources available in HD quality.

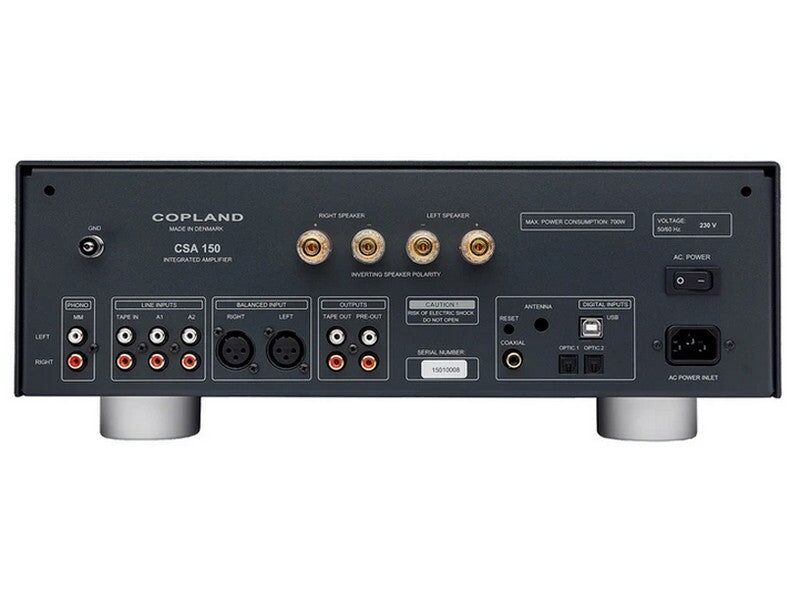

- RCA inputs as well as balanced XLR. For the vinyl enthusiast, the CSA150 has RIAA input for MM cartridges.
- Classic tape loop in/out function, pre-out terminal, and a front-facing 6.3mm headphone output.
Specifications:
Output power: 2 x 150 W into 8 ohms load
Minimum load: 2 ohms
Analog Inputs: 1 x coaxial S/PDIS, 1 x USB, 1x aptX HD Bluetooth (optional extra), 1x balanced (XLR), 2 x optical S/PDIF, 3 x unbalanced (RCA)
Line output: 1 x unbalanced (RCA) 1 x Pre-out /unbalanced variable (RCA)
Line input impedance: 50 K ohms
Phono input impedance: 47 K ohms (MM)
Phono input Capacitance: 200 pF
Line Inputs sensitivity: 270 mV
Phono sensitivity: 2.6 mV
Frequency Response: 10 Hz – 150 kHz -3dB
T.H.D: Better than 0.04 %
Signal/noise IHF-A: Better than 90dB
Phase: Inverting
Headphone amp.Gain: 22 dB @ 100 ohms load impedance
Headphone amp. Out imp: 40 ohms
Headphone amp. T.H.D: Better than 0.04%
Headphone amp. Freq. resp: 10 Hz – 150 kHz / -3dB
Vacuum tubes: 1 pc. 6922
Power Consumption: Max.800 W
Dimensions: 435mm (w) x 164mm (H) x 370mm (D)
Shipping weight: 16 kg
