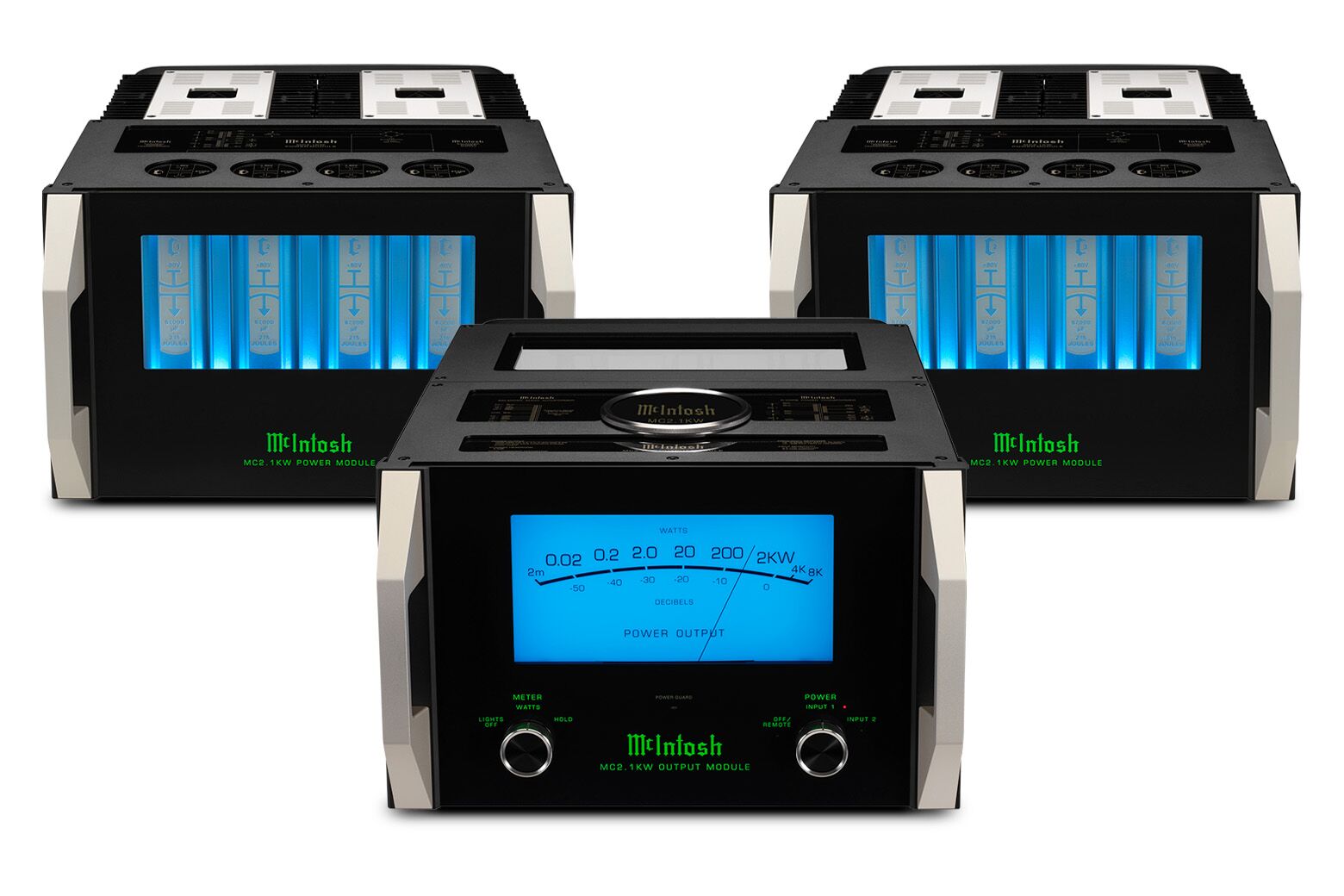

McIntosh MC2.1KW 1-Channel Power Amplifier

• Electronic Specifications

• FTC Power Output Rating

  2000 W

• Power Output per Channel

  2000 W into 2, 4 or 8 ohms

• Number of Channels

  1

• Total Harmonic Distortion

  0.005%

• S/N below rated output

  123dB

• Dynamic Headroom

  2.1dB

• Damping Factor

  >40 Wideband

• Rated Power Band

  20Hz to 20kHz

• Frequency Response

  +0, -0.25dB from 20Hz to 20kHz
  +0, -3dB from 10Hz to 100kHz

  Control

  Remote Power Control

  Yes

• Multi-Channel DB25 Cable

  N/A

Connectivity

• Speaker Binding Post Type

  Solid Cinch^™ Speaker Binding Posts

  General Specifications

  Circuit Configuration

  Quad Balanced

• Circuit Design

  Solid State

• Mono Bridge

  N/A

• Mono Parallel

  N/A

• Output Type

  Autoformer^™

• Meters

  Yes

• Meter Light Switch

  Yes

• Balanced Input

  2

• Front Panel

  1/2" Glass with handles

• Illumination

  Direct LED

• Chassis Style

  Open Stainless Steel (each module)

  Weights & Dimensions

  Unit Dimensions (W x H x D)

  Output Module (1 included): 17-15/16" (45.6cm) x 12-5/32" (30.9cm) x 30-3/16" (76.7cm) (including the handles and interconnect cables)
  Power Module (2 included): 17-15/16" (45.6cm) x 11-7/8" (30.2cm) x 30-3/16" (76.7cm) (including the handles and interconnect cables) ea

• Unit Weight

  Output Module (1 included): 125 lbs (56.7 kg)
  Power Module (2 included): 145 lbs (65.8 kg) ea

• Shipping Weight

  Output Module (1 included): 150 lbs (68 kg)
  Power Module (2 included): 165 lbs (74.8 kg) ea
