Description
Power Amplifier

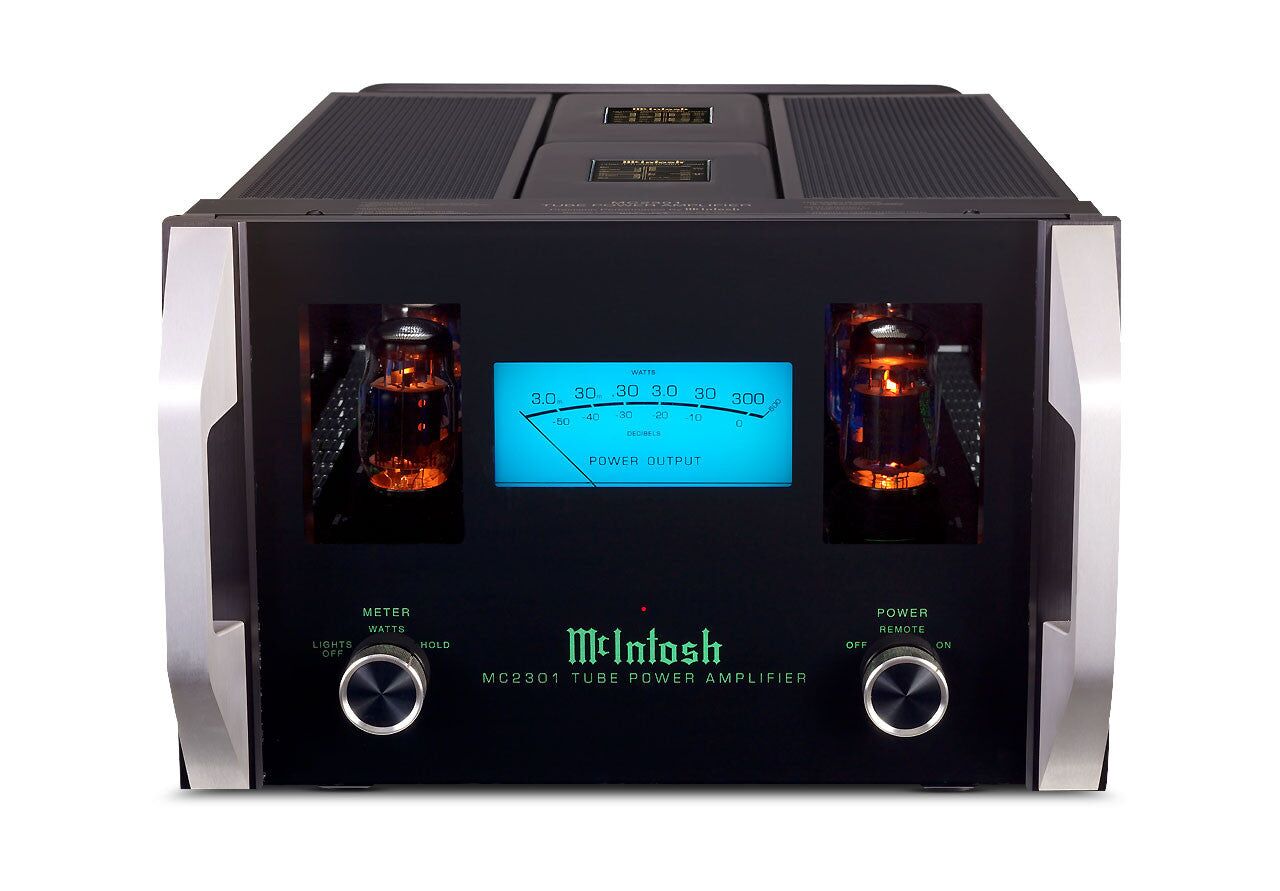

With 300 Watts available at 8, 4 or 2 ohms, the MC2301 provides high power to drive even the most loudspeakers. From the demands of massed chorale to full-on rock and roll, the MC2301 delivers the most extraordinarily lifelike and dynamic performance ever heard from a McIntosh tube amplifier.
Electronic Specifications
- POWER OUTPUT PER CHANNEL:Â 300W @ 2, 4 or 8 Ohms
- NUMBER OF CHANNELS:Â 1
- THD:Â 0.5%
- S/N BELOW RATED OUTPUT:Â 117dB
- DYNAMIC HEADROOM:Â 1.2dB
- DAMPING FACTOR:Â >15 Wideband
- RATED POWER BAND:Â 20Hz to 20kHz
- FREQUENCY RESPONSE +0,-0.25DB:Â 20Hz to 20kHz
- FREQUENCY RESPONSE -3DB:Â 10Hz to 100kHz
Control
- REMOTE POWER CONTROL:Â Yes
- MULTI CHANNEL DB25 CABLE:Â N/A
General Specifications
- CIRCUIT CONFIGURATION:Â Quad Balanced, Unity Coupled
- CIRCUIT DESIGN:Â Vacuum Tube
- MONO BRIDGE:Â No
- MONO PARALLEL:Â No
- AUTOFORMER:Â Transformer
- METERS:Â Yes
- METER LIGHT SWITCH:Â Yes
- BALANCED INPUT:Â Yes
- FRONT PANEL:Â 1/2″ Glass with handles
- ILLUMINATION:Â LED Fiber Optic
- CHASSIS STYLE:Â Open Stainless Steel
- GOLD PLATED BINDING POSTS:Â Yes, 200 amp, 3-way
Weights & Dimensions
- DIMENSIONS (W X H X D):Â 17-3/4″ (45.09cm) x 12-5/16″ (31.27cm) (including feet) x 23″ (58.42cm) (including front panel and cables)
- WEIGHT:Â 116 lbs (52.6 kg)
- SHIPPING WEIGHT:Â 141 lbs (63.9 kg)
