Description
Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads.Â
The C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide source and independent volume, bass and treble settings. The custom 2U height requires no top or bottom clearance when rack mounting.
FEATURES:
- 8 x 70 Watts of robust power
- 4 Ohms
- Class AB amplifier design
- Custom engineered toroidal transformer
- 12 volt trigger input
- Rack ears included
Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads utilizing Rotel’s proprietary amplification technology.
The oversized in-house manufactured toroidal transformer drives sixteen output devices for effortless, controlled bass energy.

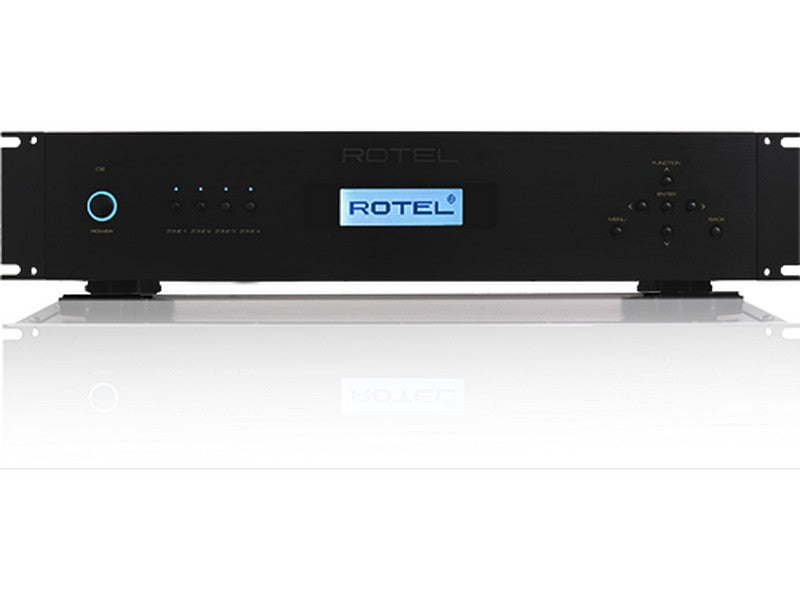

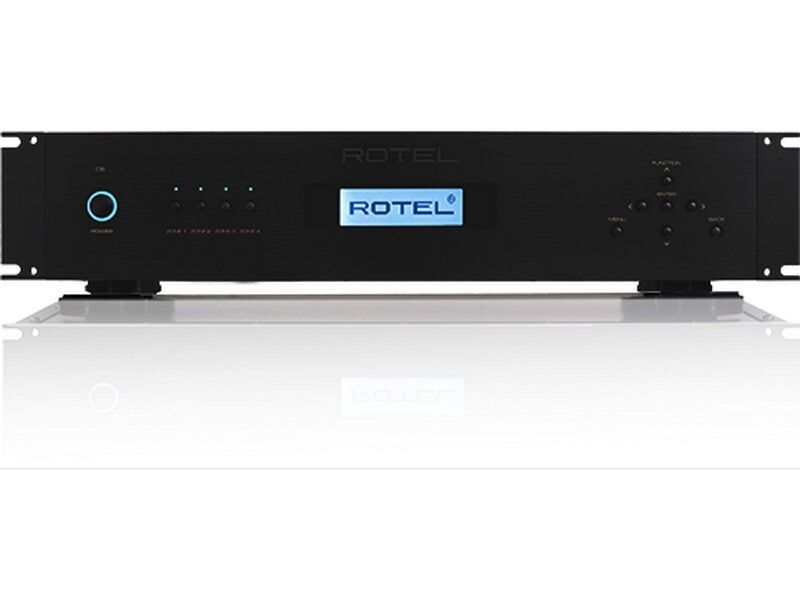

For ultimate installation flexibility the C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide source and independent volume, bass and treble settings.

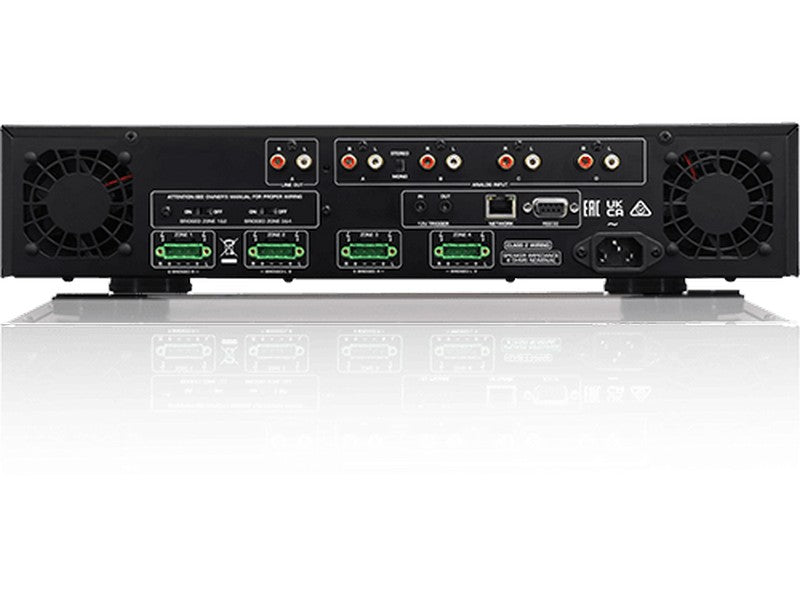

Control system integration is available via IP and RS232 interfaces and 12-Volt trigger.
The custom 2U height requires no top or bottom clearance when rack mounting.
The C8 is available in black only.
SPECIFICATIONS:
MAXIMUM POWER OUTPUT70W/Ch (8 channels driven, 4Ω)
CONTINUOUS POWER OUTPUT50W/Ch (8 channels driven, 8Ω)
CONTINUOUS POWER OUTPUT140W/Ch (4 channels driven, 4Ω)
TOTAL HARMONIC DISTORTION (THD)<0.1%
FREQUENCY RESPONSE
Line Level Inputs: 10Hz – 100kHz, +0dB, 0 ± 0.5dB
S/N RATIO (IHF “A” Weighted)
Line Level Inputs: 100dB
DIMENSIONS (W × H × D): 430 × 97 × 414mm
17″ × 3.9″ × 16.3″
FRONT PANEL HEIGHT2U / 88.1mm (3.5″)
POWER REQUIREMENTS: 120V, 60Hz
POWER CONSUMPTION: 570W
STANDBYÂ POWER CONSUMPTION
Normal: <0.5W
Network Standby: <2W
NET WEIGHT: 16.7kg (36.81lbs.)
BTU RATING (4Ω, 1/8th power) 1537 BTU/h
