Description

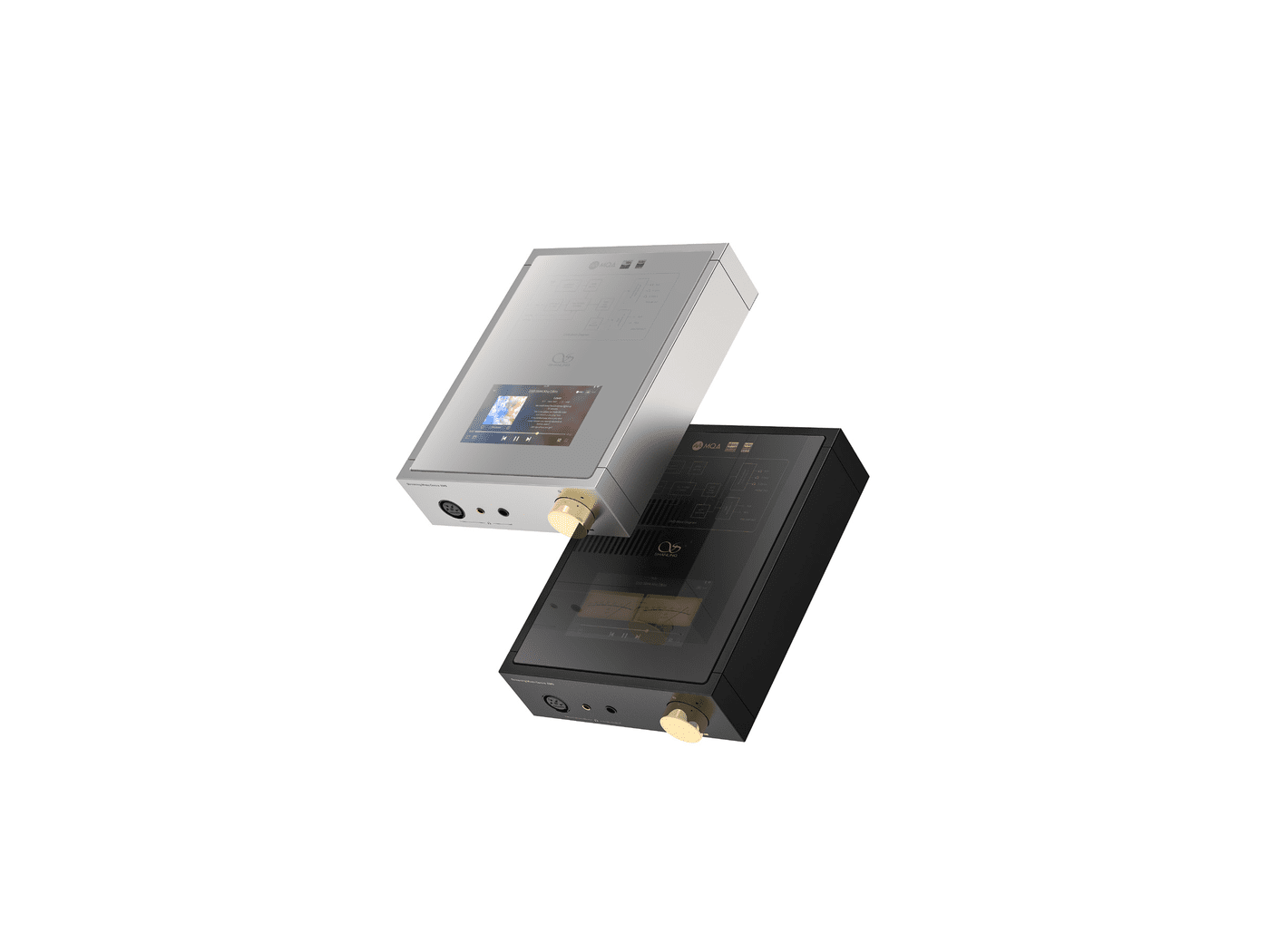

Gold plated volume wheel for the touch of luxury. 4.7-inch touch screen to control your music. And circuit diagram for the Hi-Fi enthusiasts. Independent Streaming Centre. Running deeply customized closed Android, EM5 serves as a standalone music system. No need for computer or complicated setting up, just direct access to your music collection and streaming services.
Specifications
General
- Dimension: 238 x 188 x 55 mm
- Screen: 4.7 inch 720 x 1280 IPS touch screen
- Operating System: Closed Android, with deeply customised to prioritise highest quality audio playback
- Storage: up to 2TB Micro SD card (purchased separately)
Headphone Section
- Output: 570mW (single ended) / 1620mW (balanced)
- Output impedance: 0.8 Ohm (single ended) / 1.6 Ohm (balanced)
- Channel separation: 70 dB (single ended) / 106dB (balanced)
- Recommended headphone impedance: 8-300 ohms
- Distortion: 0.0009%
- Signal to Noise Ratio: 120 dB @ 32 ohm (A-weighting)
- Dynamic Range: > 120 dB @ 32 ohm (A-weighting)
- Output port: 6.3mm (single end
DAC Section
- DAC Model: AK4493EQ
- Sampling rate: up to 768kHz / 32 bit, Native DSD512 Software
- USB input: connect to use as sound device for external transport such as computer or tablet/phone
- USB Host port for external HDD connectivity
- Digital Coaxial and Optical inputs
Streaming Section
- DLNA/UPNP/Airplay network connectivity 2-way Bluetooth, stream from a source over
bluetooth, or stream from EM5 to bluetooth headphones - Bluetooth Codecs: LDAC, LHDC, SBC, aptX (trasmit); LDAC. SBC (receive)
- Spotify, Tidal, Qobuz, QQ music, Deezer, Amazon Music apps available
- MQA support 8x playback from stored files, streaming apps and USB input
- Ethernet port
- 2.5G / 5G Dual Band Wifi
- OTA firmware updates
- Shanling Eddict Player app gives complete control on smartphones and tablets
Preamp / Output Section
- Analogue XLR outputs
- Analogue RCA outputs
- Digital Coaxial and Optical outputs
- Hi-Res Audio and Hi-Res Wireless Audio Certifications from the Japan Audio Society
