Description

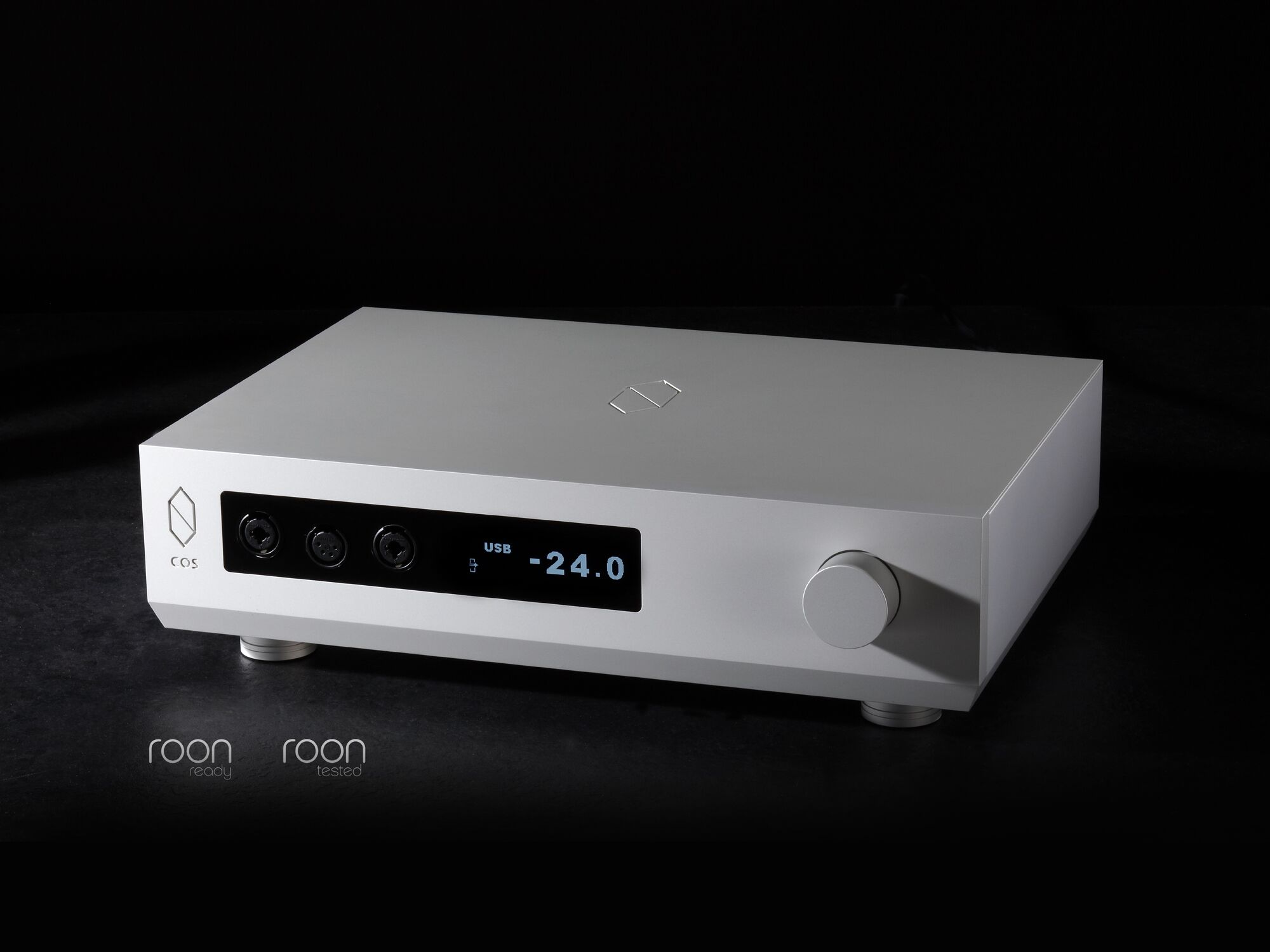

D10 is a ‘dream gear’ for your beloved sonic pleasure. It is a DAC, a pre-amp, and a headphone amp, well built with streaming capability. Yes, the same spacious, supple and dynamically powerful sound that COS products have been offering. D10 is also a phono amp, one that delivers from your preferred vinyl luscious vibes.
COS ALGORITHM, BUFFER and RECLOCKING
COS proprietary algorithm with a linear-phase delay FIR filter can up-sample original data to 176.4K or 192K. D10 stores digital data in a onesecond buffer before converting to analog signals, under the coordination of a crystal oscillator with a jitter precision less than 1ps and a dedicated reclocking circuitry.

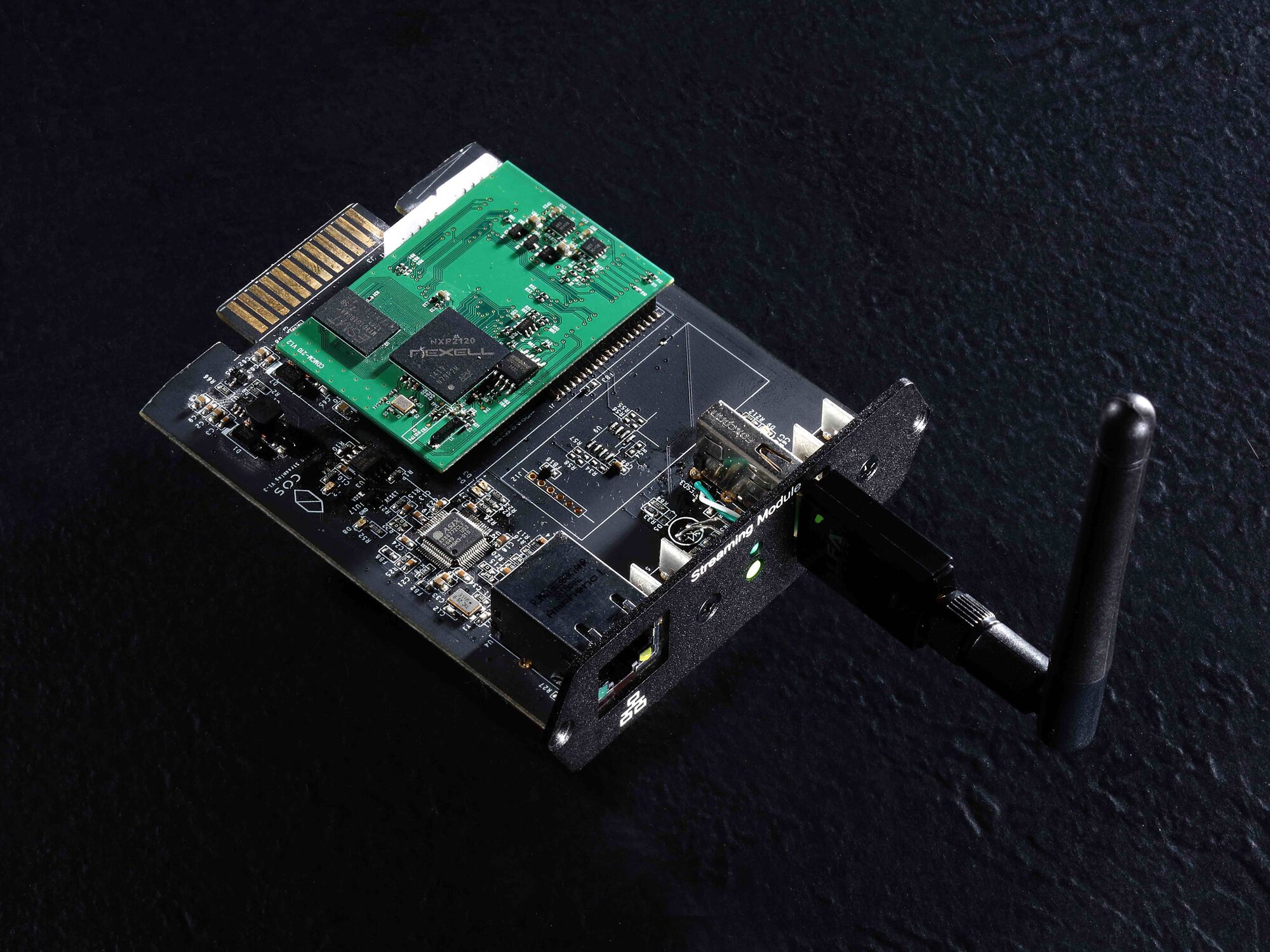

STREAMING (optional)
Stable and quality streaming is available, with or without a wire, for TiDAL, Spotify, Deezer, and Qobuz. Setup is easy with iOS and Android applications. The streaming module in D10 takes care of MQA decoding.

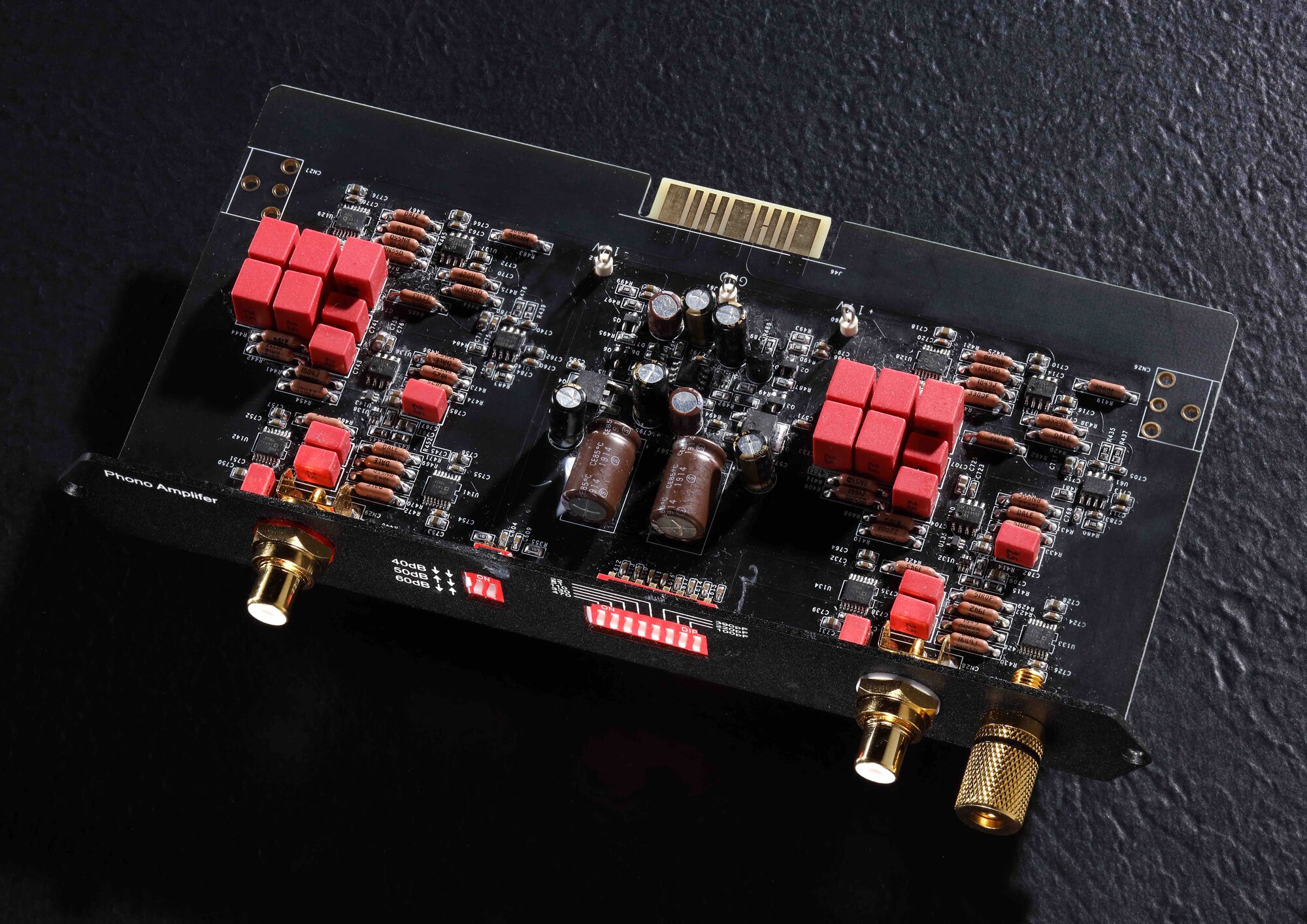

PHONO-AMPLIFIER (optional)
There are 5 loading resistors and 3 loading capacitors, all selectable, to accommodate phono cartridges of your choice. Other features include JFET input stage, on-board low-noise linear regulator, and handpicked components for RIAA curve matching and zero capacitor between audio signal paths. Extremely low in noise and distortion.
TWO-LAYER HOUSING
D10 has an NCT internal chassis and an aluminum exterior. This design provides a fortified frame that make possible lowered noise and minimized interference.
Headphone Amplifier
D10, capable of driving headgears of high and low impedance, has a pair of 3-pin XLR connectors that accommodate 2 unbalanced headphones or 1 balanced one. An extra 4- pin XLR connector is ready for a balanced
headphone.
DUAL POWER SUPPLY
D10 uses two-stage regulation to provide clean power. Two toroid transformers power the digital circuit and the analog circuit separately, thereby eliminating possible interferences.
REMOTE CONTROL
Stylish, ergonomic, one of its own kind
Pre-Amplifier
| Analog Input | Balanced X 1, Unbalanced X 1 |
| Analog Output | Balanced X 1, Unbalanced X 1 |
| Residual Noise | < 2uV (-114dBV) (20Hz~20KHz, non-weighted, input terminated) |
| Input Overload | 16V (balanced), 8V (unbalanced) |
| Input Impedance | 100Kohm |
| Output Impedance | 200 ohm (balanced), 100ohm (unbalanced) |
| Maximum Output | 16V (balanced), 8V (unbalanced) |
| Frequency Response | +0.1dB, 20Hz~20KHz |
| THD+N | < 0.001% (-100dB) (20Hz ~ 20KHz non-weighted) |
| Signal to Noise Ratio | > 110dB, 20Hz~20KHz non-weighted |
| Crosstalk | < -120dB |
| Volume | Precision resistor array, 140 steps by 0.5dB/step, -64dB to +6dB |
| Headphone Amplifier | Audio jack X 2 (unbalanced X 2), XLR-3 X 2 (balanced X 1), XLR-4 X 1 (balanced X 1) |
DAC
| Digital Inputs | USB X 1, Asynchronous Audio Class 2.0 SPDIF RCA X 1, AES XLR X 1, TosLink X 1, I2S X 1 (HDMI, differential) |
| Sampling Rate | PCM, up to 192Ksps, 24 bits DSD, up to DSD256 (USB), DSD64 (all other inputs) |
| Frequency Response | +0dB, -0.5dB, 20Hz ~ 20KHz |
| Full Scale Output | 2V (unbalanced), 4V (balanced) |
| THD+N | < 0.001% (-100dB) (192Ksps, 24-bit, 20Hz ~ 20KHz, A-weighted) |
| Signal to Noise Ratio | > 110dB, 24-bit, 20Hz~20KHz, A-weighted |
| DAC | 24-bit DAC X 2, up to 192Ksps, 24-bit |
| Digital Filter | COS proprietary, linear phase delay |
| Audio Clock Jitter | < 0.1ps |
Phono-Amplifier
| Gain | 40, 50 or 60dB |
| Input Resistance | 47Kohm to 100ohm |
| Input Capacitance | 0 to 750pF |
| RIAA Response | <+0.2dB/20Hz~20KHz |
| Residual Noise | <30uV (input shorted, 40dB gain, 20Hz~20KHz) <300uV (input shorted, 60dB gain, 20Hz~20KHz) |
| THD+N | <-90dB (40dB gain, 470ohm load, 1KHz, 2Vrms output) <-70dB (60dB gain, 470ohm load, 1KHz, 2Vrms output) |
Streaming
| Protocols | DLNA 1.5 & UPnP AV1.0 |
| Ethernet | 10/100 Base-T |
| Certification | ROON ready |
| Supported Services | TIDAL, Deezer, Qobuz, Spotify |
| MQA | Full decoding |
General
| Display | 256 × 64 White OLED |
| Weight | 10kg |
| Dimensions | 415mm (W) × 280mm (D) × 100mm (H) |
| Power | 100~120VAC or 200~240VAC selectable Normal Operation < 50W, Standby < 0.5W |
