Description
10 ports HiFi Ethernet Switch
An HiFi Ethernet switch Designed by DAC Makers for the Ultimate Listener
Why does a DAC manufacturer build an Ethernet switch? Because sound reproduction is what we care about most. We discovered that the same principles that make a world-class DAC clean power and precision timing are exactly what a high-end network needs.
Unrivaled Power & Noise Management

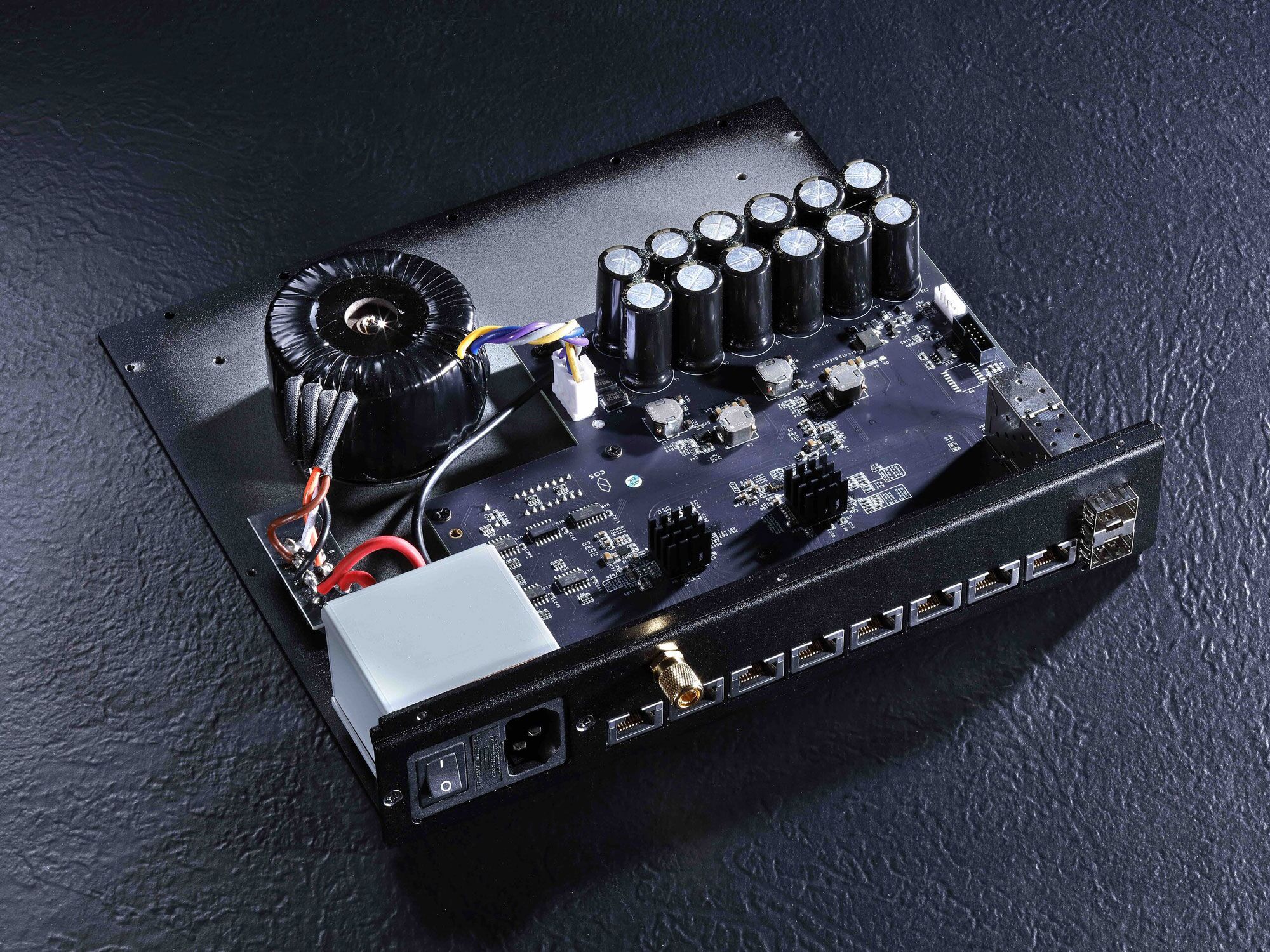

- Linear Power Foundation: A massive toroidal power transformer provides the stable, low-noise energy required for high-end audio.
- Massive Energy Reserves: Includes a bulk smoothing bank of twelve 4,700uF capacitors to ensure instantaneous power delivery.
- Multi-Stage Regulation: Four independent low-noise regulators ensure each circuit operates in a pristine electrical environment.
- Low jitter (0.025ps) oscillators X 2
- Network status LEDs on/off control switch
- Copper ports control switch: each port can be individually enabled or disabled
Purist Controls
- Individual Port Optimization: Every copper port can be individually enabled or disabled via physical switches to eliminate “fast link pulse” noise from unused connections.
- Stealth Mode: A master switch allows you to turn off all network status LEDs, removing both visual distraction and high-frequency electrical interference
Specifications
| AC Line Voltage | 100~120Vac or 220~240Vac settable |

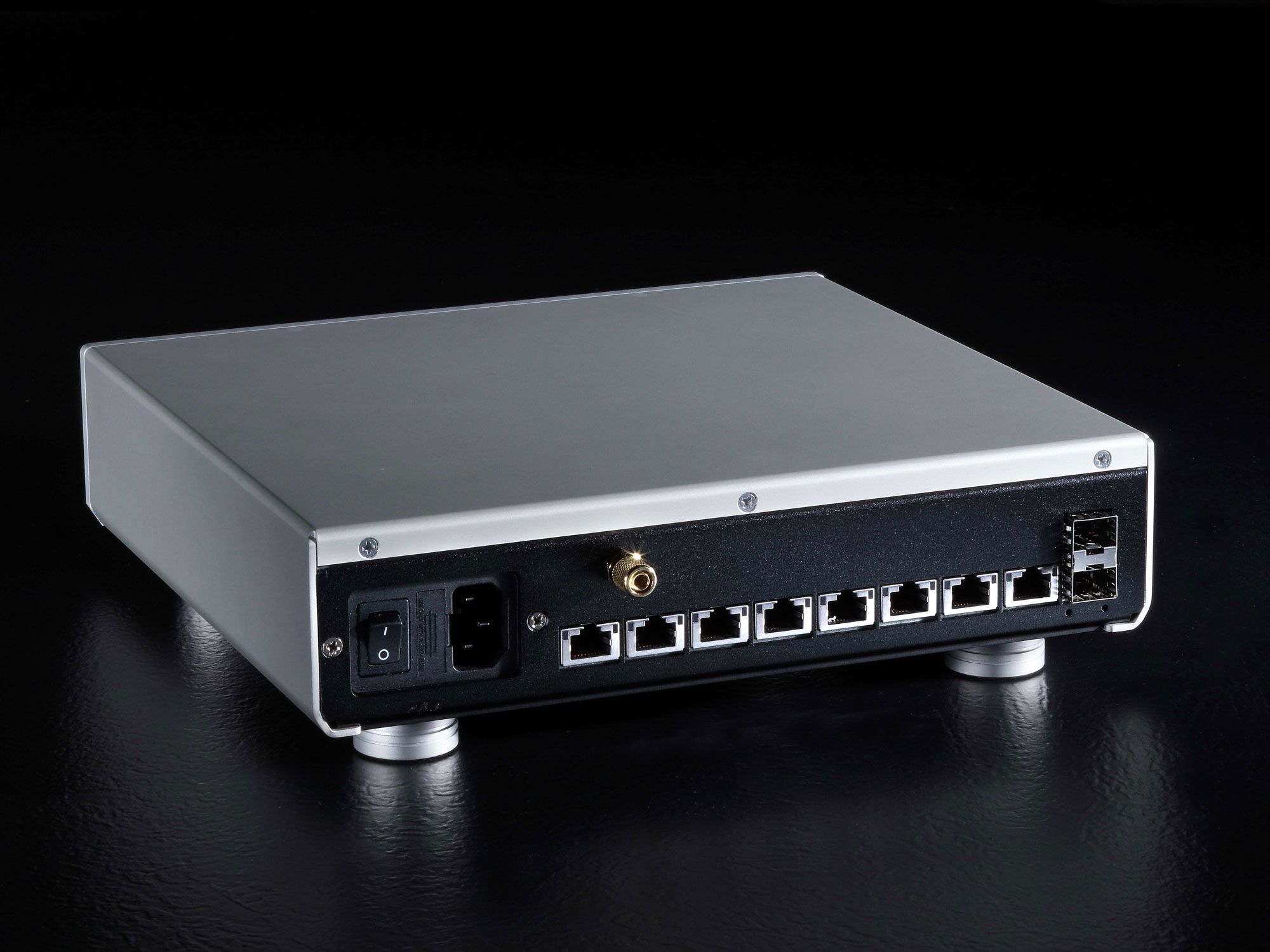

| SFP Ports | X 2, 1000/100Mbps auto-negotiated |
| Copper Ports | X 8, 1000/100/10Mbps auto-negotiated Each copper port can be individually enabled/disabled |
| Oscillator Jitter | 0.025 ps |
| Power Consumption | 10 VA |
| Dimensions | 260 mm (W) × 250 mm (D) × 60 mm (H) |
| Weight | 3.6 kg (package not included) |
| Color | Silver or Black |
| Material | Steel and Aluminum alloy |
