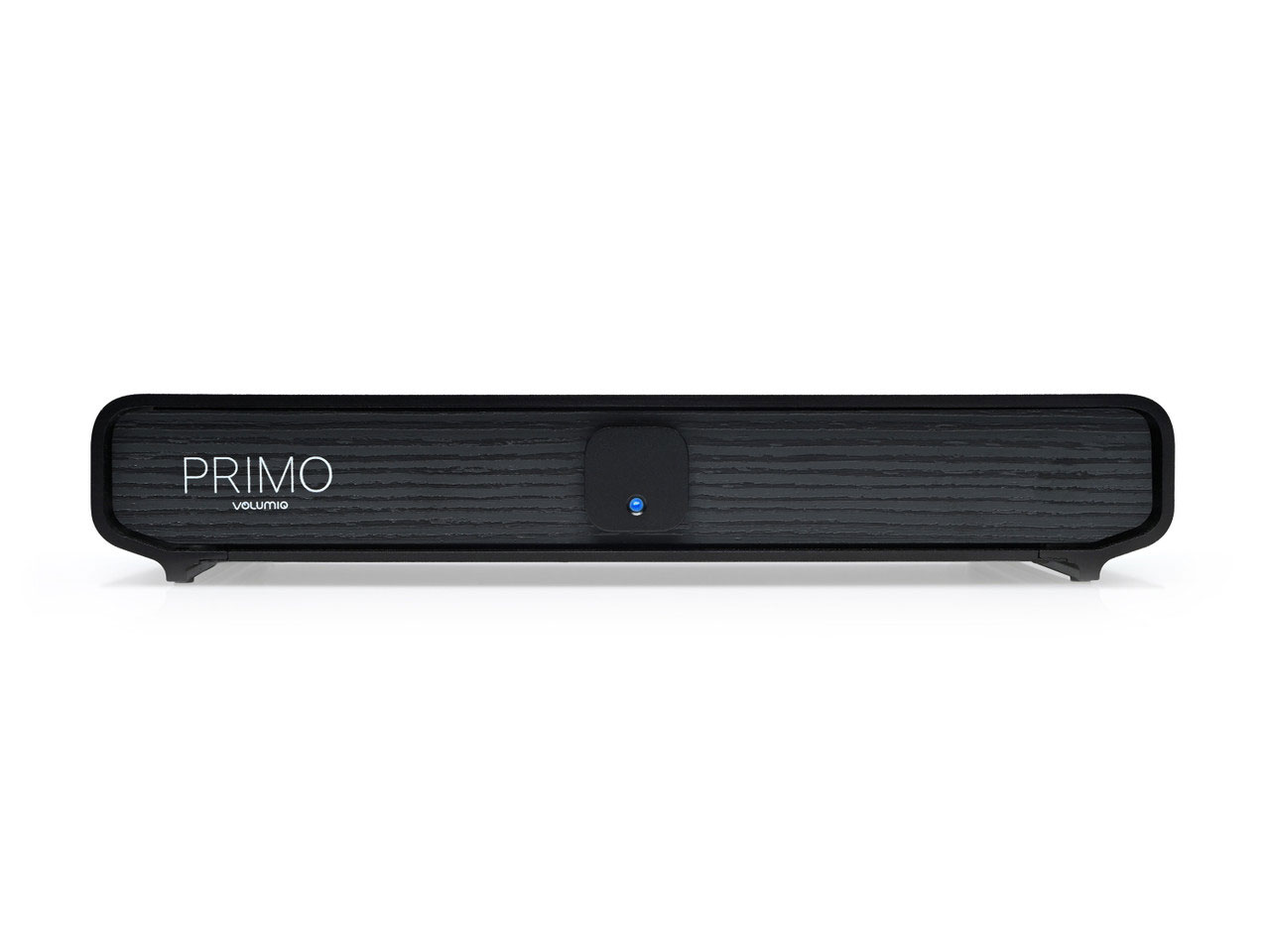

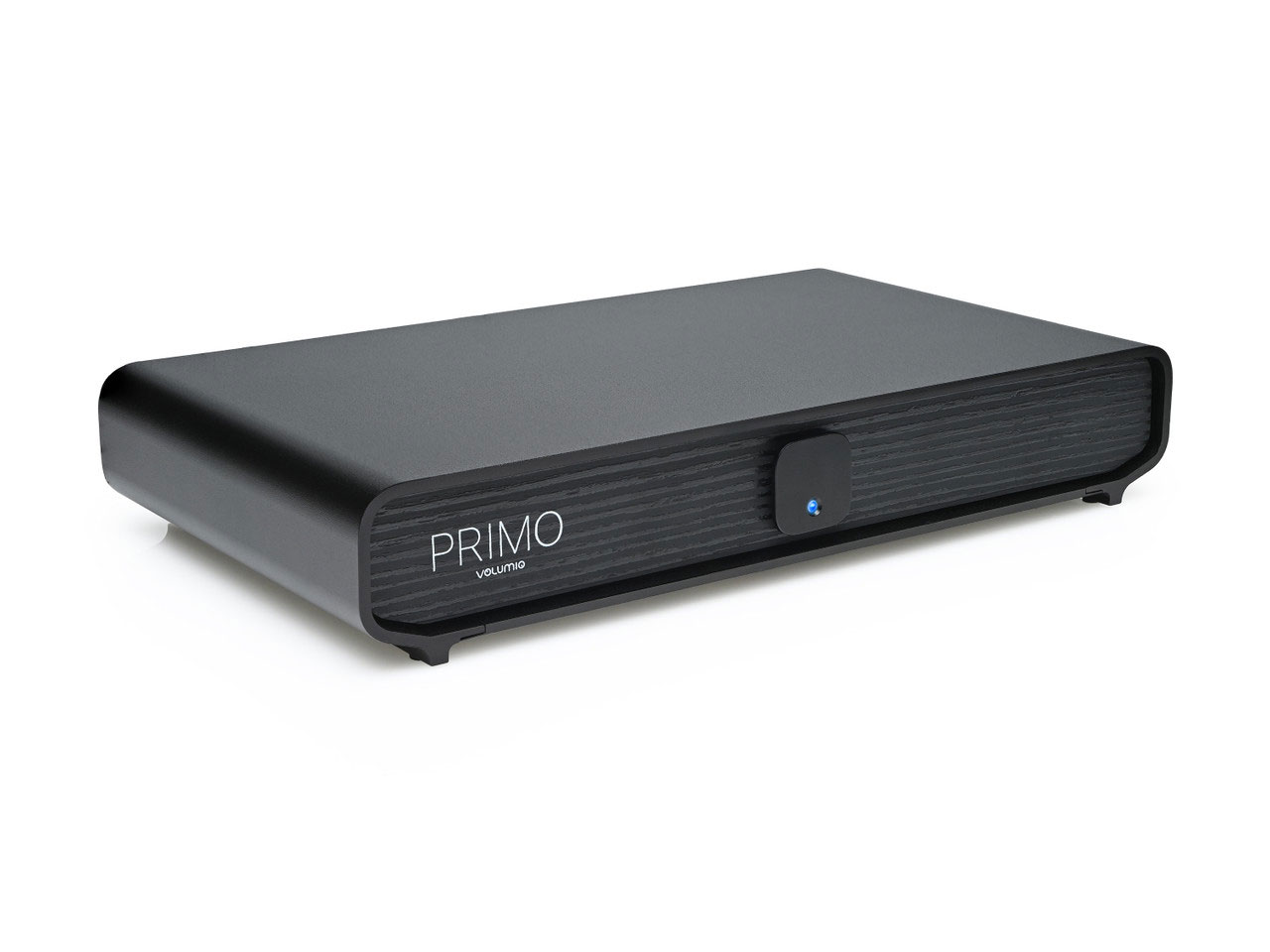

Volumio Primo V3

Description

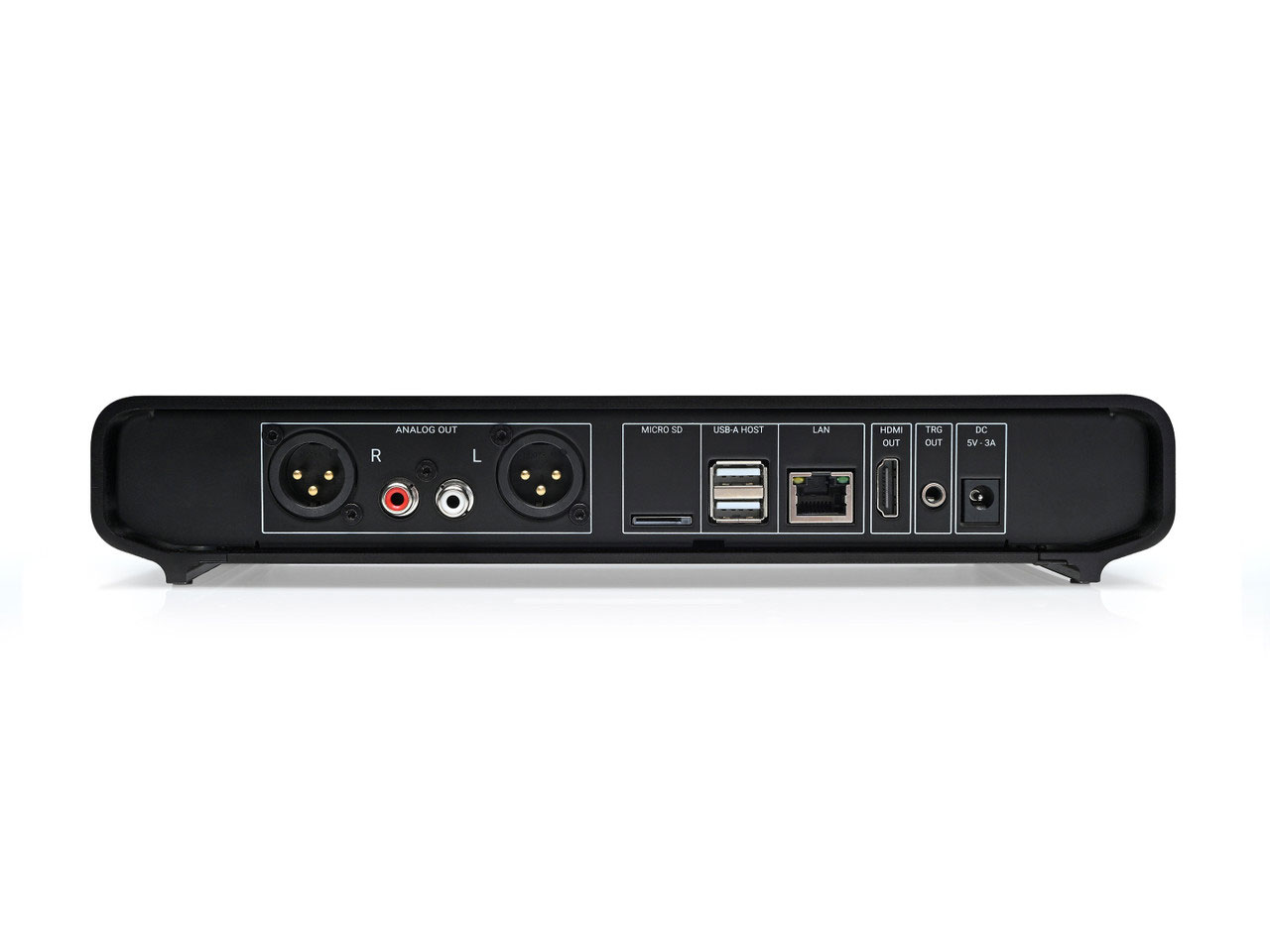

The Volumio Primo V3 is a premium music streamer and DAC that plays high-resolution audio from services like Spotify, Tidal, and Qobuz. It features a fast quad-core processor for smooth control, a built-in linear power supply for clean sound, and easy connections for both RCA and balanced XLR cables. Designed for simplicity, it links straight to your home internet via Wi-Fi or Ethernet to stream music directly to your existing amplifier or active speakers.

Audio Specifications

• DAC: ESS Sabre ES9039Q2M
• DAC FILTERS: 8 digital filters for fine tuning
• SUPPORTED RESOLUTION: Up to PCM 384 kHz / 32 bit
• NOS MODE: Switchable ON/OFF
• MASTER CLOCK: Ultra-low phase noise
• POWER SUPPLY: Integrated linear power supply stage
• USB OUTPUT: Up to PCM 1536 kHz / 32 bit and DSD1024
• ANALOG BALANCED OUTPUT: 1.00, 1.55, 2.00, 3.00, 4.00, 5.00, 6.00, 6.30 (Vrms)
• ANALOG UNBALANCED OUTPUT: 0.50, 0.775, 1.00, 1.50, 2.00, 2.50, 3.00, 3.15 (Vrms)
• ANALOG OUTPUT IMPEDANCE: ≈140Ω
• SUPPORTED FORMATS: DSD, WAV, FLAC, Alac, Aac, Vorbis, Cue, Mp3 and others
• SUPPORTED SERVICES: Airplay via Shairport Sync, Spotify Connect, Tidal/Tidal Connect, Qobuz/Qobuz Connect
• UPNP/DLNA: Renderer with Open Home support
• PLUGINS: Youtube, Squeezelite, Radio Paradise, Podcasts, Pandora, Fusion DSP, Roon Bridge, Soundcloud, Mixcloud

Hardware Specifications

• USB: 2× USB-A 2.0 (5 V / 0.56 A; 5 V / 1.33 A)
• VIDEO OUTPUT: Volumio OS app mirroring over HDMI up to 4K / 60 fps
• LAN: Gigabit 10/100/1000M
• Wi-Fi: Wi-Fi 802.11a/b/g/n/ac (2.4G and 5G)
• BLUETOOTH: 5.0
• CPU: Cortex-A72, Quad Core 1.5 GHz
• RAM: 2 GB DDR4
• INTERNAL STORAGE: 16 GB eMMC
• POWER: 5 V DC / 3 A
• POWER INPUT: Barrel jack 5.5mm x 2.1mm (positive polarity)
