Description

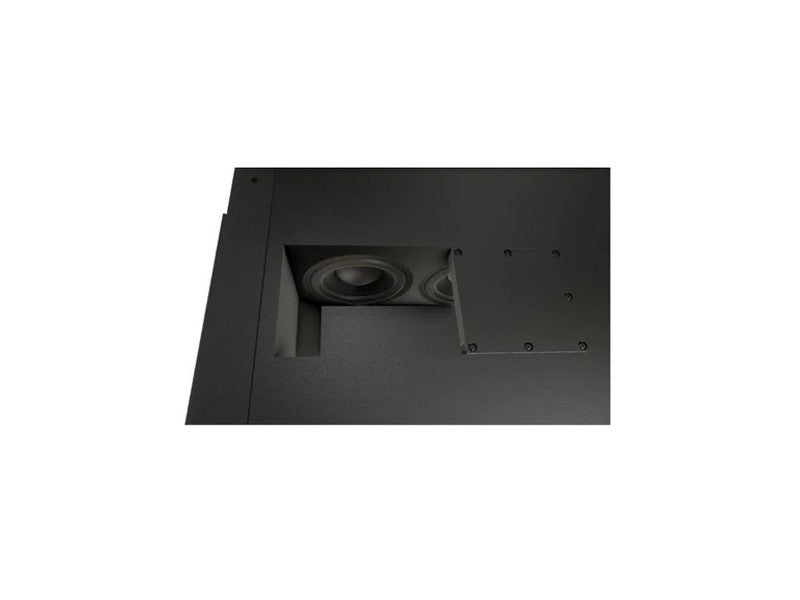

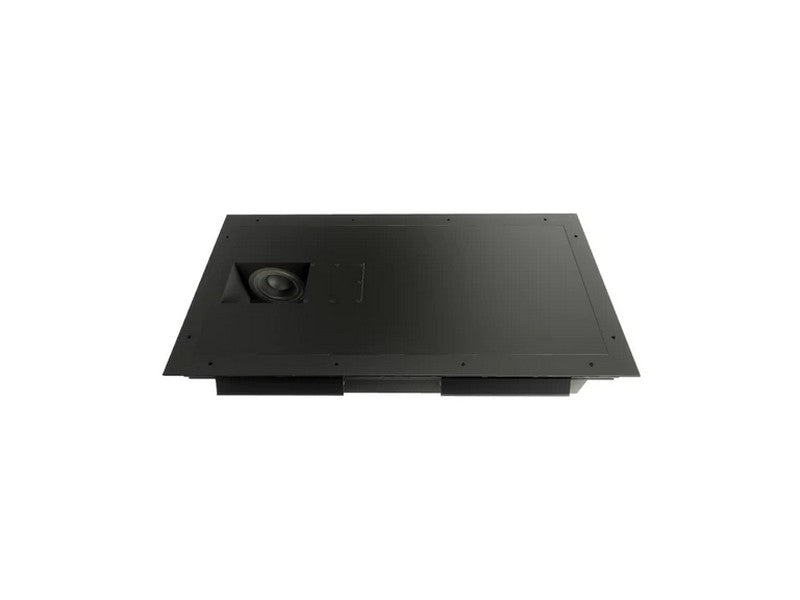

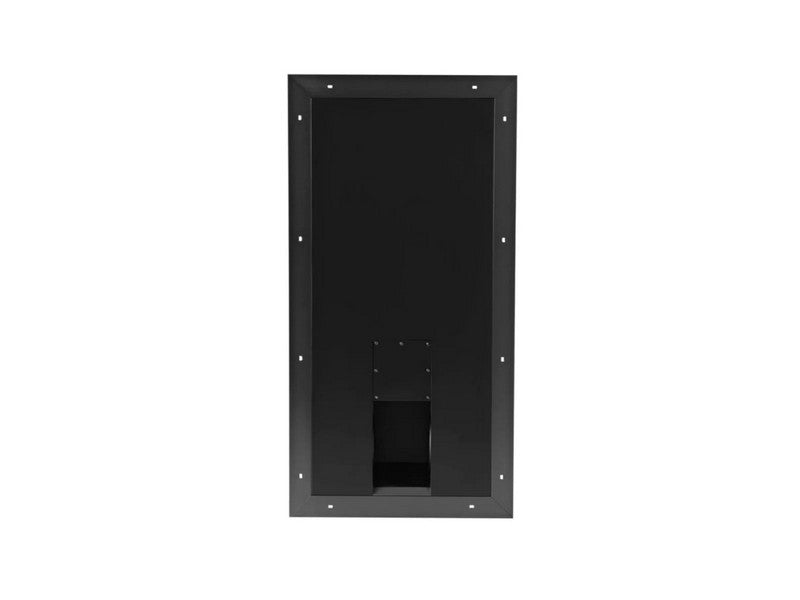

Sonus Faber Arena S15 Array Balanced Subwoofer Custom Installation
Handmade in Italy by experienced Artisans of Sound
Arena renders the acoustic power and dynamics required for hi-performance home cinema with the Natural Sound signature, definition, and details for which Sonus faber has been long admired.
Anchored by Sonus faber’s patented subwoofer technology, ARENA is a step towards amping up the level of your private home cinema innovation. The three Arena models are the ARENA 30, a four-way LCR speaker equipped with a 38 mm silk-dome tweeter and 19 mm super tweeter, the ARENA 20 3.5-way speaker boasting “the renowned Voice of Sonus faber”, and a modular balanced subwoofer dubbed ARENA S15.
FEATURES:
- ARENA S15: Modular balanced subwoofer that is the industry’s first-in-class bass provider
- 400 Watts power output
SPECIFICATIONS:
Speaker Type
Array Balanced Sub-Woofer
Low frequency transducer
2 x 8 in
Mid/High frequency transducer 6,25 in – 25 mm Dome Tw
Maximum recommended power 400 watts (Printing)
Low-frequency cut-off (-6dB)
29 Hz
Low-frequency cut-off (-3dB)
31,50 Hz
Frequency response (-6dB on-axis) 29 Hz 180 Hz
Frequency Response (-3dB on-axis) 31,50 Hz 180 Hz
Max SPL 1 Meter
–
Sensitivity 2.83 Vrms@1m
90,00 dB
Nominal Impedance 4 Ω
Minimal impedance 3,5 Ω
Crossover frequencies –
Enclosure type
Patentable Acoustical Load
Mounting Depth 202 mm – 7,9 in
Weight 38,7 kg – 85,3 lb
Depth 208 mm – 8,1 in
Width 432 mm – 17 in
Height 947 mm – 37,2 in
