Description

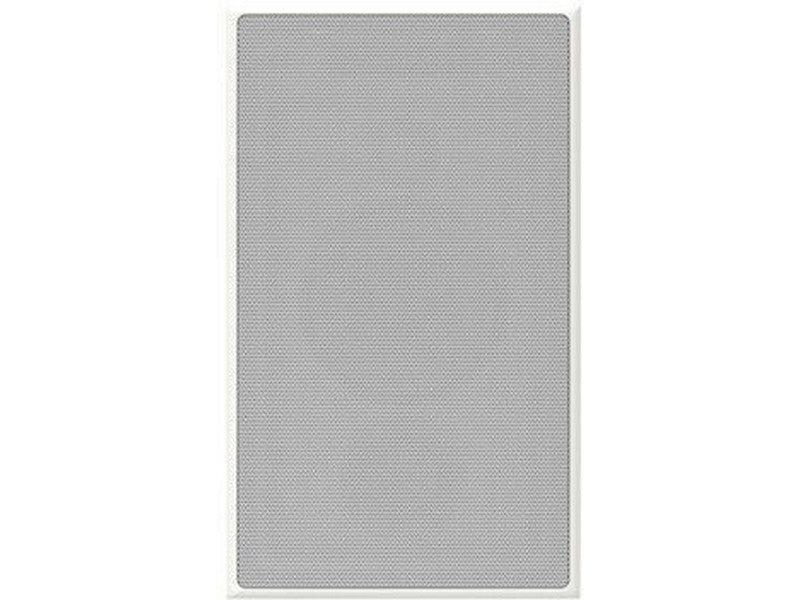

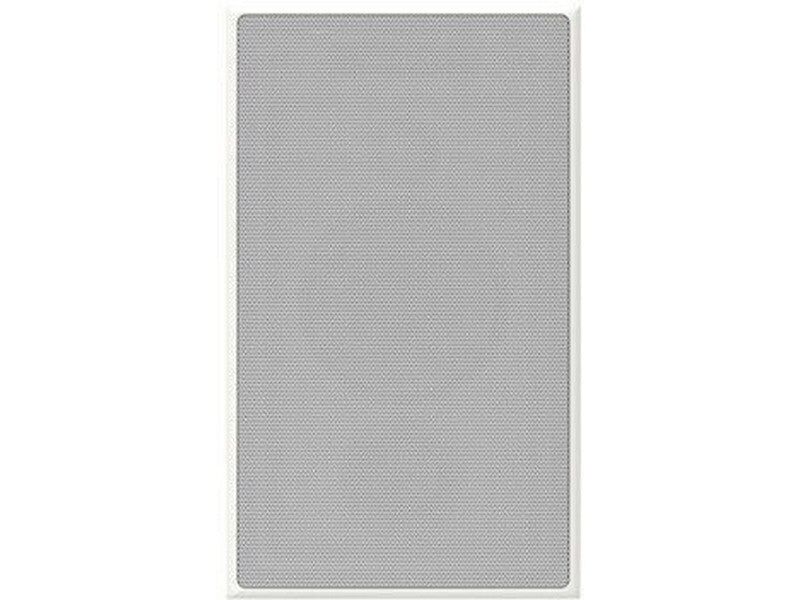

B&W CWM7.5 S2 In-wall Speaker Each

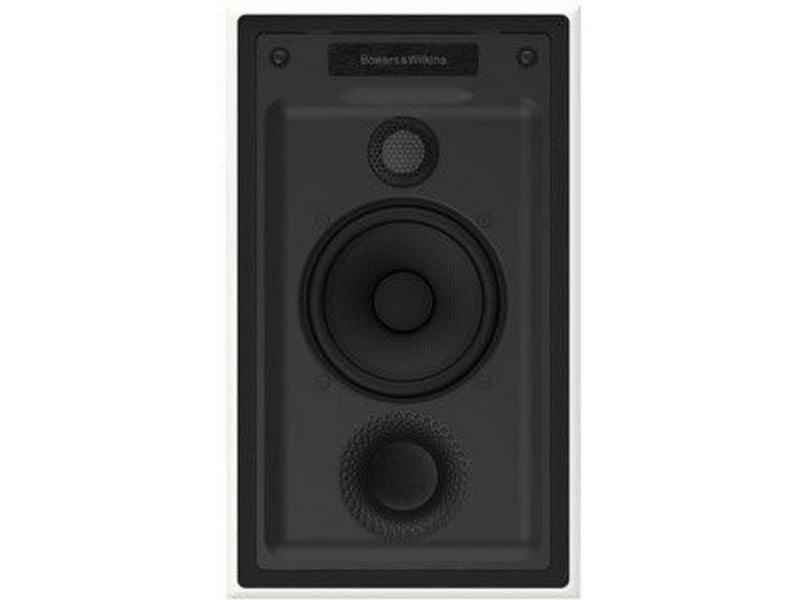

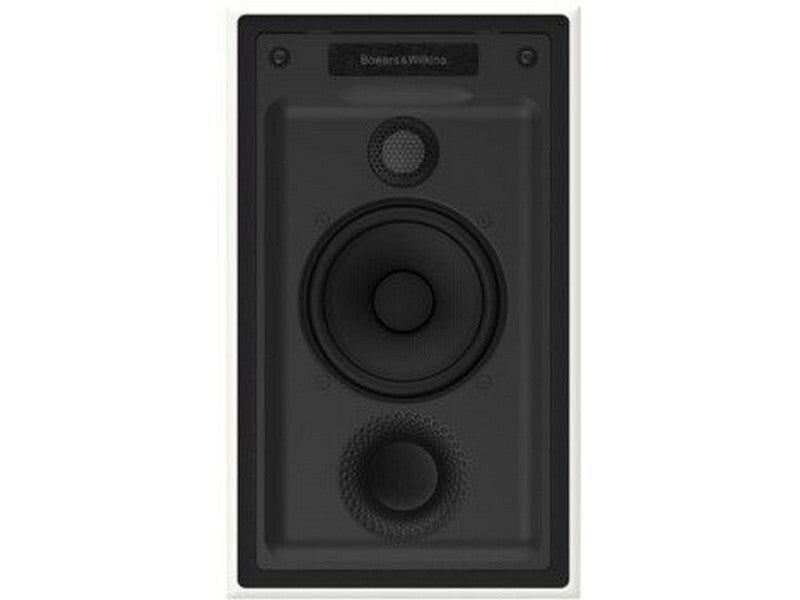

The CWM7.5 shares the acoustic configuration of the 707 S2 and like its sibling, it houses a 130mm (5in) bass/mid-range Continuum cone driver plus a 25mm (1in) Carbon Dome tweeter, coupled to a forward-firing FlowportTM for outstanding bass response from a relatively small footprint.
It has a critically formed baffle constructed from glass reinforced ABS plus its own integrated backbox, ensuring retrofittable installation plus optimum performance. It’s an outstanding performer when used in stereo or multi-room installations, and is equally at home as the rear speaker in a larger theatre application.
Features:
Carbon Dome Tweeter
Continuum Mid/Bass
Flowportâ„¢
Specifications:
Description
2-way in-wall system
Drive units
1x ø25mm (1 in) Carbon Dome high-frequency
1x ø130mm (5 in) Continuum cone mid/bass
Frequency range (-6dB)
-6dB at 43Hz and 33kHz
Frequency Response -3dB
45Hz – 28kHz ±3dB
Sensitivity
86dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz - 33kHz
<0.5% 120Hz - 33kHz
Nominal impedance
8Ω (minimum 3.8Ω)
Recommended amplifier power
25W – 150W into 8Ω on unclipped programme
Frame height
356mm
Frame width
212mm
Depth (behind surface)
102mm
Cut-out height
331mm
Cut-out width
187mm
Reservoir box height
385mm
Reservoir box width
181mm
Protrusion
8mm
Net weight
3.8kg
Finishes
Back Box: White
Grille: White
