Description

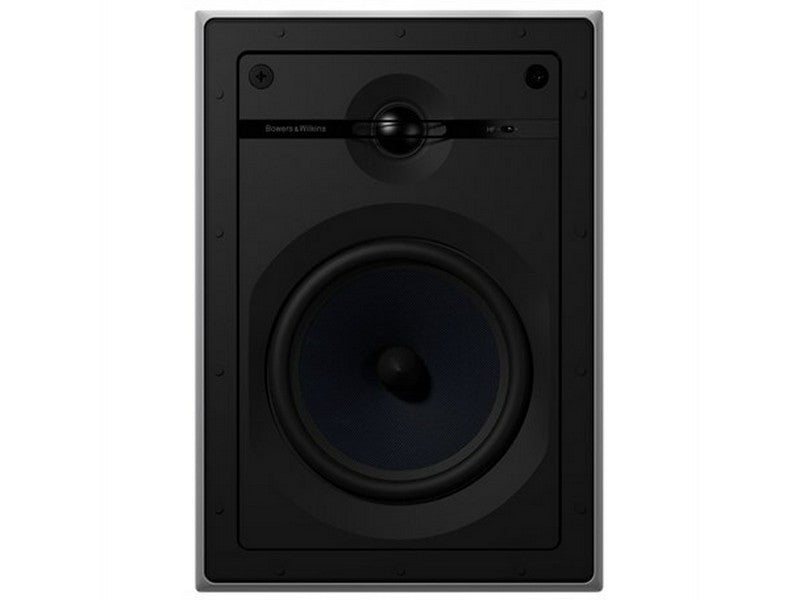

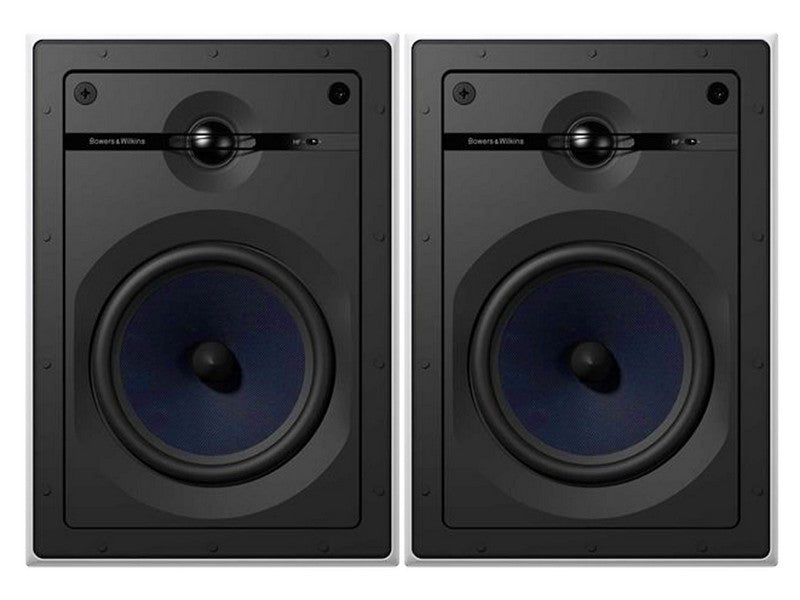

Bowers & Wilkins CWM663 150mm 2-way In-wall Speaker Pair
The CWM663 features a 150mm (6in) blue Kevlar® bass/midrange driver housed in a die-cast chassis, providing extra rigidity for cleaner, faster bass.
The speaker also incorporates a 25mm (1in) Nautilus tube-loaded aluminium dome tweeter, and a three-position high frequency switch for acoustic fine-tuning. Installation is almost effortless, thanks to our new QuickDogsâ„¢ fixing system and plug-and-play connection.
SPECIFICATIONS:
- 2-way in-wall system
- Drive units 1x ø25mm (1in) Nautilus™tube loaded aluminium dome tweeter
- 1x ø150mm (6in) blue Kevlar®cone bass/midrange
- Frequency Range (-6dB) 45Hz – 50kHz
- Maximum Amp Power 25 – 150w
- Sensitivity SPL (2.83V, 1m) 88dB
- Impedance Nominal (min) 8Ω (4.5Ω)
- Frame height 315mm (12.4in)
- Frame width 221mm (8.7in)
- Cut-out height 279mm (11in)
- Cut-out width 183mm (7.2in)
- Depth behind surface 95mm (3.7in)
- Protrusion 4mm (0.2in)
- Pre-mount Kit PMK W6
- Back Box BB 6W
