Description

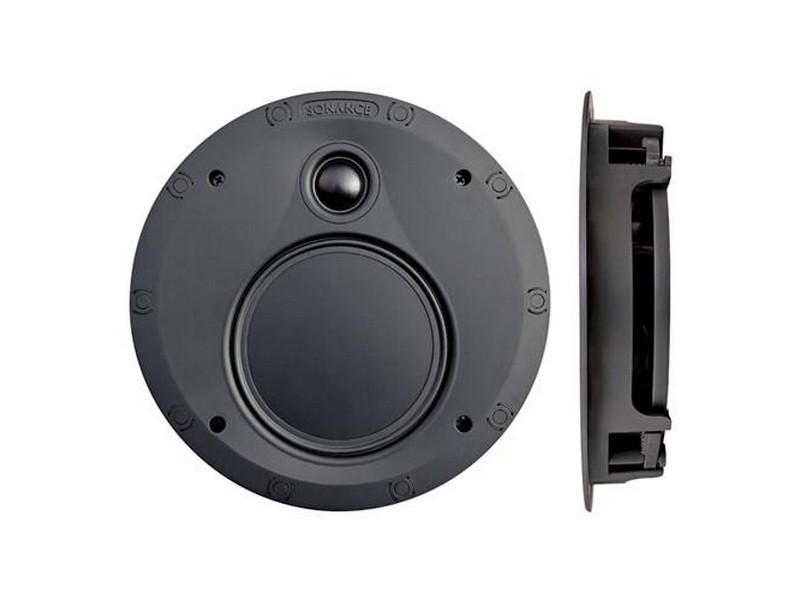

Sonance VP52R UTL fits in VX6R cutout ceiling speaker ultra thin-line 80W 8ohm
With an in-ceiling mounting depth of 1.43″ (36mm), the Sonance Visual Performance Ultra Thin-Line In-Ceiling Speaker maintains the same award winning performance and discreet design as the rest of the series. Developed with cutting-edge design and built using state-of-the-art materials, the VP52R UTL has the largest woofer and the best low frequency response in its category.
Features:
Aesthetics
- Consistent aesthetic with other Visual Performance Speakers
- Low-profile grille provides a discreet design that blends cleanly in the wall or ceiling
- High-strength magnetic retention system for a tight fit
Performance
- Ultra thin with a 36.2mm mounting depth and outstanding Audio performance
- Designed with state-of-the-art materials
- Perfect for whole house audio
Installation
- Easy installation for shallow depth ceilings and walls

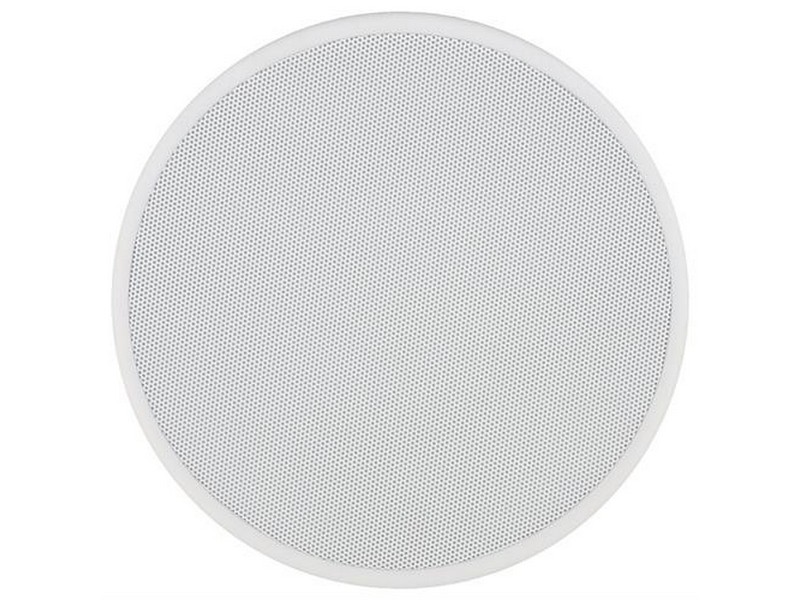

- One-piece paintable Visual Performance grille for a single step painting process
- Single piece toggle feet for securing the speaker to wall and ceiling surfaces
- Compatible with all 6” VP accessories including Square Grille Adapter Kit
Specifications:
- Tweeter 1″ (25mm) cloth dome, Ferrofluid-cooled, in acoustic back chamber
- Woofer 5 1/4″ (133mm) polypropylene cone with a rubber surround
- Frequency Response 75 Hz – 20Hz ±3dB
- Impedance 8 ohms nominal; 6 ohms minimum
- Power Handling 5 watts minimum; 80 watts maximum
- Sensitivity 89dB SPL (2.83V/1 meter)
- Overall Dimensions (Diam. x D) 9.75″ (248mm) x 1.47″ (37mm)
- Cutout Dimensions (Diameter) 8.25″ (210mm)
