Description
Extraordinary performance, Italian sound. The Gravis I and II subwoofers, the collection representing an ideal compromise between size and performance.

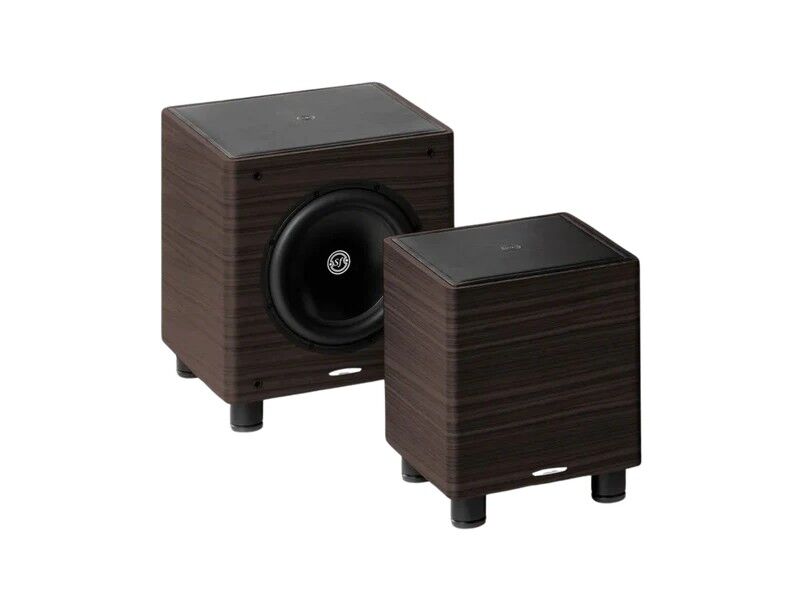

Gravis I and II, the smaller models of the collection, discreet in size but powerful in performance, are the ideal compromise for middle sized listening rooms.
Thanks to their accurate and expressive bass reproduction, they can be matched with almost every kind of music and video system, but they have been specifically designed for the Sonus faber Sonetto family.
Both Sonus faber Gravis I & II use quality stamped steel-frame speaker units: Gravis I features a 8” Ultra Long Throw down-firing speaker unit along with a high current 150W Class AB amplifier; Gravis II uses a 10” Ultra Long Throw down-firing speaker unit and a 10” aluminum along with a high current 400W Class AB amplifier, alloy diaphragm passive infra-bass radiator.
Consistent with the Sonetto line’s aesthetics, Gravis I and II are available in three finishes: Wood, Matte White and Piano Black, with the leather top embellished by the hot branded Sonus faber logo.
SPECIFICATIONS:
SYSTEM
Passive radiator bass-reflex loading active subwoofer
SPEAKERS
1 x 260mm (10”) very long throw, treated paper cone, wide rubber surround woofer
AMPLIFICATION
High linearity Class AB
350 W rms, 700 W (peak)
FREQUENCY RESPONSE
From 25/35 Hz to Fc (user adjustable)
MAINS INPUT VOLTAGE
Factory selected, 120Vac – 60Hz or 230 Vac – 50 Hz
FUSE
T6.3A (110Vac, 60Hz); T3.15A (230V, 50Hz)
Output signal short circuit;
Over-heating;
DC fault

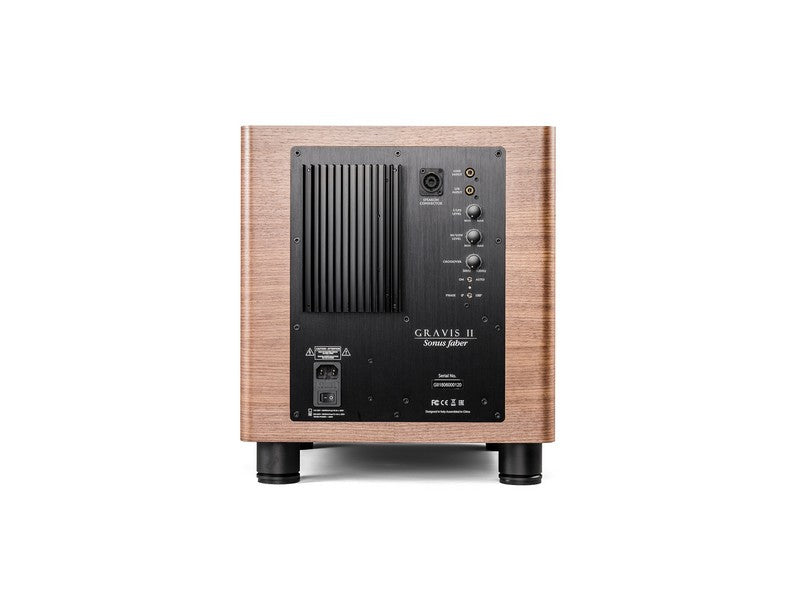

CONTROLS
Independent Master and LFE volume controls;
Continuously adjustable Crossover frequency (30 to 120Hz),
slope 24dB/oct;
Signal phase inversion switch (0/180°)
Auto switch-on/off (deselectable)
AUDIO SIGNAL INPUTS
LFE (Low Frequency Effect), single phono plug;
Line level signal, single phono plug;
High level signals, Neutrik 4-pole Speakon©
POWER CONSUMPTION
0.5 W (Stand-by)
450W (Rated power)
DIMENSIONS (HxWxD)
404 x 356 x 408 mm including feet
15,9 x 14 x 16 in including feet
WEIGHT
21,5 Kg
47,3 lb
