Description

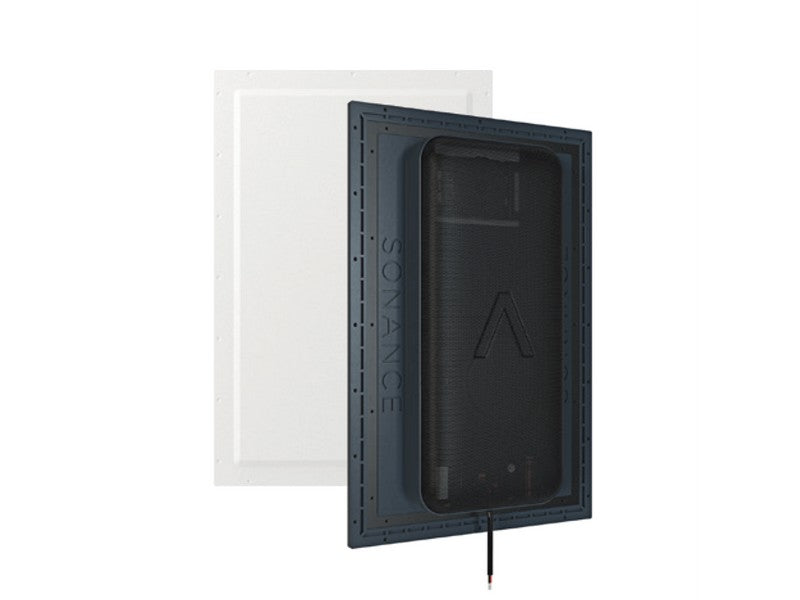

Sonance IS8 Speaker Invisible Series Commercial Each
Sonance Invisible Series Speakers are the pinnacle of the Sonance “Designed to Disappear” philosophy. All-new Motion Flex Invisible Series incorporates new breakthroughs in installation and audio quality, and firmly entrenches Sonance as the unrivalled leader in discreet performance audio.
NOTE : Sound isolating Enclosure sold separately.
FEATURES:
MOTION FLEX TECHNOLOGY
A suite of advancements in invisible speaker engineering for unparalleled acoustic performance from an invisible speaker
WAVE FLEX DRIVE UNIT
High-bandwidth midrange and high-frequency transducer that leverage the bending-wave principle, delivering velvety-smooth mids and crystal-clear highs
AIR FLEX WOOFER
Glass-fibre woofer coupled to an acoustically inert diaphragm to move a pocket of air like a piston for robust and powerful bass
ACOUSTICALLY ISOLATED BAFFLE
The diaphragm is split into two active areas that are completely isolated to enable ultra-low distortion sonic transparency like never before
CONSTANT DIRECTIVITY CROSSOVER (CDX)
The proprietary Sonance CDX provides uniquely smooth off-axis frequency response for greater fidelity and coverage and almost 180° of horizontal and vertical dispersion
SONANCE DEPTH IDENIFICATION SENSING CALIBRATION (DISC) SYSTEM
Uses a high-accuracy depth gauge and embedded locator discs to measure the thickness of a finish applied over the surface of a Sonance Invisible Speaker, allowing for a consistent finish and performance within specifications every time
SPECIFICATIONS:
- Wave Flex Drive Unit 29in² (188cm²) bending wave diaphragm 1.75″ (44mm) voice coil
- Air Flex Woofer 191in² (1234cm²) air pulse diaphragm 8″ (203mm) carbon fiber woofer
- Frequency Response 40Hz–30kHz (±3dB)
- Impedance 6 Ohms Nominal
- Power Handling (RMS) 160W
- Sensitivity (2.83V/1m) 86dB
- Dispersion 170º hemispherical up to 10kHz
- Mounting Depth 2.68″ (68mm)

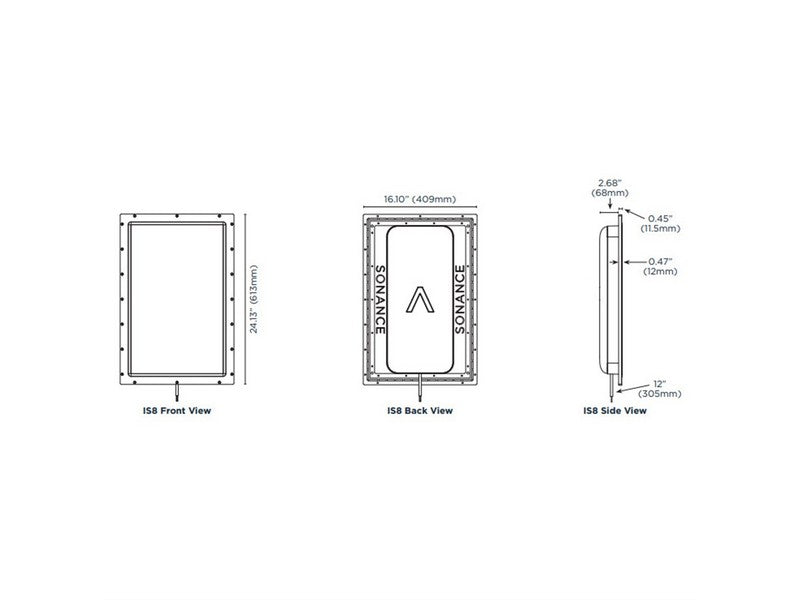

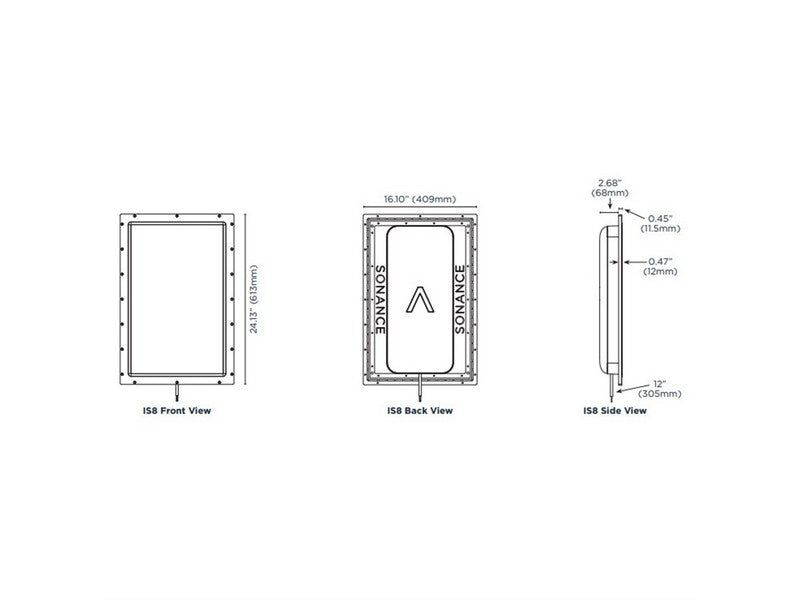

- Dimensions (WxHxD) 16.10″ x 24.13″ x 3.15″ (409mm x 613mm x 80mm)
- Product Weight 16.81 lbs (7.63 kgs)
- Shipping Weight 42.36 lbs (19.215 kgs)
- Back Dimensions (W x H) 9.49” (241mm) x 20.98” (533mm)
