Description

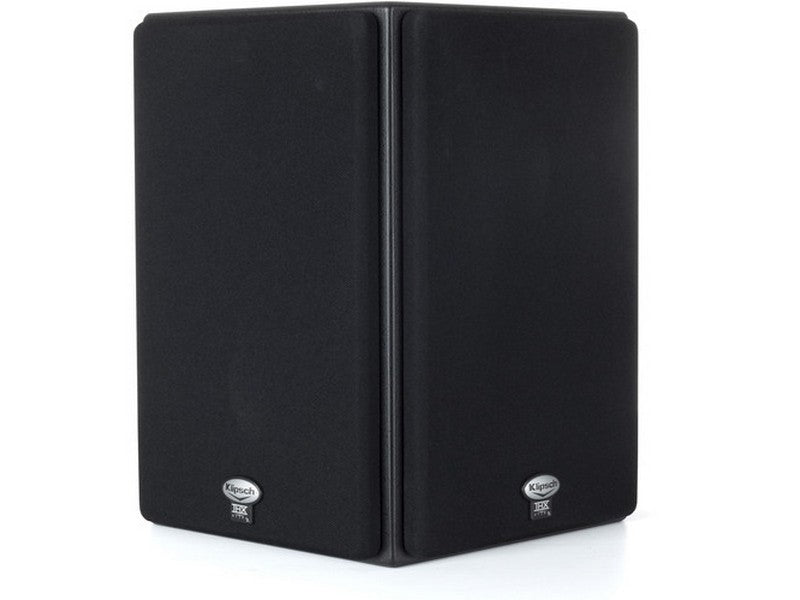

KLIPSCH THX-5000-SUR Surround Speaker Pair
Complete your surround sound system with your amplifier, front speakers, and the Klipsch THX Ultra2 THX-5000-SUR Surround Speakers. They feature keyholes and 1/4″-20 threaded inserts on the back for wall or ceiling mounting with compatible mounting hardware and are specially designed for use as surround channel speakers.
They feature two 1″ titanium dome tweeters mated to 5″ square 90 x 60° Tractrix horns for enhanced highs, and two 5.25″ Cerametallic cone woofers for mids and lows down to 80 Hz. The speakers accept up to 100W of RMS power from your amplifier.
Â
Features:
- 2-Way Speaker Design
- Dual 5.25″ Cerametallic Cone Woofers
- Dual 1″ Titanium Dome Tweeters
- 5″ Square, 90 x 60° Tractrix Horns
- 100W RMS Power Output
- 80 Hz to 20 kHz Frequency Response
- MDF Cabinet
- Keyholes & 1/4″-20 Threaded Inserts
Â
WDST Technology

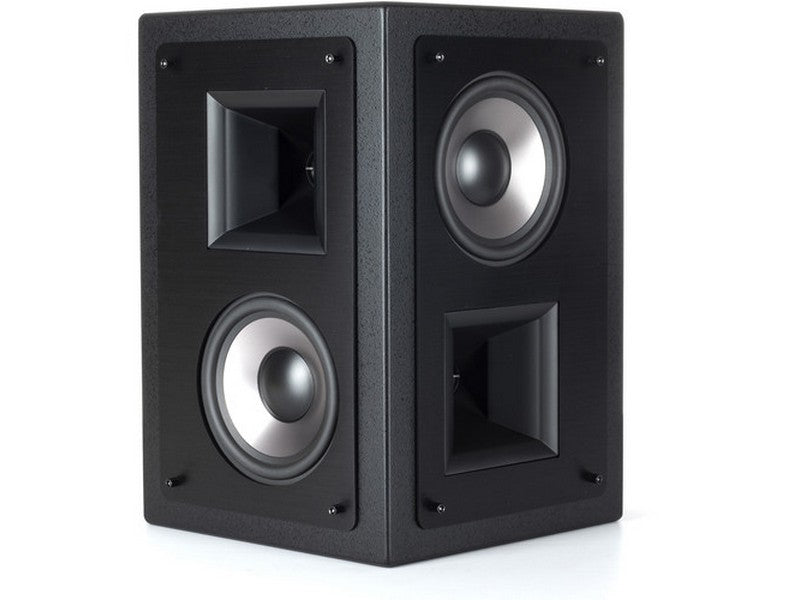

The THX-5000-SUR is designed to produce a smooth, seamless, broad distribution of sound using a pair of 5.25″ Cerametallic woofers and a pair of 5″ square 90 x 60° Tractrix horn-loaded tweeters in a Wide Dispersion Surround Technology (WDST) array. WDST helps the speaker provide rich, immersive surround sound and precise localization of individual effects with enhanced placement flexibility. Each woofer/tweeter set is on an angled baffle facing opposite the other, with the tweeters on a diagonal to one another to minimize interference between their outputs.
Rabbet and Dado Construction
The speaker features a rabbet and dado locked panel construction design to help ensure cabinet integrity in suspended applications. The Omni-Mount suspension points allow for wall or ceiling mounting using optional hardware.
THX Ultra2-Certified

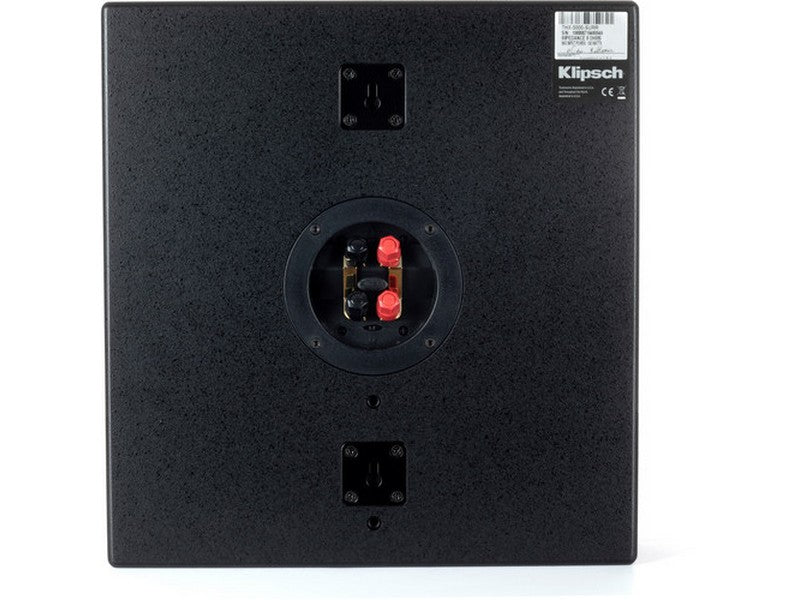

Designed for use in high-performance 5.1-, 6.1-, and 7.1-channel home theaters, the THX-5000-SUR can also be used in a combination home theater/music system. It features vertically aligned keyholes for wall mounting and 1/4″-20 threaded inserts for use with compatible wall or ceiling speaker mounts rated for 20 lb or higher.
Specifications:
- Speaker Configuration 2-Way
- Power Handling 100 W RMS
- 400 W Peak
- Bi-Amp Capability Yes
- Drivers 2 x 5.24″ / 133 mm Cerametallic Cone Woofer (per Speaker)
- 2 x 0.98″ / 25 mm Titanium Dome Tweeter (per Speaker)
- Enclosure Type Sealed
- Ports None
- Frequency Response 80 Hz to 20 kHz (±3 dB)
- Impedance 8 Ohms
- Magnetic Shielding Yes
- Wired Connectivity 2 x Binding Post Pair Input
- Crossover 2100 Hz
- Sensitivity 96 dB
- Placement & Mounting Options Tabletop/Bookshelf
- 1/4″-20 Female, Ceiling-Mount, Keyhole(s), Wall-Mount
- Cabinet Material MDF
- Dimensions 13 x 13.8 x 8.5″ / 33 x 35 x 21.6 cm
- Weight 20.0 lb / 9.1 kg
