KLIPSCH THX-5000-LCR Ultra 2-Way LCR Speaker Single

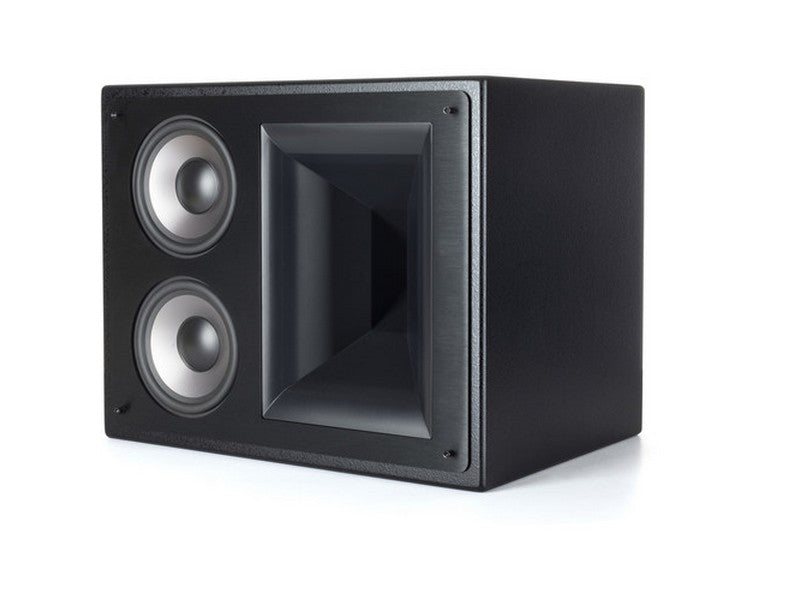

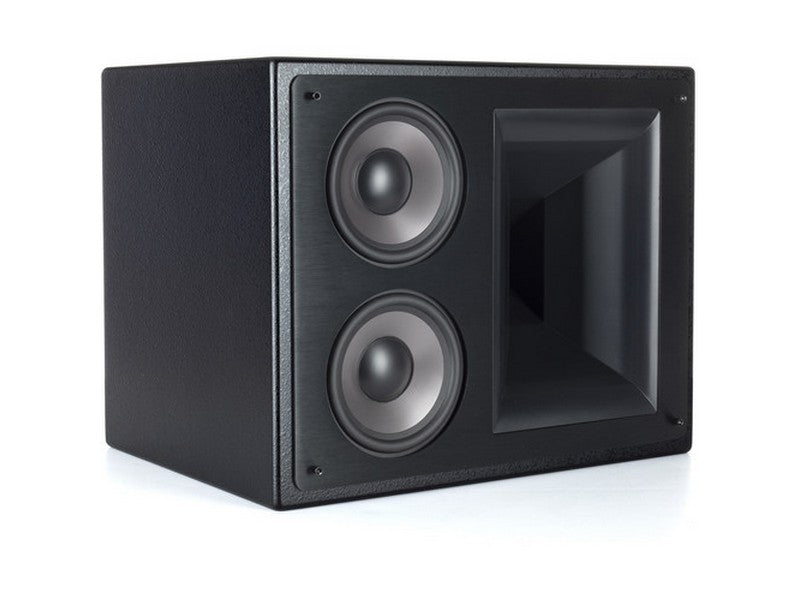

Enjoy versatile placement options with the Klipsch THX-5000-LCR THX Ultra2 Two-Way LCR Speaker. It features 1/4″-20 bolt holes on the back for wall or ceiling mounting with a compatible mount and can be used at any position in a home theater system – in the front at the left, center, or right position, or as a surround channel. The THX-5000-LCR uses a 1″ titanium dome tweeter mated to a 90 x 60° Tractrix horn for enhanced highs, and two 5.25″ Cerametallic cone woofers for mids and lows down to 80 Hz. The THX-5000-LCR accepts up to 100W of RMS power from your amplifier.
Â
Â
Features:
- 100W RMS Power Output
- 2-Way Speaker Design
- Dual 5.25″ Cerametallic Cone Woofers
- 1″ Titanium Dome Tweeter
Â
THX Ultra2-Certified

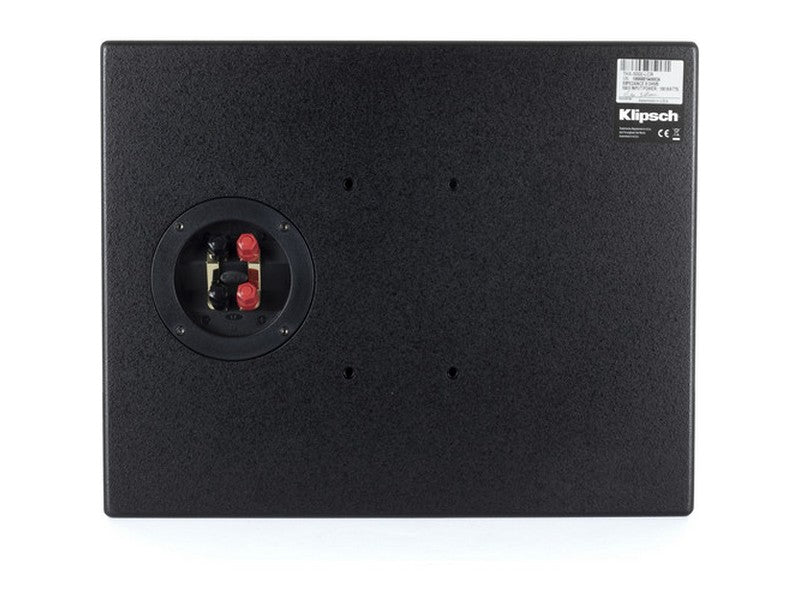

Designed primarily for front left, center, or right reproduction in high-performance home theaters, the THX-5000-LCR can also be used as a surround channel or in a combination home theater/music system. It’s rear-panel 1/4″-20 threads make it compatible with wall or ceiling speaker mounts rated for 40 lb or higher.
10 x 6″, 90 x 60° Tractrix Horn
The 10 x 6″, 90 x 60° Tractrix horn helps raise the efficiency of the 1″ titanium-dome compression tweeter, optimizing its radiation pattern. The horn is designed to enable the speaker to meet THX Ultra2 directivity specifications without the lobing and comb filtering effects of multi-tweeter options. Its dual 5.25″ woofers are designed with large, magnetically shielded motor structures that drive rigid, low-mass Cerametallic cones for high output with low distortion.
Rabbet and Dado Construction
The speaker features a rabbet and dado locked panel construction design to help ensure sonic purity, consistency, and reliability.
Specifications:
- Speaker Configuration 2-Way
- Power Handling 100 W RMS
- 400 W Peak
- Bi-Amp Capability Yes
- Drivers 2 x 5.24″ / 133 mm Cerametallic Cone Woofer
- 1 x 0.98″ / 25 mm Titanium Dome Tweeter
- Enclosure Type Sealed
- Ports None
- Frequency Response 80 Hz to 20 kHz (±3 dB)
- Impedance 8 Ohms
- Magnetic Shielding Yes
- Wired Connectivity 2 x Binding Post Pair Input
- Crossover 1500 Hz
- Sensitivity 94 dB
- Placement & Mounting Options 1/4″-20 Female, Ceiling-Mount, Wall-Mount
- Cabinet Material MDF
- Dimensions 16 x 12.8 x 12.5″ / 40.6 x 32.4 x 31.8 cm (with Grille)
- Weight 32.0 lb / 14.5 kg
