Description

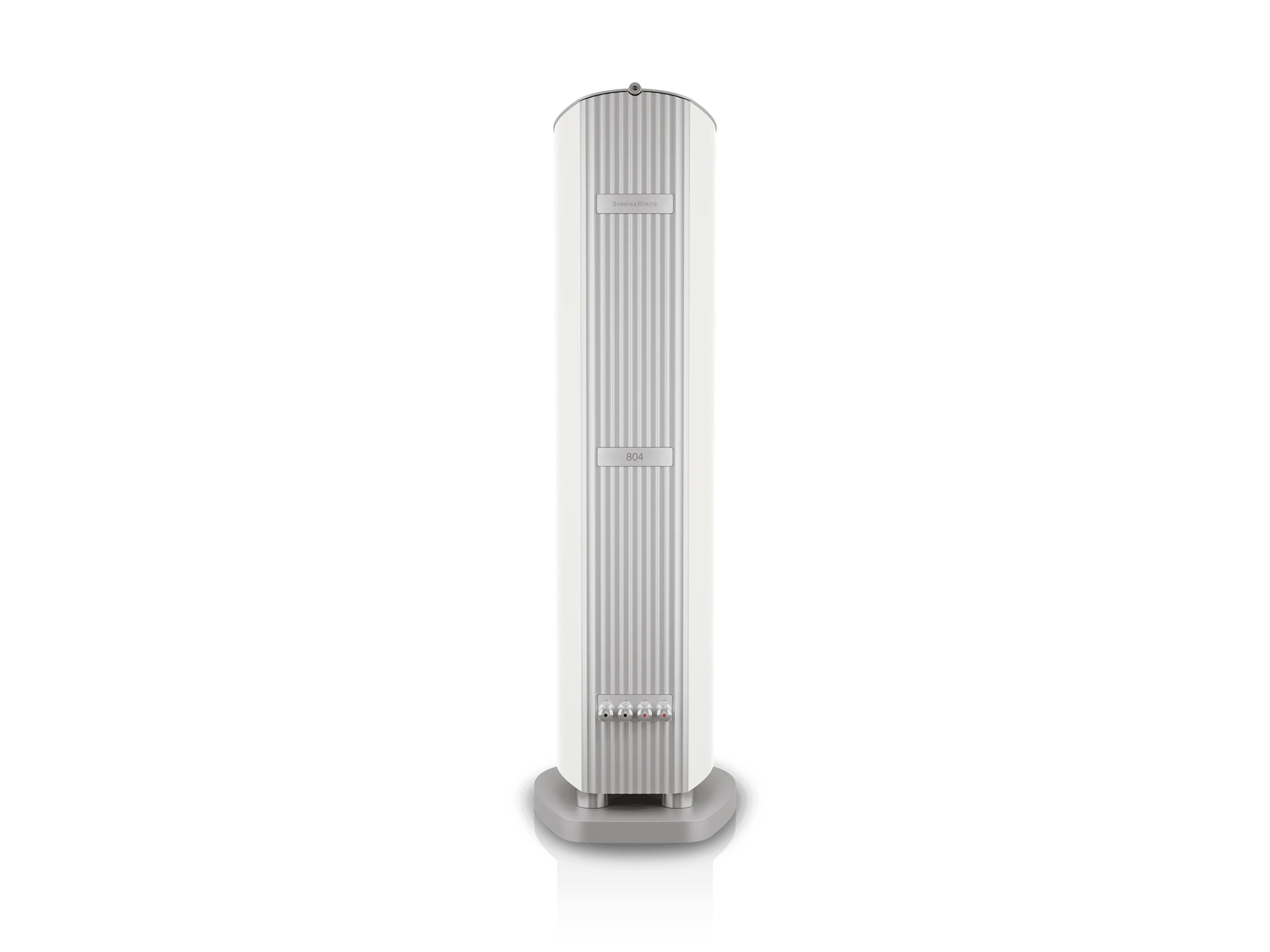

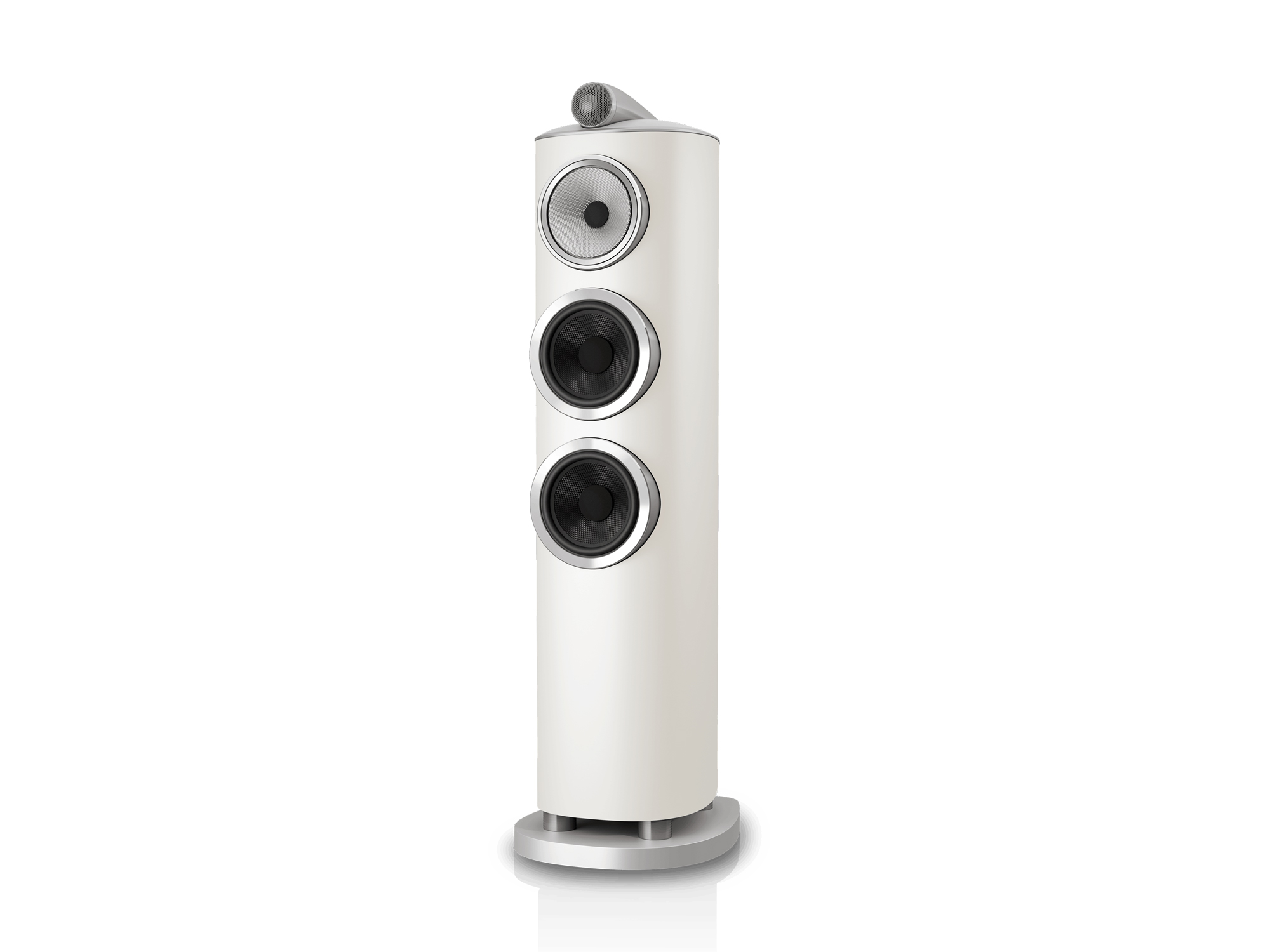

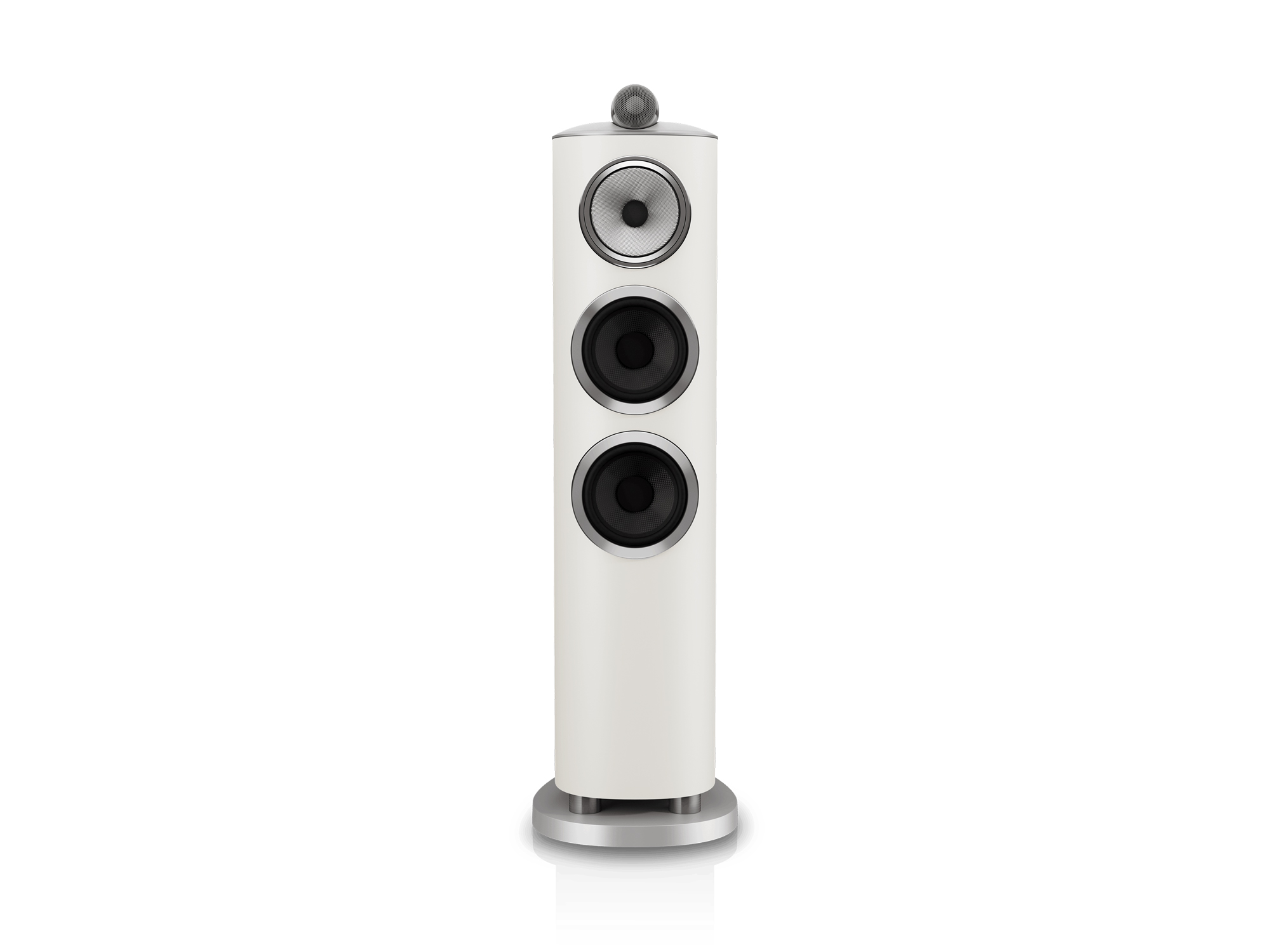

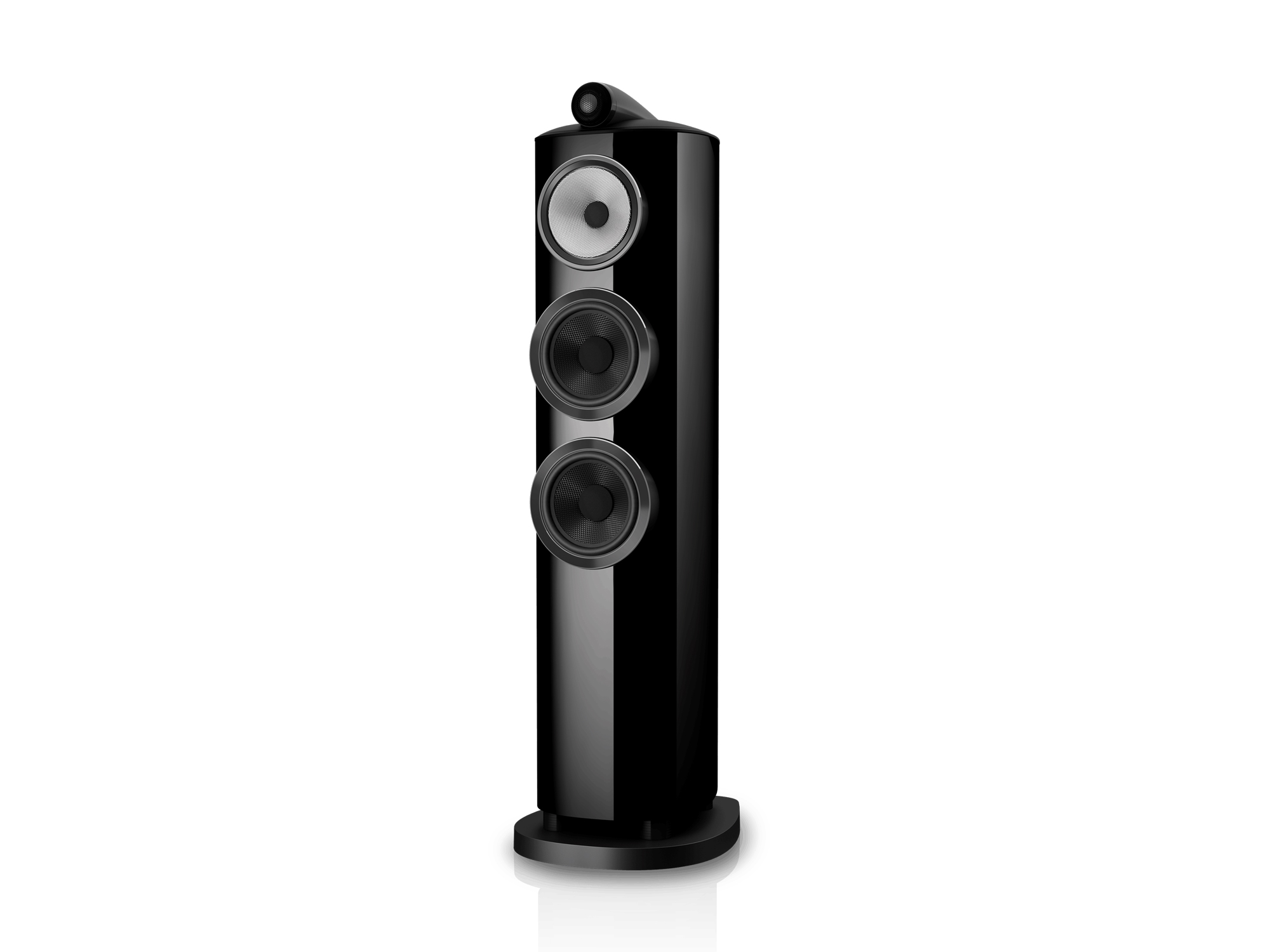

The 804 D5 brings reference-quality 800 Series Diamond performance to a more conventional floorstanding loudspeaker design.
Perfect for those who want a breathtaking listening experience in a smaller footprint, the 804 D5 features our Diamond dome tweeter, housed in the iconic Tweeter-on-Top, for astonishing high-frequency precision. This is complemented by our Continuum cone, located within an all-new Aluminium midrange enclosure, plus two Aerofoil bass drive units, rigidly mounted within the reverse-wrap cabinet. Stabilised on an upgraded plinth with tuned-mass damping, 804 D5 reproduces clarity with breathtaking accuracy. Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 804 D5 looks and sounds incredible.
3-Way Floor Standing Speaker System
Drive units
- 1x ø25mm (1in) diamond dome high-frequency
- 1x ø130mm (5in) Continuum cone FST™ midrange
- 2x ø165mm (6.5in) Aerofoil cone bass units
Key Specifications
- Frequency range: 20Hz to 35kHz
- Frequency response (+/-3dB from reference axis): 24Hz to 28kHz
- Sensitivity (on axis at 2.83Vrms at 1m): 89dB
- Harmonic distortion: 2nd and 3rd harmonics (90dB,1m on axis)
- <1% 90Hz – 20kHz
- <0.3% 120Hz – 20kHz
- Nominal impedance: 8Ω (minimum 3.0Ω)
- Recommended amplifier power: 50W – 200W into 8Ω on unclipped programme
Technical features
- Diamond tweeter
- Solid body Tweeter-on-Top
- Continuum cone FSTâ„¢
- Anti-Resonance plug
- Biomimetic Suspension
- Matrixâ„¢
- Aerofoil cone bass units
- Flowportâ„¢
- Dimensions: 1101mm x 308mm x 392mm (H x W x D)
- Net weight: 40.3kg
