Description

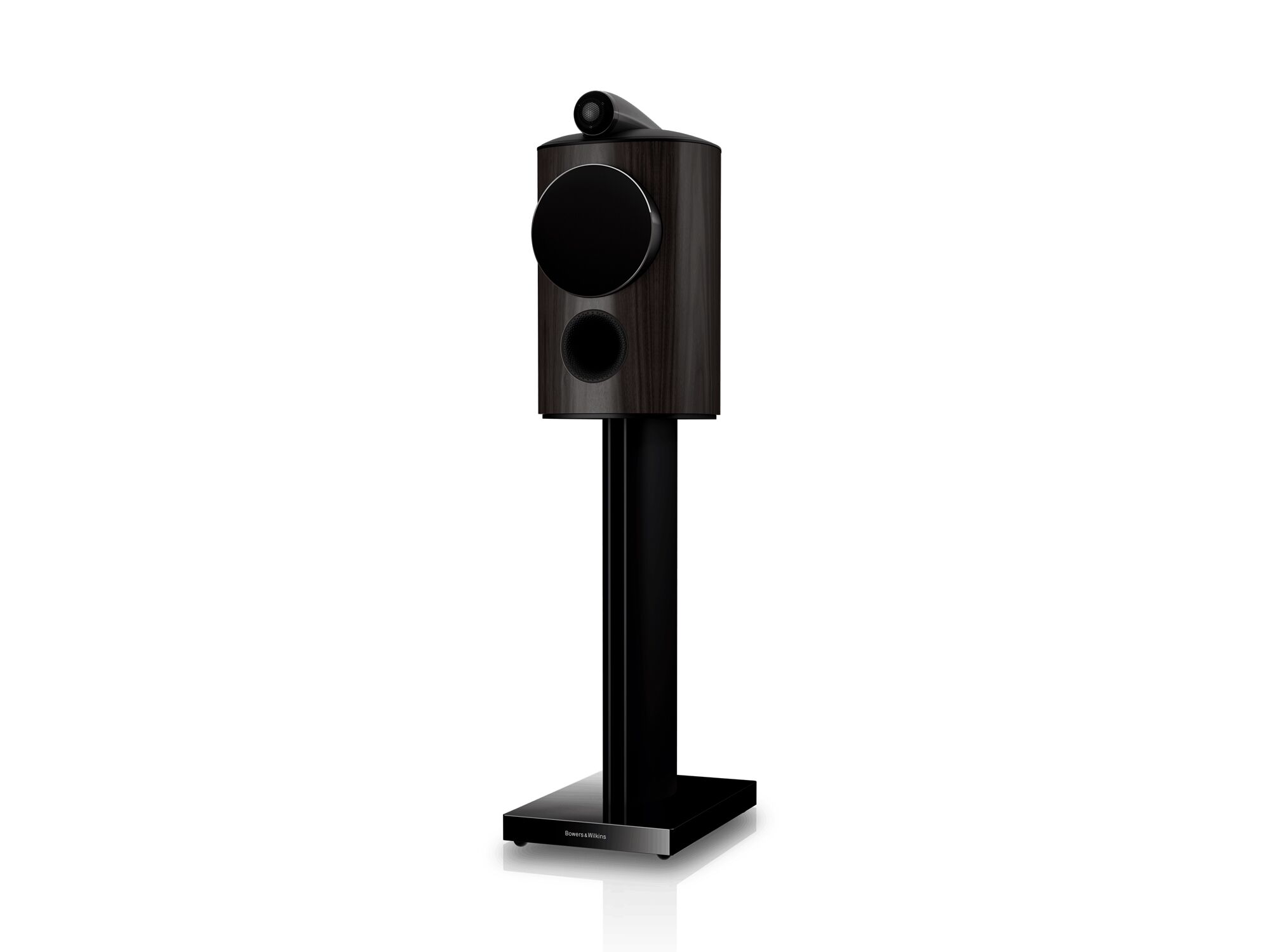

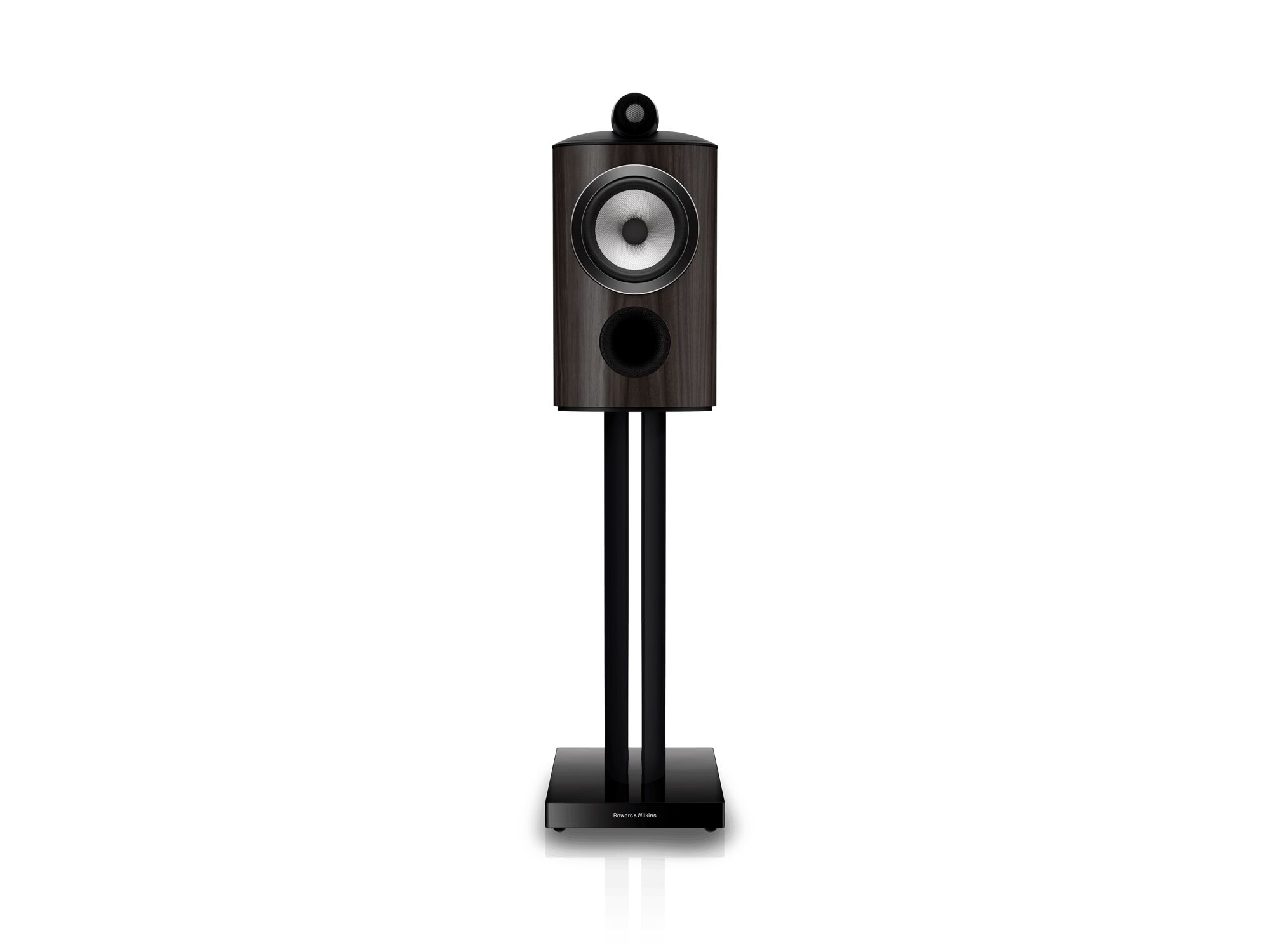

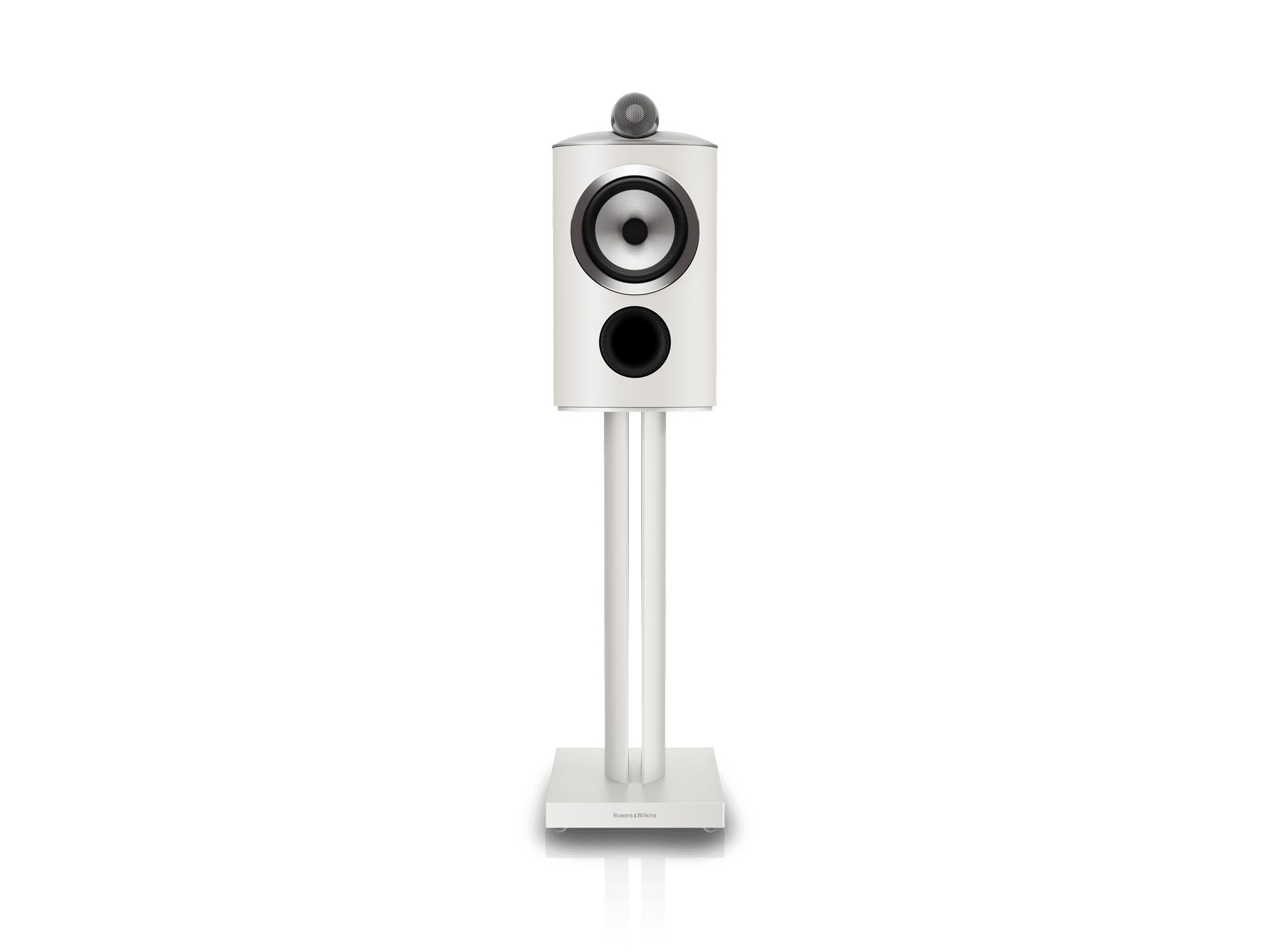

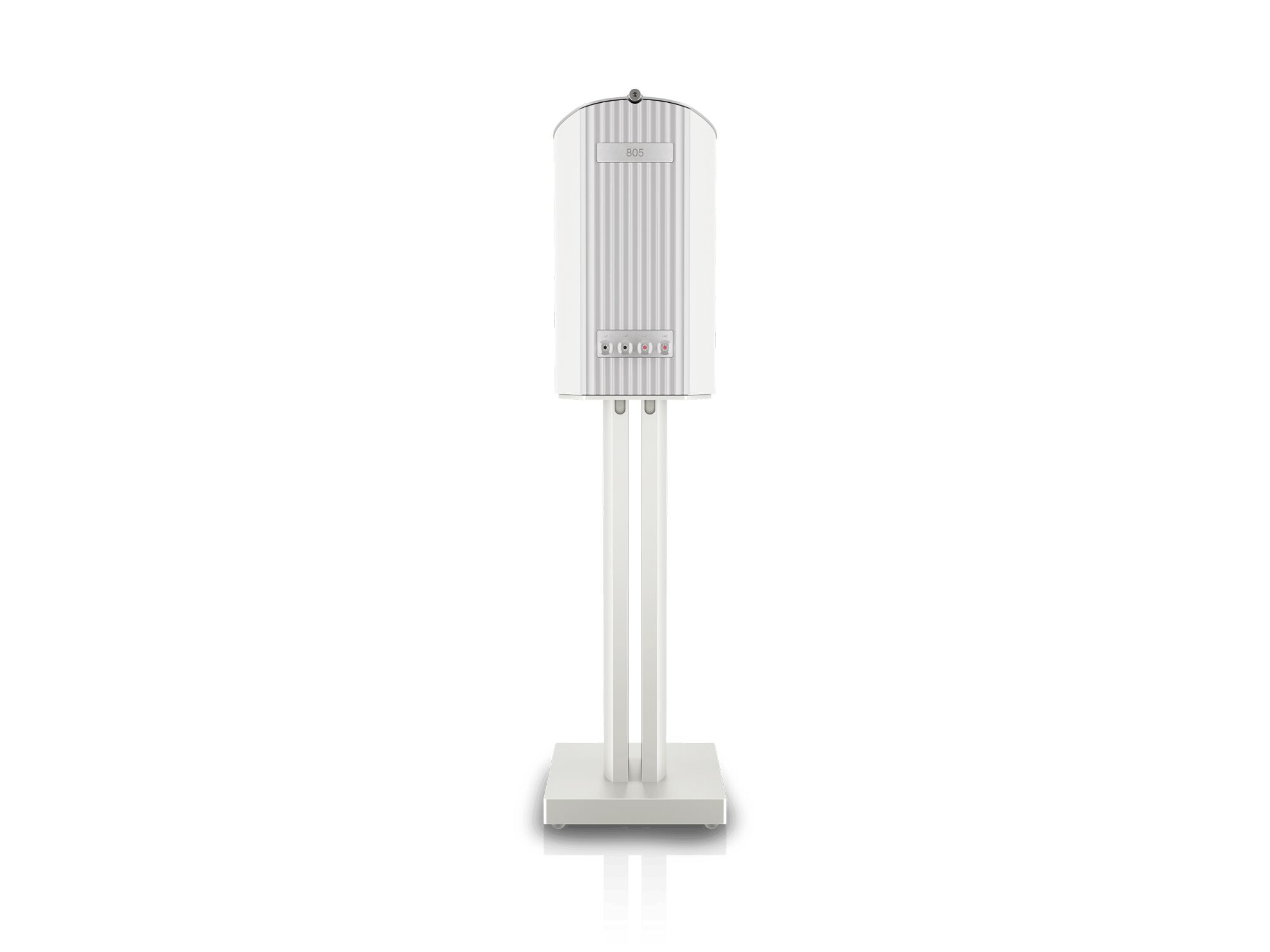

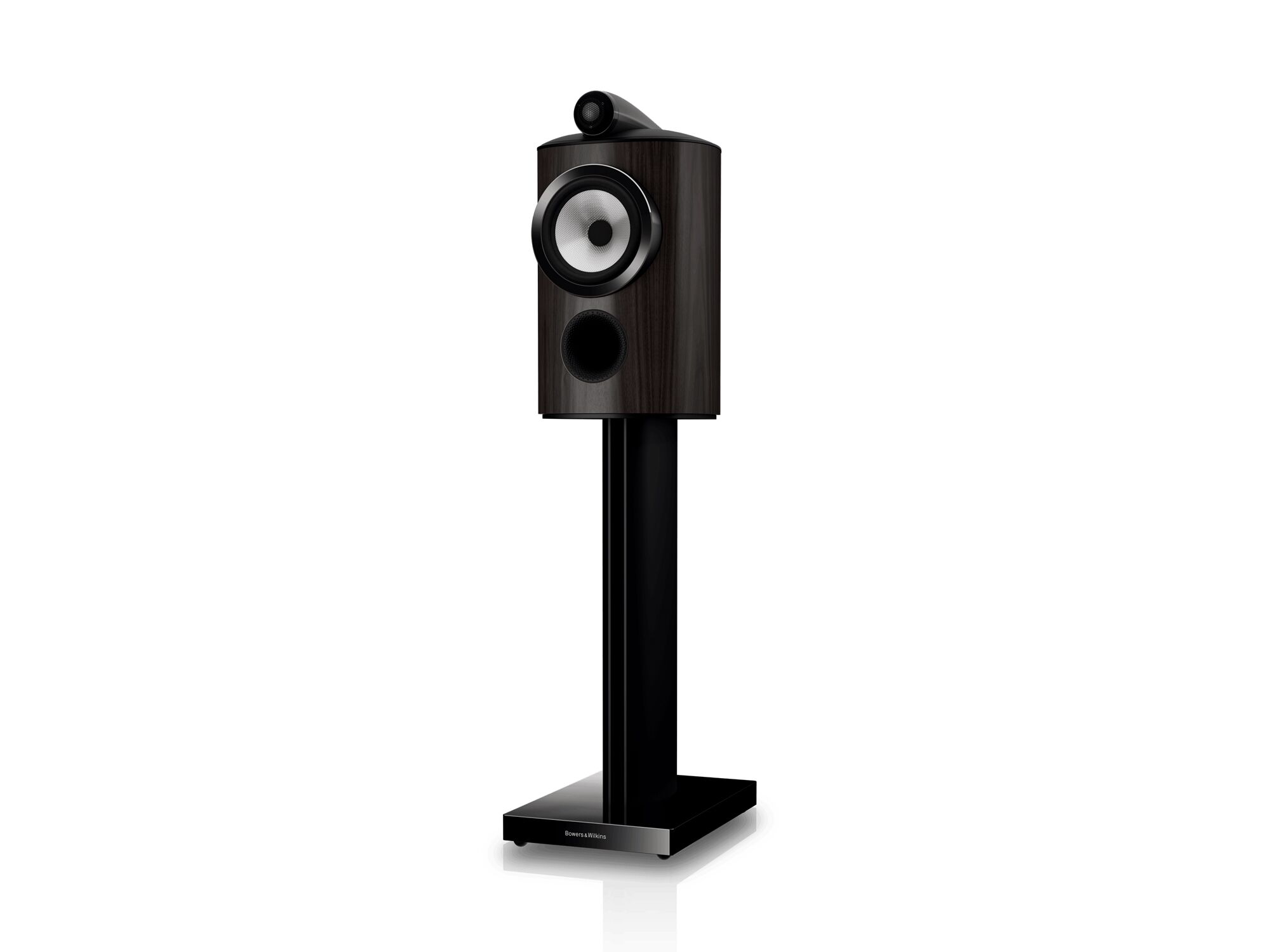

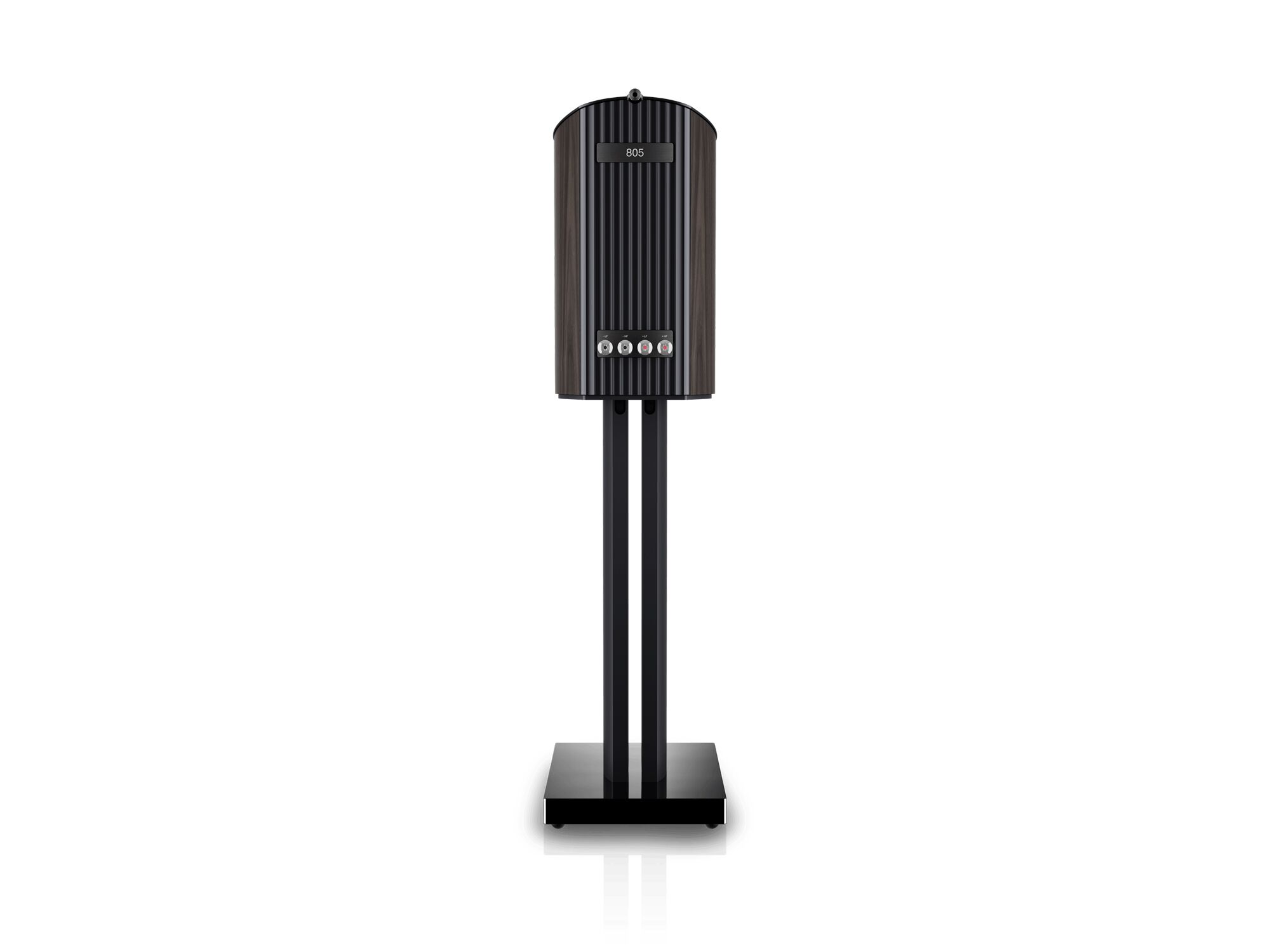

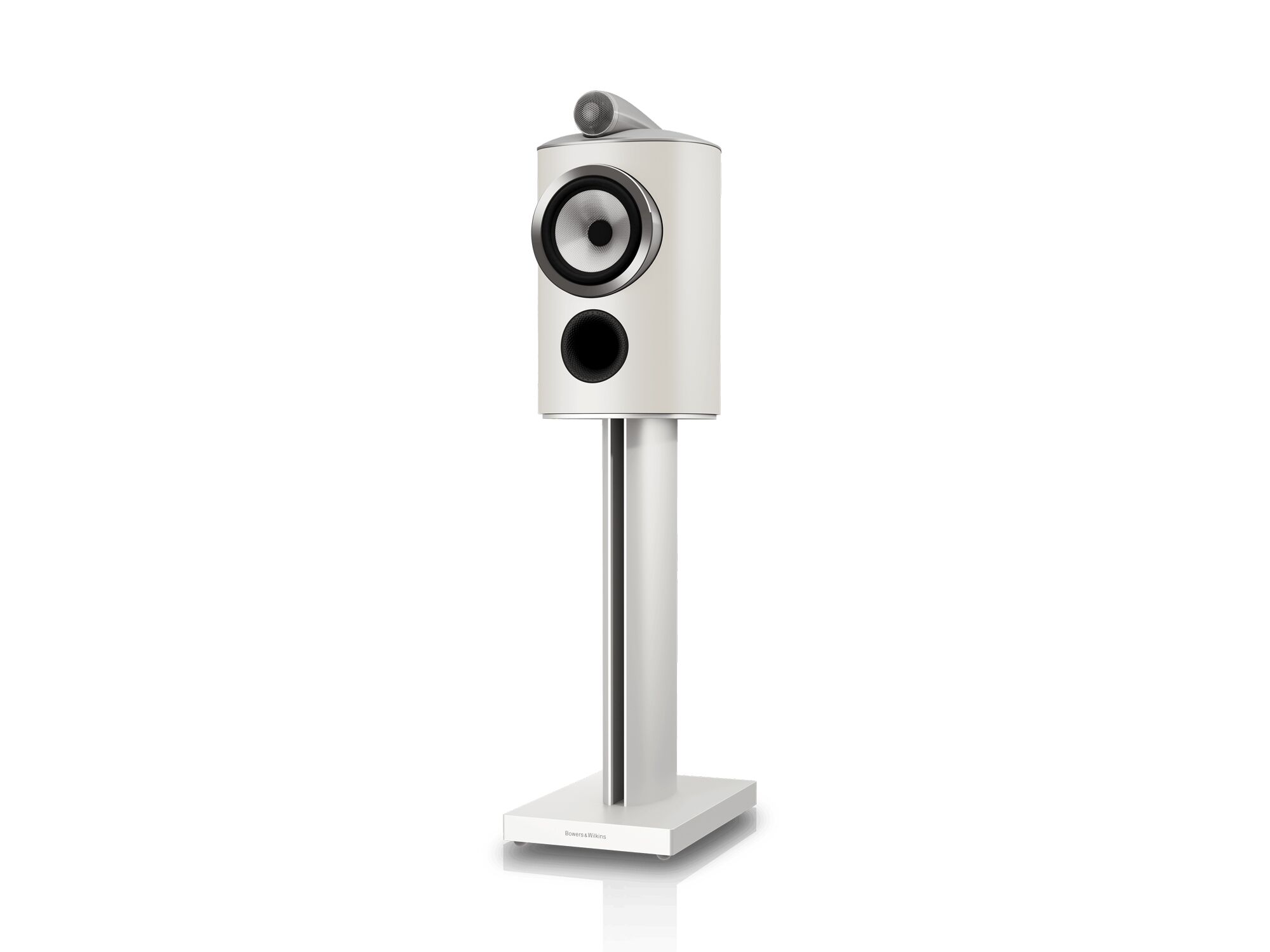

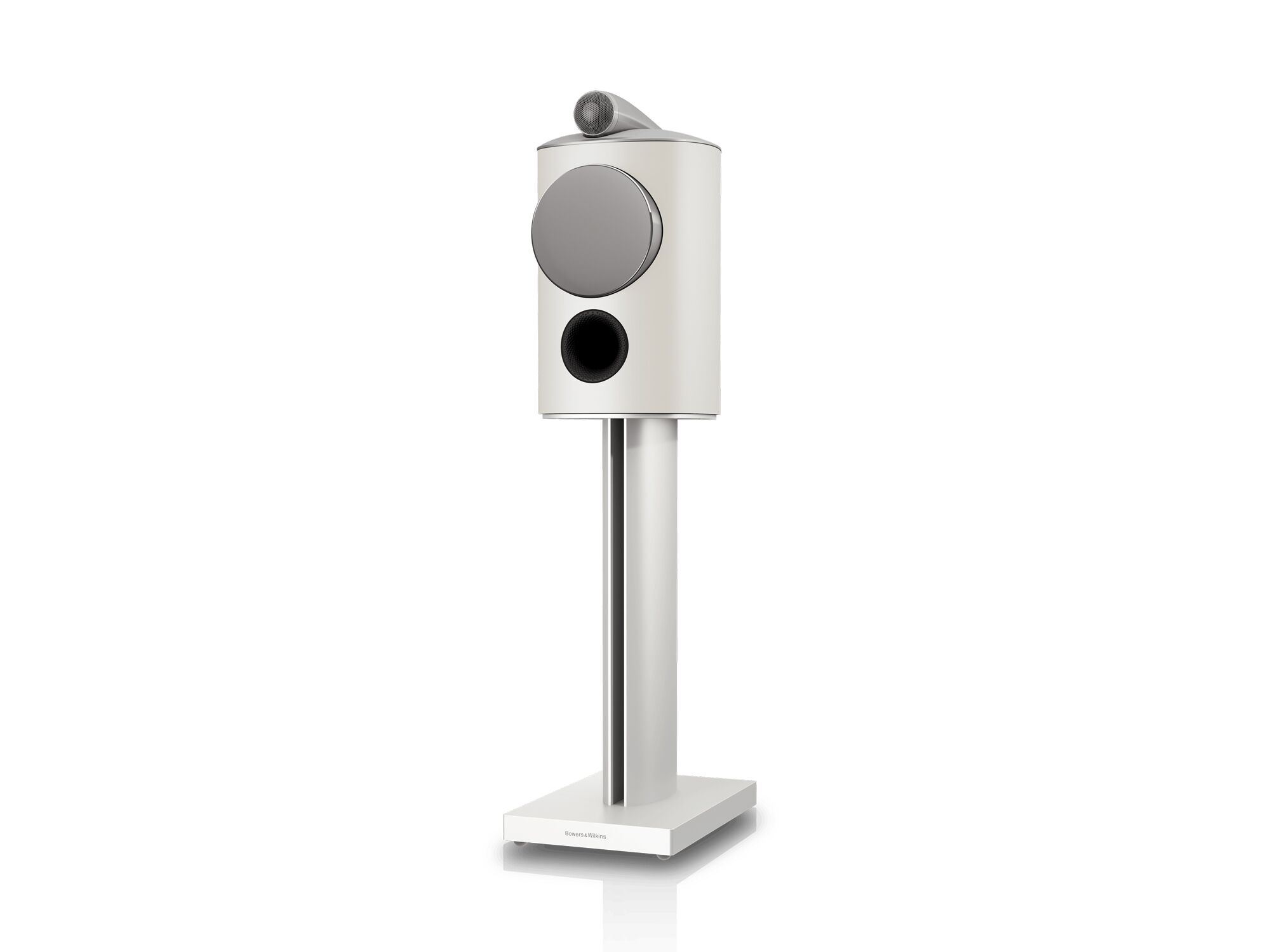

The 805 D5 stand-mount loudspeaker is the most compact model in the 800 Series Diamond range. While it’s best suited for smaller listening spaces, its large-scale performance greatly exceeds its modest stature.
Equipped with our Diamond dome tweeter, Solid Body Tweeter-on-Top and Continuum mid-bass cone housed in a reverse wrap cabinet, 805 D5 sounds and performs best when securely atop its bespoke speaker stands. Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 805 D5 is proof positive that small can still be beautiful.
* Stand(s) not included.
Description: 2-Way Stand Mount Speaker System
Drive units
- 1x ø25mm (1in) diamond dome high-frequency
- 1x ø165mm (6.5in) Continuum cone bass midrange
Key Specifications
- Frequency range: 34Hz to 35kHz
- Frequency response (+/-3dB from reference axis): 42Hz to 28kHz
- Sensitivity (on axis at 2.83Vrms at 1m): 88dB
- Harmonic distortion: 2nd and 3rd harmonics (90dB,1m on axis)
- <1% 90Hz – 20kHz
- <0.3% 120Hz – 20kHz
- Nominal impedance: 8Ω (minimum 4.6Ω)
- Recommended amplifier power: 50W – 120W into 8Ω on unclipped programme
Technical features
- Diamond tweeter
- Solid body Tweeter-on-Top
- Continuum cone bass/mid
- Anti-Resonance plug
- Matrixâ„¢
- Flowportâ„¢
- Dimensions: 439mm x 241mm x 363mm (H x W x D)
- Net weight: 16.4kg
