Description

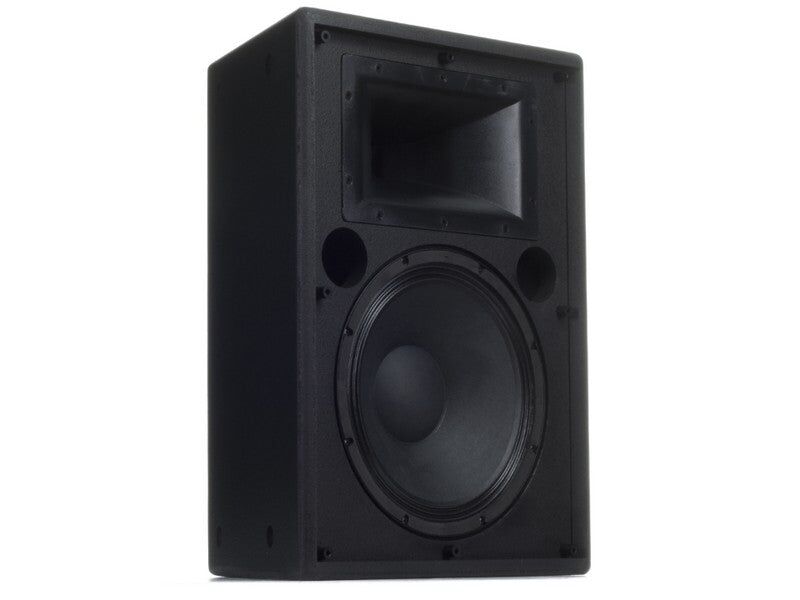

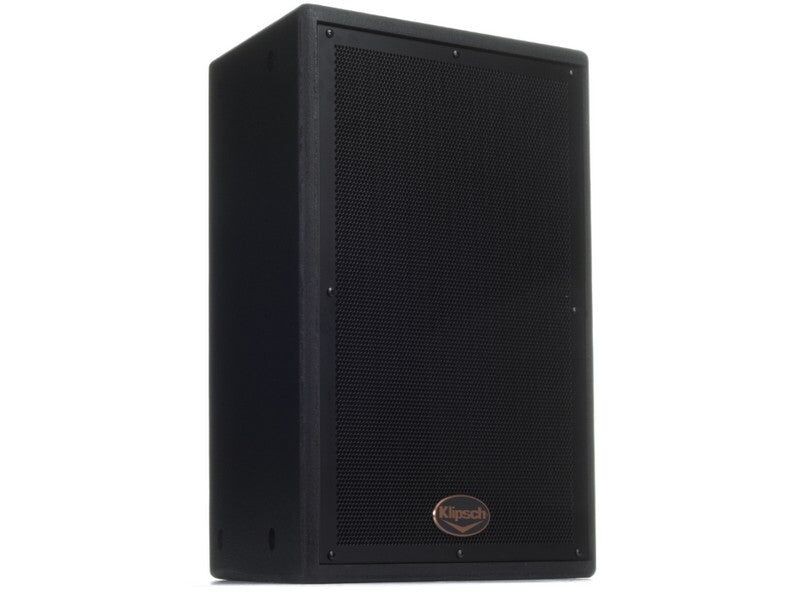

The Klipsch KI-262-SMA-II two-way trapezoidal loudspeaker is ideally suited for applications where small size uniform power response and ease of installation contribute to a quality sound solution.

This is a special order. Delivery is estimated to be after 2-3 months from the time of order.



The Tractrix Horn- loaded KI-262-SMA-II is recommended for use in theaters, auditoriums, clubs, churches, and A/V production environments.

Able to hang using 16 built-in 3/8” 16-thread fly points the KI-262-SMA-II provides the coverage control, fidelity, and reliability expected of Klipsch professional loudspeakers. The plywood enclosure uses dado “lock-joint” and rabbet construction techniques on CNC- fabricated panels for long-term reliability and ruggedness.

Some of the features include a compact 22.5 symmetrical trapezoidal design, 12″ woofer and 1.75″ titanium diaphragm high-frequency compression driver. A 60 degree x 40 degree modified Tractix horn for tight pattern control. Has a internal high current full-range crossover, 16 suspension points, KLIP-circuit HF driver protection devices. Available in Black, White or Raw Birch finish.

Can be used in restaurants, schools, houses of worship, health clubs, AV production environments and auditoriums.



This is a special order. Delivery is estimated to be after 2-3 months from the time of order.



Weight 22.27 kg
Color

Black

Number of Speakers

Single Speaker

Specifications

– Frequency Response (+/- 3 dB) 71 Hz – 20 kHz (-10 dB @ 57 Hz)
– Power Handling 300 watts (35V)
– 1200 watts peak
– Maximum SPL3 121 dB Continuous
– 127 dB Peak
– Sensitivity 100 dB
– Coverage Horizontal: 60° +/- 15º 2 kHz – 20 kHz
– Vertical: 40° +/- 20º 4 kHz – 20 kHz
– Directivity Index (DI) 9 dB +/- 2 dB 2 kHz – 20 kHz
– Directivity Factor (Q) 7.9
– Nominal Impedance 8 ohms, minimum 4.1 ohms @ 152 Hz
– Overload Protection KLIP Overload Protection Circuit-HF
– Crossover Frequency 900 Hz
– Components One K-281-EP 12″ woofer
– One K-70-G 1.75” titanium compression driver on a K-604 horn

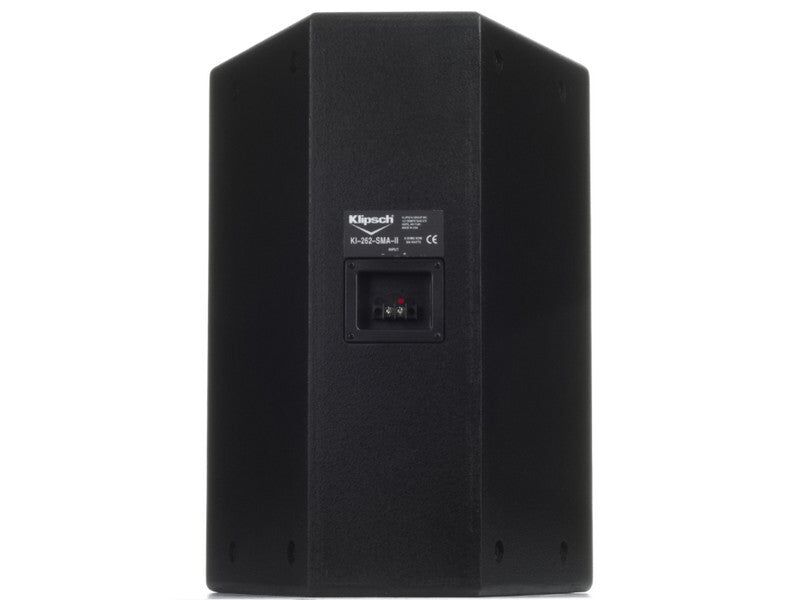

– Input Connection Two point barrier strip
– Mounting Options Sixteen 3/8”-16 flypoints
– Two 5/16”-18 threaded holes
– (top and bottom) for C-bracket
– Enclosure Material 3/4” 7-ply birch plywood cabinet
– 1” MDF motorboard
– Height 23” (58.42cm)
– Width 17” (43.18cm) front
– 6.8” (17.27cm) rear
– Depth 12.6” (32.03cm)
– Weight 49 lbs. (22.27kg)
– Finishes Black, White and Raw Birch
