Description
Klipsch KDA1000 4-Channel Installation Amplifier offers 1000 Watts of power to 4 channel with customization for individual channel impedance settings.
High Performance Power Platform
The Klipsch KDA Series DSP Amplifiers offer legendary Klipsch power and performance in a sleek, high-tech, 1 rack unit solution. The KDA-1000 offers 1000W of class G/H power, for clean, dynamic power in any type of install.
70V / 100V / Low Impedance Compatibility
From small residential systems to massive commercial installs, the Klipsch KDA-1000 is designed for maximum install flexibility – offering low impedance and 70V/100V compatibility for distributed line applications. These impedance settings are fully independant from channel to channel – so an installer can run one channel low impedance with another channel 70V/100V for full customization and optimization of their system.
Flexible I/O

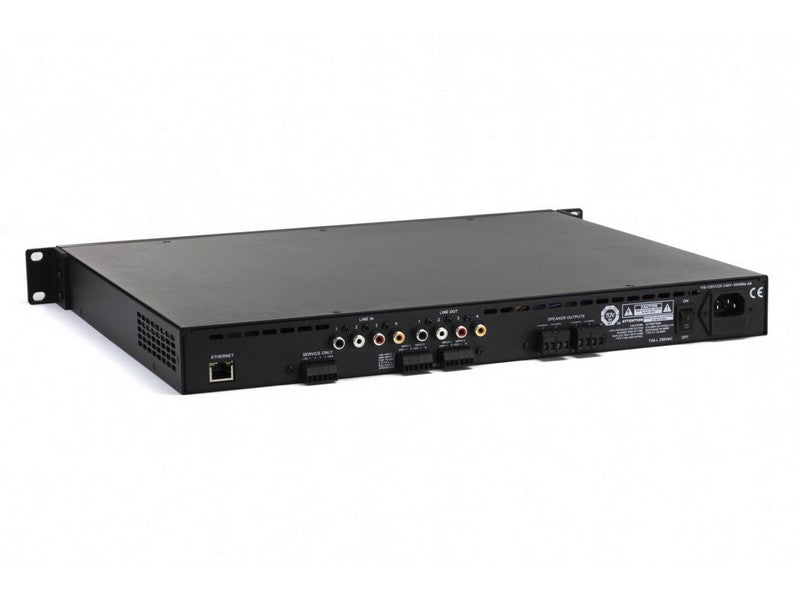

The KDA-1000 boasts fully matrixed 4×4 I/O with fully balanced Phoenix connector inputs and Phoenix speaker outputs capable of connecting up to 12 gauge wire. For non-balanced connections, RCA inputs and outputs (throughs) are also built-in, making the KDA-500 one of the most flexible power solutions on the market today.
State-Of-The-Art DSP Control And Set-Up
The myriad of I/O, impedance, and acoustic settings are fully matrixed and customizable through the web-based DSP menu – simply plug in a laptop computer to the RJ-45 port on the back panel of the amplifier, enter the assigned IP address into your favorite web browser to pull up the easy-to-use, streamlined menu page. In addition to password protected channel assignments, gain settings, EQ, and limiting, the DSP provides presets for almost every Klipsch speaker on the market – optimizing acoustic performance and power handling for these products with a single click. Accessing the DSP wirelessly with a tablet, smartphone, or computer is also quick and easy when the KDA amplifier is plugged into the network’s wireless router.
Key Features
- 1000 Watts
- 4-Channel @ 250 Watts/Channel
- Bridgeable to 2 x 500W
- 70V or 8/4 ohm Compatibility
- On-Board DSP with Klipsch Presets
- IP Addressable Set-Up
