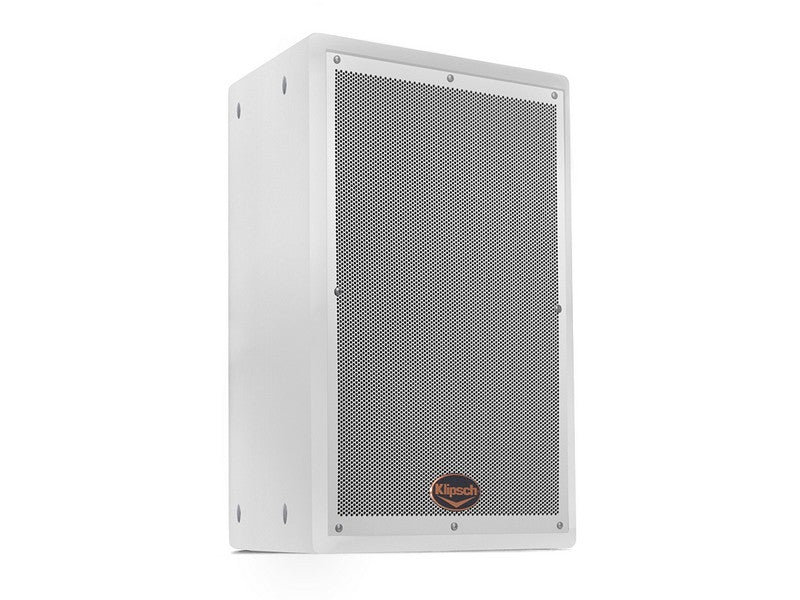

Klipsch KI-272-SMA-II Multi-angle 12" 2-way White Speaker Each
Klipsch KI-272-SMA-II Multi-angle 12" 2-way White Speaker Each - Image 2
Klipsch KI-272-SMA-II Multi-angle 12" 2-way White Speaker Each
Klipsch KI-272-SMA-II Multi-angle 12" 2-way White Speaker Each
Category: Speakers

Klipsch KI-272-SMA-II Multi-angle 12″ 2-way White Speaker Each

In stock

$2,299.00

Quantity:
SKU: '1062022 Category: Tag: Brand:
Guarantee Safe Checkout

Description

The KI-272-SMA-II two-way, multi-angle loudspeaker is a high power solution for limited space installations, where angled mounting is required. It’s perfect for angled wall, corner, ceiling, oblique angle projection or under-balcony mounting in theaters, clubs, churches and schools.

Able to hang using 12 built-in 3/8” 16-thread fly points, the KI-272-SMA-II provides the performance and reliability for which Klipsch is known.



This is a special order. Delivery is estimated to be after 2-3 months from the time of order.



  • Multiple angle 45 degree and 65 degree asymmetrical design two-way speaker
  • Perfect for angled wall, corner, ceiling or under-balcony mounting
  • Also designed for slanted floor or shelf use
  • 12” (30.48cm) woofer and 1.75” (4.4cm) titanium diaphragm HF compression driver
  • 60º x 40º Tractrix® Horn for tight pattern control
  • Internal high current full-range crossover
  • 12 suspension points
  • KLIP-circuit HF driver protection devices
  • Black, White, Raw Birch finish



SPECIFICATIONS:

  • Components :
    • One K-281-EP 12″ woofer
    • One K-70-G 1.75″ titanium compression driver on a K-604 horn
  • Depth : 15.80 in
  • Height : 17 in
  • Impedance : 8 ohm
  • Overload Protection : KLIP Overload Protection Circuit-HF
  • Sensitivity : 100 dB
  • Width : 23 in
  • Crossover Frequency : 900 Hz
  • Input Connections : Two point barrier strip
  • Mounting Options : Twelve 3/8″-16 flypoints
  • Power Handling : 300 Watt
  • Directivity Factor (Q) : 16
  • Directivity Index (DI) : 12dB+/-4dB 2kHz-20kHz
  • Maximum SPL (Sound Pressure Level) : 121 dB
  • Peak Power : 1200 Watt
  • Product Weight : 51 lbs
  • Coverage Horizontal : 40 degrees
  • Coverage Vertical : 60 degrees
  • Construction : 3/4″ 7-ply birch plywood cabinet, 1″ MDF motorboard
  • Certifications : CE
  • Minimum Frequency Response (Bandwidth) : 65 Hz
  • Minimum Frequency Response (Bandwidth) : 0.07 kHz
  • Maximum Frequency Response (Bandwidth) : 20000 Hz
  • Maximum Frequency Response (Bandwidth) : 20 kHz
  • Speaker Diameter (Driver) : 12 in
  • Horizontal Symmetry – Yes
  • Loudspeaker Mount Type – Ceiling
  • Loudspeaker Mount Type – Flown
  • Loudspeaker Mount Type – In-Wall
  • Vertical Symmetry – Yes
