Description

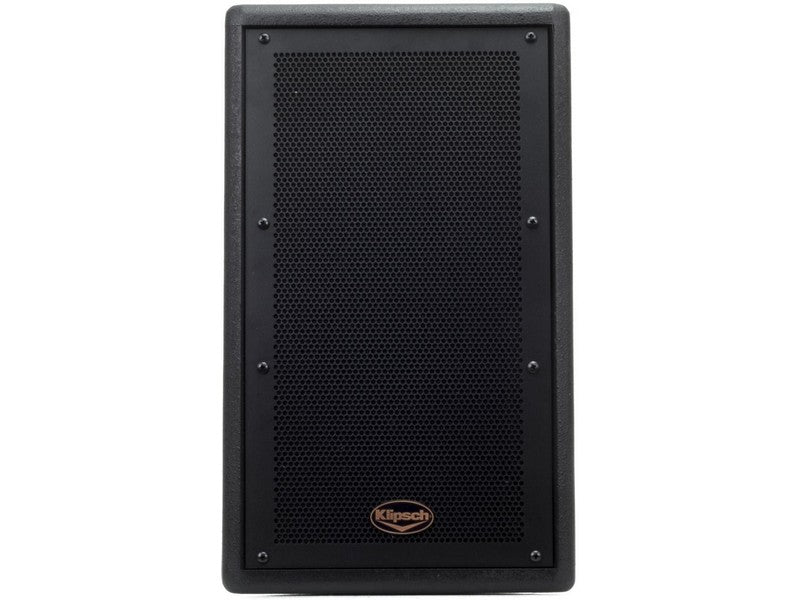

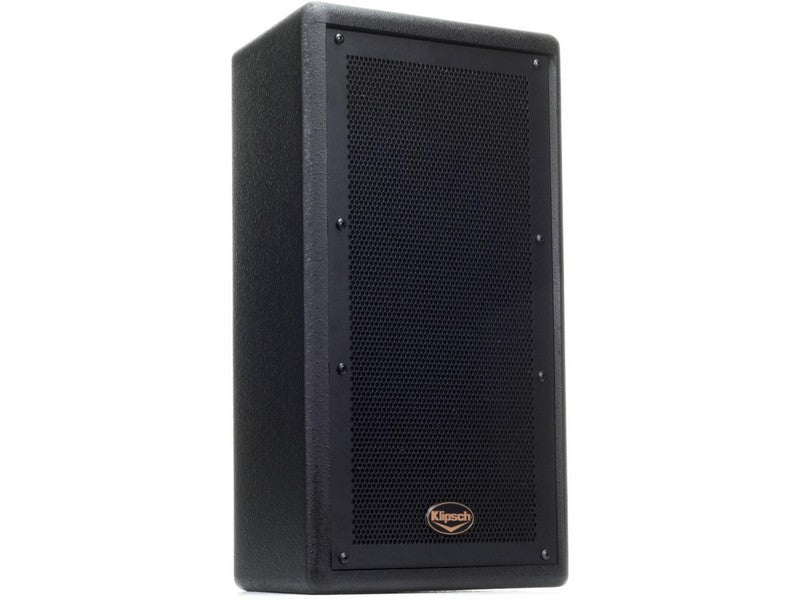

The KI-102-SMA-II is a compact two-way trapezoidal loudspeaker system capable of superb voice and music performance in permanent limited-space installations.
This is a special order. Delivery is estimated to be after 2-3 months from the time of order.
It is recommended for use in restaurants, clubs, schools, churches, health clubs, and corporate A/V production environments where fidelity requirements are high but real estate is limited.
The KI-102-SMA-II features a hybrid Tractrix “Mumps” Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.
CNC fabrication techniques dado “lock-tab” and rabbet joint construction contribute to industry leading reliability maximum precision and ruggedness and a cabinet remarkably free from resonance and cabinet-induced coloration. Mounting capabilities include top and bottom attachments for the optional SB-102 “U”-shaped bracket
- Compact 22.5º symmetrical trapezoidal design
- 115dB maximum continuous output

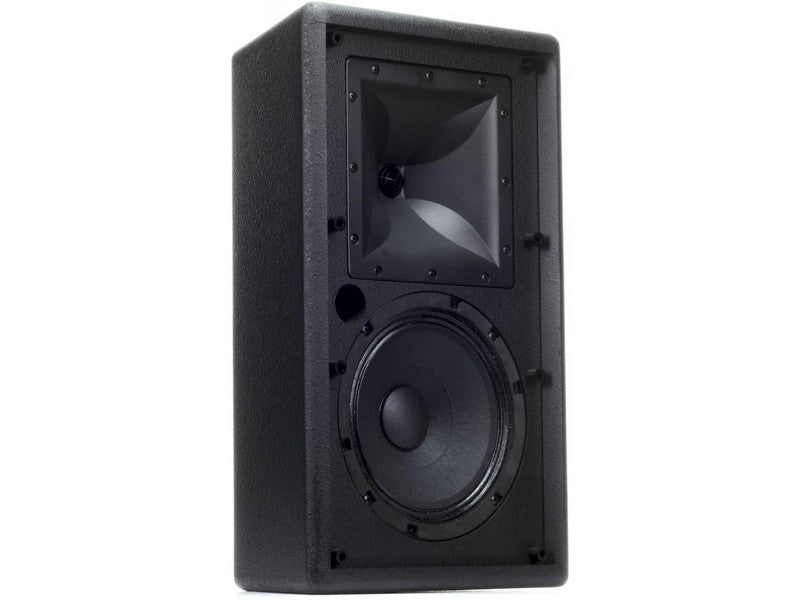

- 8” (20.32cm) woofer and 1” (2.54cm) titanium diaphragm high-frequency compression driver
- 90º X 90º modified Tractrix® Horn
- KLIP-circuit HF driver protection devices
- Top/Bottom attachments for optional Klipsch SB-102 U-shaped bracket
Applications
- Restaurants
- Schools
- Houses of worship
- Health clubs
- AV production environments
- Auditoriums
SPECIFICATIONS:
| Frequency Response (+/- 3 dB) | 88 Hz – 17 kHz (-10 dB @ 56 Hz) |
| Power Handling | 200 watts (31V); 800 watts peak |
| Maximum SPL | 115 dB Continuous; 121 dB Peak |
| Sensitivity | 95 dB |
| Coverage | Horizontal: 90° +/- 20º 2.1 kHz – 19 kHz; Vertical: 90° +/- 30º 2.5 kHz – 19 kHz |
| Directivity Index (DI) | 7 dB +/- 1 dB 1 kHz – 17 kHz |
| Directivity Factor (Q) | 5 |
| Nominal Impedance | 8 ohms, minimum 4.9 ohms @ 184 Hz |
| Overload Protection | KLIP Overload Protection Circuit-HF |
| Crossover Frequency | 2 kHz |
| Components | One K-81-ST 8″ woofer; One K-103-TI-KP 1” titanium compression driver on a K-802-M horn |

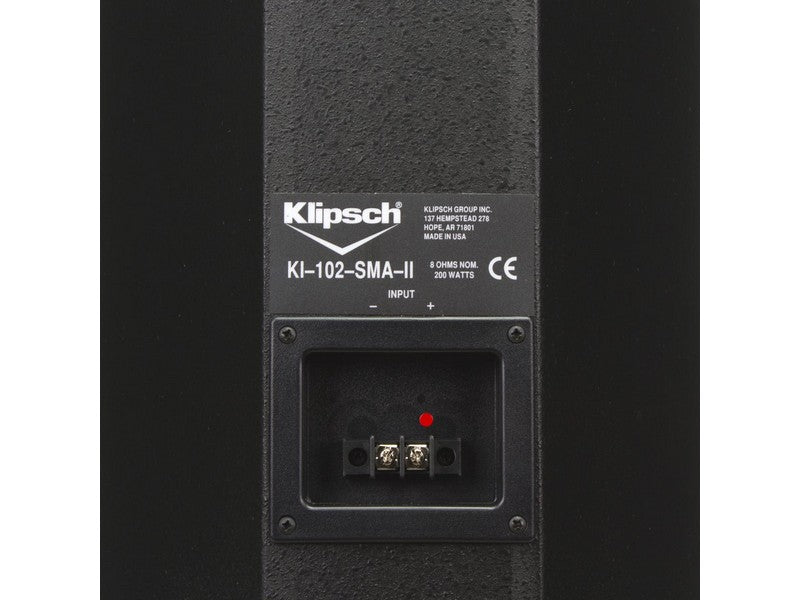

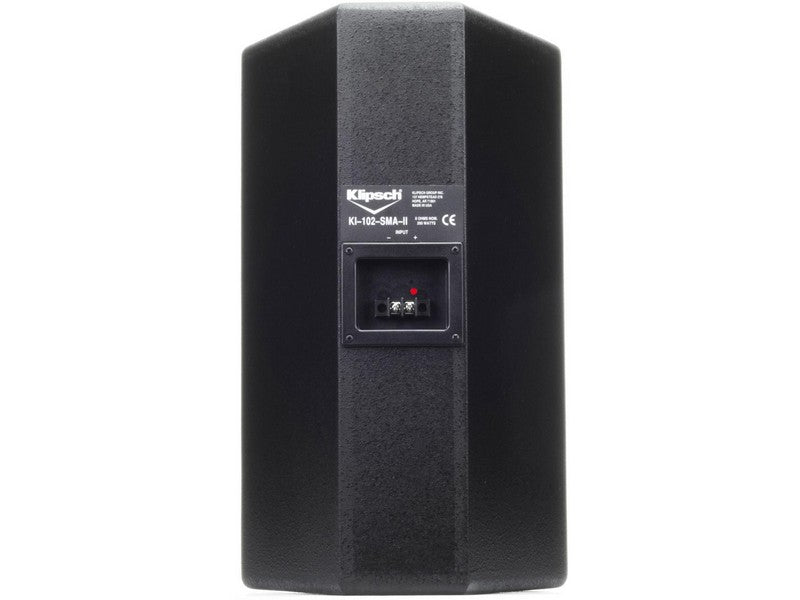

| Input Connection | Two point barrier strip |
| Mounting Options | 2 screw: 1/4” x 20; Machine screw for SB-102 Bracket |
| Enclosure Material | 3/4″ MDF |
| Height | 18.9” (48.00cm) |
| Width | 11.6” (29.46cm) front; 4.2” (10.67cm) rear |
| Depth | 9.3” (23.77cm) |
| Weight | 24 lbs. (10.90kg) |
| Finishes | Black, White and Raw MDF |
| Accessories | SB-102 Mounting Bracket |
