Description

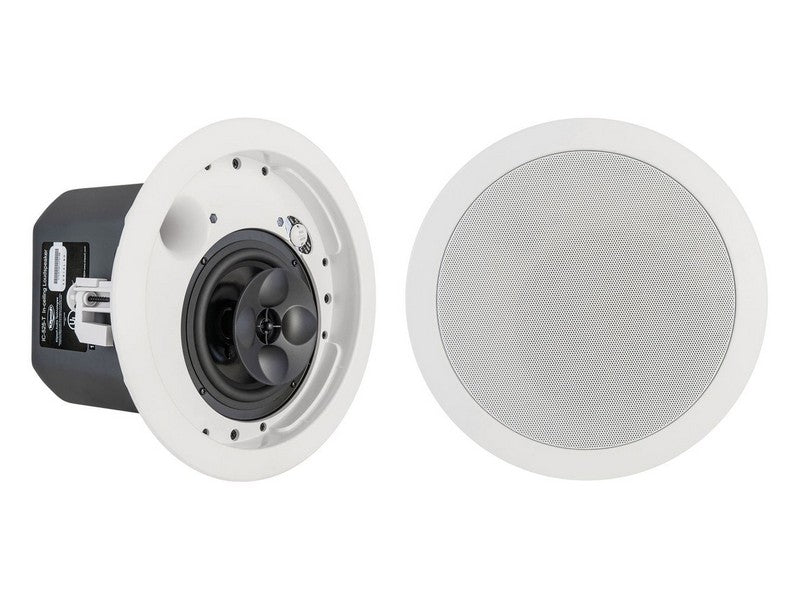

Klipsch IC-525-T Commercial Speaker is widely known for its performance as an installation with shorter design and clear sound in any location.
Â
The IC-525-T pack’s proven materials and wide dispersion horn technology into an installer-friendly, UL-2043 and 1480 certified loudspeaker with an integrated back can and multi-tap transformer. IC-T Series speakers have been included in a number of major installations nationally, from Bloomingdales in New York City to the Ron Jon Surf Shop in Orlando.
The two-way IC-525-T features a 5.25-inch woofer, and a titanium diaphragm compression driver on a 3.5-inch round modified XT Tractrix® Horn for a smooth response with constant directivity. A Tractrix port design helps to provide deeper, fuller bass with less compression and distortion, while a new, more compact design simplifies low ceiling mounting.
For distributed line applications, the IC-525-T features a 70/100 volt multi-tap transformer. A single rotary switch for the 8-ohm bypass and multi-tap setting is conveniently located under the speaker grille. The IC-525-T is shipped complete with a tile bridge for installation in a suspended ceiling or wherever additional reinforcement of the ceiling material is required.
Â
FEATURES:
- Wider, shorter design to fit low ceilings; multi-tap transformer
- 70-volt, 100-volt, or 8-ohm operation selectable via front baffle switch
- Tractrix Port design for deep bass with less compression
- Wide dispersion Tractrix® Horn tweeter with XT technology for clear sound in any location
- Designed to mix and match with Klipsch CA-T speakers
Â
SPECIFICATIONS:
- Speaker Type In-Ceiling Speaker
- Frequency Response 65 Hz – 20 kHz
- Power 65 Watts
- Woofer Size 5.25″
- Woofer Bass Driver Size (mm) 133 mm
- Tweeter 25 mm
- Impedance (Ω) 8 Ω
- Sensitivity 89 dB
- Item Sold As Pair
- Warranty Australian Manufacturer Warranty
- Dimension
- Product Dimension (H×W×D) Ø 273 x 211.2 mm (ea)
- Hole Cutout Dimensions Ø 231.8 mm (ea)
- Product Weight 3.74 Kg (ea)
