Description

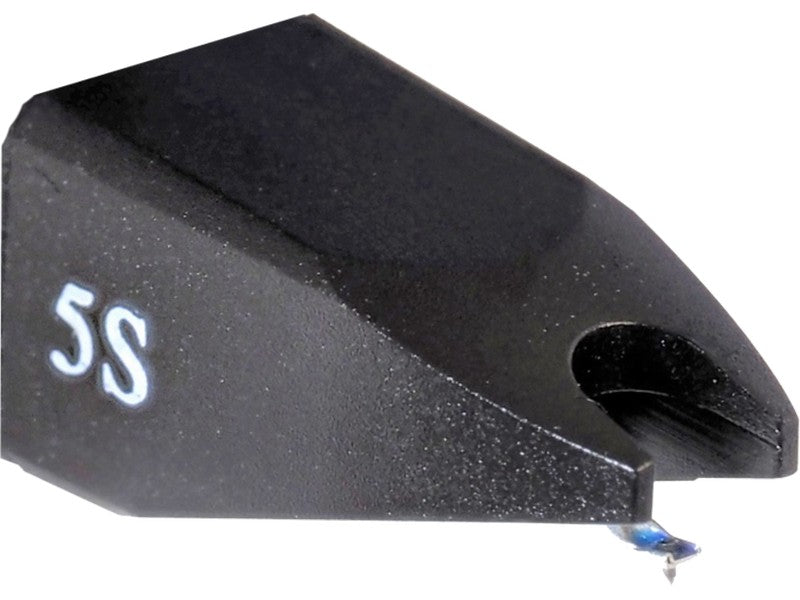

The Ortofon OM5s Stylus is an optional replacement for your existing Ortofon OM cartridge. It features a Tipped Spherical stylus profile.
You should upgrade your stylus when it starts to collect a lot of dust after each playback or when you notice some distortion and channel separation during listening.
The replacement stylus OM 5S is recommended for OM cartridges.
Technical Specifications:
- Frequency range at -3dB –Â 20-20.000 Hz
- Frequency response  – 20-22.000 Hz
- Tracking ability at 315Hz at recommended tracking force *) – 60 µm
- Compliance, dynamic, lateral – 20 µm/mN
- Stylus type – Spherical
- Stylus tip radius – R 18 µm
- Tracking force range – 1.5-2.0 g (15-20 mN)
- Tracking force, recommended – 1.75 g (17,5 mN)
- Tracking angle – 20°
- Stylus colour – Black
- Recommended for OM 5S
