Description

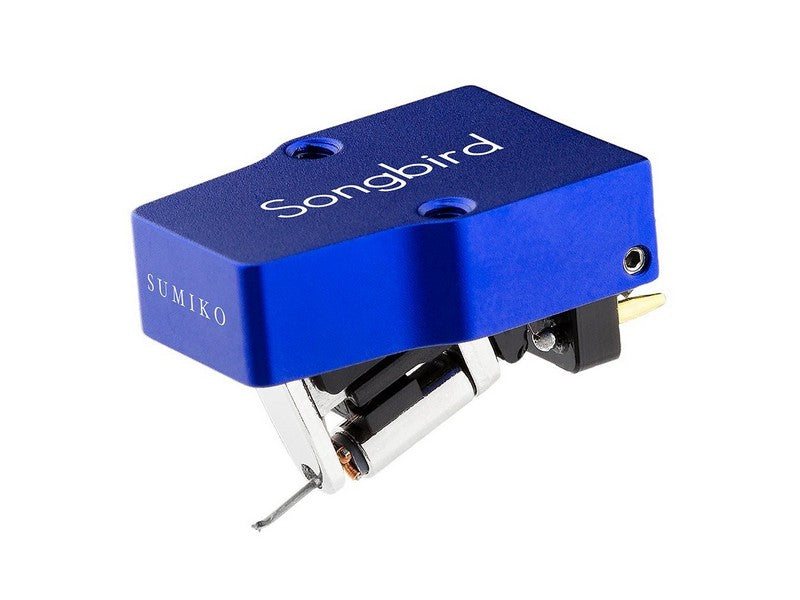

Songbird Low Output MC Cartridge
The Songbird comes in at a much needed price point perfect for launching the part-time audiophile into some serious listening. As its name suggests, this open-architecture moving coil cartridge excels at providing colorful and rich vocals, and highlights the powerful low and mid-end of funk and rock. The long 7-micron stylus face will handle different cutting angles well, and this cartridge is also great at providing some excitement to otherwise anemic classical system setups.
TECHNICAL SPECIFICATIONS
Cartridge Type:
Moving Coil
Stylus:
0.3 x 0.7 micron Elliptical
Cantilever Material:
coated aluminum pipe
Wire Material:
pure copper
Internal Impedance:
135 OhmsÂ
Load Impedance:
47kΩ
Frequency Response:Â
12Hz – 40kHz
Output Voltage:
2.5mV
Channel Separation:
30dB @ 1kHz
Channel Balance:
<0.5dB @ 1kHz
Compliance:
12×10-6 cm/dyn @ 100Hz
Recommended load capacitance:
100pF – 200pF
Vertical tracking angle:
20°
Tracking Force:
1.8g – 2.2g
Recommended Force:
2.0g
Cartridge Weight:
8.5g
