Description
This VM95 Series cartridge with 3 mil conical stylus fits half-inch mount turntables and is designed specifically to play older 78 RPM records only.

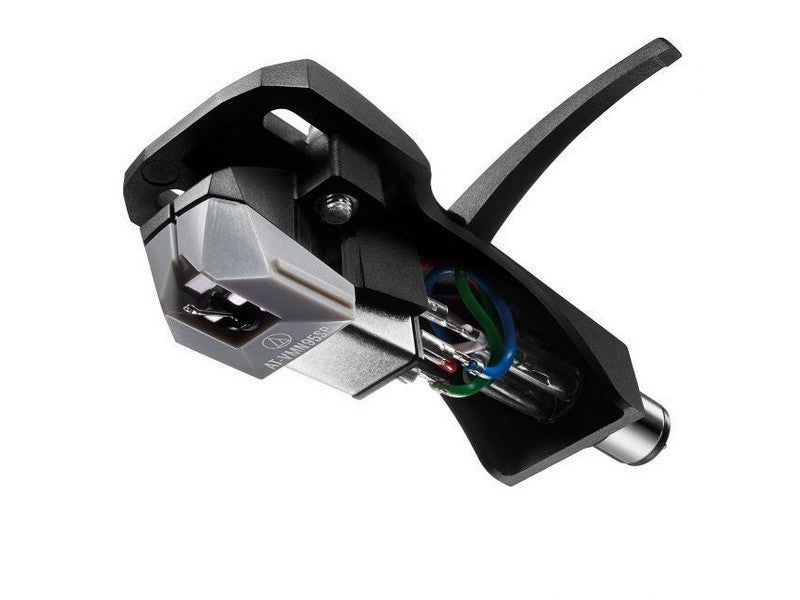

This listing combines the AT-VM95SP and AT-HS6BK black headshell. The cartridge comes pre-mounted to the headshell making it quick and easy to attach to any tonearm with a half inch universal mount.
While this cartridge is designed to play 78 RPM mono records, it is, nevertheless, a stereo cartridge, allowing users to choose between the left and right channels, which can be especially helpful in archiving applications to minimise noise and distortion.
The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws.
Key Features
–Â Audio-Technica headshell with cartridge attached
–Â VM95 Series dual Magnet cartridge with 3 mil Conical stylus for 78 RPM records
–Â VM dual magnet construction
–Â Aluminium cantilever
–Â Durable low-resonance polymer housing
–Â Threaded inserts – can be mounted to headshell with just two screws

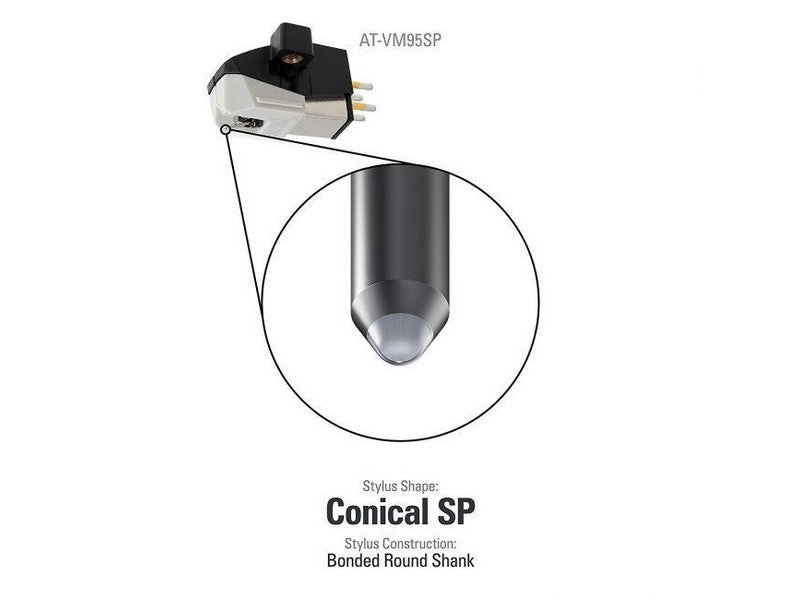

3 mil Conical stylus for 78 RPM Records
The AT-VMN95SP stylus is dedicated to 78 rpm records. Its round stylus tip has a large curvature radius of 3 mil, suitable for playing 78 rpm records from a wide variety of eras.
Specifications:
- Frequency Response:Â 20 to 20,000 Hz
- Channel Separation:Â N/A
- Output Channel Balance: 1.5 dB (1 kHz)
- Output Voltage:Â 2.7 mV (1 kHz, 5 cm/sec.)
- Vertical Tracking Angle:Â 23Â degrees
- Vertical Tracking Force:Â 4.5-5.5g (5.0g standard)
- Stylus Construction:Â Bonded Round Shank
- Stylus Shape: Conical 3.0 mil
- Cantilever:Â Aluminium pipe
- Coil Impedance: 3.3 k ohms (1 kHz)
- Coil Inductance:Â 550 mH (1 kHz)
- Recommended Load Impedance:Â 47,000 ohms
- Recommended Load Capacitance:Â 100 to 200 pF
- Weight (Cartridge & Headshell):Â 15.5g
- Dimensions (Cartridge & Headshell):Â 21.2mm H x 21.4mm W x 62.4mm D
- Mount:Â Half-inch
- Replacement Stylus:Â AT-VMN95SP
