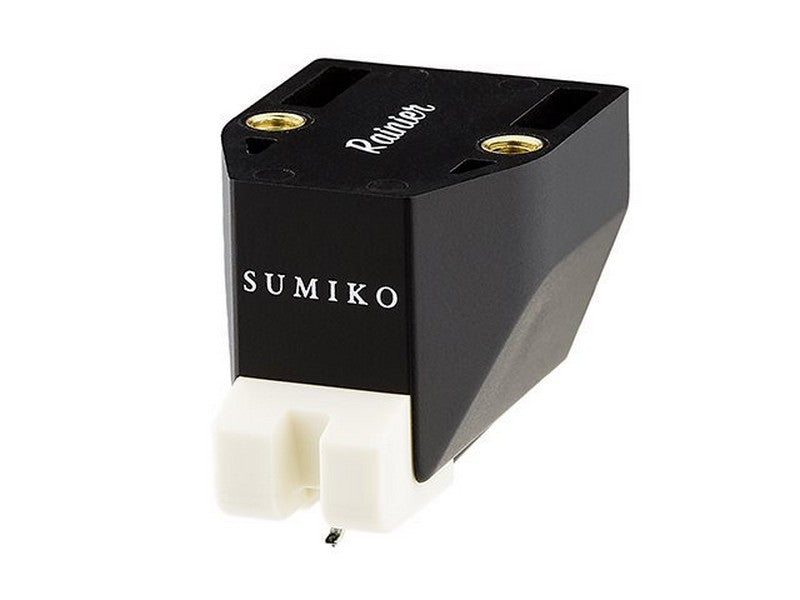

Rainier Enclosed Architecture High Output MM Cartridge
Our first offering in the new Oyster line-up is the venerable Rainier, which continues the Pearl’s legacy for smooth, natural sound reproduction. After years of development, we are proud to introduce an all-new integrated body and generator system that significantly reduces internal resonances. With the ability to change to the Olympia or Moonstone stylus allows for upgrades with out replacing the entire cartridge.
TECHNICAL SPECIFICATIONS
Cartridge Type:
Moving Magnet
Stylus:
Elliptical
Cantilever Material:
aluminum pipe
Wire Material:
pure copper
Internal Impedance:
1,130Ω
Load Impedance:
47kΩ
Frequency Response:
15Hz – 25kHz
Output Voltage:
5.0mV
Channel Separation:
25dB @ 1kHz
Channel Balance:
1.5dB @ 1kHz
Compliance:
10×10-6 cm/dyn @ 100Hz
Recommended Load Capacitance:
100pF – 200pF
Vertical Tracking Angle:
20°
Tracking Force:
1.8g – 2.2g
Recommended Force:
2.0g
Cartridge Weight:
6.5g
Replacement Stylus Unit:
RS Rainier
RS Olympia
RS Moonstone
