Description

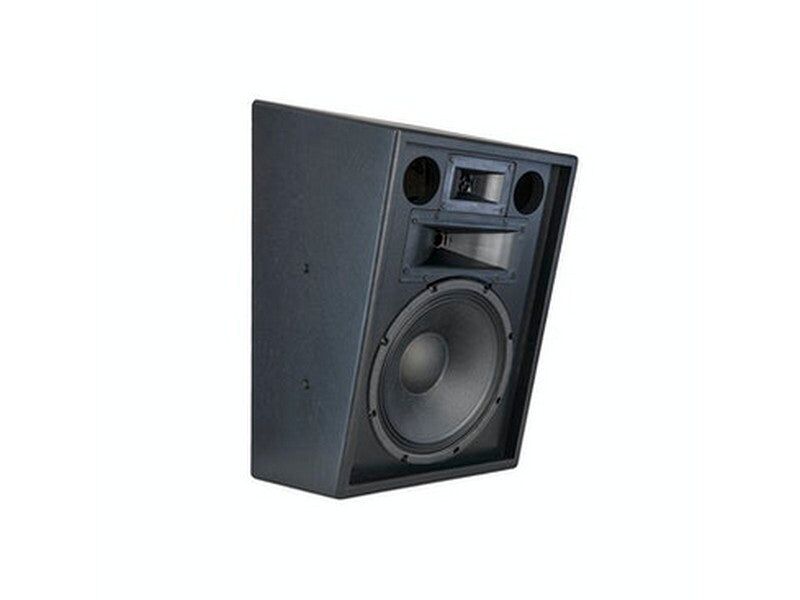

Klipsch KPT-250 ~ 3-WAY, HIGH OUTPUT SURROUND FOR THE LARGEST AUDITORIUMS
The KPT-250 is a 12-inch three-way cinema surround loudspeaker system.
- High power handling
- Extreme efficiency
- Low Distortion
SPECIFICATIONS:
KPT-250 3-WAY, HIGH OUTPUT SURROUND
FREQUENCY RESPONSE
(+/- 3 dB)
70 Hz – 19 kHz +/- 3 dB
52 Hz- 20 kHz -10 dB
POWER HANDLING AES: 250W (34V) 40 Hz – 10 kHz
IEC: 325W (39V)
MAXIMUM SPL
125.8 dB continuous | 131.8 dB peak
SENSITIVITY 103 dB @ 2.83V / 1M
100.6 dB @ 1W / 1M
HORIZONTAL COVERAGE 100° +/- 40º 400 Hz – 20 kHz
VERTICAL COVERAGE 50° +/- 30º 3 kHz – 20 kHz
NOMINAL IMPEDENCE 8 ohms (4.6 min. @ 8 kHz)
COMPONENTS
One K-42-EPK 12” woofer
One K-53-T 1.5” diaphragm compression driver mounted on a K-704-T horn
One K-100-TI 1” compression driver on a K-79-T horn
INPUT CONNECTORS Barrier strip
ENCLOSURE 3/4” Birch Plywood
HEIGHT 25” (63.5cm)
WIDTH 16” (40.6cm)
DEPTH 15.5” (39.37cm)
WEIGHT 46 lbs. (20.9kg)
TILT 15˚ downward
GRILLE Cloth
