Description

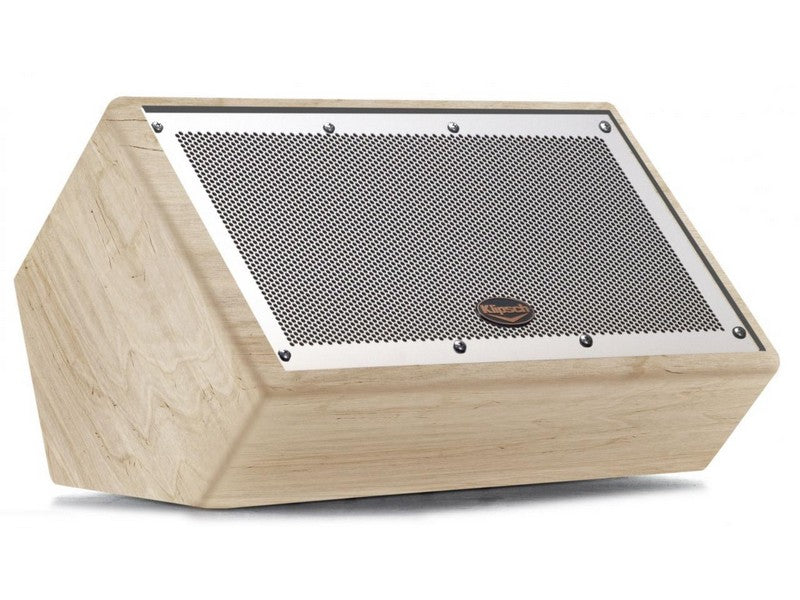

The KI-172-SMA-II is a compact, two-way, high performance loudspeaker with sides slanted at 65° and 45°.
This is a special order. Delivery is estimated to be after 2-3 months from the time of order.
Designed to be installed where placement at an angle is required and space is limited, the KI-172-SMA-II is perfect for wall, ceiling or under-balcony mounting in theaters, churches, schools and clubs, or for slanted floor or shelf monitor use near altars and podiums, or in board and meeting rooms.
The 3/4” MDF enclosure uses dado “lock-joint” and rabbet construction on CNC-fabricated panels to ensure resonance-free response and long-term reliability. The internal high-current passive crossover features the proprietary high-power thermal overload KLIP- circuit, which limits potential damage to the high-frequency driver. Mounting capabilities include top and bottom attachments for the optional SB-102 “U”-shaped bracket.
- Compact with sides slanted at 65º and 45º
- Excellent for placement at an angle or tight spaces
- 8” (20.32cm) woofer and 1” (2.54cm) titanium diaphragm HF compression driver
- 90º x 90º modified Tractrix® Horn
- KLIP-circuit HF driver protection devices
- Top/Bottom attachments for optional Klipsch SB-102 U-shaped bracket
Applications
- Restaurants
- Schools
- Houses of worship
- Under balcony
- AV production environments
- Auditoriums
SPECIFICATIONS:
| Frequency Response (+/- 3 dB) | 74 Hz – 17 kHz (-10 dB @ 48 Hz) |
| Power Handling | 200 watts (31V); 800 watts peak |
| Maximum SPL | 115 dB Continuous; 121 dB Peak |
| Sensitivity | 95 dB |
| Coverage | Horizontal: 90° +/- 30º 2.5 kHz – 20 kHz; Vertical: 90° +/- 20º 2.1 kHz – 20 kHz |
| Directivity Index (DI) | 7 dB +/- 1.5 dB 900 Hz – 18 kHz |
| Directivity Factor (Q) | 5 |
| Nominal Impedance | 8 ohms, minimum 4.7 ohms @ 184 Hz |
| Overload Protection | KLIP Overload Protection Circuit-HF |
| Crossover Frequency | 2 kHz |
| Components | One K-81-ST 8″ woofer; One K-103-TI-KP 1” titanium compression driver on a K-802-M horn |
| Input Connection | Two point barrier strip |
| Mounting Options | 4 – 1/4”- 20 for Mounting Bracket; 2 – 1/4”- 20 for SB-102 Bracket |
| Enclosure Material | 3/4″ MDF |
| Finishes | Black, White and Raw MDF |
| Accessories | SB-102 Mounting Bracket |
