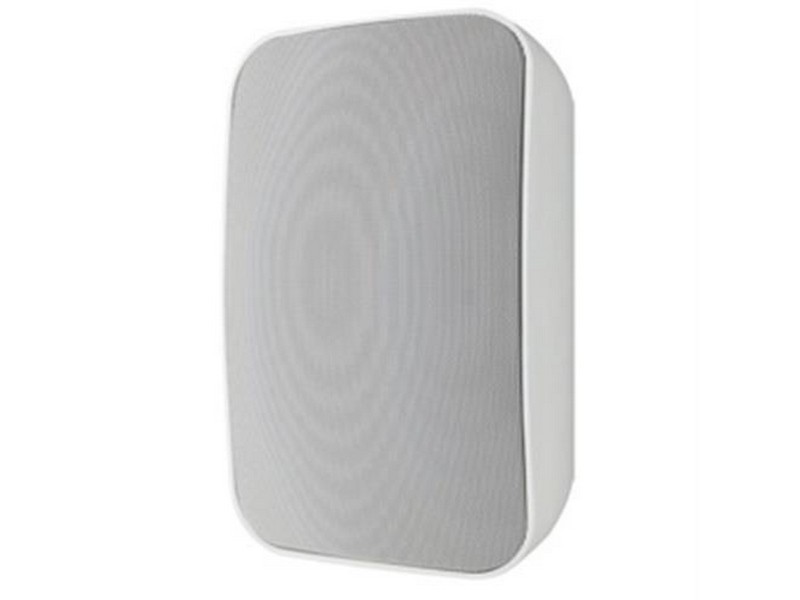

Sonance PS-S83T 8in Surface Mount Professional Series (Pair) White
Sonance Professional Series PS-S83T Surface-Mount Speaker features the Patented FastMount® bracket and front cable connection to speed up the installation process and provide a clean appearance.
The IPX4 rated construction features a weatherproof high-impact, extreme temperature resistant cabinet and corrosion-proof powder coated aluminum grille, lending itself perfectly in both indoor and outdoor applications.
A high-excursion 8” polypropylene woofer delivers effortless low bass extension, that is equal or better to systems using dedicated subwoofers, while the chambered 1” soft dome tweeter provides accurate high-end detail and exceptional coverage.
A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.
Additionally, the Sonance PS-S83T is certified for is certified for UL 1480 (UEAY) and 2239.

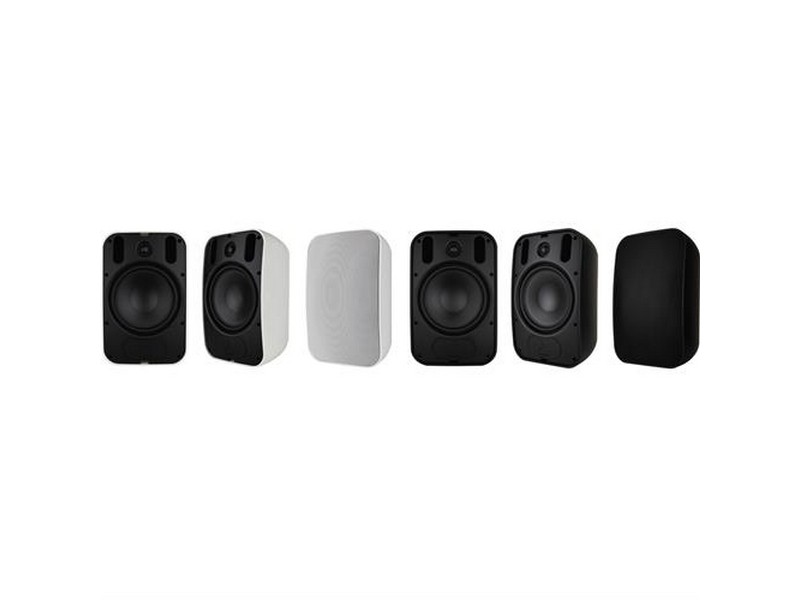

Available in either black or white (paintable).
SPECIFICATIONS:
- Frequency Range (-10dB) – 41Hz – 25kHz
- Frequency Range (-3dB) – 55Hz – 20kHz
- Power Capacity – 160 Watts Continuous Program Power | 80 Watts Continuous Pink Noise
- Nominal Sensitivity – 90dB
- Nominal Coverage Angle – 90 degrees x 90 degrees coverage
- Directivity Factor (Q) – 7.6
- Directivity (DI) – 8.1dB
- Rated Maximum SPL – 110dB @ 1 meter (3.3 feet) average, 116dB peak
- Rated Impedance – 8 Ohms nominal, 6 Ohms minimum
- Transformer Taps – 60W, 30W, 15W (7.5W 70V)
- Crossover Point – 2750Hz
- Overall Dimension – 14.02” Height x 9.01” Width x 8.58” Depth (356mm x 229mm x 218mm)
- Net Weight – 10 lbs (4.53kg) each
- Shipping Weight – 25 lbs (11.34kg) pair
- Unit of Measure – Pair (Single upon request)
- Color – Black or White
- Grille – Powder Coated Aluminum Friction Fit
- LF Driver – 8” (203mm) Polypropylene Cone, Butyl Rubber Surround
- HF Driver – 1” (25mm) Cloth Dome, Ferrofluid cooled

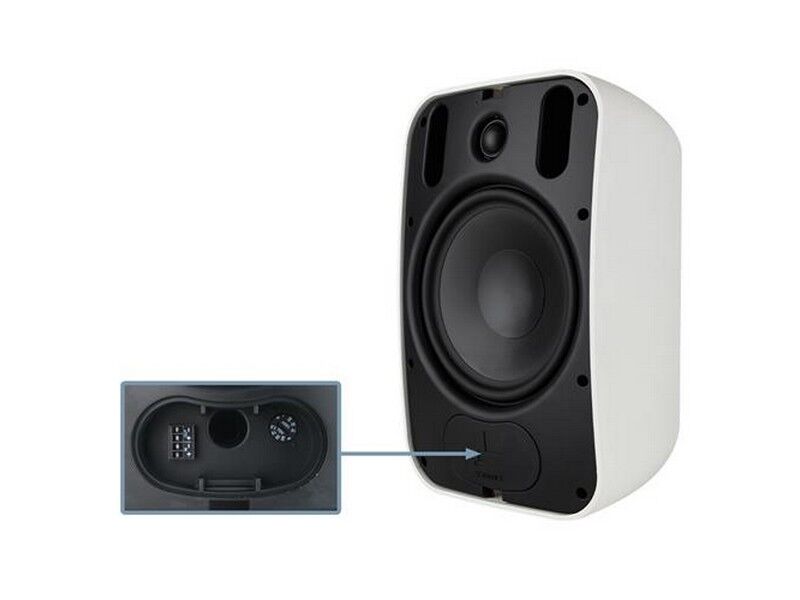

- Input Connectors – Front-mounted four pin, Euroblock with loop output connections
- Safety Agency – UL 1480, UL 2239
- Mounting Bracket – U-Bracket with Sonance FastMount
- Environmental & UV – Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating
