Description

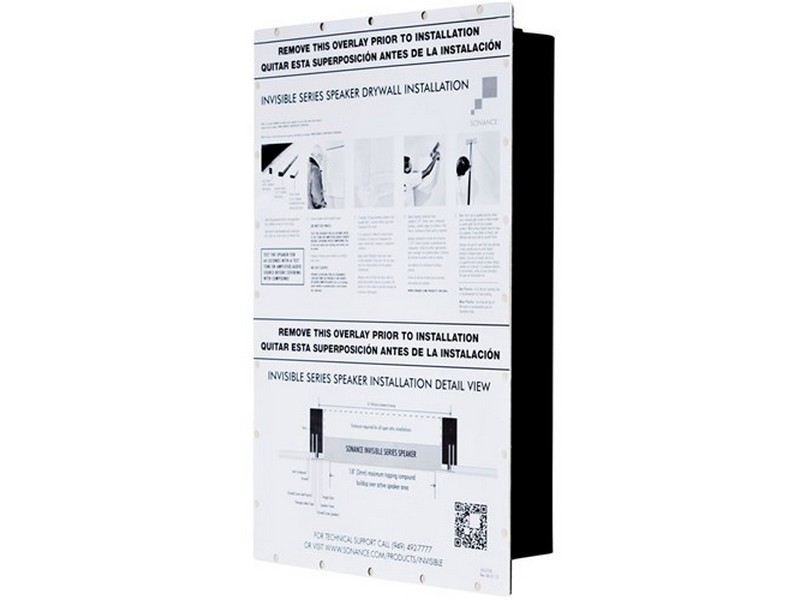

Sonance IS4C CommerciaI Invisible Series Speaker (Each)
The IS4 C is for any commercial or residential settings where a 70 or 100 volt system is being used. The IS4 C features all the industry standard tap settings as well as an 8-ohm bypass.
Includes integrated backend enclosure
FEATURES:
- The benchmark for performance and installation flexibility for invisible speakers.
- Fully concealed within walls or ceilings for a totally invisible result.
- 70 / 100 Volt with 8 Ohm bypass
- 6 different voltage tap settings.
- E.A.S.E. data available.
- 170 deg hemispherical dispersion to achieve wider coverage with fewer speakers.
- Can be finished with up to 1/8″ (3mm) of flexible material including finishing compound and paint, venetian plaster, wallpaper or wood veneer.
- Built in enclosure to reduce sound transfer to adjacent spaces.
- Used in luxury retail boutiques including Louis Vuitton, Gucci, Prada, Miu Miu, Fendi, Barney’s of New York and Tom Ford.
SPECIFICATIONS:
- Tweeter 4 sq. in (27 sq. cm) planar diaphragm, driven by a 1″ (25mm) voice coil
- Midrange 17 sq. in (110 sq. cm) planar diaphragm, driven by a 1″ (25mm) voice coil
- Woofer 113 sq. in (732 sq. cm) planar diaphragm, driven by a 2″ (50mm) voice coil
- Frequency Response 40Hz – 20kHz ±3dB
- Impedance 8 ohms nominal; 6 ohms minimum
- Dispersion 170º hemispherical up to 10 kHz
- Power Handling 100 watts RMS
- Transformer Taps Primary voltage: 70V / 100V Primary taps (70V): 0.5W, 1W, 2W, 4W, 8W, 32W Primary taps (100V): 1W, 2W, 4W, 8W, 16W,
- 32W 8-ohm bypass
- Sensitivity 90dB SPL (1 watt/1 meter)
- Finish Paper surface ready for up to 1/8″ (3mm) flexible material such as joint compound, plaster, wallpaper and paint.
- Overload Protection Three independent self-resetting gel switches (low, mid and high)
- Environment Temperature 0º – 125ºF (-17.7º – 51.7ºC)
- Speaker Depth 3 11/16″ (94mm) with enclosure
- Shipping Weight 28 lbs (12.7 kg) each
- Cut-Out Dimensions (W x H ) 16 1/8″ x 24 1/8″ (409mm x 613mm)
