Description

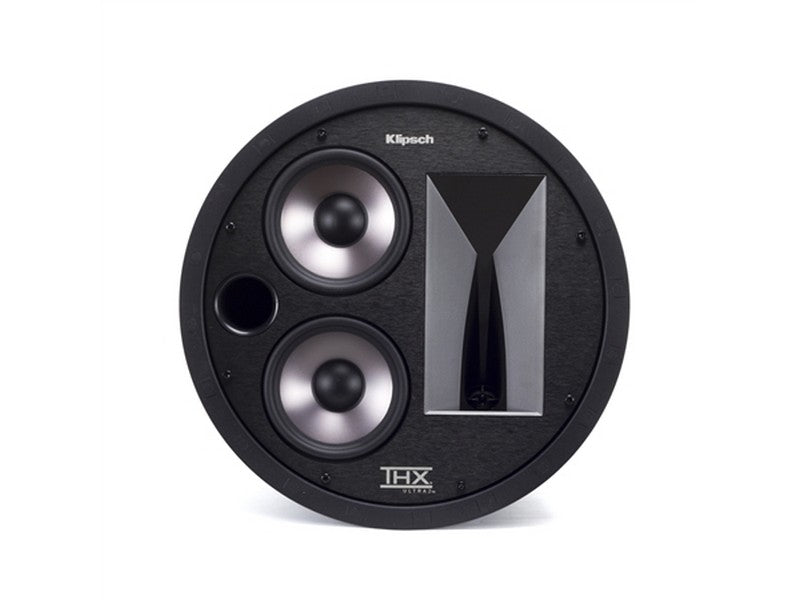

Armed with explosive dynamics that won’t disrupt your home’s decor, the Klipsch THX® Ultra2-certified in-ceiling speaker creates realistic audio experiences that rival those found in large movie theaters and concert halls.
Features:
1” Titanium Tweeter
Dual 5.25” Cerametallic Woofers
THX® Ultra2 Certified
Cinema Quality Sound
Maximum Installation Reliability
Unlimited Flexibility
Edge-to-Edge Grille
SPECIFICATIONS:
System Type 2-way In-ceiling
Frequency Response 45 Hz – 20 kHz +/- 3dB
Power Handling 100W/400W
Sensitivity 93dB
Impedance 8 Ohms compatible
Crossover Frequency 1200 Hz & 1800 Hz
High Frequency Driver 1” Titanium tweeter in a 7.5 x 3.75” 60-90-110 VCT 45º Skewed horn
Low Frequency Driver Two 5.25” Cerametallic Woofers
Enclosure Type Bass Reflex via 1.6” diameter port – Front Flush with Ceiling
Hole dimensions (mm/in, HxWxD) 13.25” (33.7cm)
Dimensions 14.89” (378.21mm)
Mounting Depth 9.23” (234.44mm)
Weight 12 lbs. (5.4kg)
Finish White paintable grill
Installation Kit IK-502-C
Cutout Diameter 13.39” (349.11mm)
