Description

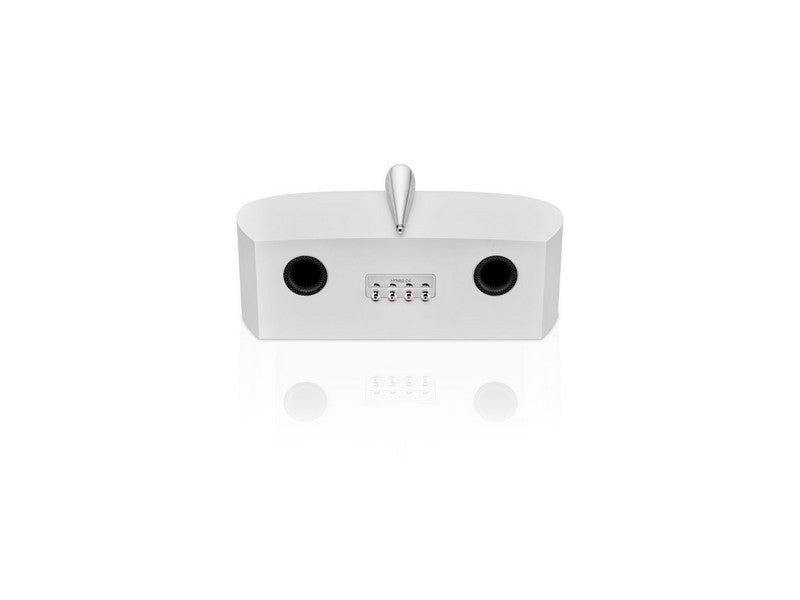

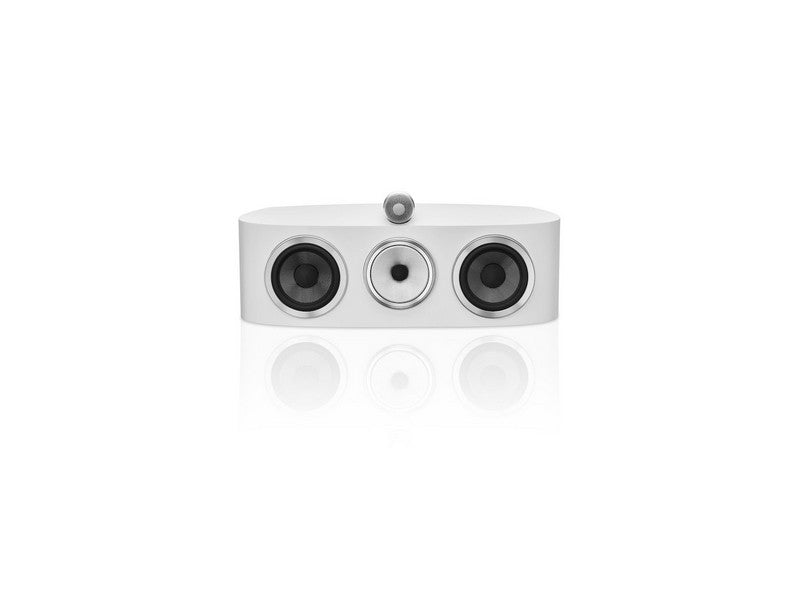

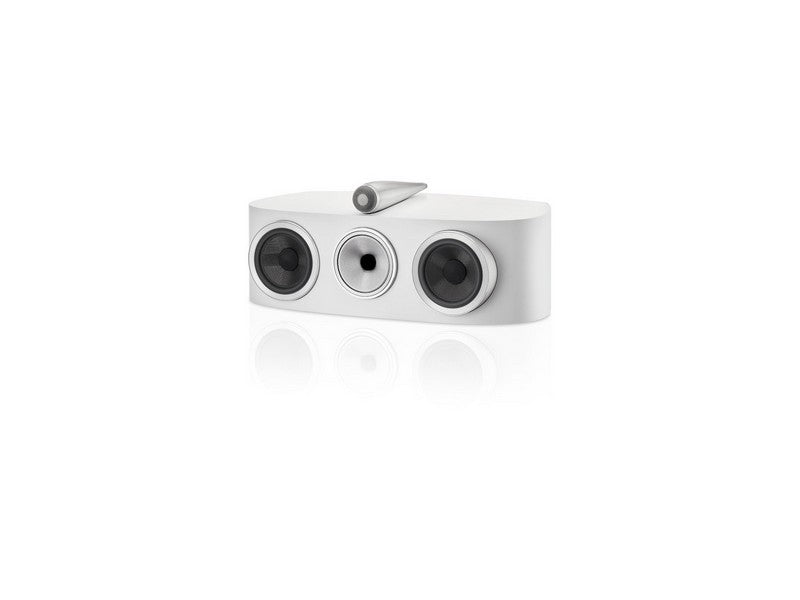

HTM82 D4 Centre Speaker

For theatre systems based on the more compact 803 D4 or 804 D4, the HTM82 D4 centre channel speaker is the perfect solution. Its more compact midrange drive unit is ideally sized to match those of its siblings and its ample output will ensure a seamless and cohesive listening experience.

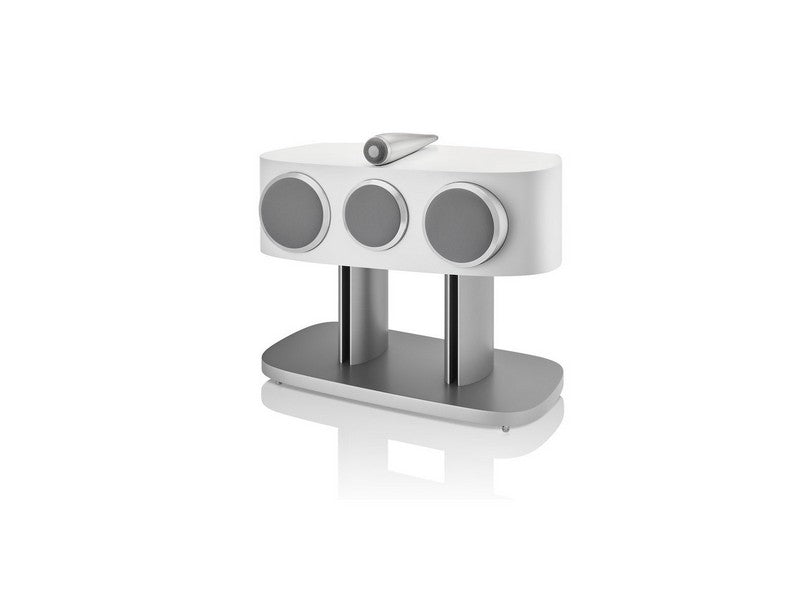

Available with an optional matching floorstand (FS-HTM D4, sold separately) for the perfect installation.

Refined Design
Refined, elegant cabinet proportions plus luxurious, premium detailing combine to make this the most premium 800 Series Diamond range yet.

The first and most obvious change is the addition of a fourth finish to the line-up. The new range now includes a Satin Walnut finish, joining the established selection of Gloss Black, White and Satin Rosenut.

Every stereo model in the range also enjoys a significantly upgraded cabinet design with an all-new rigid, cast aluminium top section – replacing the previous wooden version – to offer even greater stiffness and thus improve cabinet quietness still further. In a luxurious touch, the profile of the new aluminium top is finished in
‘Leather by Connolly’ – in black for dark cabinets (Black, Satin Rosenut) and light grey for lighter finishes (White, Satin Walnut).

Every model in the range adopts a revised version of the iconic Solid Body Tweeter-on-Top housing, with a new, elongated tube-loading system to produce an even more open sound for high frequencies. This supremely stiff enclosure deftly resists unwanted resonance and is an exceptional acoustic form – especially when combined with a new two-point decoupling system that isolates it from the rest of the loudspeaker more effectively than ever. As before, the Solid Body Tweeter is milled from a single solid block of aluminium and now, it uses an anodised finish, either dark or light depending on the cabinet colour, to celebrate that fact.

Speaker Type: 3-way vented-box system
Drive Units
  • 1x ø25mm (1in) diamond dome high-frequency
  • 1x ø130mm (5in) Continuum cone FST midrange
  • 2x ø165mm (6.5in) Aerofoil cone bass units
Technical Features
  • Diamond tweeter
  • Solid body Tweeter-on-Top
  • Continuum cone FST
  • Anti-Resonance plug
  • Biomimetic Suspension
  • Matrix
  • Aerofoil cone bass units
  • Flowport
Frequency range
33Hz to 35kHz
Frequency response (+/-3dB from reference axis)
45Hz to 28kHz
Sensitivity (on axis at 2.83Vrms at 1m)
89dB
Harmonic distortion
2nd and 3rd harmonics (90dB,1m on axis)
<1% 100Hz – 20kHz
<0.4% 100Hz – 20kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 200W into 8Ω on unclipped programme
Max. recommended cable impedance
0.1Ω
Dimensions
  • Height: 289 mm
  • Width: 715 mm
  • Depth: 369 mm
Net weight
25.15kg
Finishes
  • Gloss Black cabinet with Black grille
  • White cabinet with grey grille
