Sonus faber Suprema Loudspeaker System
Unsurpassed Sound
The most ambitious project of Sonus faber to date, Suprema reflects the pinnacle of audio engineering. Building on a legacy of artisanal design and a relentless pursuit of perfection, Suprema honors the 40th anniversary of a brand dedicated to pushing the boundaries of audio excellence.
EXTENDING BEYOND CONVENTIONAL LIMITS

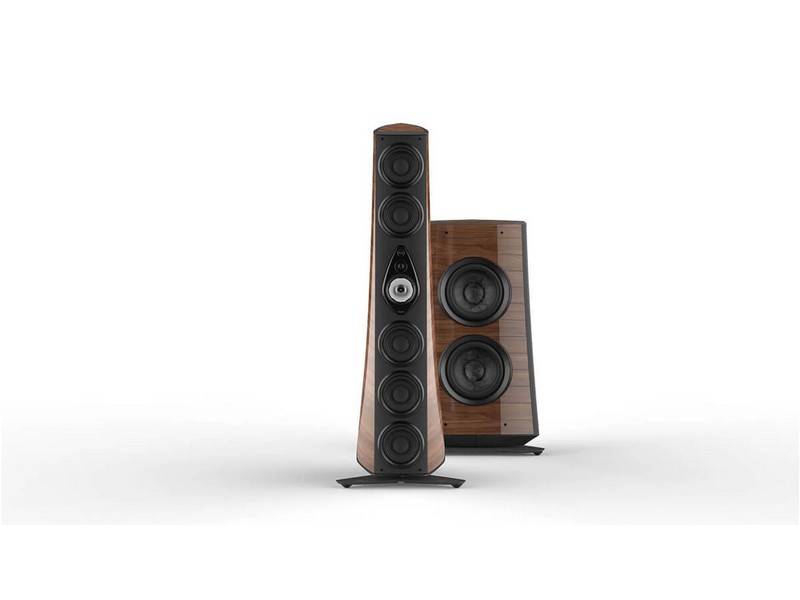

Suprema consists of a sophisticated four column system— two main columns and two subwoofers, and an external electronic crossover. This new design was pioneered by Sonus Faber’s engineering team to enhance acoustic performance to new levels of excellence.
LEGACY REDESIGNED

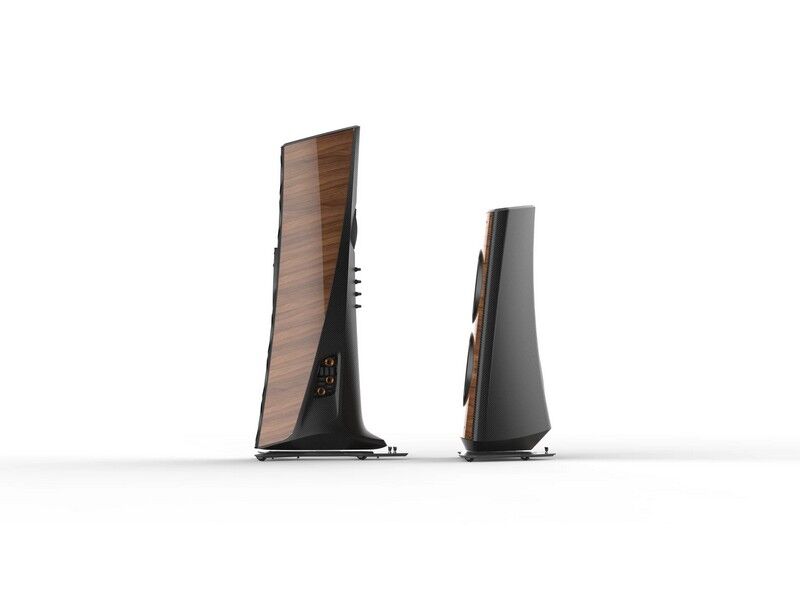

The two main columns of Suprema take the signature Sonus Faber lute shape, originally introduced with Guarneri in 1993.
This iconic design represents the optimal solution for enhancing a virtual soundstage while blending seamlessly into the background. The two subwoofers, in contrast, take on Stradivari’s elliptical shape, which is most suitable for the reproduction of low frequencies.
AN INNOVATIVE COMBINATION OF DRIVERS
Each of the two main columns of Suprema is a 4.5 ways system, featuring 2 back-firing speakers in addition to 8 front-firing speakers— 4 dual drive woofers, 1 mid-woofer, 1 Camelia midrange, 1 mid-tweeter, 1 super tweeter. The back-firing speakers improve staging and dispersion while the combination of front speakers allows for unparalleled audio reproduction at every level of frequency.
VOICE OF SONUS FABER, EVOLVED
In developing Suprema, careful attention was paid to maintaining and enhancing the signature Natural Sound of Sonus Faber. The configuration of the tweeters and midranges evolves into three brand new elements: one midrange with a cellulose pulp diaphragm, a new mid-tweeter with a treated silk dome, and a new super tweeter with a treated silk dome.
Specifications:
MAIN COLUMN:4.5 way sealed box
SUBWOOFER:Sealed box loading, passive subwoofer

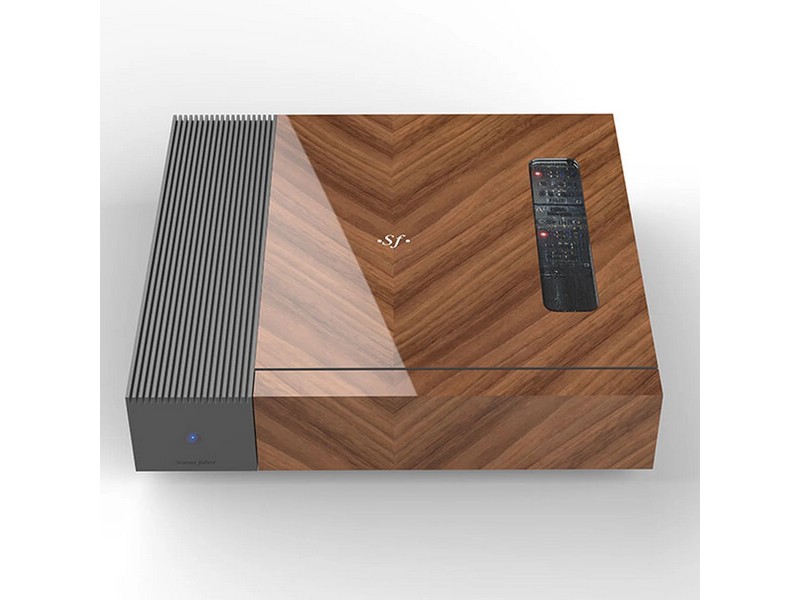

CROSSOVER:Full Discrete –Pure Analog Stereo/Mono active Crossover
MAIN COLUMN:
Stw:Ø 20 mm, silk dome with dedicated waveguide, High Power Neodymium, Extended Range Double Soft Dome.
Tw:Ø 38 mm, silk dome with dedicated waveguide, High Power Neodymium, Extended Range Double Soft Dome.
Md:Ø 165 mm, dual driver motor system with neodymium ring magnet.
Lmw:Ø 203 mm, neodymium slug magnet, Ø 65mm voice coil, sandwich paper cone.
W:Ø 4×203 mm, dual driver motor system with neodymium ring magnet, Ø 50 mm voice coil, sandwich paper cone.
Btw:Ø 28 mm, silk dome, neodymium magnet.
Bmd:Ø 101 mm, paper cone driver, neodymium magnet.
SUBWOOFER:
Ø 2×380 mm carbon fiber sandwich cone
MAIN COLUMN:
Front emission: 360, 430, 1700, 6700 Hz
Back emission: 500, 2300 Hz
MAIN COLUMN:
Front emission: 45 Hz – 40000 Hz
Back emission: 500 Hz – 20000 Hz
SUBWOOFER:
16 Hz – 30/80 Hz, variable based on the setting of the electronic crossover
CROSSOVER:
MAIN: 25 Hz – 150000 Hz
PROC: 5 Hz – 150000 Hz
MAIN COLUMN:91 dB SPL (2.83V/1 m)
SUBWOOFER:92 dB SPL (2.83V/1 m)
MAIN COLUMN:4 Ohm
SUBWOOFER:4 Ohm
MAIN COLUMN:100W – 700W, undistorted signal
SUBWOOFER:500W – 2000W, undistorted signal
CROSSOVER:
OUTPUT DRIVING CAPABILITY:
Unbalanced: 6 V rms (+15,5 dBv) @ 490 Ohm
Balanced: 11 V rms (+20 dBv) @ 980 Ohm
CROSSOVER
110Vac, 60 Hz, 0.26A, 30W
220Vac, 50 Hz, 0.26A, 30W
MAIN COLUMN:
4 connectors binding post: Mid-Hi, Low.
SUBWOOFER:
2 connectors binding post
CROSSOVER:
INPUT CHANNELS: 2 Unbalanced, 2 Balanced
OUTPUT CHANNELS: 8 Unbalanced, 8 Balanced
IsoAcoustic
MAIN COLUMN:
1905 x 650 x 880 mm / each
75 x 25.6 x 34.7 in / each
SUBWOOFER:
1451 x 850 x 595 mm / each
57.1 x 33.5 x 23.4 in / each
CROSSOVER:
110 x 451 x 424 mm / unit
4.3 x 17.8 x 17 in / unit
MAIN COLUMN:
2110 x 830 x 1200 mm / each
83 x 32.7x 47.2 in / each
SUBWOOFER (WITH OR WITHOUT CROSSOVER):
1900 x 1000 x 830 mm / each
74.8 x 39.4 x 32.7 in / each
MAIN COLUMN:
110 kg / each
242,5 lb / each
SUBWOOFER:
105 kg / each
231.5 lb / each
CROSSOVER:
17 kg / unit
37,5 lb / unit
MAIN COLUMN:
241 kg / each
531.3 lb / each
SUBWOOFER (WITHOUT CROSSOVER):
219 kg / each
482.8 lb / each
SUBWOOFER (WITH CROSSOVER):
238 kg / unit
524.7 lb / unit
Double curvature – Lute shape
High gloss wood
Carbon fiber
Black leather
Aluminum
FST 5×20 / 500mA, Time-Lag, 250Vac @220Vac
FST 5×20 / 1A, Time-Lag, 250Vac @110Vac
