Description
The 801 D5 is an icon refined, the pinnacle of our performance. Engineered for recording studios and discerning listeners alike, it uses our most advanced technologies to deliver reference-quality sound.

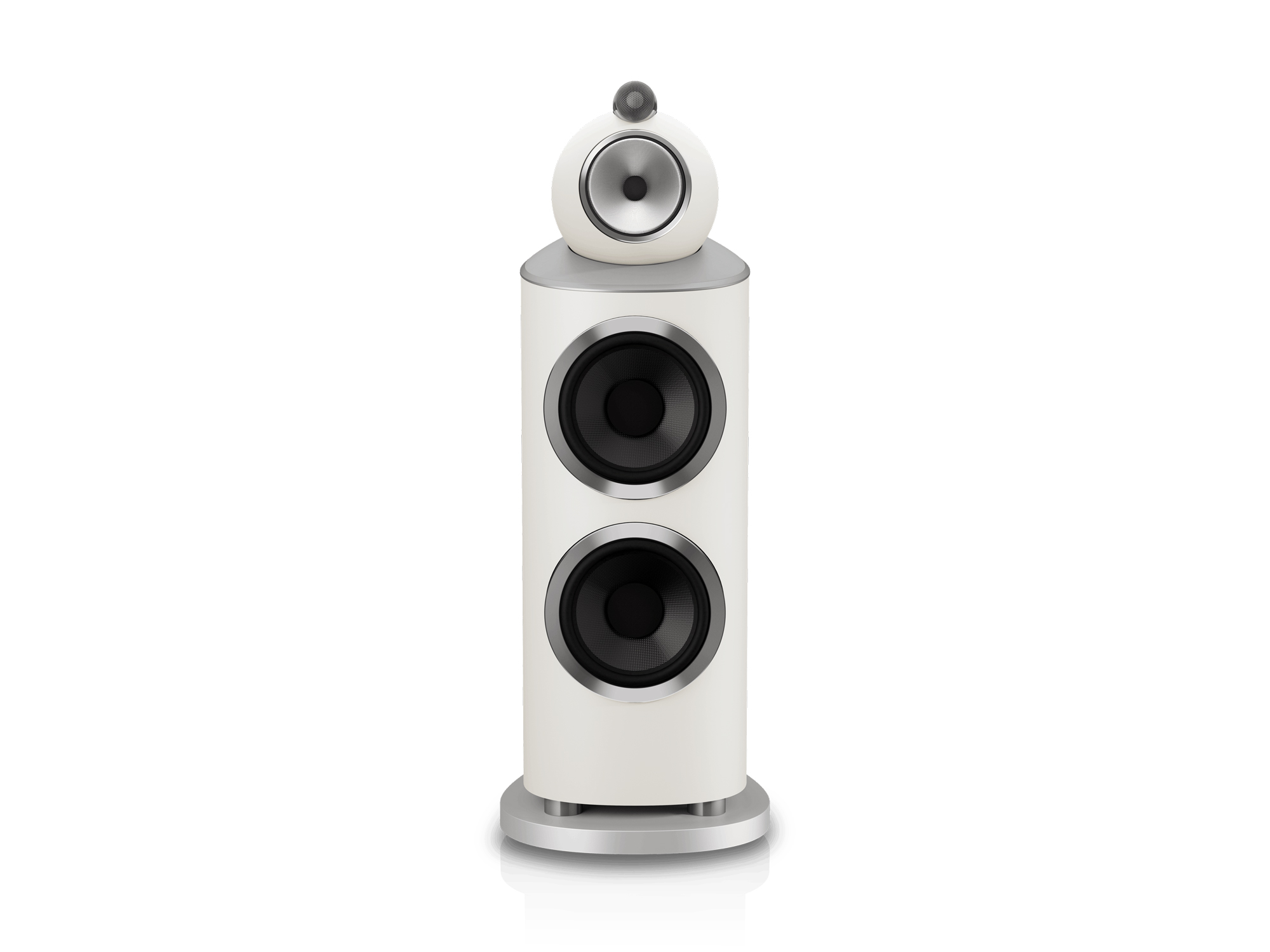

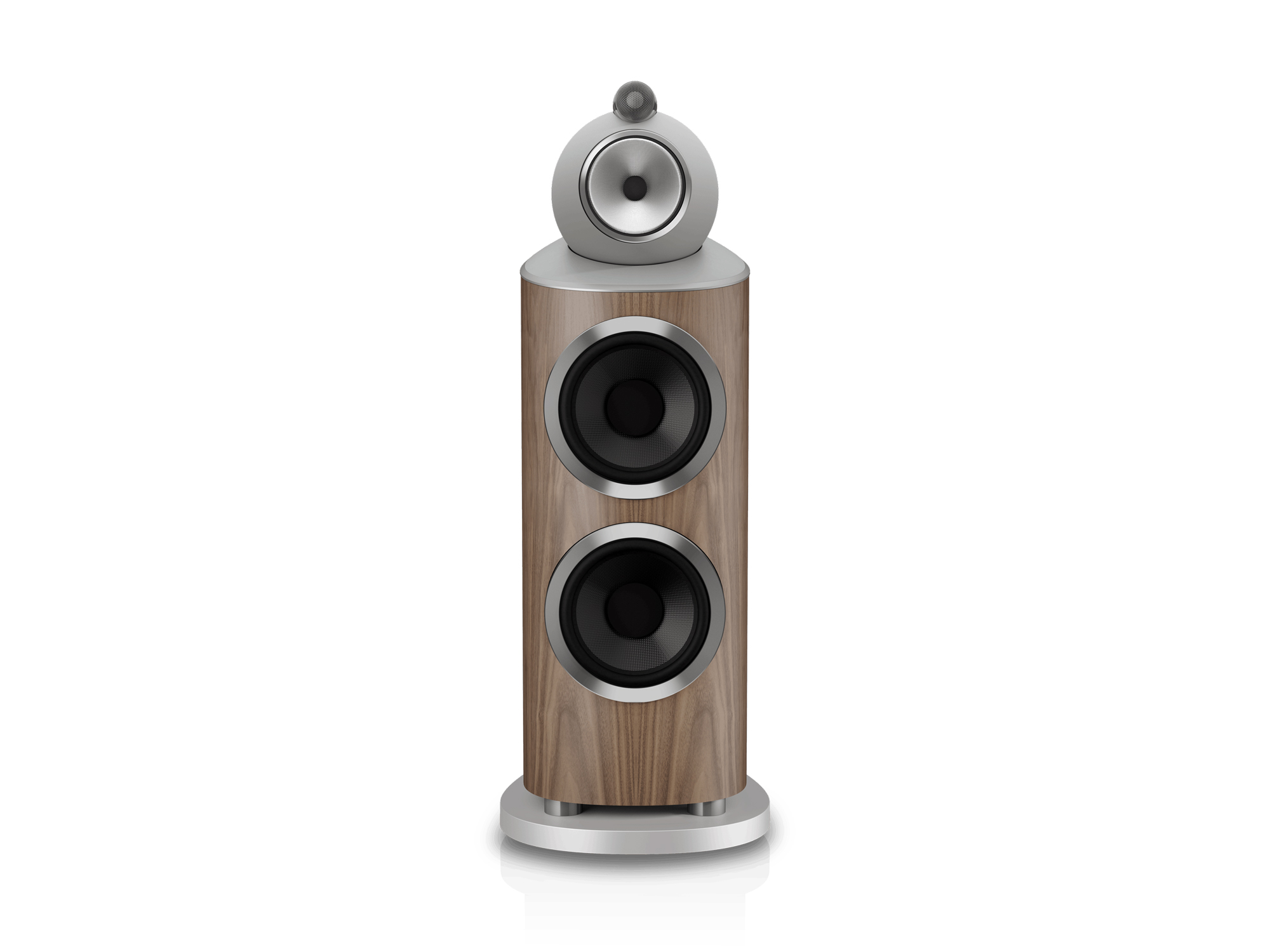

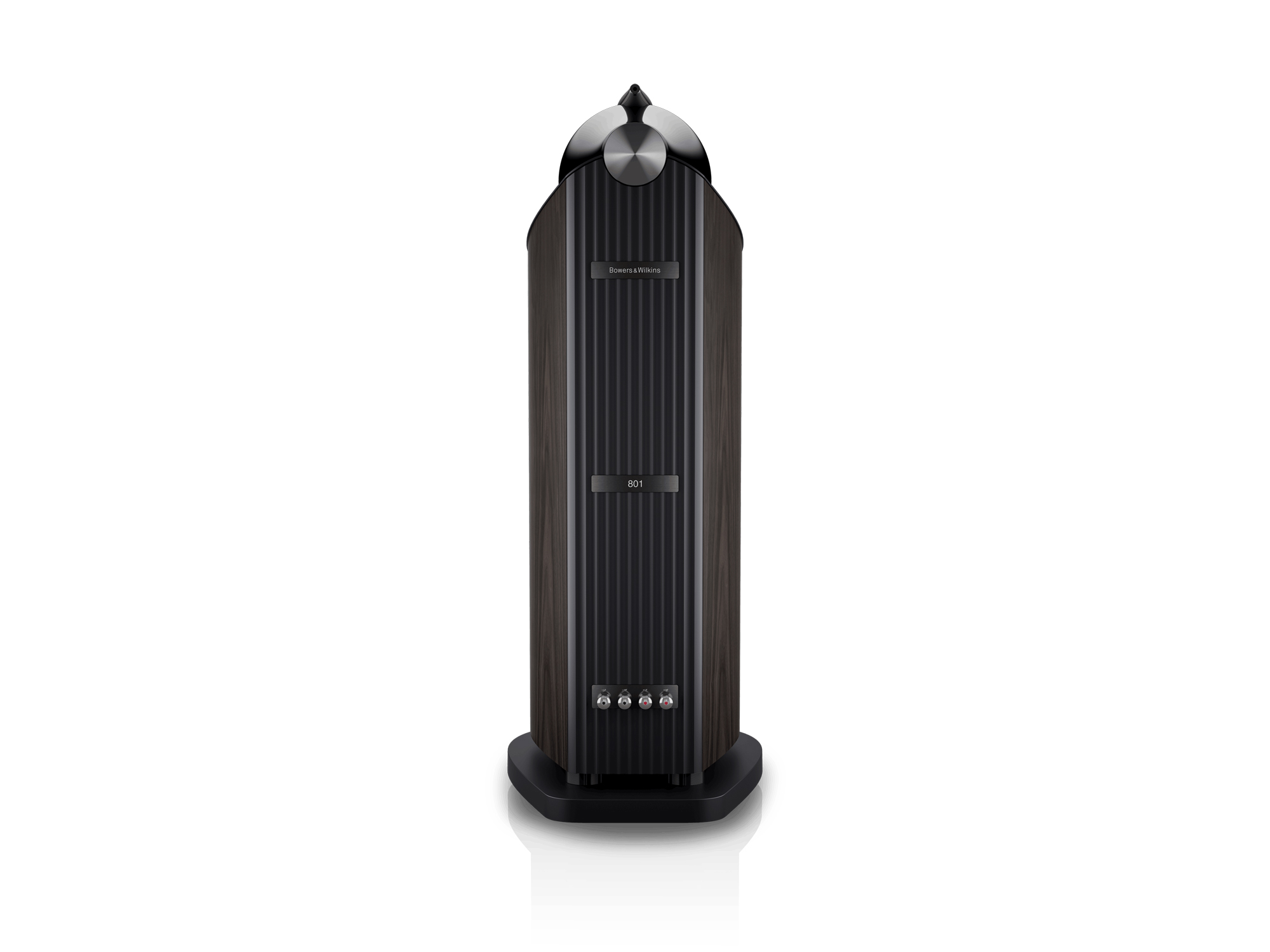

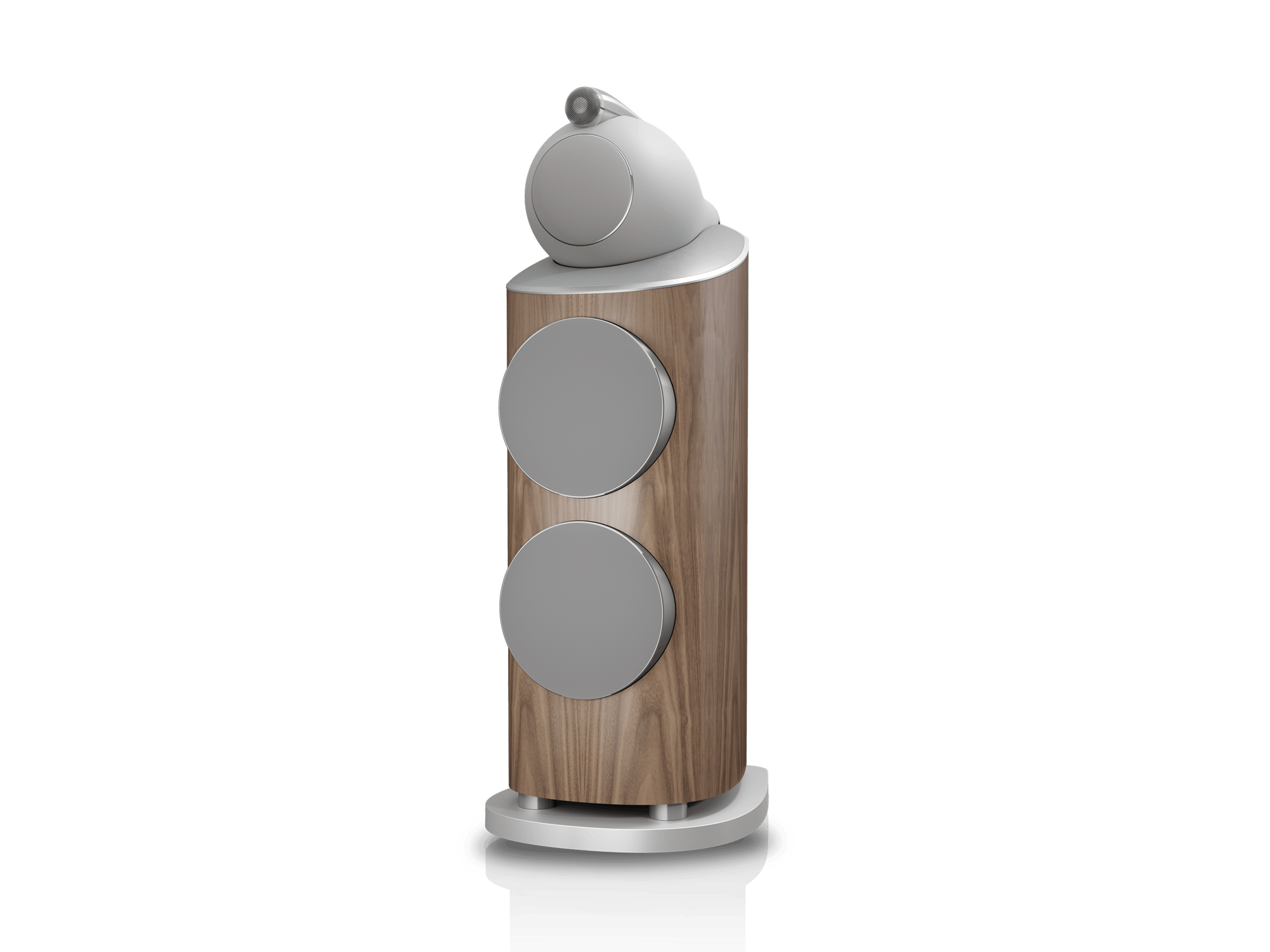

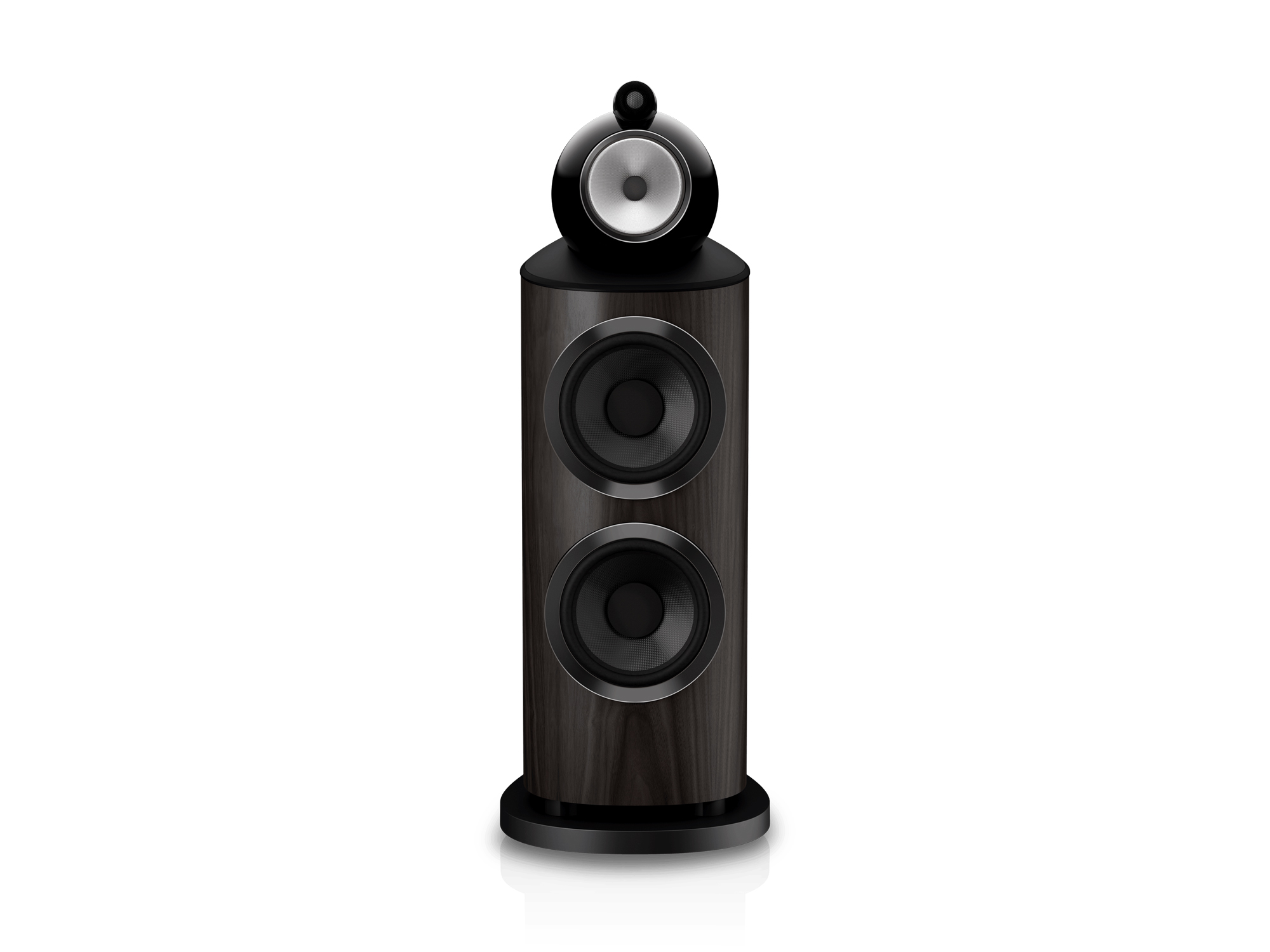

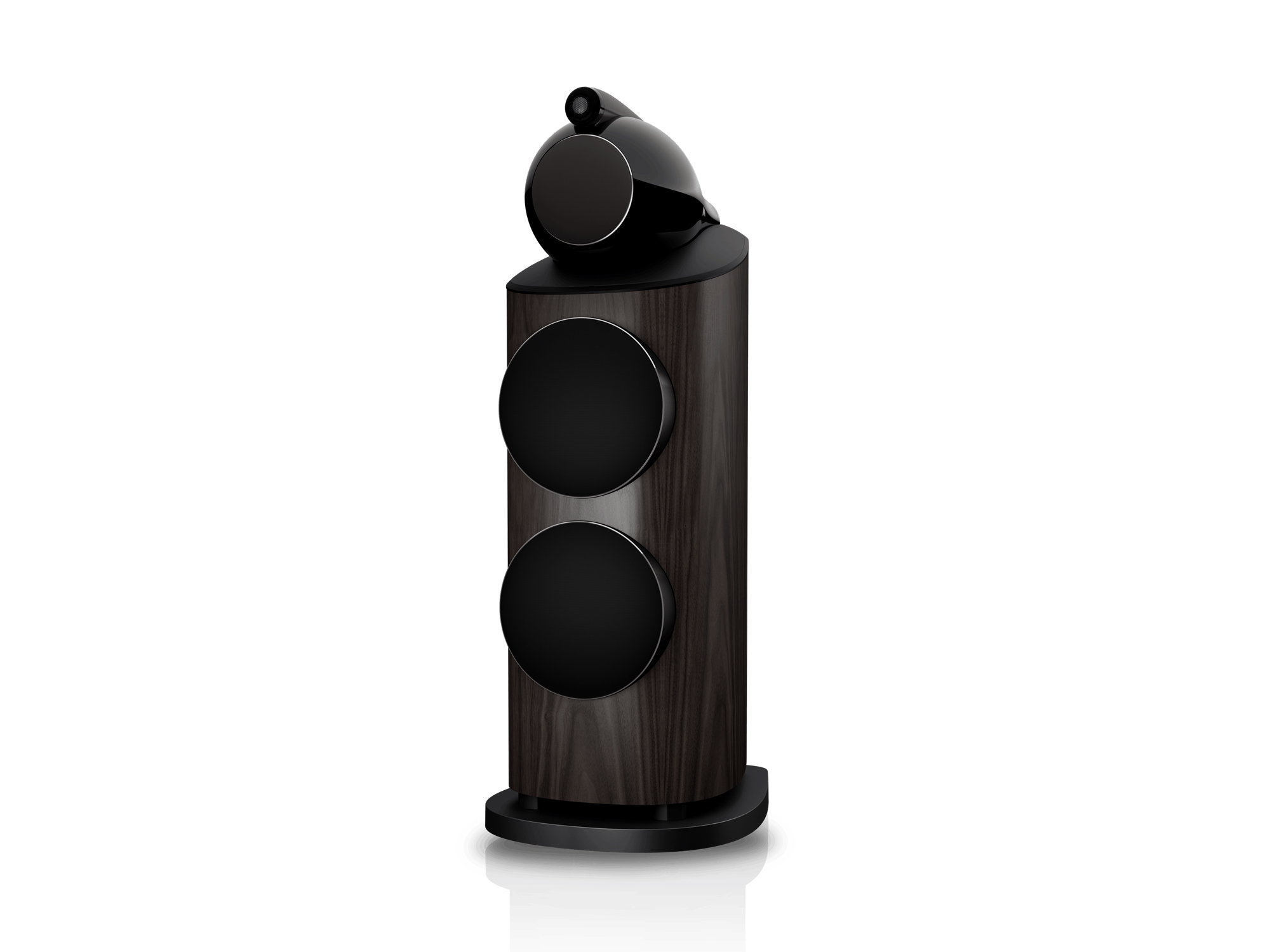

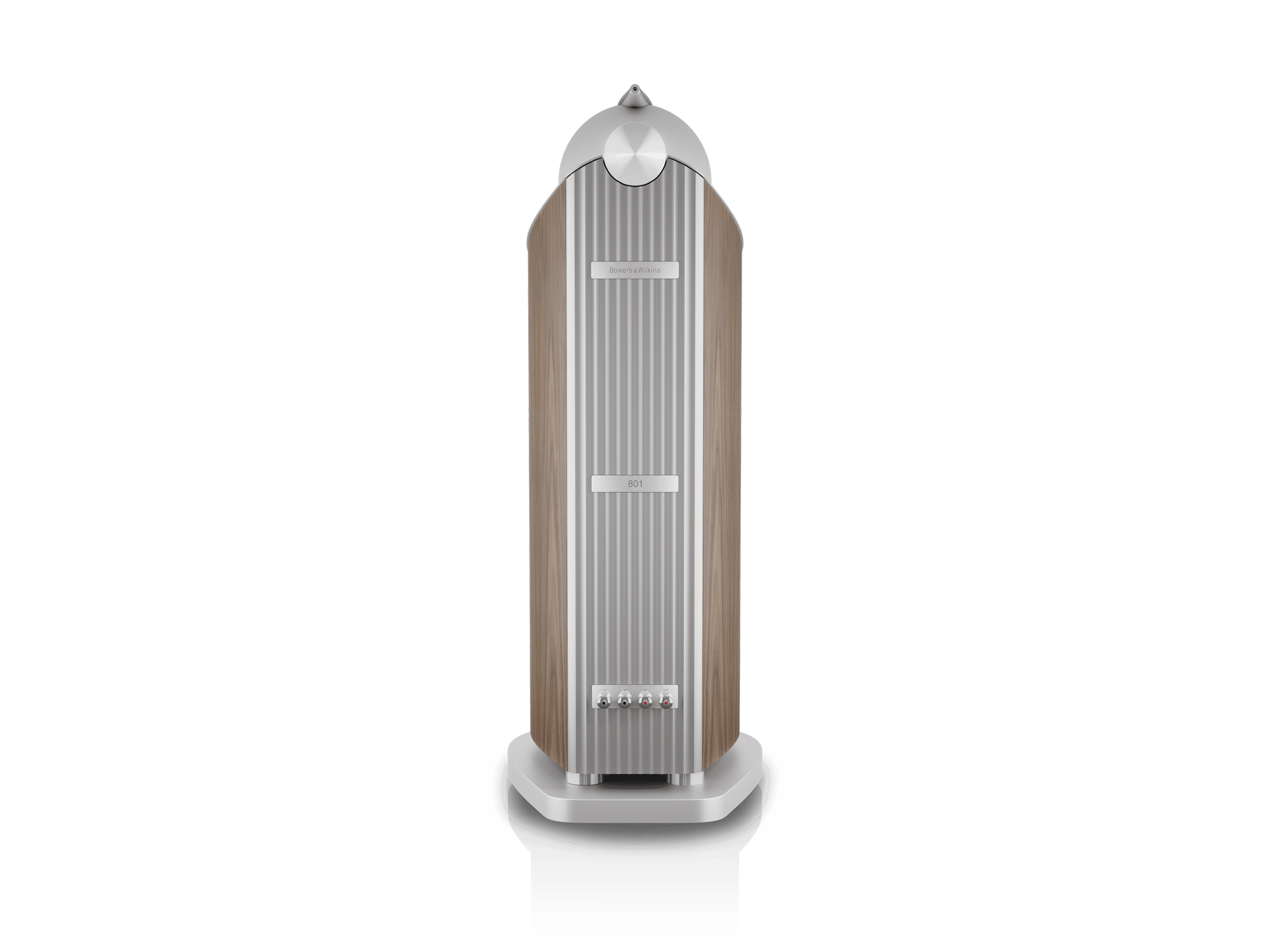

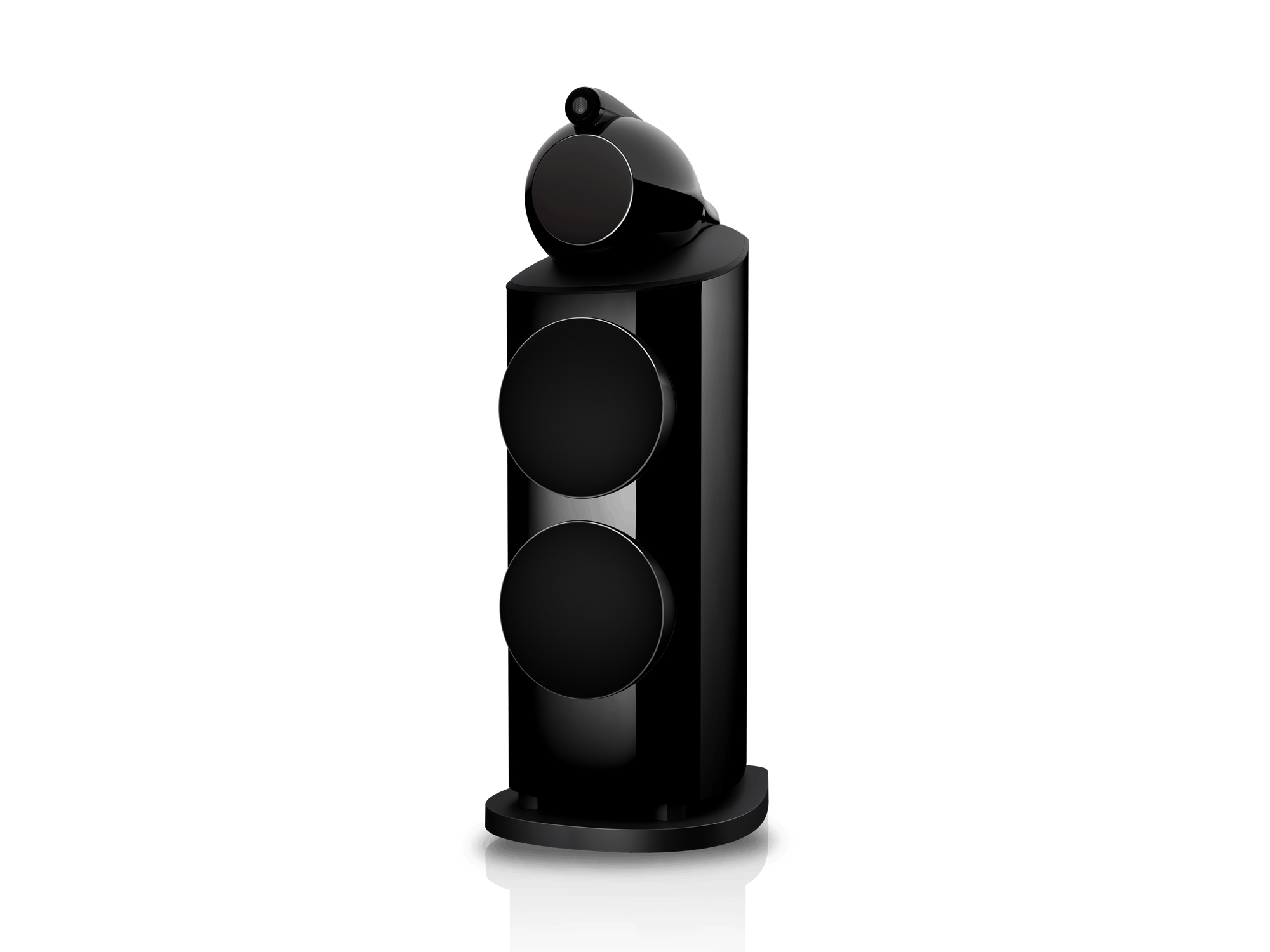

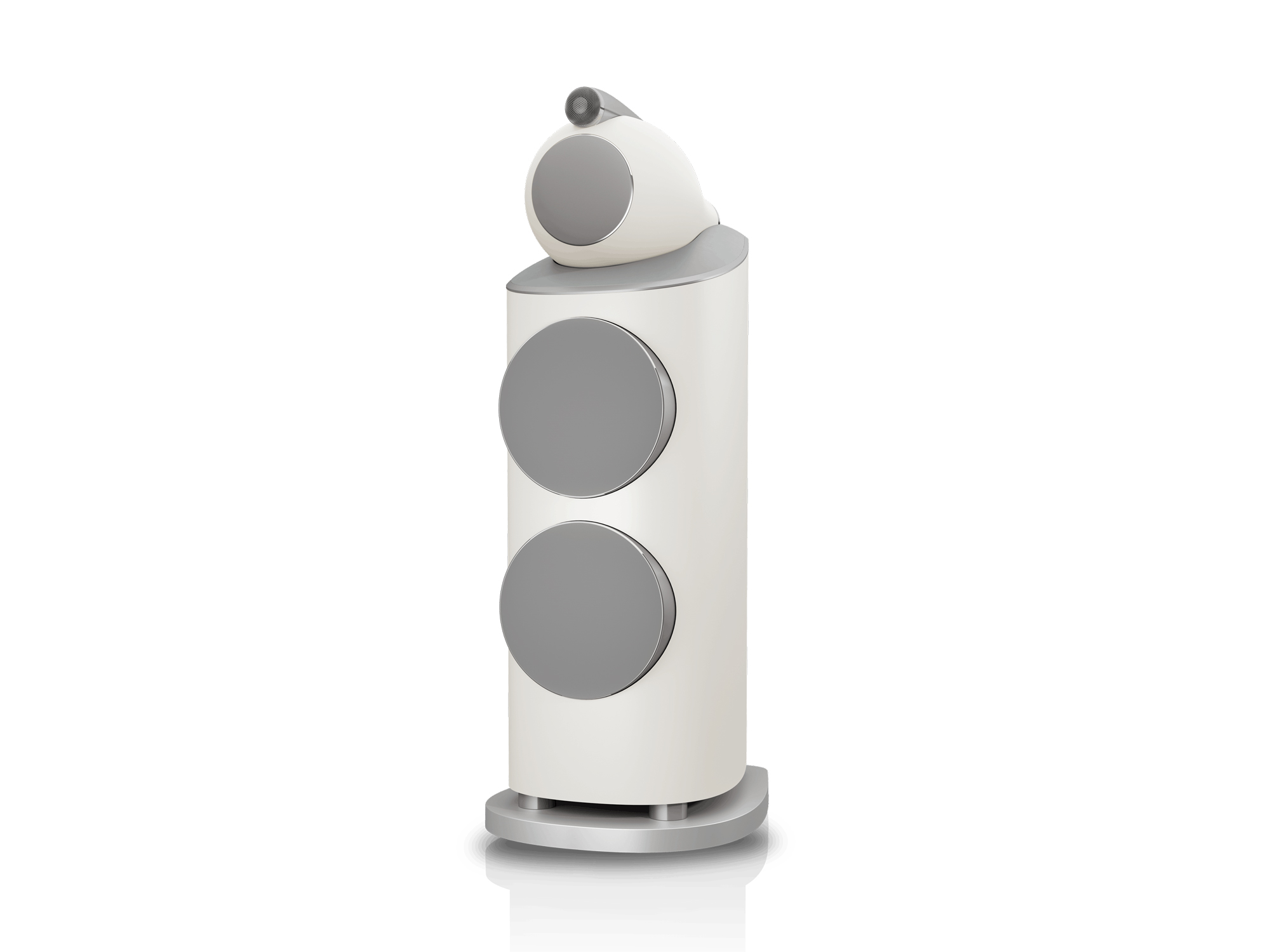

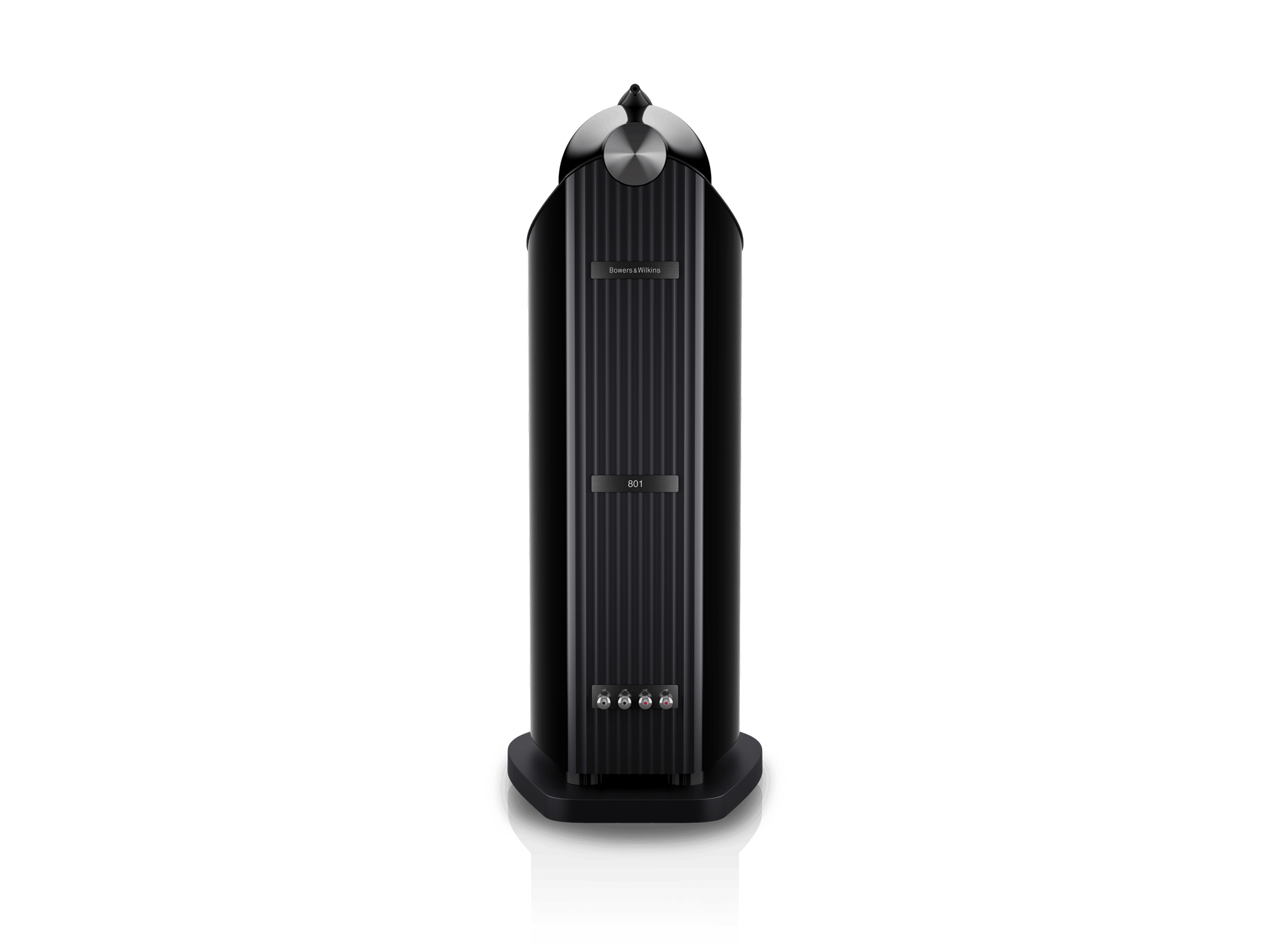

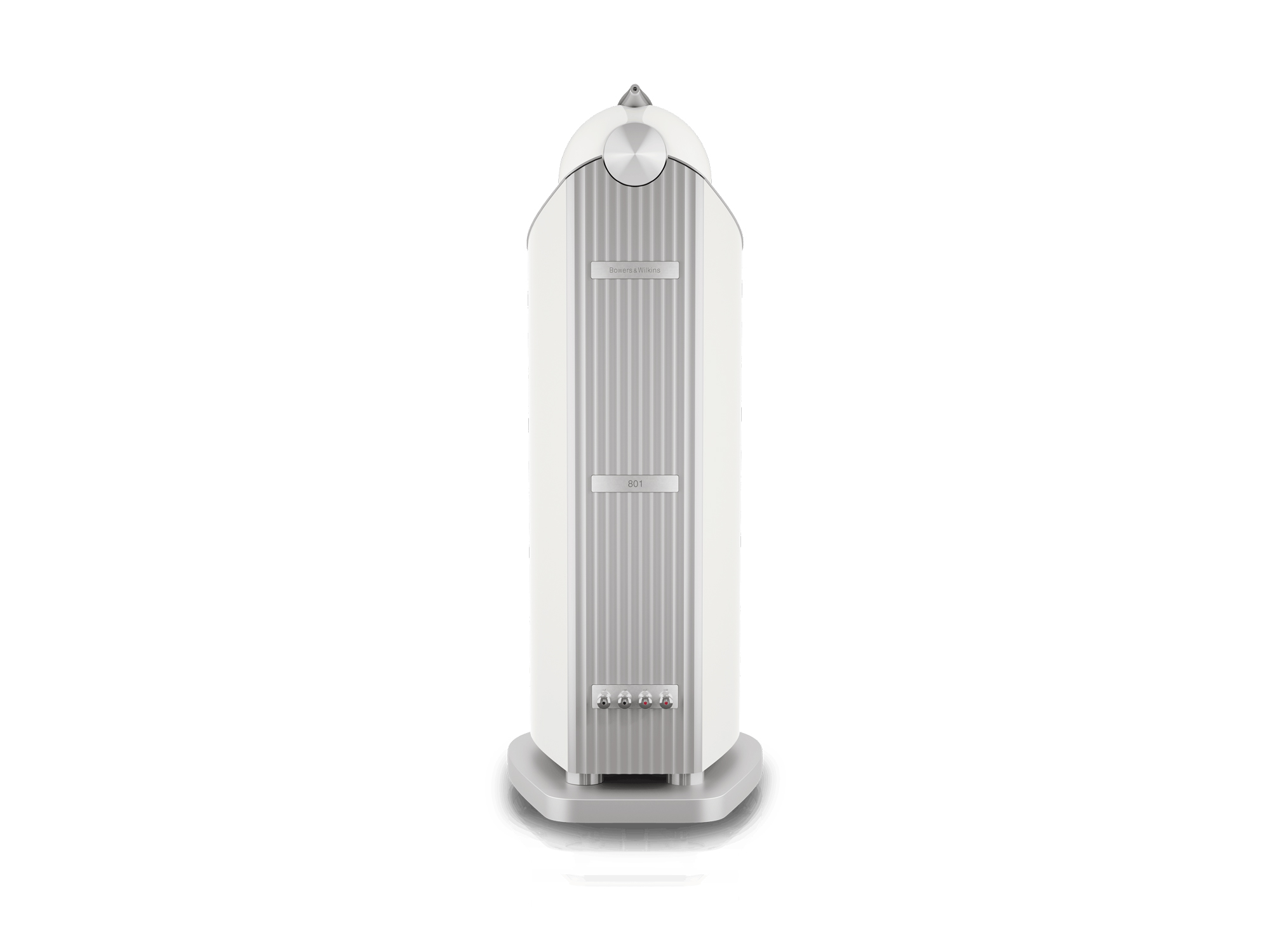

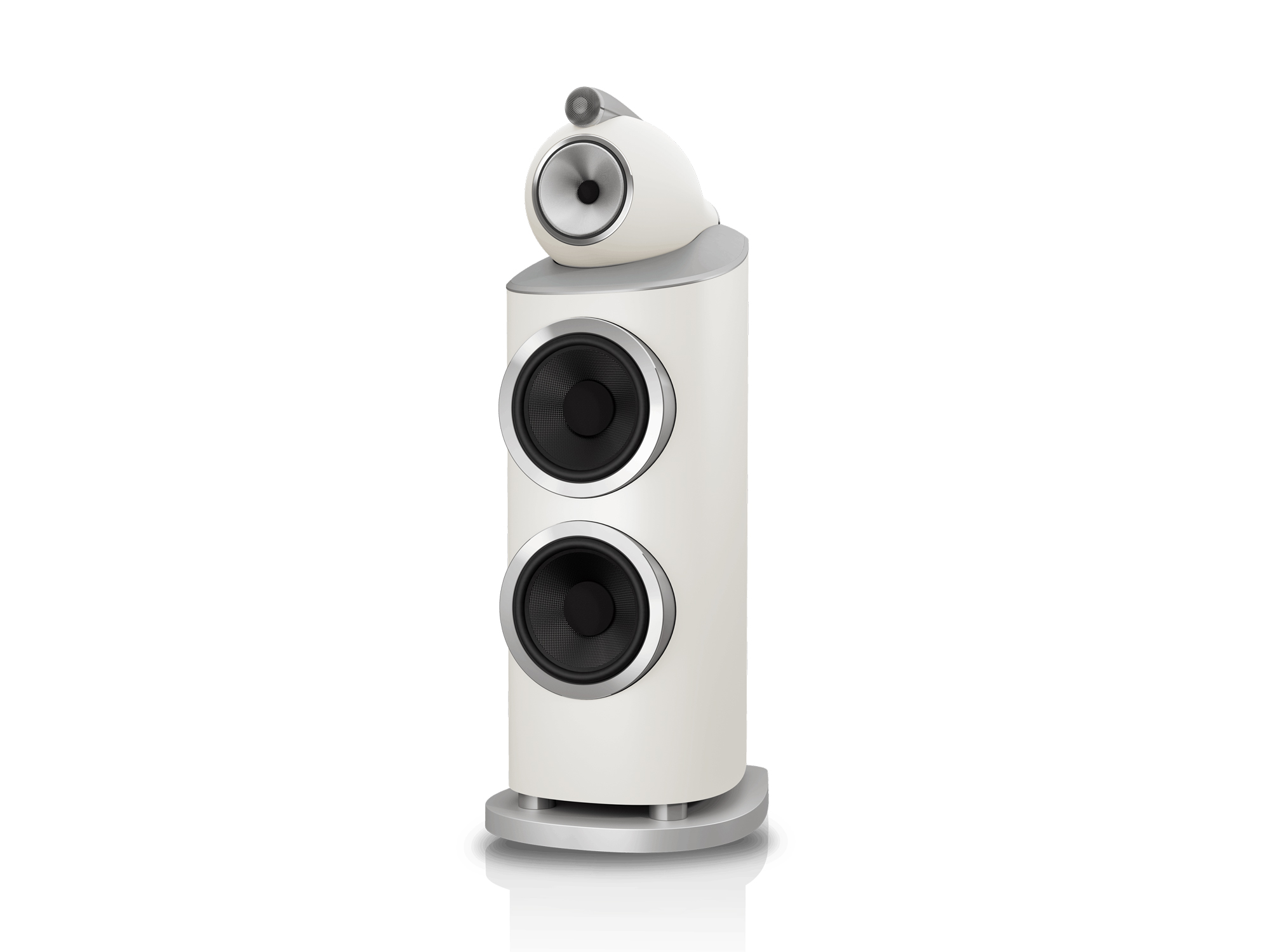

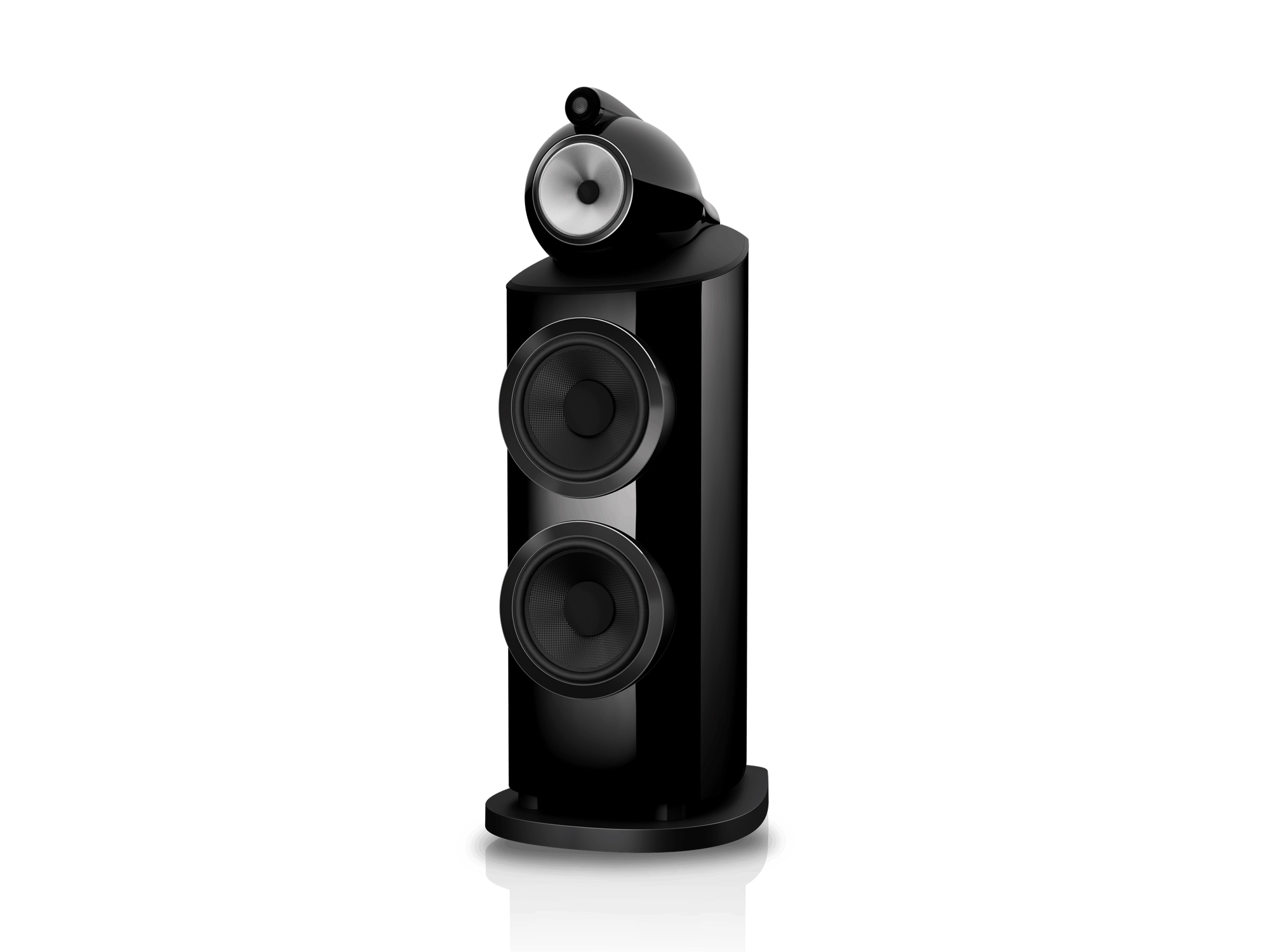

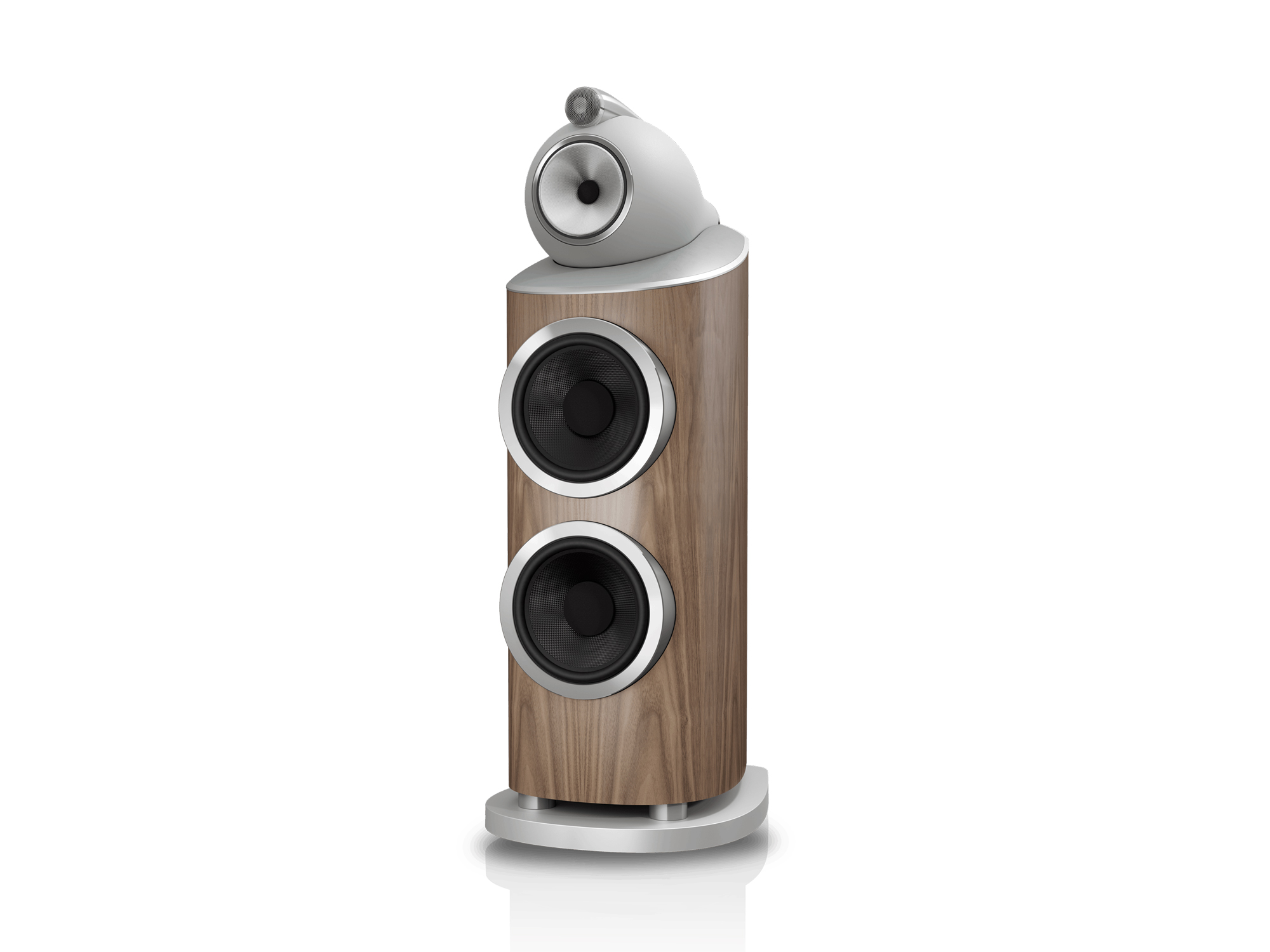

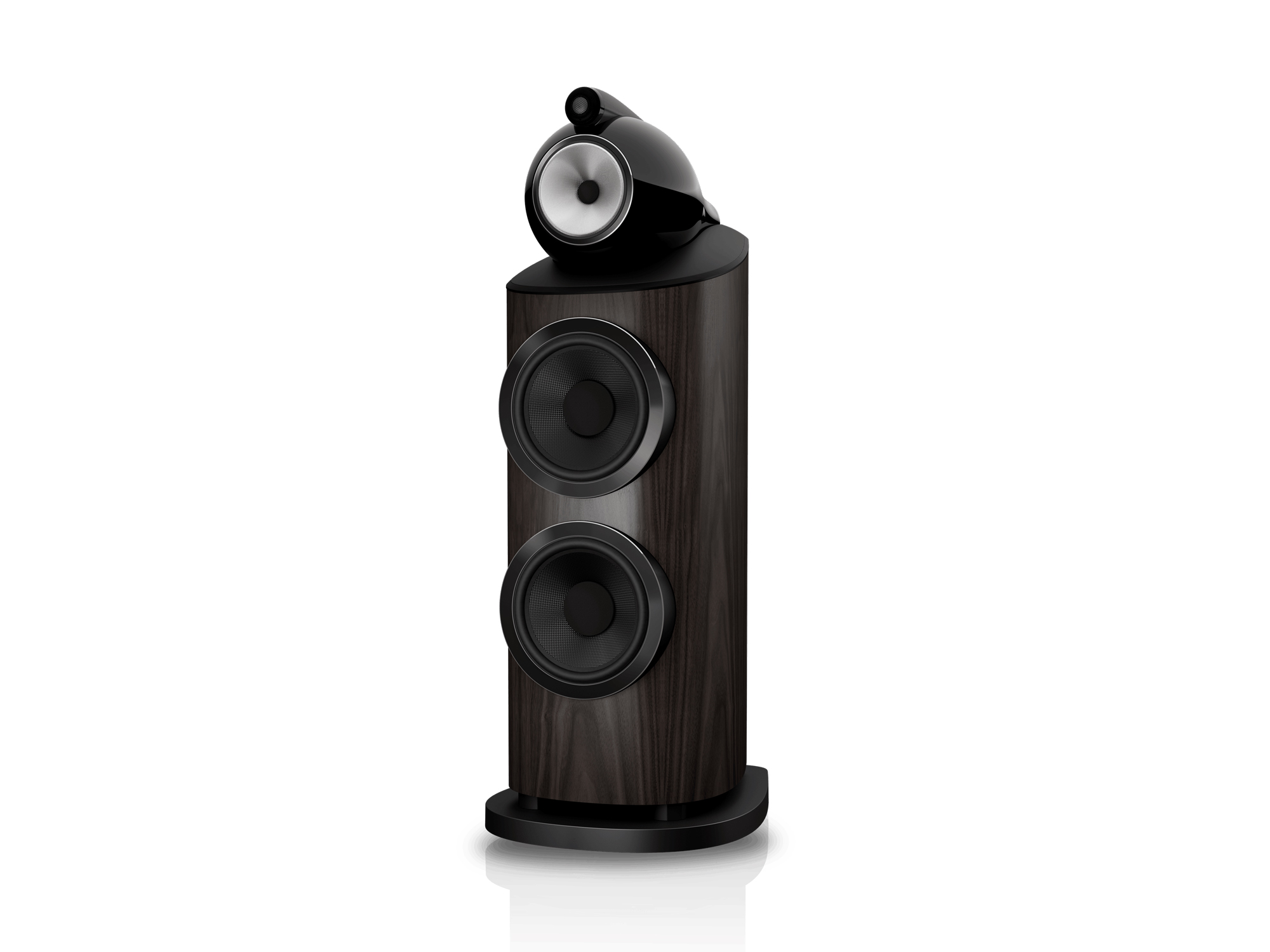

From its Diamond dome tweeter and optimised drive units to Space Frame Bracing and an upgraded plinth, its purposeful mix of evolution and innovation is housed in an elegantly crafted and beautifully finished cabinet, shaped by the science of sound. Available in Stealth Black, Warm White, Light Walnut, or Dark Walnut, with matching Leather by Connolly trim, it’s an icon of both performance and design. Born of our 60-year obsession with creating the perfect loudspeaker, 801 D5 delivers our most realistic and accurate listening experience yet.
3-Way Floor Standing Speaker System
Drive units
- 1x ø25mm (1in) diamond dome high-frequency
- 1x ø150mm (6in) Continuum cone FST™ midrange
- 2x ø250mm (10in) Aerofoil cone bass units
Key Specifications
- Frequency range: 13Hz to 35kHz
- Frequency response (+/-3dB from reference axis): 15Hz to 28kHz
- Sensitivity (on axis at 2.83Vrms at 1m): 90dB
- Harmonic distortion: 2nd and 3rd harmonics (90dB,1m on axis)
- <1% 30Hz – 20kHz
- <0.3% 100Hz – 20kHz
- Nominal impedance: 8Ω (minimum 3.0Ω)
- Recommended amplifier power: 50W – 1000W into 8Ω on unclipped programme
Technical features
- Diamond tweeter
- Solid body Tweeter-on-Top
- Continuum cone FSTâ„¢
- Anti-Resonance plug
- Biomimetic Suspension
- Turbine Head
- Matrixâ„¢
- Aerofoil cone bass units
- Flowportâ„¢
- Dimensions: 1221mm x 447mm x 597mm (H x W x D)
- Net weight: 106.4 kg
