Description

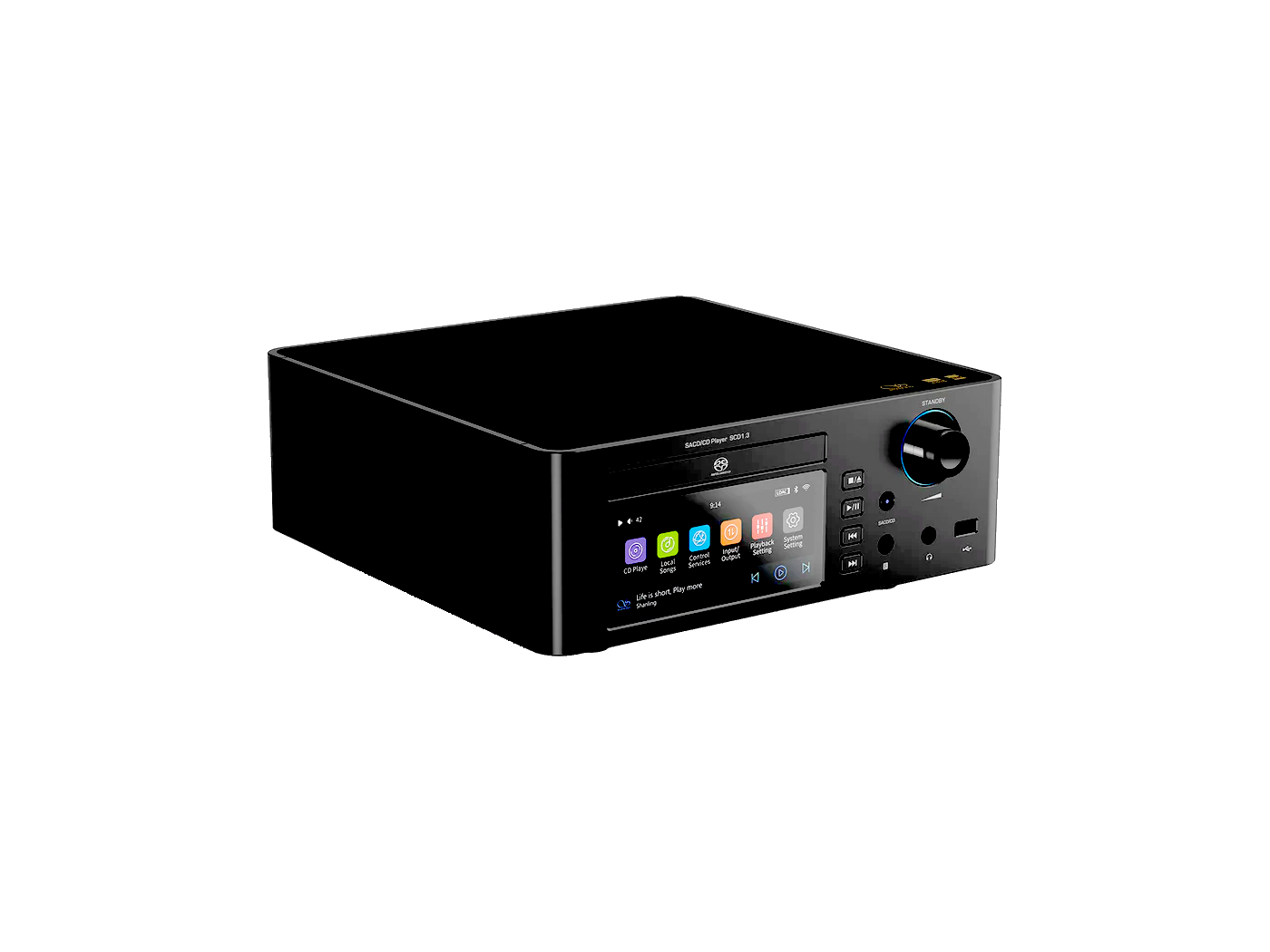

SCD1.3 is the first model adapting new Shanling’s design, with a simpler and elegant look, for an easy fit into a wide range of home decors. Available both in Silver and Black finishes.
Shanling SCD1.3 shines as a High-End DAC playing SACDs, but it was designed as a multifunctional source component for a wide range of Hi-Fi setups. Apart from SACDs, you can enjoy playback from local USB drives, convenient Bluetooth streaming or even DLNA, AirPlay and NAS support.
Specifications
Dimensions: 280 X 280 X 96mm (LxWxH)
Weight: 5.7kg
Power Consumption: 20W
Processor: Ingenic X2000
DAC: AKM AK4499EX & AK4191EQ DAC System
USB Input: XMOS XU316
Bluetooth: Bluetooth 5.0 Receiver
Bluetooth Codec Support: LDAC, aptX HD, aptX, AAC, SBC
Display: 5.1-inch LG Touch Screen (854*358)
Controls: Touch Screen, Physical buttons + Volume Wheel, Remote Control, Companion app for iOS & Android
Inputs: SACD/CD, USB Drive, USB DAC, Bluetooth, WiFi, SPDIF Coaxial & Optical
Digital Outputs: 125, SPDIF Coaxial & Optical (SACD playback limited to PCM 88.2 kHz)
Analog Outputs: XLR, RCA & 6.35mm
USB Drive Audio Formats Support: DSD (“iso”, “.dsf”,”dff’, does not support “DST”)/ISO/DXD/APE/FLAC/WAV/AIFF/AIF/DTS/MP3/WMA/AAC/OGG/ALAC/MP2/M4A/AC3/M3U/M3U8/OPUS
USB Drive Hi-Res Support: 32bit/768kHz, DSD512 Native
RCA output
Output level: 2.5Vrms
Frequency Response: 20Hz-40kHz (-0.1dB)
THDHN: 0.00056
Dynamic Range: 119dB
Signal-to-noise ratio: 119dB
XLR Output
Output level: 5.0Vmms
Frequency Response: 20Hz-40kHz (-0.1dB)
THD+N: 0.00056
Dynamic Range: 122dB
Signal-to-noise ratio: 122dB
Headphone Output
Output Power: 1.1 W@320//153 mW @ 300
Frequency Response: 20Hz-40kHz (-0.1dB)
THO+N: 0.001%
Separation: 75dB@320
Dynamic Range: 122dB
Signal-to-noise ratio: 122dB
Output Impedance: 4.70
