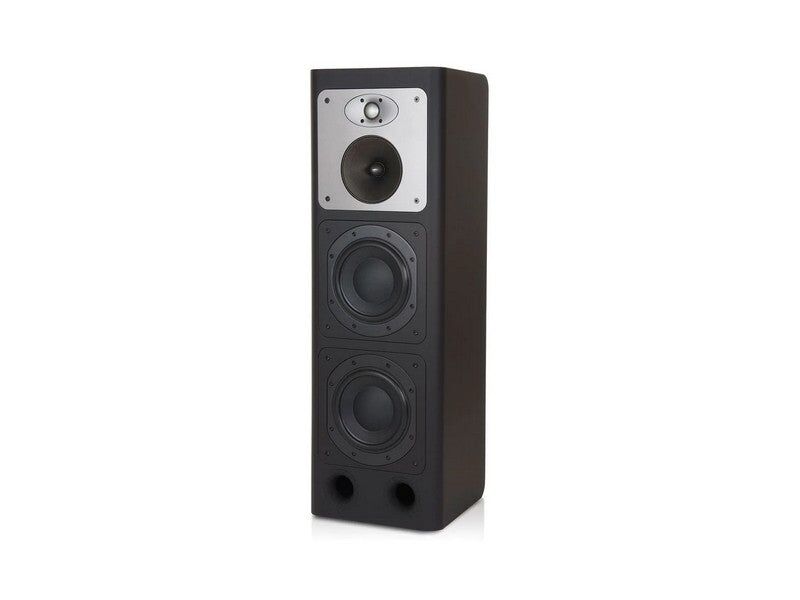

Bowers & Wilkins CT8.2 LCR 3-way Open-box Speaker System (Each)
Listening is believing
The CT8.2 LCR is the latest addition to the very successful CT800 Series. It marries high efficiency and SPL capability to outstanding fidelity for cinema and music playback.
Its unique modular baffle design allows for it to be used as a LCR speaker in either vertical or horizontal positions. The CT8.2 LCR incorporates two 8” Paper/Aramid Fibre woofer, a 6” blue Aramid Fibre FST™ midrange, and 1.25” aluminium Nautilus™ tweeter in a passive crossover design.
SPECIFICATIONS:
Description
Paper/Aramid Fibre bass unit cone Aramid Fibre
FST™ midrange cone Speakon® and binding post connectors
3-way open-box system
Drive units
1x ø32mm (1.25 in) tube loaded aluminium dome high-frequency tweeter
1x ø150mm (6 in) woven Aramid Fibre FST™ midrange
2x ø200mm (8 in) Paper/Aramid Fibre cone bass
Frequency range -6dB at 31Hz and 45kHz
Frequency response 39Hz – 24kHz ±3dB on reference axis
Dispersion Within 2dB of reference response
Horizontal: over 60° arc
Vertical: over 10° arc
Sensitivity 91db spl (2.83V, 1m)
Harmonic distortion 2nd and 3rd harmonics (91dB, 1m)
<1% 80Hz - 20kHz
<0.5% 200Hz - 15kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Crossover frequency 400Hz, 4.5kHz
Recommended amplifier power
50W – 500W into 8Ω on unclipped programme
Max. recommended cable impedance 0.1Ω
Dimensions
Height: 1000mm (39.4 in)
Width: 325mm (12.8 in)
Depth: 300mm (11.8 in)
Net Weight
36.3kg (80 Ib)
Finishes
CT800 soft touch paint finish
