Description

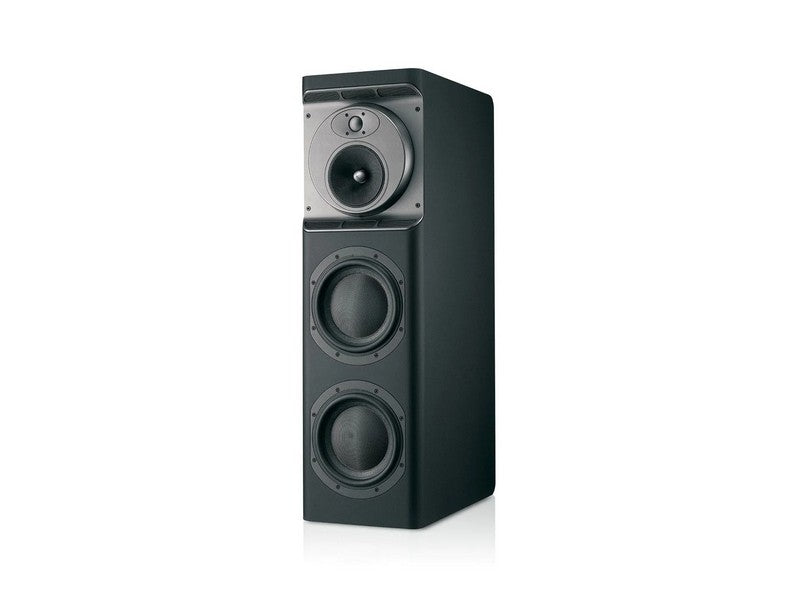

Bowers & Wilkins CT8 LR 3-way Closed-box System (Each)
Front speaker: CT8 LR
Stationed to the left and right of the screen are two upright speakers. The CT8 LR features a spherical midrange/tweeter head that can be tilted towards the listener to retain a focused delivery, plus twin 10” bass units, as in the surround speaker.
Tweeter
For the Custom Theatre range we have taken our development of the Nautilus™-derived tube-loaded tweeter a stage further.
Following the same principle as our adaptation of the midrange tube (see opposite), we’ve replaced the single, long tube with a whirl of tightly-packed, smaller channels contained in a shallow cup, each of which absorbs a portion of the unwanted sound energy from the back of the diaphragm.
Even at frequencies well beyond human hearing, this tweeter sings like a bird.
SPECIFICATIONS:
Technical Features
Adjustable midrange/tweeter head aramid fiber cone FST™ midrange Composite sandwich cone bass
Matrix cabinet
Active bass crossover
Laser alignment device
Description
3-way closed-box system
Frequency range -6dB at 23Hz and 40kHz
Sensitivity 93dB spl (2.83V, 1m) (mf/hf)
Harmonic distortion
Nominal impedance
8Ω (minimum 4Ω)
Crossover frequency 400Hz, 4.5kHz
Recommended amplifier power
50W – 1000W into 8Ω
Max. recommended cable impedance 0.1Ω
Dimensions
Height: 1100mm (43.3 in)
Width: 325mm (12.8 in)
Depth: 550mm (21.65 in)
Net Weight
85kg (187 lb)
Finishes
Cabinet: Black
