Description
See nothing, hear everything

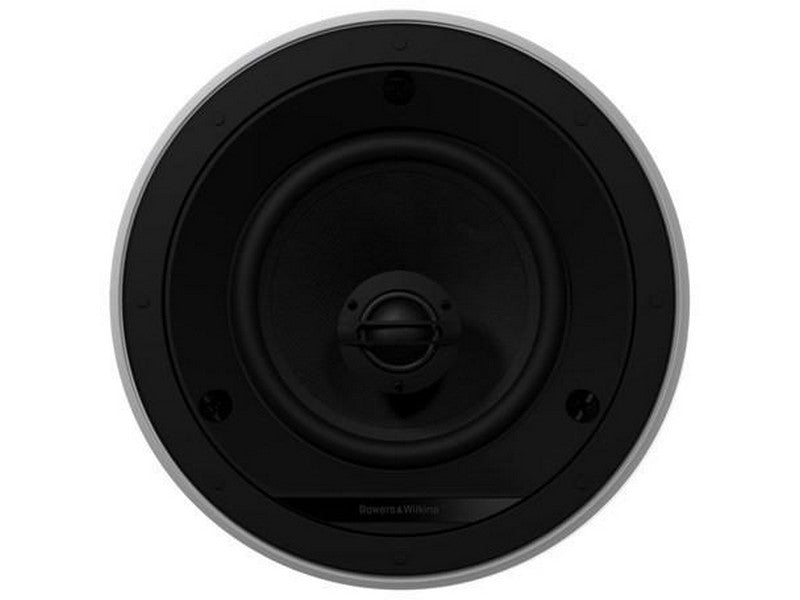

CCM665 is a high performance ceiling speaker that’s simplicity itself to install and use. A 2-way design, featuring a 150mm (6in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis.
Incorporating QuickDogs™ and plug and play functionality it is quick and easy to install. A perfect speaker for those indulgent extra locations – the bathroom, the kitchen – that define the real luxury of custom installed audio.
The speaker features a 150mm (6in) woven glassfibre bass/midrange driver and a soft dome tweeter. QuickDogs™ and plug-and-play functionality make installation a breeze. CCM665 is a high performance ceiling speaker that’s simplicity itself to install and use.
A 2-way design, featuring a 150mm (6in) woven glass bre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. Incorporating QuickDogsTM and plug and play functionality it is quick and easy to install.
A perfect speaker for those indulgent extra locations – the bathroom, the kitchen, etc
Features:
- 2-Way In Ceiling Loudspeaker
- 1x ø150mm (6in) woven Glassfibre cone bass/midrange
- 1x ø25mm (1in) fixed soft dome tweeter
- Frequency Range (-6dB): 45Hz – 35kHz
- Recommended Amp Power: 25 – 130w
- Sensitivity SPL (2.83V, 1m): 87 dB
- Impedance Nominal (min): 8Ω (4.5Ω)
- Frame diameter: 240mm (9.5in)
- Cut-out diameter: 202mm (8in)
- Depth behind surface: 133mm (5.2in)

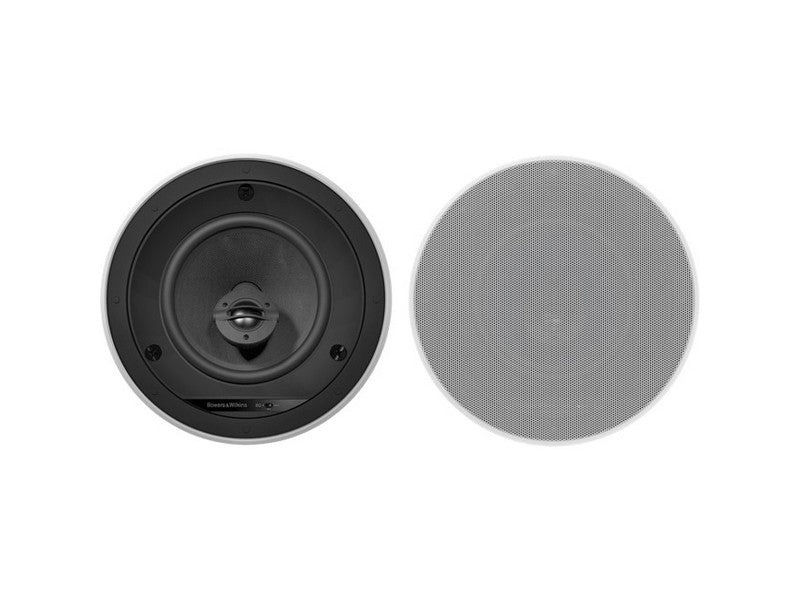

- Optional Square Grille Cover GR66SQ
Specifications:
- Bass/Midrange: 150mm (6in) black glassfibre cone
- Tweeter: 25mm (1”) soft dome tweeter
- Frequency Range: 45Hz – 35kHz (-6dB)
- Recommended Amp Power: 25-130W
- Sensitivity: 87dB
- Impedance: 8ohm
- Frame Diameter: 240mm
- Cut-Out Diameter: 202mm
- Mounting Depth: 133mm
