Description

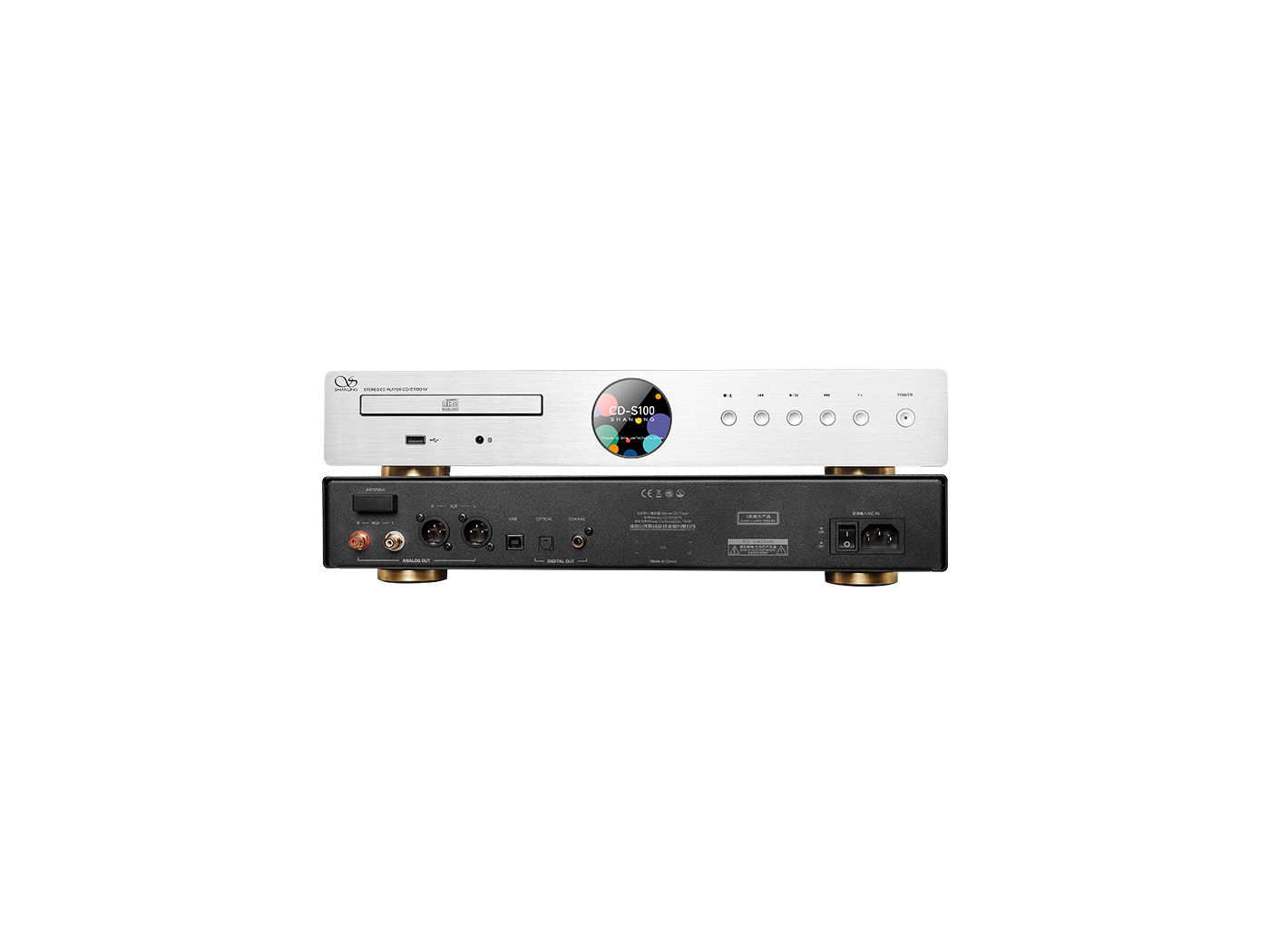

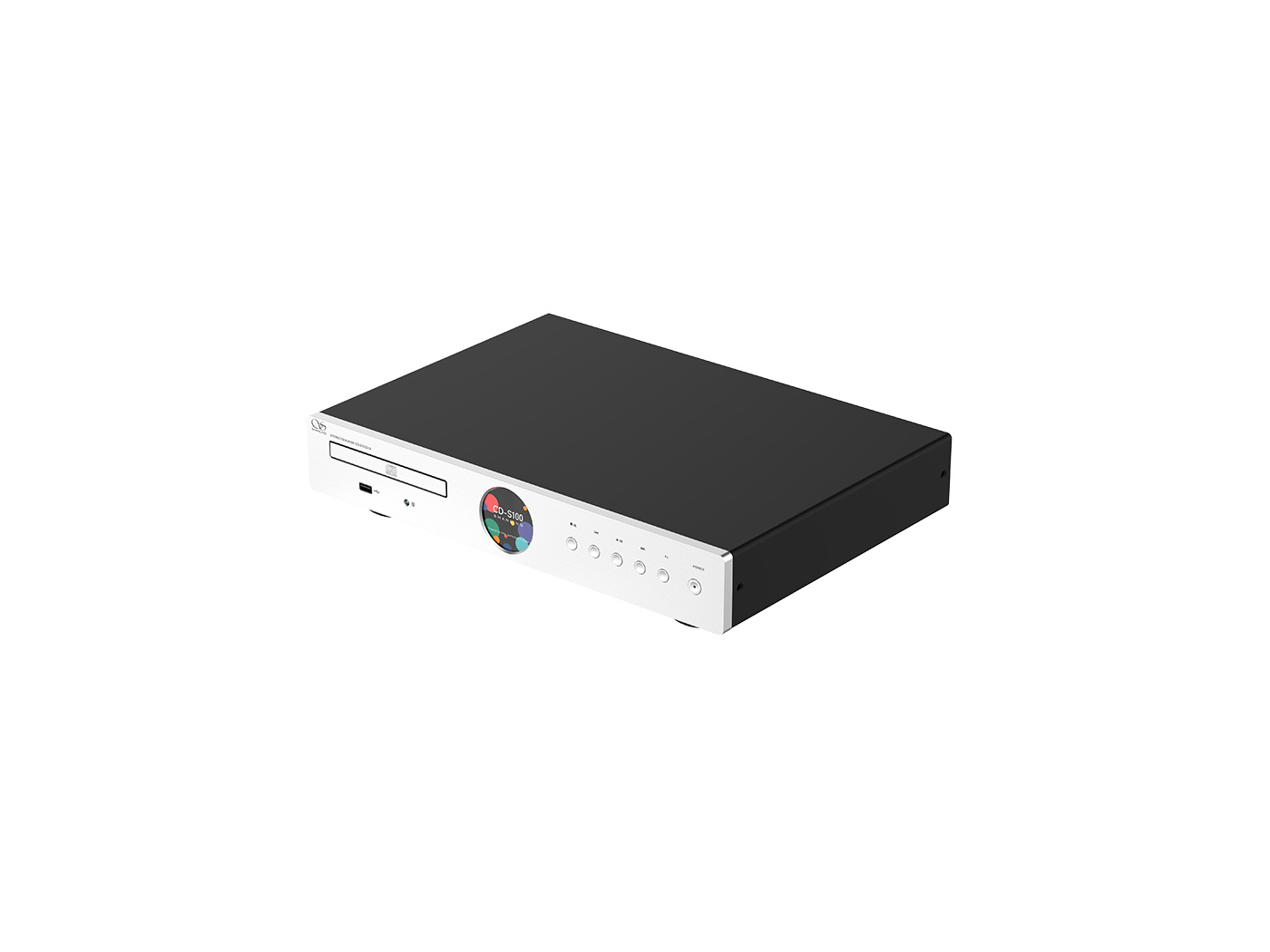

CD-S100 V25 is based on the same system platform as our popular ET3 transport, seamlessly combining traditional CD playback with extra features including USB Drive Playback, Bluetooth Connectivity and DLNA/Airplay streaming. The ideal piece for any user who wishes to combine their CD collection with the convenience of wireless streaming.
This will be the first Shanling model to feature a new DAC system, based around ROHM BD34352 DAC. This new type of DAC offers superior transparency and a truly expanding soundstage, with overall more neutral presentation tuned by Shanling’s experienced engineers.
Specifications
Dimensions(Including feets): 429mm x 300mm x 83.5mm
Weight: approx. 6.1kg
Main Control Chip: Ingenic X2000
DAC: ROHM BD34352
Bluetooth: BT 5.0 supporting LDAC, aptX HD, aptX, AAC, SBC
Power Supply Power Supply: R30-type 43VA transformer
Control Mode: Buttons + Remote Control
Input Mode: CD, USB-PC, USB Disk, Bluetooth Input
Output Mode: RCA (Unbalanced), XLR (Balanced), COAXIAL (Digital Coaxial), OPTICAL (Digital Optical)
USB Drive supported formats:
DSD, DXD APE, FLAC, WAV, AIFF/AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, OPUS, TAK, etc. Support CUE.
USB Drive Supported audio specification:
768kHz/32bit, DSD512
Single-ended Output
Output Level: 2.1Vrms/10kΩ
Frequency Response: 20Hz-40kHz (0.2dB)
THD+N: 0.0007%
Channel Separation: 117dB
Dynamic Range: 118dB
Signal-to-Noise Ratio: 118dB
Balanced Output
Output Level: 4.2Vrms/10kΩ
Frequency Response: 20Hz-40kHz (-0.2dB)
THD+N: 0.0005%
Channel Separation: 119dB
Dynamic Range: 120dB
S/N Ratio: 120dB
