Description

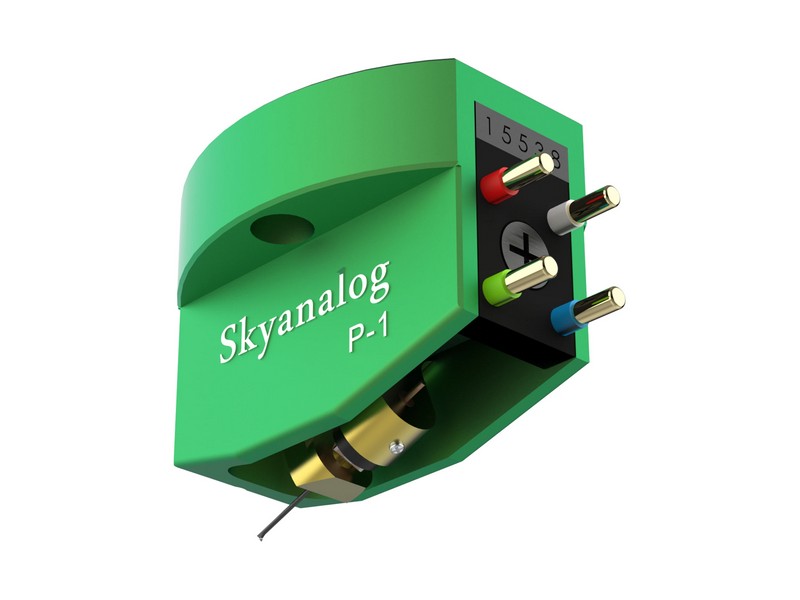

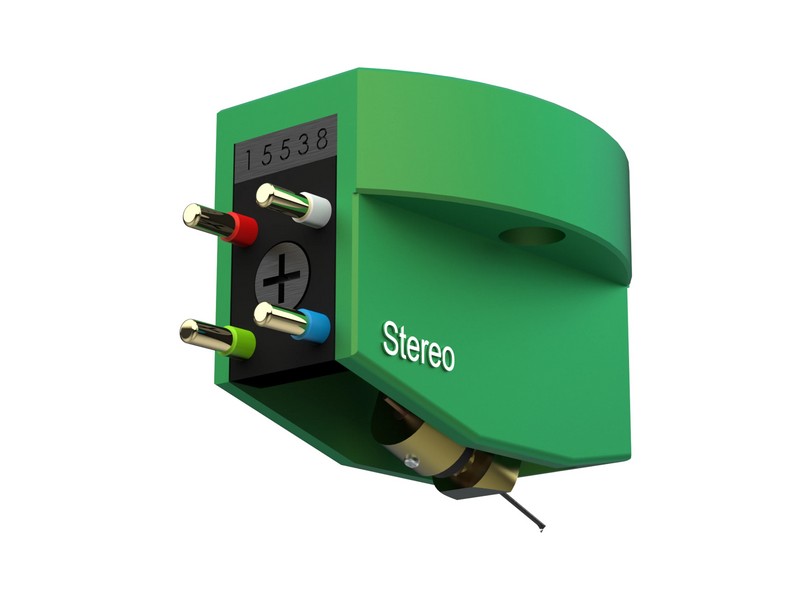

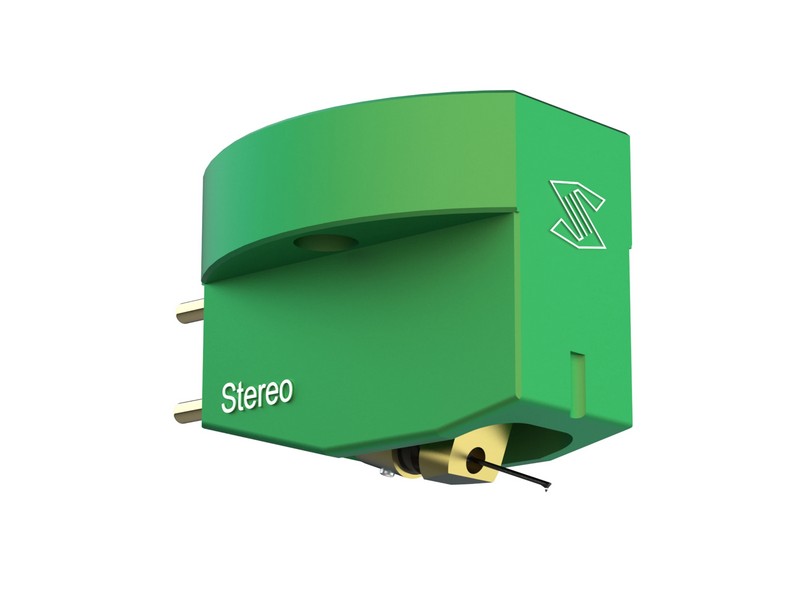

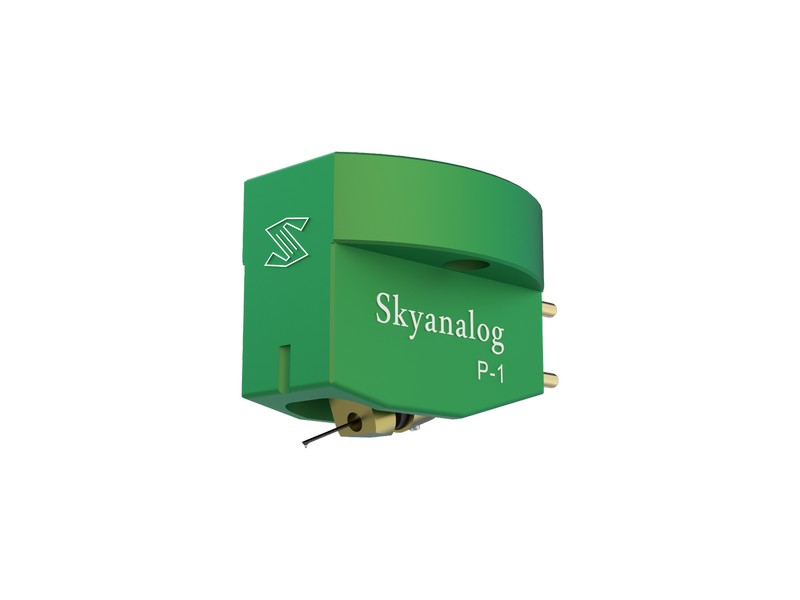

Skyanalog P-1G MC Cartridge
The Skyanalog P-1G MC cartridge is a high-end moving coil (MC) phono cartridge designed for audiophiles seeking exceptional sound quality.
The cartridge is built with a low-mass aluminum cantilever and a fine elliptical diamond stylus, allowing for excellent tracking and detailed playback of vinyl records. Its design ensures minimal distortion, offering a wide dynamic range and a natural, transparent sound signature. The P-1G delivers rich bass, smooth mids, and clear highs, making it ideal for those who value high fidelity in their analog setups.
Skyanalog is known for its craftsmanship, and the P-1G embodies their commitment to producing cartridges that combine innovative technology with audiophile-grade performance.
Specifications:
Cantalever
Boron
Stylys
Elliptical
Stylys type radius
5x150uM
VTA
20 degrees
Coil
Pure iron square coil
Weight
10 grams
Output voltage
0.35mV AT 3.54cm/s
Internal impedance
6 ohms
Frequency response
20-25,000Hz +/-2dB
Channel separation
Better than 30db at 1KHz
Channel balance
Better than 1 dB
Tracking ability at 315 Hz at optimum tracking force
70uM
Dynamic compliance
12uMmN
Recommended loading
100-220 OHMS
Recommended tracking force
1.1 – 1.4 grams
Optimum tracking force
1.35 grams
Recommended tonearm mass
medium
Optimum working temperature
23 C
Break-in period
30 hours
