Description

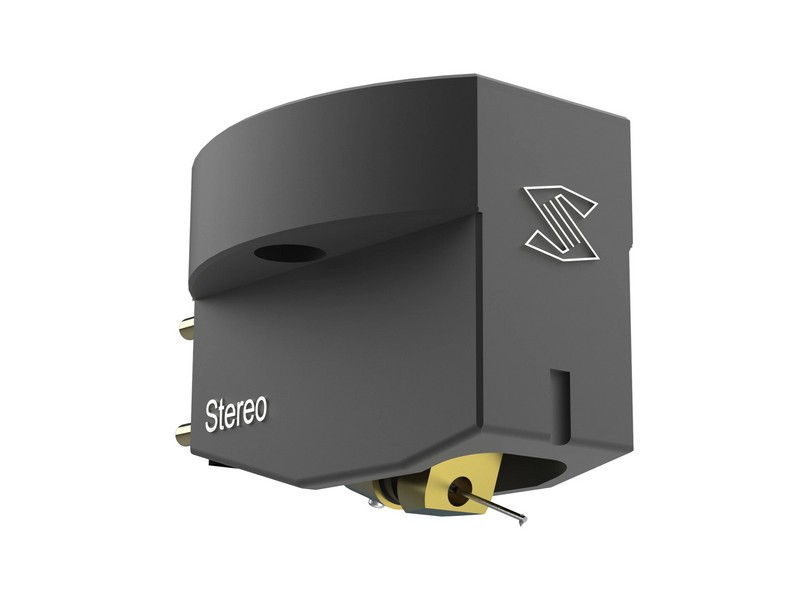

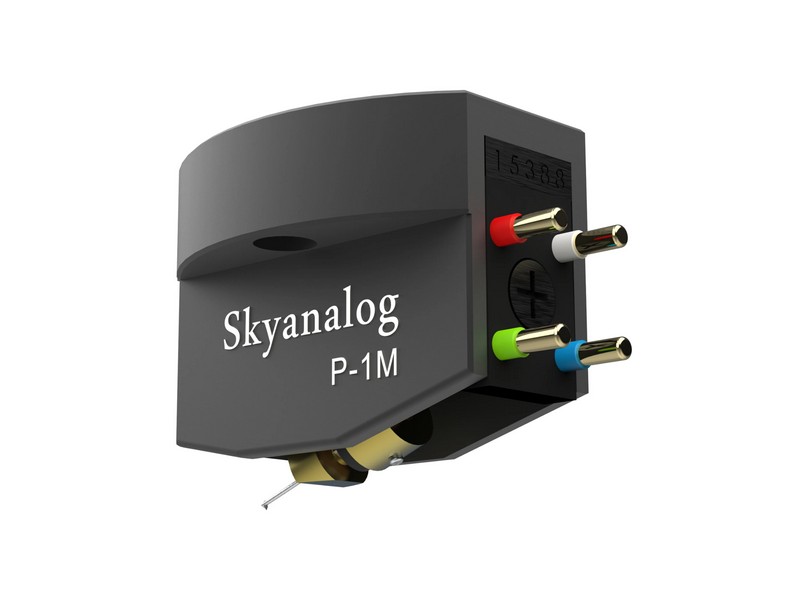

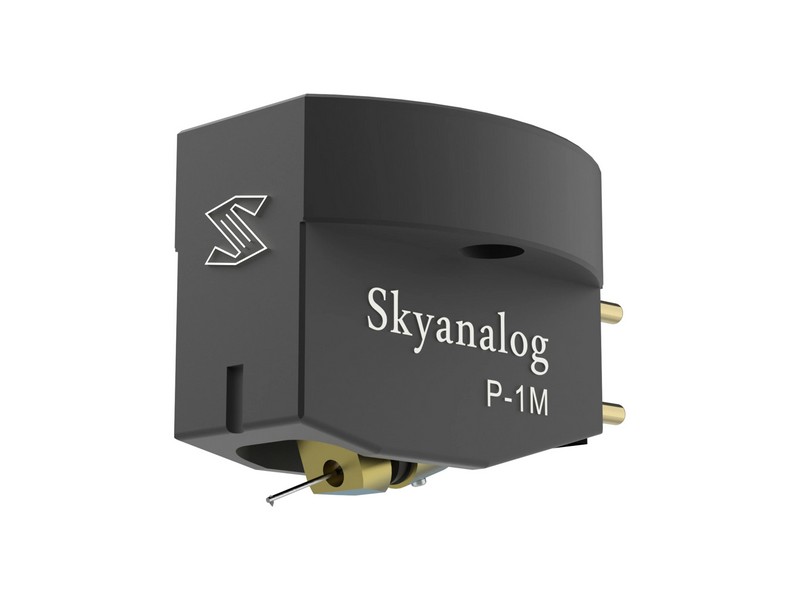

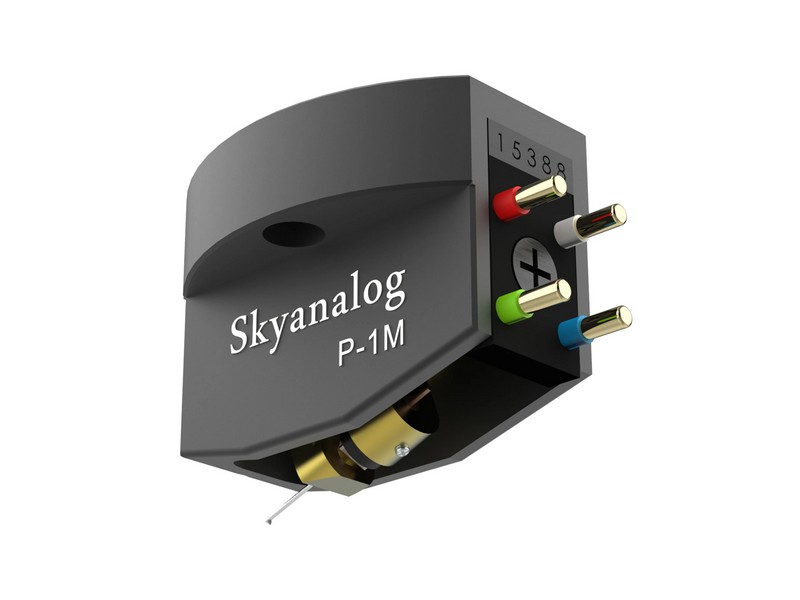

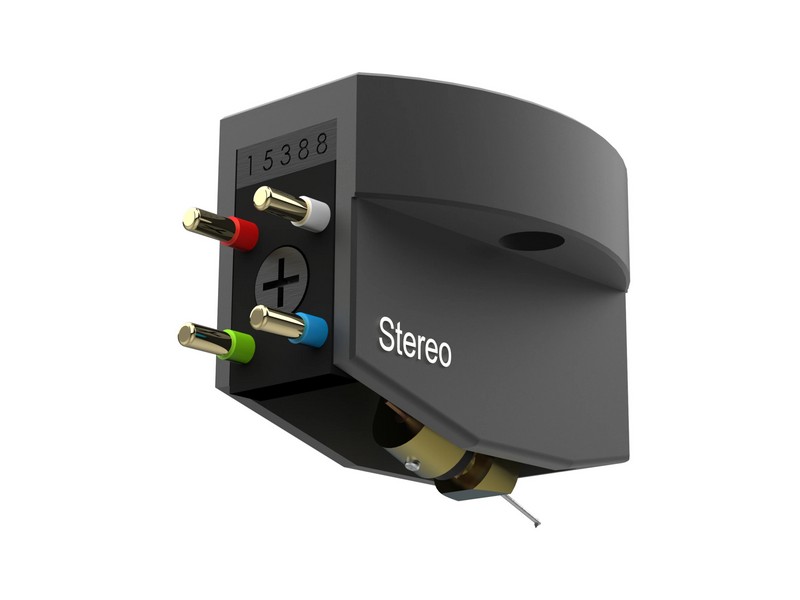

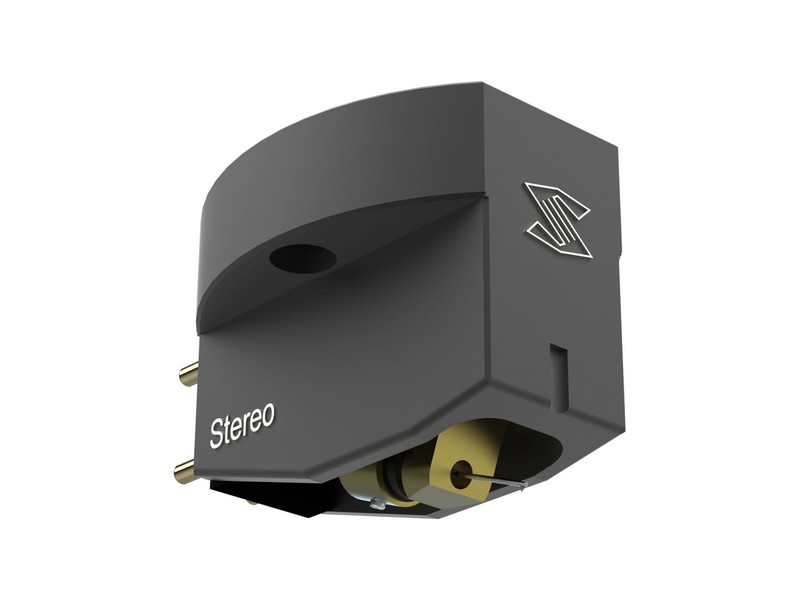

Skyanalog P-1M MC Phono Cartridge
The Skyanalog P-1M MC cartridge is a premium moving coil (MC) phono cartridge designed to offer superior audio performance for discerning vinyl enthusiasts.
This model is crafted with precision engineering and high-quality components to deliver exceptional sound clarity, dynamics, and tonal accuracy…
The P-1M features a low-mass boron cantilever paired with a micro-ridge diamond stylus, enabling excellent tracking and enhanced detail retrieval from vinyl records. This combination ensures minimal distortion and a highly detailed, transparent soundstage, allowing listeners to enjoy a broad dynamic range and deep, accurate bass. Its midrange is smooth and well-balanced, while the treble extends with precision, making it ideal for those who seek a natural and immersive listening experience.
Skyanalog’s attention to detail and focus on craftsmanship is evident in the P-1M’s performance. The cartridge is designed to provide a nuanced and lifelike sound, ideal for audiophiles who demand top-tier performance from their analog setups.
Specifications:
Cantalever
Aluminium
Stylys
Elliptical
Stylys type radius
5x250uM
VTA
20 degrees
Coil
Pure iron square coil
Weight
10 grams
Output voltage
0.4mV AT 3.54cm/s
Internal impedance
4 ohms
Frequency response
20-20,000Hz +/-2dB
Channel separation
Better than 30db at 1KHz
Channel balance
Better than 1 dB
Tracking ability at 315 Hz at optimum tracking force
70uM
Dynamic compliance
12uMmN
Recommended loading
100-200 OHMS
Recommended tracking force
1.1 – 1.4 grams
Optimum tracking force
1.35 grams
Recommended tonearm mass
medium
Optimum working temperature
23 C
Break-in period
30 hours
